China Inwelt MB36AK MIG Welding Torch Welding Guns for Welding machine

Share to:

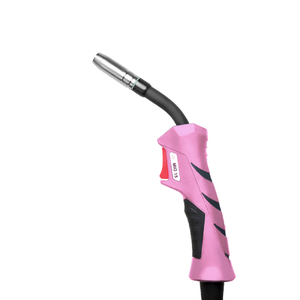

It is professional version gas cooled 36KD MIG Welding Torch with 3/4/5 meters cable. It is compatible with all kind of MIG welding machine with Europe socket. The ergonomic design for heavy duty works with a comfortable fully insulated Nylon handle, fits comfortably in the palm and helps to decrease operator fatigue.
  • MB 36
  • INWELT
  • IJDU2909-36
  • 3m 4m 5m
  • Gas Cooled
  • 0.8-1.6mm
Length:
Availability:
Quantity:

36AK MIG Welding TorchINWELT MIG WELDING TORCH_09



MB36 MIG Welding Torch


It is professional version gas cooled 36KD MIG Welding Torch with 3/4/5 meters cable. It is compatible with all kind of MIG welding machine with Europe socket. The ergonomic design for heavy duty works with a comfortable fully insulated Nylon handle, fits comfortably in the palm and helps to decrease operator fatigue.



MB36 Features & Benefits:


»High quality material the cable is made of oxygen free low resistance copper wire irradiated by ultraviolet high temperature, characterized by resistance to abrasion and abrasion, not affected by climate.


»Wide application mig welder gun ready to feed 0.03''/ 0.04''/ 0.045"/0.06'' (0.8mm/ 1.0mm/ 1.2mm/1.6mm) diameter welding wire, for 300A-340A welding machine.


»Humanized design & durable ergonomic design, euro connection, strong and durable material.


»Simple easy to install, professional assistance is recommended.



Technical Data:

Current 340Amp CO2,300Amp MIX Gas Flow
Duty Cycle 60% Ignition
Gas Gas Cooled Post flow
Gas Pressure
Standard Length 3M 4M 5M



Application Areas:


» General engineering

» Construction industries

» Power cycle

» Railway industries

» Heavy duty industry


Spare Parts Details:

Position Code Ref. Description
1 IJDT0083 145.0078 Gas nozzle(D16mm;喷嘴(D16mm
2 IJDV0015-12 140.0379 Contact tip ei.2mmE-CU/M6X28;导电嘴 O1.2mm/M6X28mm
3 IJDV0697 142.0011 Contact tip holder M6X32mm;导电嘴座/M6x32mm
4 IJDG0573 014.0023 White ceramic gas diffuser;白色陶瓷分流器 36KD
5 IJDA0090 014.0006 Torch head 36KD;枪颈 36KD
6 IJDW0801-01
MIG handle Blue/Grip;MIG手柄/蓝色
7 IJIR0081 185.0031 Trigger;焊枪用开关
8 IJGU0885
Screw M3X10;螺丝 M3X10
9 IJIK0032
Joint for MIG handle;MIG手柄用球头
10 IJGU0893
Spring for cable support;电缆支撑弹簧
11 IJD00681 160.0364 Coaxial cable 3m;同轴电缆组3m
12 IJIK0714
Back box;后把套
12.1 IJIK0726
Housing for handle;手柄琐紧环
13 IJGU0074
Screw M4X6;螺丝 M4X6
14 IJIK0083
Adaptor nut;焊枪锁紧螺母/蓝色
15 IJUC0060 501.2155 Euro central adaptor body/air cooling ;欧式中央接头/空冷
16 IJAU0082 501.0082 Liner nut ;送丝管锁紧螺母
17 IJJD0237
Brass terminal <D3.0X4.5mm 0.35m;铜送丝管 03.OX4.5mm/O.35m
18 IJJD0221 126.0039 Teflon liner 43.0X4.5mm 3m Yellow;特氟龙管(D3.0X4.5mm/3m/黄色
19 IJJD0501 124.0041 Yellow liner 01.2-1.6mm 3m;带绝缘层送丝管(D1.2-1.6mm/3m/黄色
20 IJDH6011
Spanner for MIG torches;MIG 焊枪扳手

Complete Torch

IJDU2809-36
MIG 26KD torch 3m euro adaptor /spring pins;焊枪26KD/3m/弹性针

IJDU2800-36
MIG 26KD torch 4m euro adaptor /spring pins;焊枪26KD/4m/弹性针

IJDU2806-36
MIG 26KD torch 5m euro adaptor /spring pins;焊枪26KD/5m/弹性针

Our Catalog:

INWELT MIG WELDING TORCH.pdf



FAQ:


Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
