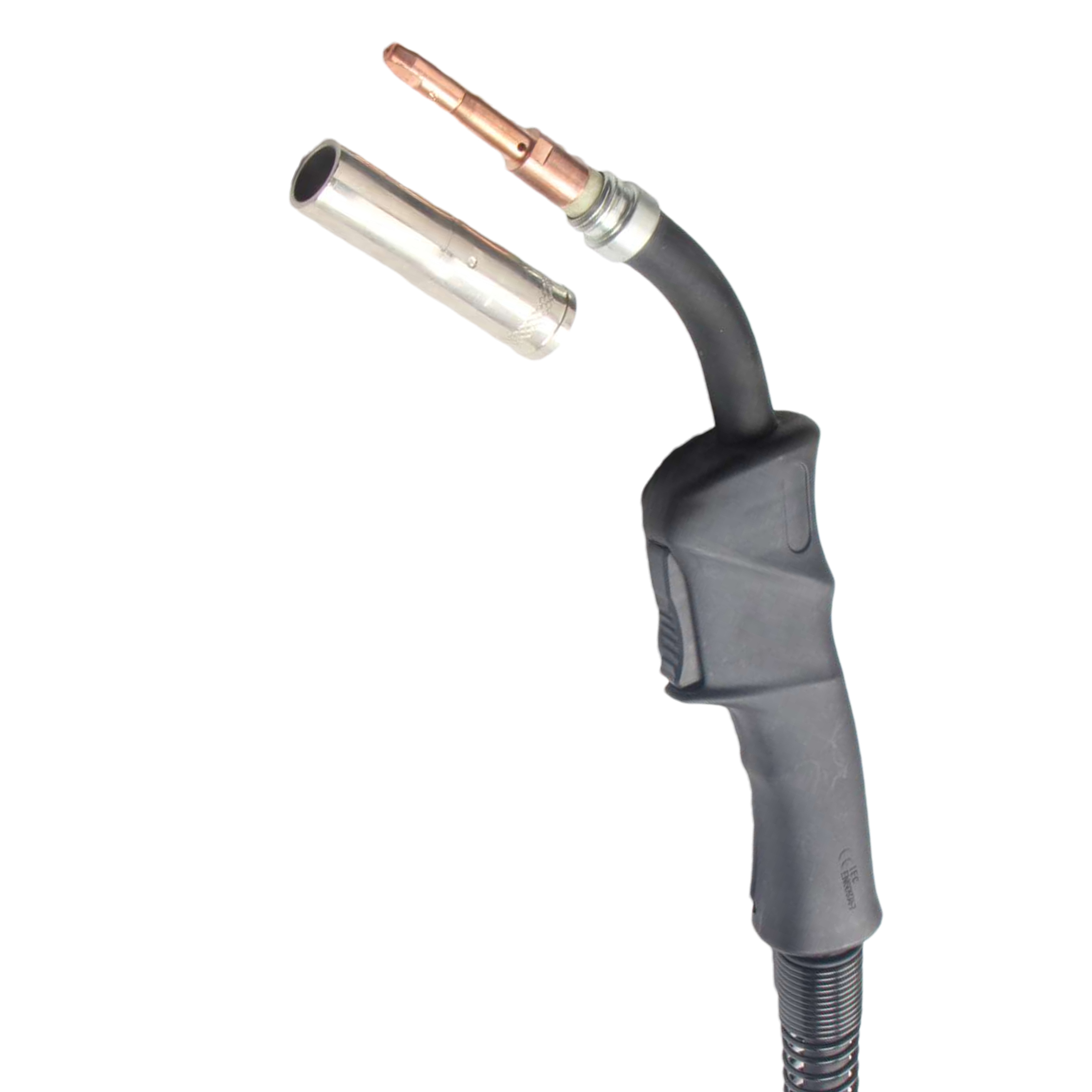

TR500 Mixed Gas/Air cooled mig welding torch - Changzhou Inwelt

Share to:
TR500 Mixed Gas/Air cooled mig welding torch utilizes the high current and high voltage of the welding machine to gather heat at the terminal of the welding torch to melt the welding wire, and the melted welding wire penetrates into the part to be welded. After cooling, the welded objects are firmly connected into one.
  • TR500
  • INWELT
  • Black ,White ,Pure Color,Different decals ,Oem Acceptable
  • 500A CO2/400A Mixed Gases
  • 3m/4.6m/7.6m
  • Air/Mixed Gases
  • 1.0-2.4mm
Availability:
Quantity:

TR500-mig-gun-3.JPGTR200 Mixed Gas/Air cooled mig welding torch


Features & Benefits:

» Quality raw materials,advanced production and testing equipment to ensure product quality.


» In strict accordance with the standard model size,easy to install.


» Products are widely used,most models meet the needs of various welding.


Position Description
1 Swan Neck 45°; Swan Neck 60°
2 Torch Body Assembly
3 Handle
4 Switch
5 Switch The Trigger
6 End Fitting
7 Cone Nut
8 Cable Ball Joint & Support Spring Big
9 Cable Assembly

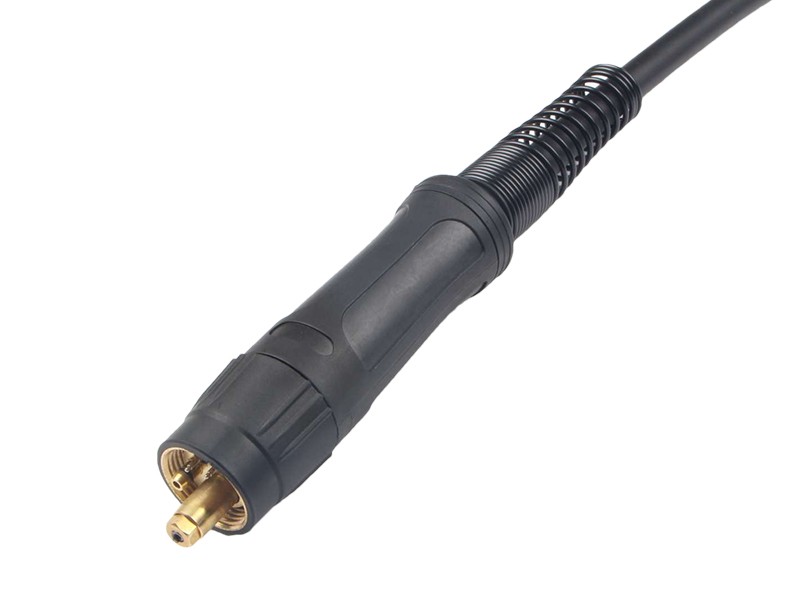

10 Euro Direct Plug Kit
10-1 Rear Handle
10-2 Adaptor nut
10-3 Euro Central Connector
11 Rear Handle American Brand
12 Control Wire (Tweco/Miller)
12-1 Control Wire (Lincoln)
13 Tweco Central Connector
14 Miller Central Connector
15 Lincoln Central Connector
15-1 Gas Tube


A Nozzle 1/2″ 12.7mm 1/4″ Recess Copper

Nozzle 3/4” 19mm 1/4” Recess Copper

Nozzle 5/8” 15.9mm 1/4″ Recess Copper

Nozzle 1/2” 12.7mm 1/8” Recess Copper

Nozzle 5/8” 15.9mm 1/8” Recess Copper

Nozzle 3/4” 19mm 1/8” Recess Copper

Nozzle 5/8” 15.9mm 1/4” Recess Brass

Nozzle 3/4″ 19mm 1/8” Recess Brass

Nozzle 5/8″ 15.9mm 1/8” Recess Brass

Nozzle 5/8” 15.9mm Flush Bottleneck Copper

Nozzle 5/8” 15.9mm 1/8” Stick Out Brass

Nozzle 5/8” 15.9mm 1/8” Stick Out Copper
B Contact Tip .030” 0.8mm Heavy Duty/Heavy Duty Tapered

Contact Tip .035” 0.9mm Heavy Duty/Heavy Duty Tapered

Contact Tip .040” 1.0mm Heavy Duty/Heavy Duty Tapered

Contact Tip .045” 1.2mm Heavy Duty/Heavy Duty Tapered

Contact Tip .052” 1.4mm Heavy Duty/Heavy Duty Tapered

Contact Tip 1/16” 1.6mm Heavy Duty/Heavy Duty Tapered

Contact Tip 5/64″ 2.0 mm Heavy Duty/Heavy Duty Tapered

Contact Tip 3/32″ 2.4 mm Heavy Duty/Heavy Duty Tapered
C Gas Diffuser /Gas Diffuser Dual Taper/
D Nozzle Retainer
E Neck Insulator
F Liner for 1/16″-5/64″ (1.6-2.0mm) 10FT(3.0m)

Liner for 1/16″-5/64″ (1.6-2.0mm) 15FT(4.6m)

Liner for .078″-3/32″ (2.0-2.4mm) 15FT(4.6m)

Liner for .078″-3/32″ (2.0-2.4mm) 25FT(7.6m)


Technical Data Rating: 500A CO2/400A Mixed Gases

Duty Cycle: 60%

Wire Size: .040”-3/32”(1.0-2.4mm)
Type TR500 MIG GUN Miller Connector

TR500 MIG GUN Tweco Connector

TR500 MIG GUN Lincoln Connector

TR500 MIG GUN Euro Connector


Application Areas:


» General engineering

» Construction industries

» Power cycle

» Railway industries

» Heavy duty industry


Our Catalog:

INWELT MIG WELDING TORCH.pdf


FAQ:


Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
