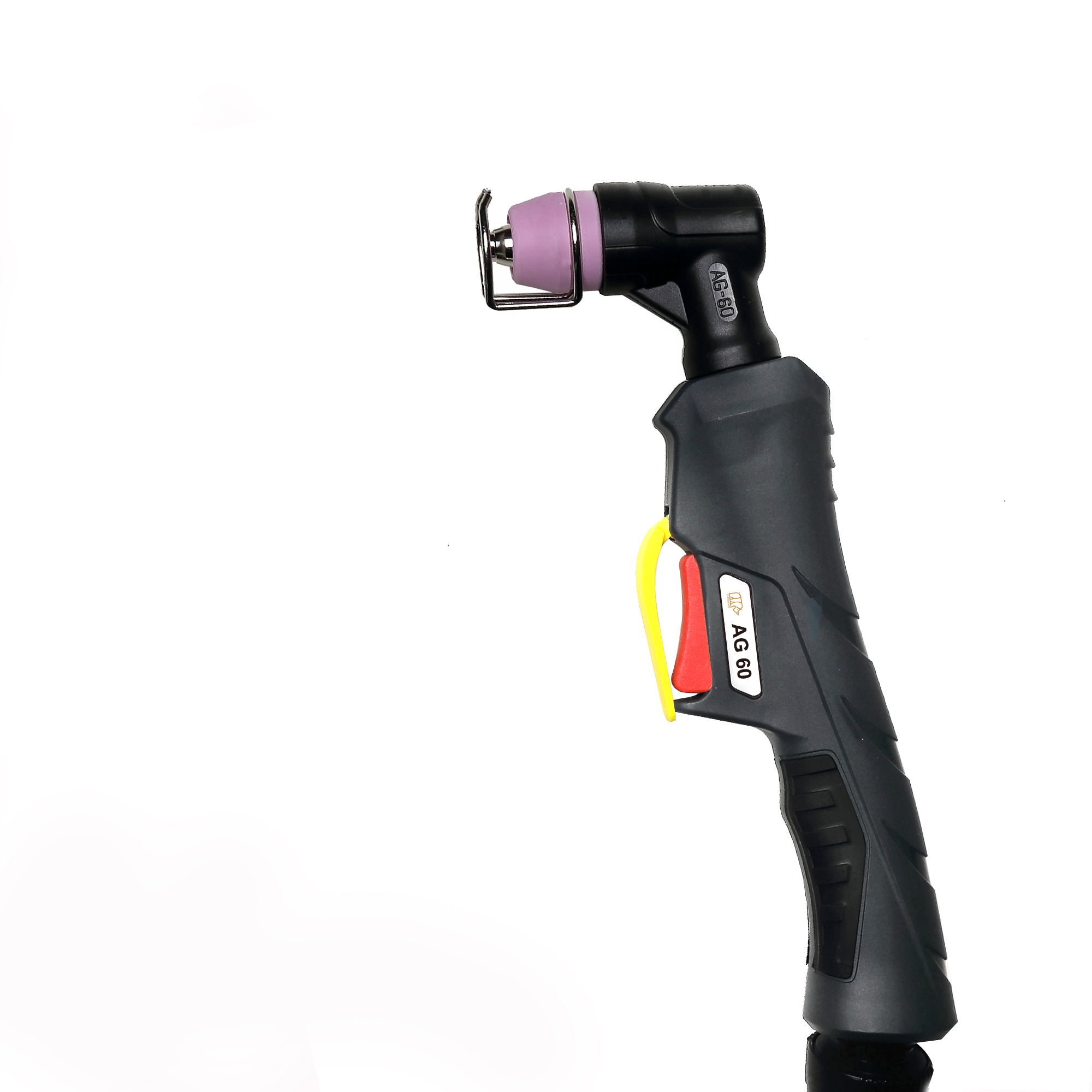

It is the popular AG60 Plasma Cutting Torch. HF Ignition, easy to start arc. It is compatible with standard of AG60 torch for 60A Plasma Cutting Machine. (i.e. CUT50, CUT60, CUT70.) The Brand of machines would be Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, Longetivity and so on.
» The AG60 High Frequency AIR Plasma Cutter Torch cutting 10-15MM thick plate under40-60A.
» The AG60 gun include consumables comes with one set of consumables (1 nozzle, 1 electrode, 1 swirl ring, 1 shield cup) installed on torch head, can be use directly
» The AG-60 plasma torch can work with CUT50, CUT50P, CT60, LGK 60, LTP5000D, LTPDC2000D, CT520D, CT520 and more type plasma cutter machine
» Make people feel comfortable in the hand when the AG-60 plasma torch is fitted with a high density plastic handle; Insulated cable cover canvas cover, avoid cable exposure in high temperature, disorderly environment, can effectively reduce cable wear
| Current | 60Amp | Gas Flow | 163LPM |
| Duty Cycle | 60% | Ignition | HF |
| Gas | Air | Post Flow | 40 seconds recommended |
| Gas Pressure | 3.5-4 Bar | Standard Length | 5M |
| Code | Ref. | Description | |||||
| IWU6641 | Plasma torch/ag60/5m M16*1.5;等离子切割枪/ Ag60/5米/ M16*1.5 | ||||||
| Position | Code | Ref. | Description | |
| 1 | IJTN0073 | Spacer spring for ag60;隔离簧/ag60 | ||
| 2 | Outside nozzle ; 外喷嘴 | |||
| 2.1 | IJWT0087-01 | Outside nozzle sg-55/ag60;外喷嘴sg-55/ag60 | ||
| 2.2 | IJWT0087 | Outside nozzle/ceramic/sg55；陶瓷外喷嘴/sg55 | ||
| 3 | IJWV091-10 | Extend tip sg-55/ag60 ;电极喷嘴sg-55/ag60 | ||
| 4 | IJWC0097 | Electrode sg-55/ag60 ;电极 sg-55/ag60 | ||
| 5 | IJWA0045 | Plasma torch head sg-55/ag60 ;等离子枪头 sg-55/ag60 | ||
| 6 | IJIK0735 | Trigger;开关 | ||
| 7 | IJHW0797 | Plasma handle sg-55;等离子手柄 sg-55 | ||
| 8 | IJIK0871 | Small joint tig 9-17-20;小球节 tig 9-17-20 | ||
| 9 | IJIK0879 | Big spring support for tig 18-26;大弹簧支撑 tig18-26 | ||
| 10 | IJWO00706066-00 | Cable assembly/ag60/6mmq/5m M16*1,5;电缆组/ag60/6mmq/5m M16*1,5 | ||
| 11 | IJIR0768 | Conntector 2 holes;两 芯航插 | ||
| 12 | IJIK0030 | Protection nut ch19;防触电保护套 ch19 | ||
INWELT PLASMA TORCH CATALOG.pdf
Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
