Welding Fume Extractor Guns: The Complete Guide

If you’ve ever spent time in a welding shop, you know one thing for sure: welding fumes are no joke. The clouds of smoke that rise during welding aren’t just annoying—they’re potentially dangerous. That’s exactly why welding fume extractor guns have become essential tools across welding-heavy industries. In this guide, we’ll break down everything you need to know about them, from how they work to how to choose the right one.

---

1. Introduction to Welding Fume Extractor Guns

What Are Welding Fume Extractor Guns?

A welding fume extractor gun is a welding torch designed with built-in fume extraction capabilities. Instead of fumes drifting into the air—and into your lungs—the gun sucks harmful particles in right at the source. Think of it as a vacuum cleaner and a welding torch combined into one ergonomic tool.

Why Welding Fumes Are a Serious Concern

Welding fumes contain microscopic metal particles and chemical compounds that you absolutely don’t want inside your respiratory system. Whether you're welding steel, stainless steel, or aluminum, fumes come with real risks. This is why the industry is moving fast toward “at-the-source” extraction technology.

---

2. Understanding Welding Fume Hazards

Common Toxic Substances in Welding Fumes

You’ll usually find hazardous materials such as:

• Hexavalent chromium

• Manganese

• Nickel

• Iron oxide

• Aluminum oxide

• VOCs from coatings or paints

Some of these fumes are linked to serious long-term illnesses.

Short-Term Health Risks

Even a short exposure can cause:

• Eye and throat irritation

• Dizziness

• Nausea

• Metal fume fever

Long-Term Health Risks

Regular exposure without protection can lead to:

• Lung cancer

• Nervous system damage

• Chronic respiratory diseases

• Kidney and liver damage

Scary? Absolutely. Preventable? 100%.

---

3. How Welding Fume Extractor Guns Work

Integrated Extraction at the Source

These guns capture fumes directly as they are produced. Since the suction is just inches away from the weld pool, fumes barely have time to spread.

Airflow and Filtration Mechanisms

Air is drawn through an internal channel into a vacuum system. The system then filters the contaminants before releasing clean air back into the environment.

High-Vacuum Systems

High-vacuum systems use strong suction with smaller hoses. Perfect for precision work and local extraction.

Low-Vacuum Systems

Low-vacuum setups work with larger hoses and lower suction. They move more air, making them a good fit for heavy-duty applications.

---

4. Types of Welding Fume Extractor Guns

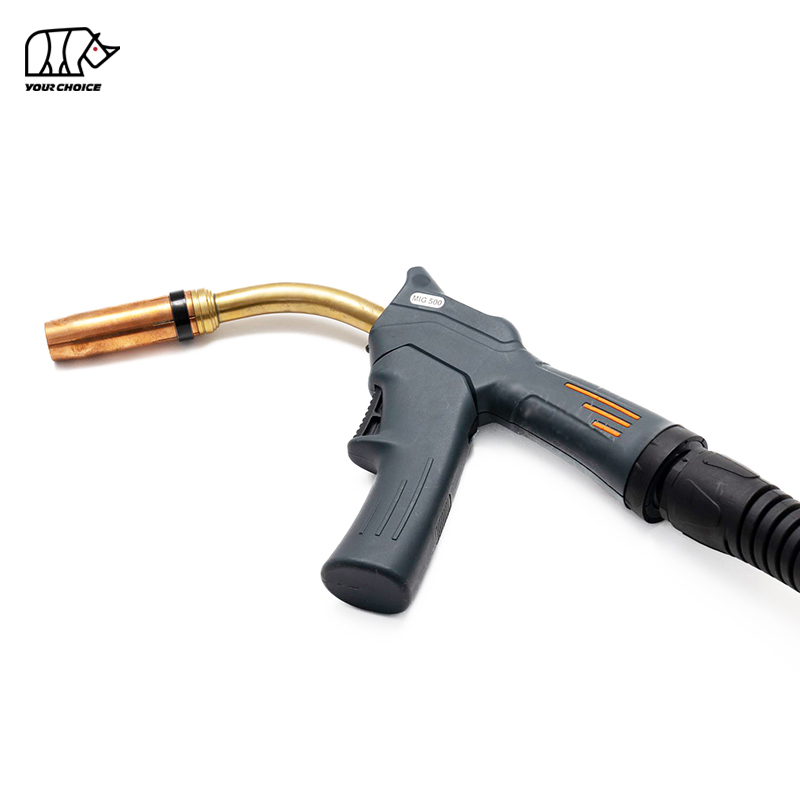

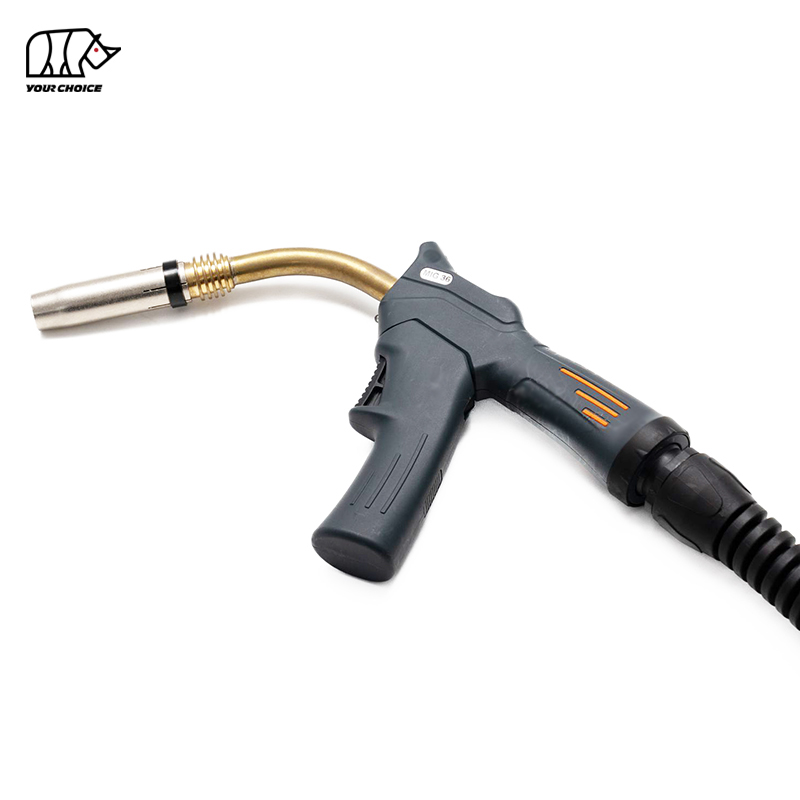

MIG Welding Fume Extractor Guns

These are the most common and ideal for high-volume fabrication shops that constantly handle MIG welding.

TIG Welding Fume Solutions

Traditional TIG torches don’t produce as many fumes, but when needed, external extraction systems help maintain safety.

Multipurpose Extractor Guns

Some models support different welding processes. Great for shops handling multiple types of projects.

---

5. Key Features to Look For

Ergonomic Design

A heavy or poorly balanced torch makes your hand feel like it’s holding a brick. Look for lightweight, ergonomic builds.

Extraction Efficiency (CFM & Airflow)

Higher airflow = more fumes captured. Check CFM ratings for performance.

Durability & Build Quality

Copper cables, reinforced necks, and high-quality consumables extend lifespan significantly.

Compatibility With Different Welders

Make sure the gun matches your welder’s amperage, connection type, and process.



---

6. Benefits of Using Welding Fume Extractor Guns

Improved Safety

This one is obvious—less fume exposure means healthier welders and a safer workplace.

Better Visibility While Welding

With fewer fumes floating around, your view of the weld pool improves dramatically.

Increased Productivity

Clear visibility + ergonomic comfort = faster, more accurate work.

Reduced Facility Contamination

Extractor guns help keep your shop cleaner, reducing dust deposits on machines and surfaces.

---

7. Comparing Extractor Guns to Other Fume Control Methods

Extractor Guns vs Local Exhaust Arms

Arms are flexible but fixed in one spot. Guns move with the welder—no repositioning needed.

Extractor Guns vs Portable Fume Extractors

Portable units work well but don’t extract at the source like dedicated guns.

Extractor Guns vs General Ventilation

General ventilation dilutes the fumes—it doesn’t actually remove them.

---

8. Industries That Use Welding Fume Extractor Guns

Manufacturing & Fabrication

These environments often run welding machines nonstop, making extraction essential.

Automotive & Heavy Equipment

Fume extractor guns help protect workers welding frames, assemblies, and exhaust systems.

Construction & Shipbuilding

Outdoor or large-scale welding produces tons of fumes—extractor guns help keep exposure down.

Aerospace & Defense

These industries follow strict safety standards, making extractor guns widely used.

---

9. How to Choose the Best Welding Fume Extractor Gun

Match Your Gun to Your Welding Process

Current range, duty cycle, wire type—all should align with your welding needs.

Understand Your Workspace

Tight spaces may require lightweight guns or high-vacuum setups.

Evaluate Filter Types

HEPA, carbon, and multi-stage filters all have different advantages.

Consider Maintenance Requirements

More complex guns may require regular cleaning and consumable replacements.

---

10. Installation & Setup Tips

Proper Positioning

Ensure the extractor nozzle aligns perfectly with the weld area.

Hose Connection Guidelines

Secure connections prevent airflow leaks and maintain suction strength.

Testing Suction Strength

Before welding, always test airflow to make sure extraction is functional.

---

11. Operation Best Practices

Maintaining Proper Distance

The extractor hood should stay within recommended distance—usually 1–3 inches.

Ensuring Consistent Airflow

Avoid kinks in hoses and replace clogged filters as needed.

Cleaning & Maintenance

Daily and weekly checks keep the system working efficiently.

---

12. Common Mistakes to Avoid

Using the Wrong Gun Size

Oversized or undersized guns don’t extract fumes effectively.

Ignoring Filter Replacement

A dirty filter is like trying to breathe through a wet towel—it just doesn’t work.

Overlooking Airflow Drops

If suction weakens, fumes escape. Always address airflow changes immediately.

---

13. Cost Considerations

Initial Equipment Cost

Extractor guns often cost more than standard welding torches.

Operating Costs

You may need to replace filters regularly and maintain the vacuum system.

H3: Long-Term Savings

Healthier workers, fewer sick days, and a cleaner facility save huge amounts long term.

---

14. Top Trends in Welding Fume Extraction

Smart Extraction Systems

Sensors now adjust suction automatically based on welding activity.

Lightweight Ergonomic Designs

New models are built to reduce wrist fatigue and improve comfort.

Improved Filter Technologies

Multi-layer and self-cleaning filters improve capture efficiency and airflow.

---

15. Frequently Asked Questions

Q: Do extractor guns affect weld quality?

A: Not when used correctly. In fact, they often improve visibility and precision.

Q: Are they compatible with all welders?

A: Most are universal, but always double-check the specifications.

Q: Do extractor guns reduce smoke completely?

A: They dramatically reduce fumes, but some processes still require additional ventilation.

---

16. Conclusion

Welding fume extractor guns are one of the smartest investments any welding shop can make. They improve safety, reduce contamination, and support cleaner air for welders who spend hours at their craft. With the right extractor gun, you’re not just protecting your lungs—you’re improving your welding quality and boosting productivity. Whether you're in heavy manufacturing, construction, or a small fabrication shop, adopting source-extraction technology is a game-changer.
