Choosing the Right MIG Torch for Aluminum

Master aluminum MIG welding by choosing the correct torch. This in-depth guide explores spool guns, push-pull systems, and professional setup tips to prevent bird-nesting and achieve flawless, professional welds every time.

Aluminum MIG welding presents a unique set of challenges that can frustrate even experienced welders working with steel. The core issue isn't the arc or the heat; it's the physical properties of the aluminum wire itself. Soft, prone to friction, and demanding perfect feeding, aluminum wire requires a specialized approach. Using a standard MIG torch designed for rigid steel wire is a recipe for frustration, leading to tangles, inconsistent arcs, and failed welds. This comprehensive guide is designed to demystify the process of choosing the right MIG torch for aluminum. We will delve deep into the "why" behind the challenges, explore the two primary torch system solutions in exhaustive detail, and provide a professional-grade setup checklist to transform your aluminum welding results from problematic to perfect.

The Fundamental Challenge: Why a Standard MIG Torch Fails with Aluminum

To understand the solution, we must first thoroughly diagnose the problem. A standard MIG welding setup is engineered for strength and rigidity, qualities that soft aluminum wire lacks. This fundamental mismatch causes a cascade of operational failures.

The Physics of Soft Wire and "Bird-Nesting"

The primary enemy of aluminum MIG welding is "bird-nesting." This is the term for the tangled knot of aluminum wire that jams in the drive mechanism of your welder. Here’s the physics behind it:

• Softness: Aluminum wire is exceptionally malleable compared to steel.

• Friction: As the wire is pushed from the welder's drive rolls through several feet of cable liner (often steel or conventional plastic), it encounters significant friction, especially around bends.

• Buckling: When the friction at the front (in the cable) exceeds the pushing force from the back, the soft wire has nowhere to go but to buckle and compress. It folds upon itself right after the drive rolls, creating a bird's nest that halts production and wastes time and material.

Inconsistent Feeding and Unstable Arc Performance

Even without a full-blown bird's nest, imperfect feeding creates major quality issues. If the wire speed fluctuates as it struggles against friction, the arc length constantly changes. This leads to:

• Popping and Spattering: An erratic arc that crackles and throws excessive spatter.

• Lack of Fusion: Insufficient wire feed at critical moments prevents proper penetration.

• Porosity: An unstable arc can fail to properly shield the molten weld pool, allowing atmospheric gases to become trapped and create bubbles (porosity), severely weakening the weld.

The Critical Need for a Longer Stick-Out

Aluminum has a thermal conductivity approximately four to five times greater than steel. It acts like a heat sink, pulling heat away from the weld zone rapidly. To compensate, welders must use a longer electrode extension, or "stick-out" (typically around 3/4 inch compared to 1/4-3/8 inch for steel). This longer unsupported length of soft wire is even more susceptible to bending and wandering if the feeding isn't perfectly smooth and rigid, which a standard torch cannot provide.

The Solution: Torch Systems Engineered for Aluminum

Thankfully, the welding industry has developed two main types of systems specifically to overcome the feeding challenges of aluminum wire. Each represents a different approach to solving the same core problem.

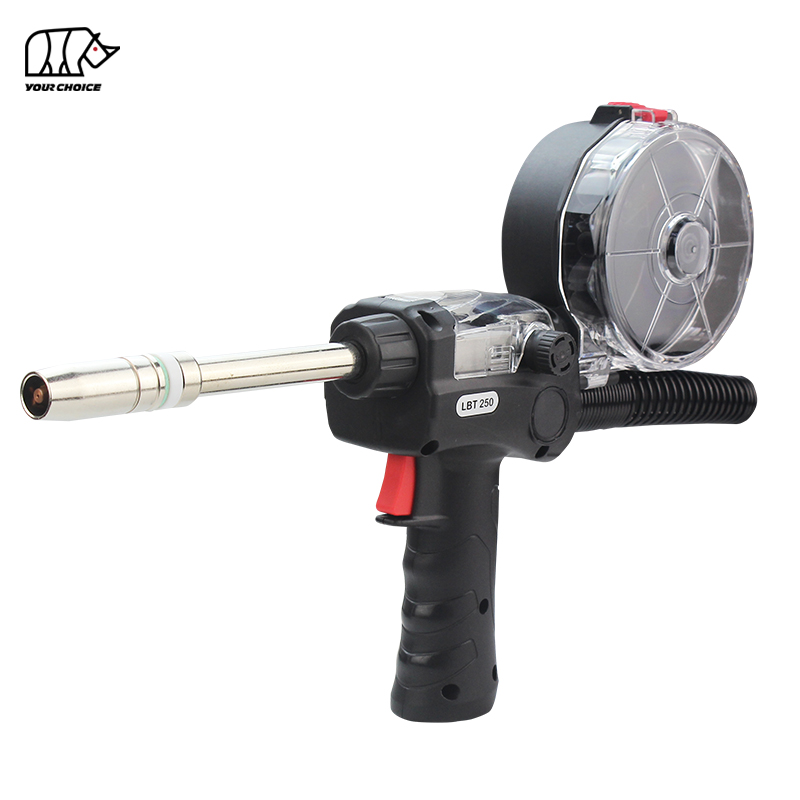

The Spool Gun: The Direct and Accessible Choice

A spool gun is a self-contained, pistol-grip MIG torch that has a small spool of wire (usually 1lb/0.45kg) mounted directly on the gun itself.

• How It Solves the Problem: The solution is brilliantly simple: eliminate the long push. The wire only has to travel a few inches from the spool on the gun, through a very short liner, and out the tip. This ultra-short distance makes bird-nesting virtually impossible.

• Advantages:

• Highly Effective: Perfectly solves the feeding issue for aluminum.

• Cost-Effective: Generally the most affordable dedicated aluminum MIG solution.

• Widely Compatible: Many multi-process welders have a dedicated port or setting for a spool gun.

• Disadvantages:

• Weight and Balance: The gun is heavier and bulkier due to the mounted spool, which can cause fatigue during long welding sessions.

• Limited Capacity: The 1lb spool needs frequent changing on large projects.

• Mobility: The gun is connected to both a power cable and a gas hose, which can be stiff and limit maneuverability.

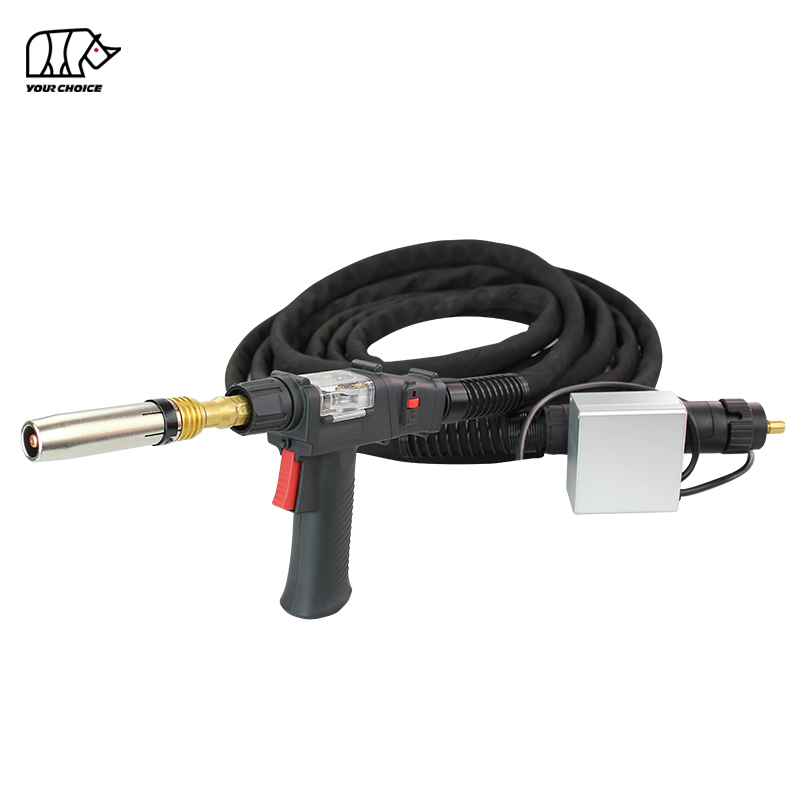

The Push-Pull System: The Professional-Grade Performer

A push-pull system is a more sophisticated solution that uses a coordinated two-motor system. The main welder contains the standard drive rolls that "push" the wire, while a small, secondary motor is integrated into the torch handle to "pull" it.

• How It Solves the Problem: This system tackles friction with teamwork. The rear motor pushes, and the front motor pulls, ensuring the wire is under tension at all times. This neutralizes the friction inside the cable, allowing for smooth feeding over much longer distances (standard 15ft/4.5m guns are common).

• Advantages:

• Superior Feeding: Offers the smoothest, most consistent wire feed available for aluminum.

• Ergonomics: The torch itself is much lighter and better balanced than a spool gun, similar to a standard MIG gun, reducing operator fatigue.

• High Capacity: Uses the full-size spool or reel mounted on the welder, ideal for production welding.

• Versatility: Can often be used for steel as well without modification, though it's optimized for aluminum.

• Disadvantages:

• Cost: Significantly more expensive than a spool gun setup.

• Complexity: Requires a compatible power source or an interface module. Repairs can be more complex.

Spool-on-Gun Systems: A Hybrid Alternative

Some manufacturers, like Bernard, offer a "spool-on-gun" system that mounts a small spool on the back of a heavy-duty air-cooled gun. This is different from a typical spool gun as it often uses a standard gun body with an adapter. It shares the spool gun's feeding reliability but can offer a different ergonomic feel and is often geared toward industrial applications.

In-Depth Comparison: Spool Gun vs. Push-Pull Torch

Choosing between these two excellent solutions depends on your specific needs, budget, and workflow.

Decision-Making Factors for Your Workshop

1. Budget: If cost is the primary constraint, a spool gun is the clear winner.

2. Volume and Frequency: How much aluminum do you weld, and how often? For occasional use, a spool gun is sufficient. For daily, all-day welding, the productivity gains of a push-pull system justify its cost.

3. Machine Compatibility: Check your welder's manual first. Does it support a spool gun? Is it designed for use with a specific brand's push-pull system? This will narrow your choices significantly.

4. Project Size: If you routinely work on large projects where changing a 1lb spool every hour would be disruptive, the high capacity of a push-pull system is a major advantage.







The Professional's Setup Guide: Beyond the Torch Choice

Selecting the right torch is 80% of the battle, but the final 20%—correct setup and consumables—is what separates good welds from great ones.

The Critical Role of Consumables

Using the correct consumables is non-negotiable for aluminum MIG welding.

• Contact Tips: Use oversized aluminum-specific tips. Aluminum wire expands more than steel when heated. A tip that is the exact nominal size (e.g., 0.030" for 0.030" wire) can jam as the wire heats up. An oversized tip (e.g., 0.036" for 0.030" wire) prevents this.

• Liner: A non-metallic, plastic-lined or Teflon® liner is essential. A standard steel liner will create far too much friction and grind aluminum shavings off the wire, leading to clogs and poor conductivity. Teflon liners offer the least resistance.

• Drive Rolls: Use U-groove or V-groove drive rolls. Knurled drive rolls, used for steel, will bite too deeply into the soft aluminum, deforming it and causing feeding issues. U-groove rolls are designed to guide the wire without crushing it.

• Gas Diffuser and Nozzle: Keep them clean! Aluminum produces more soot and spatter than steel. Use anti-spatter spray on the nozzle to make cleaning easier.

Optimizing Welding Parameters for Aluminum

Aluminum welds differently than steel. Follow these guidelines:

• Shielding Gas: Use 100% Argon. Other gases like CO2 or Oxygen, common in steel mixes, will oxidize aluminum and destroy the weld.

• DCEP Polarity: MIG welding aluminum requires Direct Current Electrode Positive (DCEP). This provides the necessary "cleaning action" to break through the aluminum oxide layer on the surface. Most modern inverters set this automatically when the "Aluminum" mode is selected.

• Wire Feed Speed and Voltage: Aluminum requires significantly higher wire feed speeds and voltage settings than steel for an equivalent thickness. Always consult your welder's chart as a starting point. Be prepared to fine-tune. The weld should have a distinct "frying bacon" sound.

Pre-Weld Preparation is Key

Aluminum is unforgiving of contaminants. Proper preparation is critical:

1. Cleaning: Remove the oxide layer using a stainless steel wire brush dedicated exclusively to aluminum. Wipe the area with a solvent like acetone to remove oils and grease.

2. Preheat (for Thick Material): For material thicker than 1/2 inch, a slight preheat (around 200-250°F / 95-120°C) can help drive off moisture and reduce the risk of porosity, making it easier to achieve good fusion.

Conclusion: Investing in the Right Tool for the Job

Success in aluminum MIG welding hinges on acknowledging that it is a different discipline than welding steel. The choice of torch is not a minor accessory but the cornerstone of the process. By understanding the limitations of a standard torch and investing in a purpose-built system—whether the accessible spool gun for the hobbyist or the high-performance push-pull system for the professional—you equip yourself to overcome the fundamental challenges of feeding soft wire.

This investment pays dividends in saved time, reduced material waste, and, most importantly, the ability to produce strong, clean, and reliable aluminum welds. Combine the right torch with meticulous attention to consumables, parameters, and preparation, and you will have truly "tamed the tricks" of welding aluminum.
