PM80
INWELT
60%
Air
Length: | |
---|---|
Availability: | |
Quantity: | |

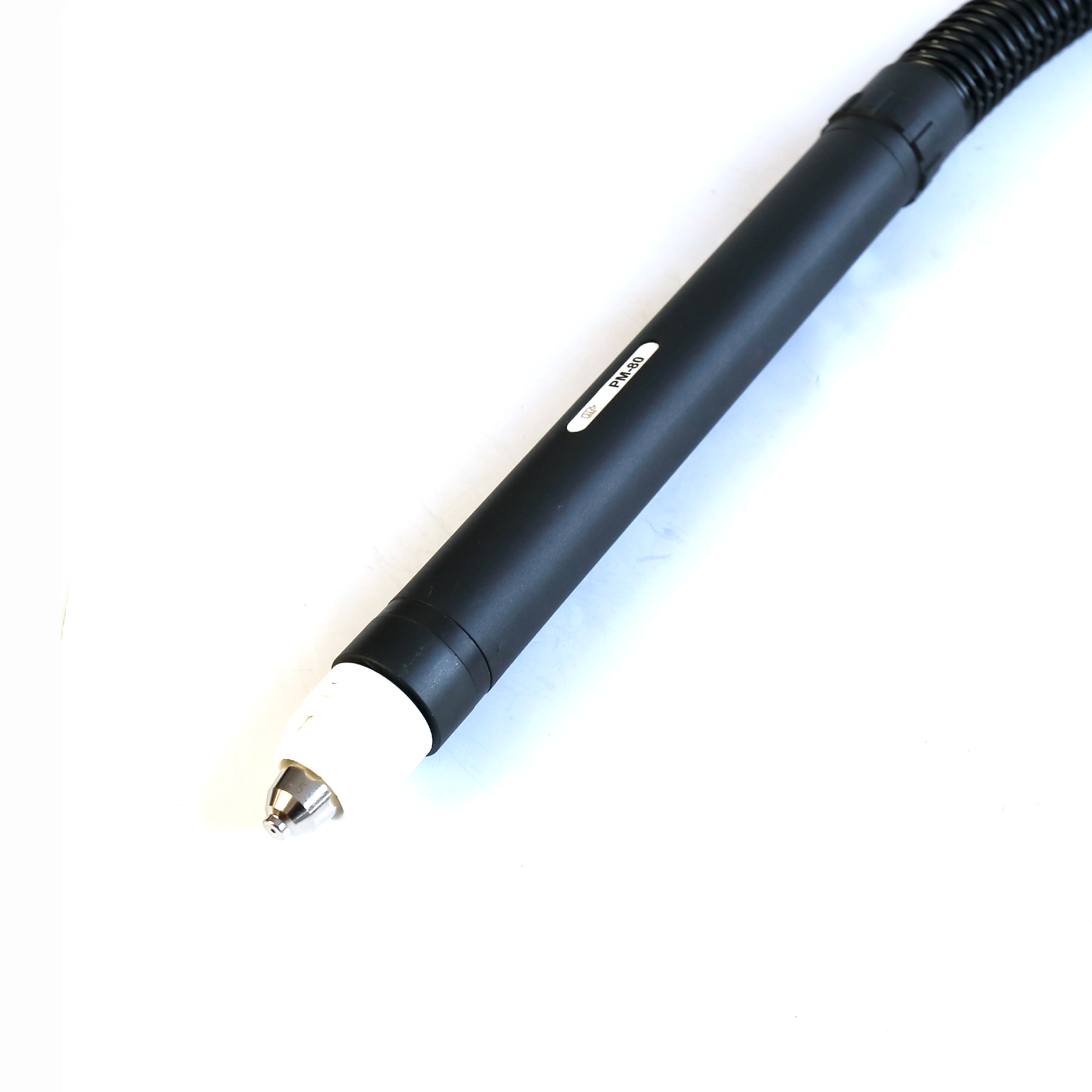

PM80 is a kind of plasma cutting torches (with high frequency). This torch is suitable for 100A, cutting capacity up to 35mm. All products use high quality material such as tellurium copper, hafnium and Vespel material.
The PM80 Plasma cutting torch for Panasonic-type plasma cutting machines is a high-quality torch designed specifically for use with Panasonic brand series CNC Plasma Cutting machines. It is well-known for its high-quality manufacturing processes and attention to detail.
The PM80 plasma cutting torch has several features that make it a popular choice for industrial plasma cutting applications.
Some of the key features include:
1. High-Quality Materials: The torch is made of high-quality materials that are designed to withstand the high temperatures and pressures generated during plasma cutting. This ensures that the torch remains durable and reliable even after extended use.
2. Precision Cutting: The torch is designed to provide precise and accurate cutting, even on thin or complex materials. It produces clean, smooth cuts with minimal dross and distortion.
3. Efficient Performance: The torch is designed to operate at high speeds and with minimal downtime, which increases efficiency and reduces overall cutting time.
4. User-Friendly: The torch is designed to be easy to use, with simple controls and ergonomic features that make it comfortable to handle.
Overall, the PM80 plasma cutting torch is an excellent choice for industrial cutting applications. Its high-quality materials, precision cutting, efficient performance, and user-friendly design make it a popular choice among CNC plasma cutting professionals.
Current | 100Amp | Gas Flow | 220LPM |
Duty Cycle | 60% | Ignition | HF |
Gas | Air | Post flow | 80 seconds recommended |
Gas Pressure | 4.5-5.0 Bar | Standard Length | 5M |
![]() | ||||||||
Code | Ref. | Description | ||||||
A | IJWU13 | 062-00 | Plasma machine | torch iptm80/6m/ 1/4g /integrated/2 wires/back striking | ||||
A | IJWU14 | 062-00 | Plasma machine | torch iptm80/12m/ 1/4g /integrated/2 wires/back striking | ||||
B | IJWU13 | 063-00 | Plasma machine | torch iptm80/6m/ 1/4g /separation/2 wires/back striking | ||||
B | IJWU14 | 063-00 | Plasma machine | torch iptm80/12m/ 1/4g /separation/2 wires/back striking | ||||
C | IJWU13 | 064-00 | Plasma machine | torch iptm80/6m/central adaptor/2 wires/back striking | ||||
C | IJWU14 | 064-00 | Plasma machine | torch iptm80/12m/central adaptor/2 wires/back striking | ||||
D | IJWU13 | 065-00 | Plasma machine | torch iptm80/6m/central adaptor/coaxial cable/back striking | ||||
D | IJWU14 | 065-00 | Plasma machine | torch iptm80/12m/central adaptor/coaxial cable/back striking | ||||
With " ●" is the standard configuration) | ||||||||
Position | Code | Ref. | Description | |||||
1 | IJTN1075 | 60508 | Shield cap/ipt80/gouging | |||||
2 ● | IJWT1678-05 | 60510 | Outside nozzle ipt80/gray glass fiber | |||||
3 | IJWT1683-05 | 60511 | Outside nozzle ipt80/gouging | |||||
4 | Tip | |||||||
4.1 | IJWV1681-10 | 51311.10 | Tip φ1.0mm 40-50a/ipt80/back striking | |||||
4.2 | IJWV1681-11 | 51311.11 | Tip φ1.1mm 50-60a/ipt80/back striking | |||||
4.3 | IJWV1681-12 | 51311.12 | Tip φ1.2mm 60-70a/ipt80/back striking | |||||
4.4 ● | IJWV1681-13 | 51311.13 | Tip φ1.3mm 70-80a/ipt80/back striking | |||||
5 | IJWV1686-16 | 51311G.16 | Tip φ1.6mm/80a/ipt80/gouging/back striking | |||||
6 ● | IJWG1676 | 60027 | Diffuser ipt80 | |||||
7 ● | IJWC1670 | 52558 | Electrode plasma ipt80 | |||||
8 | IJWA0632 | Torch head iptm80/ipxm82 | ||||||
8a | IJGU0710 | 51620.60 | "O"ring φ18x15mm ipt80 red sil | |||||
8b | IJAO0784 | 09800.42 | Air tube/ipt80 | |||||
9 | IJIK0121 | Plasma machine handle kit | ||||||
10 | Spring support | |||||||
10.1 | IJIK0800 | Spring support/pg21/plasma/coaxial cable | ||||||
10.2 | IJIK0800-02 | Spring support/pg21/plasma/epdm | ||||||
11 | Cable assembly | |||||||
11.1 | IJWO11210074-22 | Cable assembly/iptm80/6m/ 1/4g /2 wires/integrated | ||||||
11.2 | IJWO11210134-22 | Cable assembly/iptm80/12m/ 1/4g /2 wires/integrated | ||||||
11.3 | IJWO11210072-22 | Cable assembly/iptm80/6m/ 1/4g /2 wires/separation | ||||||
11.4 | IJWO11210132-22 | Cable assembly/iptm80/12m/ 1/4g /2 wires/separation | ||||||
11.5 | IJWO11210071-22 | Cable assembly/iptm80/6m/2 wires/centre adaptor | ||||||
11.6 | IJWO11210131-22 | Cable assembly/iptm80/12m/2 wires/centre adaptor | ||||||
11.7 | IJWO1121117C-22 | Cable assembly/iptm80/6m/central adaptor/coaxial cable | ||||||
11.8 | IJWO1121123C-22 | Cable assembly/iptm80/12m/central adaptor/coaxial cable | ||||||
12 | IJDH6017 | Spanner for plasma | ||||||
13 | IJAY0089 | Central adaptor torchside plasma 5 pins |
INWELT PLASMA TORCH CATALOG.pdf
