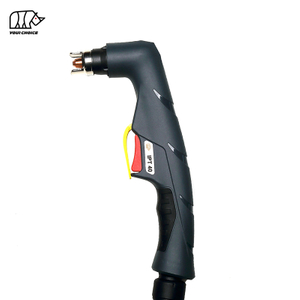

IPTM60 Plasma Cutting Torch
It is the popular IPTM60 Plasma Cutting Torch. Without HF Ignition, easy to start arc. It is compatible with standard of 60A Plasma Cutting CNC Machine. (i.e. CUT60, CUT70.) The Brand of machines would be Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, Longetivity and so on.
IPTM60 Features & Benefits:
» The IPTM60 Without High Frequency AIR Plasma Cutter Torch cutting 10MM-15MM thick plate under 60A.
» The IPTM60 torch include consumables comes with one set of consumables (1 nozzle, 1 electrode, 1 swirl ring, 1 shield cup) installed on torch head, can be use directly.
» The IPTM60 plasma torch can work with 60A plasma cutter CNC machine.
» Customerized Length, OEM available.
Technical Data:
| Current | 60Amp | Gas Flow | 120-130LPM |
| Duty Cycle | 60% | Ignition | Without HF |
| Gas | Air/N2 | Post flow | 55 seconds recommended |
| Gas Pressure | 4.4-5.0 Bar | Standard Length | 6M |
Application Areas:
» General engineering » Construction industries » Power cycle » Railway industries » Heavy duty industry
| Position | Code | Ref. | Description | |
| （带“ ●”为标准配置 / With " ●" is the standard configuration） | ||||
| 1 | Double pointed spacer;两点支架 | |||
| 1.1 | IJTN0009-01 | Double pointed spacer/IPT60;两点支架 IPT60 | ||
| 1.2 | IJTN0009 | 60432 | Double pointed spacer/IPT60/backing striking;两点支架/IPT60/后引弧 | |
| 2 ● | Outside nozzle;外喷嘴 | |||
| 2.1 | IJWT0672-03 | 60389 | Outside nozzle 6holes IPT60/bakelite;外喷嘴 6孔 IPT60/胶木 | |
| 2.2 ● | IJWT1672-05 | Outside nozzle 6holes IPT60/Gray Glass fiber;外喷嘴 6孔 IPT60/灰色玻纤 | ||
| 3 | Tip;喷嘴 | |||
| 3.1 | IJWV0672-06 | PD0116-06 | Tip Φ0.6mm/10-20A IPT60;电极喷嘴 Φ0.6mm/10-20A/IPT60 | |
| 3.2 | IJWV0672-08 | PD0116-08 | Tip Φ0.8mm/20-30A IPT60;电极喷嘴 Φ0.8mm/20-30A/IPT60 | |
| 3.3 | IJWV0672-09 | PD0116-09 | Tip Φ0.9mm/30-40A IPT60;电极喷嘴 Φ0.9mm/30-40A/IPT60 | |
| 4 | Tip;喷嘴 | |||
| 4.1 | IJWV1671-06 | 51318.06 | Tip Φ0.6mm/10-20A IPT60/back striking;电极喷嘴 Φ0.6mm/10-20A IPT60/后引弧 | |
| 4.2 | IJWV1671-08 | 51318.08 | Tip Φ0.8mm/20-30A IPT60/back striking;电极喷嘴 Φ0.8mm/20-30A IPT60/后引弧 | |
| 4.3 | IJWV1671-09 | 51318.09 | Tip Φ0.9mm/30-40A IPT60/back striking;电极喷嘴 Φ0.9mm/30-40A IPT60/后引弧 | |
| 4.4 | IJWV1671-10 | Tip Φ1.0mm/40-50A IPT60/back striking;电极喷嘴 Φ1.0mm/40-50A IPT60/后引弧 | ||
| 5 | IJWV1678-09 | 51312P.09 | Tip Φ0.9mm/30-40A IPT60/Contact cutting/back striking;电极喷嘴 Φ0.9mm/30-40A IPT60接触切割/后引弧 | |
| 6 | Tip;喷嘴 | |||
| 6.1 | IJWV1679-10 | 51313P.10 | Flat tip Φ1.0mm/40-50A IPT60/backing striking;平头电极喷嘴 Φ1.0mm/40-50A IPT60/后引弧 | |
| 6.2 | IJWV1679-11 | 51313P.11 | Flat tip Φ1.1mm/50-60A IPT60/backing striking;平头电极喷嘴 Φ1.1mm/50-60A IPT60/后引弧 | |
| 7 ● | Tip;喷嘴 | |||
| 7.1 | IJWV1610-06 | 51318L.06 | Extended tip Φ0.6mm/10-20A IPT60/backing striking;加长电极喷嘴/Φ0.6mm/10-20A IPT60/后引弧 | |
| 7.2 | IJWV1610-08 | 51318L.08 | Extended tip Φ0.8mm/20-30A IPT60/backing striking;加长电极喷嘴/Φ0.8mm/20-30A IPT60/后引弧 | |
| 8 | ||||
| 8.1 | IJWV1614-09 | 51314.09 | Extended tip Φ0.9mm/30-40A IPT60/Contact cutting/backing striking;加长电极喷嘴 Φ0.9mm/30-40A IPT60接触切割/后引弧 | |
| 8.2 | IJWV1614-10 | Extended tip Φ1.0mm/40-50A IPT60/Contact cutting/backing striking;加长电极喷嘴 Φ1.0mm/40-50A IPT60接触切割/后引弧 | ||
| 9 | IJWG1612 | 60028 | Diffuser IPT20C-IPT60;分流器 IPT20C-IPT60 | |
| 10 | IJWC0671 | PR0110 | Electrode Plasma IPT20C-IPT60;等离子电极 IPT20C-IPT60 | |
| 11 | IJWC1059 | 52582 | Electrode Plasma IPT20C-IPT60/backing striking;等离子电极 IPT20C-IPT60/后引弧 | |
| 12 | IJWC1050 | 52583 | Extended electrode IPT20C-IPT60/backing striking;加长等离子电极 IPT20C-IPT60/后引弧 | |
| 13 | IJWA0087 | IPX-45/60 hand torch head;IPX-45/60手动等离子枪头 | ||
| 13a | IJGU0710 | 51620.60 | "O"ring Φ15XΦ18 IPT60 RED SIL;O型圈 Φ15XΦ18 IPT60 红色硅胶 | |
| 14 | IJHW0049-01 | Plasma handle manual/IPT20-60/PX torch head;等离子手工手柄/IPT20-60/适用于PX枪头 | ||
| 15 | IJIK0733 | Protection part/Plasma/Yellow;开关保护档片/等离子用/黄色 | ||
| 16 | IJIR0081 | 07301.20 | Trigger red;焊枪用开关 21.8MM 红色 | |
| 17 | IJIK0809 | Plasma Joint/IPT20-60;等离子用球节套件/IPT20-60 |
| 18 | Cable assembly;电缆组 | |
| 18.1 IJWO011 06071-22 Cable assembly/IPT60/6M/2 wires/centre adaptor;电缆组/IPT60/6M/2芯/中央插头 | ||
| 18.2 IJWO011 06074-22 Cable assembly/IPT60/6M/2 wires/integrated;电缆组/IPT60/6M/2芯/气电一体 | ||
| 18.3 IJWO011 06077-22 Cable assembly/IPT60/6M/4 wires/centre adaptor;电缆组/IPT60/6M/4芯/中央插头 | ||
| 18.4 IJWO011 06072-22 Cable assembly/IPT60/6M/2 wires/PX torch head/separate;电缆组/IPT60/6M/2芯/PX枪头/气电分体 | ||
| 19 IJDH6017 Spanner for Plasma;等离子枪扳手 | ||
| 20 IJAY0089 Central adaptor torch side Plasma 5 pins;等离子中央插头/5针 | ||
| 21 | Circle cutting attachment;圆周切割附件 | |
| 21.1 IJTN0684 Roller stand IPT20C-60 / with spanner;滚轮支架 IPT20C-60/带扳手 | ||
INWELT PLASMA TORCH CATALOG.pdf
FAQ:
Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
