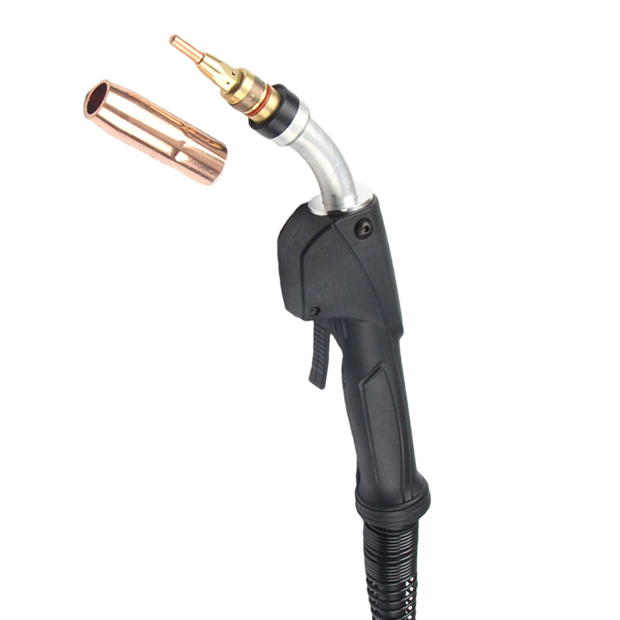

TR200 Mixed Gas/Air cooled mig welding torch - Changzhou Inwelt

Share to:
TR200 Mixed Gas/Air cooled mig welding torch utilizes the high current and high voltage of the welding machine to gather heat at the terminal of the welding torch to melt the welding wire, and the melted welding wire penetrates into the part to be welded. After cooling, the welded objects are firmly connected into one.
  • TR200
  • Black ,White ,Pure Color,Different decals ,Oem Acceptable
  • 60% 200A CO2/100A Mixed Gases
  • 3m/3.5m/4.5m
  • Air/Mixed Gases

TR200 Mixed Gas/Air cooled mig welding torch

Features & Benefits:

» Quality raw materials,advanced production and testing equipment to ensure product quality.

» In strict accordance with the standard model size,easy to install.

» Products are widely used,most models meet the needs of various welding.

Position Description
1 Swan Neck 45°; Swan Neck 60°
2 Torch Body Assembly
3 Handle
4 Switch
5 Switch The Trigger
6 End Fitting
7 Cone Nut
8 Cable Ball Joint & Support Spring Big
9 Cable Assembly
10 Euro Direct Plug Kit
10-1 Rear Handle
10-2 Adaptor nut
10-3 Euro Central Connector
11 Rear Handle American Brand
12 Control Wire (Tweco/Miller)
12-1 Control Wire (Lincoln)
13 Tweco Central Connector
14 Miller Central Connector
15 Lincoln Central Connector
15-1 Gas Tube
Technical Data

Rating: 200A CO2/100A Mixed Gases

Duty Cycle: 60%

Wire Size: 0.8-1.2mm
Type TR200 MIG GUN Miller Connector

TR200 MIG GUN Tweco Connector

TR200 MIG GUN Lincoln Connector

TR200 MIG GUN Euro Connector
A Nozzle 3/8″ 9.5mm Flush Copper

Nozzle 1/2″ 12.7mm 1/8″ Recess Copper

Nozzle 5/8” 15.9mm 1/8” Recess Copper

Nozzle 3/4” 19mm 1/8″ Recess Copper

Nozzle 5/8” 15.9mm 1/8” Stick Out Brass

Nozzle 5/8” 15.9mm 1/4” Stick Out Copper

Nozzle 1/2” 12.7mm 1/4” Stick Out Brass

Nozzle 1/2” 12.7mm 1/8” Stick Out Brass

Nozzle 1/2″ 12.7mm 1/8” Recess Brass

Nozzle 3/8″ 9.5mm 1/16” Recess Brass
B Contact Tip .230” 0.6mm

Contact Tip .030” 0.8mm

Contact Tip .035” 0.9mm

Contact Tip .040” 1.0mm

Contact Tip .045” 1.2mm

Contact Tip .052” 1.4mm

Contact Tip 1/16” 1.6mm
C Gas Diffuser (1/4-20Thd)
D Nozzle Retainer
E Neck Insulator
F Liner for .035″-.045″(0.9-1.2mm) 10FT(3.0m)

Liner for .035″-.045″(0.9-1.2mm) 15FT(4.6m)

Application Areas:

» General engineering

» Construction industries

» Power cycle

» Railway industries

» Heavy duty industry

Our Catalog:



Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
