MB501D Water-Cooled MIG Welding Torch at a Glance
The MB501D Water-Cooled MIG Welding Torch is a heavy-duty MIG/MAG welding torch designed for high-current welding, thick metal fabrication and extended industrial welding operations. Its water-cooled design helps manage heat during demanding welding cycles, while the ergonomic handle and flexible cable assembly are designed to improve operator control and reduce fatigue.
The MB501D is rated at 500A with CO₂ and 450A with mixed shielding gas at a 100% duty cycle. It supports 1.0–1.6 mm welding wire according to the current INWELT product specification and is available with 3 m, 4 m or 5 m cable lengths.
The torch uses a 501D torch-head configuration, with an M8 contact-tip system, 16 mm gas nozzle and replaceable liners and cooling components. The parts list also identifies a water-cooled Euro central adaptor, water quick connector and water hose components.
MB501D Key Specifications
| Specification | MB501D |
| Model | MB501 / MB501D |
| Product Type | MIG/MAG Welding Torch |
| Cooling Method | Water Cooled |
| CO₂ Rating | 500A |
| Mixed-Gas Rating | 450A |
| Duty Cycle | 100% |
| Wire Diameter | 1.0–1.6 mm |
| Torch Head | 501D |
| Gas Nozzle | 16 mm |
| Contact Tip | M8 × 30 mm |
| Contact Tip Holder | M8 × 25 mm |
| Connector | Euro Central Connector |
| Cable Length | 3 m / 4 m / 5 m |
| Application | Heavy-Duty MIG/MAG Welding |
| OEM | Available |
The current product page specifies 500A CO₂ / 450A mixed gas, 100% duty cycle, water cooling and 3–5 m cable options.
MB501D MIG Torch Technical Specifications
The MB501D is designed around a high-current, water-cooled MIG/MAG configuration for industrial welding.
Welding Current
The torch is rated at:
500A with CO₂
450A with mixed gas
100% duty cycle
Water cooled
This places the MB501D in the heavy-duty MIG torch category for applications requiring higher current and extended welding cycles.
Welding Wire Diameter
The current product specification lists:
1.0–1.6 mm welding wire.
The appropriate contact tip and liner should be selected according to the actual wire diameter and material.
Torch Head
The product parts list identifies a 501D torch head as the primary configuration, with a 401D torch head also listed as an available component.
Gas Nozzle
The listed standard gas nozzle is:
16 mm
Contact Tip
The current parts configuration includes:
M8 × 30 mm, 1.2 mm E-Cu contact tip.
Why Choose the MB501D Water-Cooled MIG Torch?
The MB501D is designed for welders and industrial users who need a 500A-class MIG welding torch with active water cooling.
500A High-Current Welding Capacity
The MB501D is rated up to 500A with CO₂ and 450A with mixed gas.
This makes it suitable for demanding MIG/MAG welding applications involving thick metal and high welding output.
The actual operating current should always remain within the torch's rated conditions.
100% Duty Cycle for Extended Welding
The MB501D is specified at a 100% duty cycle.
This is particularly important in production environments where welding cycles are long and torch heat accumulation can become a limiting factor.
Water-Cooled Design for Heat Management
Water cooling is one of the defining characteristics of the MB501D.
Coolant circulates through the torch's cooling circuit to help transfer heat away from the torch assembly during high-current operation.
This makes water cooling particularly valuable for heavy-duty MIG/MAG welding where a conventional air-cooled torch may not provide sufficient thermal management.

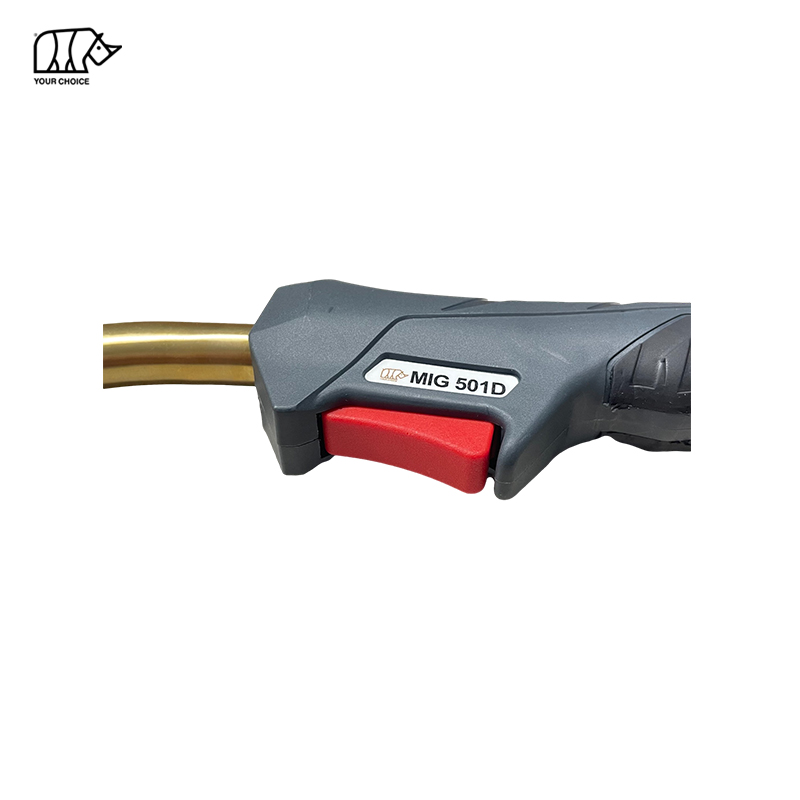

Ergonomic MIG Torch Handle
The MB501D uses an ergonomic handle design intended to provide comfortable control during manual welding.
The current product information emphasizes the handle design, trigger position and cable assembly as part of the torch's operator-focused design.
Flexible Cable Assembly
A flexible cable assembly helps the operator position the torch more easily around large or complex workpieces.
For industrial welding, cable flexibility is important because excessive cable stiffness can increase operator fatigue and make torch positioning more difficult.
3 m, 4 m and 5 m Cable Options
The MB501D is available in:
This provides flexibility for compact welding stations as well as larger fabrication areas.
How the MB501D Water-Cooling System Works
A water-cooled MIG torch uses a circulating coolant system to remove heat from the torch assembly.
During high-current welding, heat is generated at the torch neck, front-end components, cable and electrical connections.
The MB501D includes dedicated water-cooling components such as:
These components are identified in the current MB501D parts list.
Why Water Cooling Matters at 500A
At higher welding currents, thermal management becomes increasingly important.
Water cooling can help:
Reduce heat accumulation
Maintain more stable torch operating temperatures
Support extended welding cycles
Improve operator comfort
Protect torch components from excessive heat
The MB501D's 500A / 450A rating and 100% duty-cycle specification make its cooling system a central part of the product's positioning.
MB501D MIG Torch Parts and Consumables
The MB501D uses a serviceable consumable and component system.
Key components include:
| Component | Function |
| 16 mm Gas Nozzle | Directs shielding gas |
| M8 Contact Tip | Transfers current to welding wire |
| M8 Contact Tip Holder | Secures the contact tip |
| 501D Torch Head | Supports front-end components |
| Gas Diffuser | Distributes shielding gas |
| MIG Handle | Provides operator control |
| Trigger | Activates welding |
| Cable Assembly | Carries current and cooling connections |
| Water Quick Connector | Connects cooling circuit |
| Water Hose | Circulates coolant |
| Euro Central Adaptor | Machine-side connection |
| Teflon Liner | Guides suitable welding wire |
| Steel Liner | Guides steel welding wire |
The current parts list identifies both Teflon and steel liner configurations, as well as the 501D torch head, gas nozzle, contact tip, contact-tip holder, Euro adaptor and water-cooling components.
Spare Parts Details:
| Position | Code | Ref. | Description |
| 1 | IJDT0724 | 145.0085 | Gas nozzle Φ 16mm |
| 2 | IJDV0016-12 | 140.0442 | Contact tip Φ1.2mmE-CU/M8X30 |
| 3 | IJDG0535 | 030.0190 | White ceramic gas diffuser |
| 4 | IJDG0032 | 142.0022 | Contact tip holder M8X25mm |
| 5 |
|
| Torch head |
| 5.1 | IJDJ0066 | 034.0001 | Torch head 501D |
| 5.2 | IJDJ0060 | 033.0001 | Torch head 401D |
| 6 | IJDW0801-01 |
| MIG handle Blue/Grip |
| 7 | IJIR0081 | 185.0031 | Trigger |
| 8 | IJGU0885 |
| Screw M3X10 |
| 9 | IJIK0032 |
| Joint for MIG handle |
| 10-1 | IJIK0863 |
| HOUSING RING/BIG/INSIDE |
| 10-2 | IJIK0866 |
| HOUSING FOR PLASMA BACK BOX/BIG |
| 11 | IJGU0833 |
| Spring for cable support |
| 12 | IJDE0078 |
| Cable assenbly 3m 401D-501D |
| 13 | IJGU0733 |
| ClampΦ9.0 |
| 14 | IJGU0741 |
| ClampΦ8.0 |
| 15 | IJAU8081 | 501.0114 | Quick connector water Φ6/APH/ |
| 16 | IJIK0775 |
| Hose support for water cooled rear box |
| 17 | IJGU0074 |
| Screw M4X6 |
| 18 | IJIK0774 |
| Back box for water cooled |
| 19 | IJIK0083 |
| Adaptor nut/Blue |
| 20 | IJUC0068 | 501.2156 | Euro central adaptor body/water cooling |
| 21 | IJAU0082 | 501.0082 | Liner nut |
| 22 | IJLI0616 |
| Output water tube M5X8mm 0.8m red |
| 23 | IJIK0317 |
| Plastic support for water cooling connector /Red |
| 24 | IJIK0319 |
| Plastic support for water cooling connector /Blue |
| 25 | IJJD0237 |
| Brass terminal Φ3.0X4.5mm 0.35m |
| 26 | IJJD0221 | 126.0039 | Teflon liner Φ3.0X4.5mm 3m Yellow |
| 27 | IJJD0591 | 122.0056 | Steel liner Φ1.2-1.6mm 3m |
| 28 | IJDH6011 |
| Spanner for MIG torches |
| 29 | IJAI6734 | 030.0019 | Insulator 401D-501D |
| Complete Torch |
| IJDI2209-36 |
| MIG 401D torch 3m euro adaptor/spring pins |
| IJDI2200-36 |
| MIG 401D torch 4m euro adaptor/spring pins |
| IJDI2206-36 |
| MIG 401D torch 5m euro adaptor/spring pins |
| IJDI2209-36 |
| MIG 501D torch 3m euro adaptor/spring pins |
| IJDI2300-36 |
| MIG 501D torch 4m euro adaptor/spring pins |
| IJDI2306-36 |
| MIG 501D torch 5m euro adaptor/spring pins |
MB501D Contact Tips, Gas Nozzles and Liners
Consumables directly affect wire feeding, shielding gas coverage and arc stability.
MB501D Contact Tip
The listed MB501D configuration uses an M8 × 30 mm contact tip.
The current product page specifies a 1.2 mm E-Cu contact tip, while MB501D replacement systems can be configured for other wire diameters according to the required consumable specification.
MB501D Gas Nozzle
The standard listed nozzle is:
16 mm
Keep the nozzle free of excessive spatter to maintain appropriate shielding-gas flow.
MB501D Liner
The product page lists:
The current parts list specifies a 3 m Teflon liner and 3 m steel liner for 1.2–1.6 mm wire.
The liner should be selected according to wire material and diameter.
MB501D MIG Torch Applications
The MB501D is intended for demanding MIG/MAG welding environments.
The current product page identifies applications including general engineering, construction, power-related industries, railway industries and heavy-duty industry.
Heavy Steel Fabrication
The 500A rating makes the MB501D suitable for appropriate heavy steel fabrication applications.
Typical work can include:
Structural components
Heavy machinery
Frames
Industrial equipment
Thick metal assemblies
Construction Industry
The MB501D can be used for suitable MIG/MAG welding operations in construction and structural fabrication.
Machinery Manufacturing
The torch is appropriate for industrial machinery fabrication where higher welding currents and extended welding cycles are required.
Railway and Transportation
The current product positioning includes railway applications, making the MB501D relevant to suitable transportation-equipment fabrication and repair operations.
General Engineering
For workshops performing heavy fabrication, maintenance and industrial manufacturing, the MB501D provides a high-capacity water-cooled MIG torch configuration.
What Materials Can You Weld With an MB501D?
The MB501D can be used for MIG/MAG welding of compatible metals when the welding wire, shielding gas, liner, contact tip and welding parameters are correctly selected.
Typical materials include:
Carbon steel
Mild steel
Stainless steel
Aluminum alloys
For aluminum welding, special attention should be given to the liner and wire-feeding system because aluminum wire is softer than steel wire.
MB501D MIG Torch Compatibility
The MB501D is designed for compatible MIG/MAG welding systems using the appropriate connection and cooling configuration.
The current parts list specifically identifies a Euro central adaptor with water cooling.
Before ordering an MB501D MIG torch, confirm:
Welding-machine connector
Trigger/control configuration
Welding current
Wire diameter
Liner type
Cable length
Water inlet and outlet configuration
Water-cooler compatibility
Important Compatibility Note
A Euro connector does not automatically mean that every welding machine is fully compatible.
For water-cooled applications, the electrical connection and coolant circuit must both be compatible.
Does the MB501D Require a Water Cooler?
Yes. The MB501D is a water-cooled MIG welding torch and must be used with a suitable water-cooling system.
This is an important point to make highly visible on the page.
A water-cooled MIG torch should not be operated without the required coolant circulation because the cooling system is part of the torch's rated operating configuration.
For OEM welding systems, the torch, welding machine and water cooler should be specified as a compatible system.
How to Choose the Right MB501D Cable Length
3 m MB501D MIG Torch
A 3 m cable is suitable for:
4 m MB501D MIG Torch
A 4 m torch offers a balance between working reach and maneuverability.
It is suitable for:
General fabrication
Machinery manufacturing
Maintenance
Medium-sized workpieces
5 m MB501D MIG Torch
A 5 m cable provides additional working range for:
The current product specification confirms 3 m, 4 m and 5 m options.
MB501D MIG Torch Maintenance Guide
Proper maintenance is particularly important for a high-current water-cooled MIG torch.
Inspect the Cooling Circuit
Check coolant circulation before extended welding.
Inspect:
Water hoses
Quick connectors
Cooling inlet
Cooling outlet
Water cooler
Check for Coolant Leaks
A damaged hose or loose connector can cause coolant leakage and reduce cooling performance.
Clean the Gas Nozzle
Remove welding spatter regularly.
Inspect the Contact Tip
Replace the contact tip when it becomes worn, damaged or unsuitable for the welding wire diameter.
Maintain the Liner
A dirty or damaged liner can increase wire-feed resistance.
Inspect the Cable
Avoid:
Check the Torch Head
Inspect the 501D torch head and front-end components for excessive wear or mechanical damage.
Our Catalog:
INWELT MIG WELDING TORCH.pdf
Common MB501D MIG Torch Problems and Solutions
Why Is My MB501D MIG Torch Overheating?
Possible causes include:
Check the complete cooling system before continuing high-current welding.
Can I Use the MB501D Without Water Cooling?
No. The MB501D is designed as a water-cooled MIG welding torch and requires an appropriate cooling system.
Why Is the Wire Feeding Poorly?
Check:
Contact tip
Liner
Wire diameter
Wire-feed rollers
Cable bending
Liner cleanliness
Why Is the Arc Unstable?
Possible causes include:
Why Is There Excessive Spatter?
Check:
Welding voltage
Wire-feed speed
Shielding gas
Torch angle
Contact-tip condition
Material cleanliness
Do not assume that excessive spatter automatically means the complete MIG torch needs replacement.
MB501D Water-Cooled MIG Torch FAQ
What is an MB501D MIG welding torch?
The MB501D is a heavy-duty water-cooled MIG/MAG welding torch designed for high-current welding applications. The listed configuration is rated at 500A with CO₂ and 450A with mixed gas at a 100% duty cycle.
How many amps is the MB501D MIG torch?
The MB501D is rated at 500A with CO₂ and 450A with mixed shielding gas.
Is the MB501D water cooled?
Yes. The MB501D is a water-cooled MIG welding torch.
What is the MB501D duty cycle?
The listed duty cycle is 100%.
What wire size does the MB501D support?
The current INWELT specification lists 1.0–1.6 mm welding wire.
What contact tip does the MB501D use?
The listed configuration uses an M8 × 30 mm contact tip, with a 1.2 mm E-Cu tip included in the parts specification.
What gas nozzle does the MB501D use?
The listed gas nozzle diameter is 16 mm.
What cable lengths are available?
The MB501D is available with 3 m, 4 m and 5 m cable lengths.
Does the MB501D require a water cooler?
Yes. It is a water-cooled torch and should be operated with a compatible coolant circulation system.
What liner does the MB501D use?
The current parts list includes both Teflon and steel liners, allowing configuration according to the welding wire and application.
Is the MB501D suitable for heavy-duty welding?
Yes. Its 500A CO₂ / 450A mixed-gas rating and 100% duty-cycle specification position it for high-current industrial and heavy-duty MIG/MAG welding.
Can the MB501D be used for aluminum welding?
Yes, when the complete welding system is configured appropriately for aluminum wire, including the correct liner, contact tip, wire feeder and shielding gas.
Can the MB501D be customized?
Yes. The current page states that OEM color customization is acceptable, and the product can be discussed for OEM/ODM projects.
Is the MB501D available for wholesale?
Yes. The product page supports sample inquiries, OEM/ODM requirements and distributor-oriented supply.
MB501D MIG Torch for OEM and Wholesale Buyers
The MB501D is well suited to welding equipment distributors, importers, welding-machine manufacturers and industrial OEM customers.
For B2B buyers, product specifications are only one part of the purchasing decision.
Important factors include:
OEM Customization
Possible customization areas include:
Logo
Handle color
Product labeling
Packaging
Cable length
Consumable configuration
Connector configuration
Private-label production
The current product page already identifies OEM color customization and OEM/ODM support, so this should be expanded into a dedicated B2B section rather than leaving it as a small specification field.
Why Choose INWELT as Your MB501D MIG Torch Supplier?
INWELT supplies the MB501D water-cooled MIG welding torch for industrial welding, distribution and OEM applications.
The MB501D product configuration offers:
The detailed parts list also makes the product particularly suitable for customers who need replacement components rather than replacing the entire welding gun.
Request an MB501D MIG Torch Sample or Quote
Looking for a 500A water-cooled MIG welding torch manufacturer or supplier?
Send your requirements, including:
INWELT can help confirm the appropriate MB501D MIG torch configuration for your welding machine and application.
Request an MB501D sample, replacement parts, OEM configuration or wholesale quotation for your next welding project.
English
简体中文
العربية
Français
Русский
Español
Português
Deutsch
italiano
日本語
한국어
Nederlands
Tiếng Việt
ไทย
Polski
Türkçe
ភាសាខ្មែរ
Bahasa Melayu
Filipino
Bahasa Indonesia
magyar
Română
Čeština
Монгол
қазақ
Српски
हिन्दी
فارسی
Slovenčina
Slovenščina
Norsk
Svenska
українська
Ελληνικά
Suomi
Latine
Dansk
বাংলা
Hrvatski
Afrikaans
Gaeilge
Eesti keel
नेपाली
Oʻzbekcha
latviešu
Azərbaycan dili
Беларуская мова
Bosanski
Български
ქართული
Lietuvių
