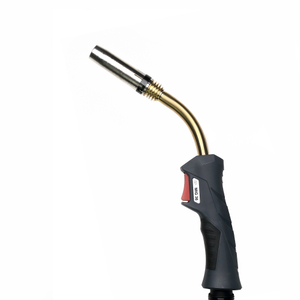

The product is highly customized, the parts that can be customized include: cable length, cable size, handle label and torch handle.
The product adopts a humanized design, with a non-slip function of the product handle, with an additional wrench
Trigger aging test 10000 times.
Lightweight Bikox® cable assembly makes ABIMIG the lightest air-cooled MIG gun in the industry
Available in 200, 300, or 400 amp models
Ball socket handle base for unmatched wrist flexibility and welder comfort
Easy to change 360° rotatable torch necks with multiple lengths and angles, including Flex necks
Narrow gap welding nozzle and contact tip options available
Extended trigger for easy use in a classic or top-side welding grip
High-quality INWELT consumables including nickel-plated nozzles and high-grade contact tips
Position | Code | Ref. | Description |
1 | IJDT0074 | 145.0075 | Gas nozzle Φ12mm;喷嘴 Φ12mm |
2 | IJDV0014-08 | 140.0059 | Contact tip Φ0.8mmE-CU/M6X25;导电嘴Φ0.8mm/M6X25mm |
3 | IJDA0098 | 002.0009 | Torch head 15 with fitting;15AK 枪颈(含配件) |
3.1 | IJAI0673 | 002.0078 | Gas diffuser 15AK;分流器 15AK |
3.2 | IJGU0819 | 002.0058 | Spring 15AK;弹簧 15AK |
4 | IJAI0678 | Hexogonol fitting;六角适配器 | |
5 | IJIK0041-01 | Plastic Body;塑料适配器 | |
6 | IJDW0801-01 | MIG handle Blue/Grip;MIG手柄/蓝色 | |
7 | IJIR0081 | 185.0031 | Trigger;焊枪用开关 |
8 | IJGU0885 | Screw M3*10;螺丝 M3*10 | |
9 | IJIK0793 | Joint for 15AK ;电缆支撑用球节15AK枪用 | |
10 | IJD00674 | 160.0065 | Coaxial cable 3m洞轴电缆组3m |
11 | IJIK0726 | Housing for hondle;手柄琐紧环 | |
12 | IJIK0714 | Back box;后把套 | |
13 | IJGU0074 | Screw M4*6;螺丝 M4*6 | |
14 | IJIK0074 | Adaptor nut;焊枪锁紧螺母/塑料螺纹 | |
15 | IJUC0060 | 501.2155 | Euro central adaptor body/air cooling ;欧式中央接头/空冷 |
16 | IJAU0082 | 501.0082 | Liner nut;送丝管锁紧螺母 |
17 | IJJD0231 | Brass terminal Φ2.0*4.0mm 0.35m;铜送丝管Φ2.0*4.0mm/0.35m | |
18 | IJJD0111 | 126.0005 | Teflon liner Φ4.0*1.5mm 3m Blue;特氟龙送丝管Φ4.0*1.5mm/3m/蓝色 |
19 | IJJD0511 | 124.0011 | Blue liner Φ0.6-0.8mm 3m;带绝缘层送丝管Φ0.6-0.8mm/3m/蓝色 |
20 | IJDH6011 | Spanner for MIG torches;MIG 焊枪扳手 | |
Complete Torch | |||
IJDU2009-36 | MIG 15AK torch 3m euro adaptor /spring pins;焊枪 15AK/3m/弹性针 | ||
IJDU2000-36 | MIG 15AK torch 4m euro adaptor /spring pins;焊枪 15AK/4m/弹性针 | ||
IJDU2006-36 | MIG 15AK torch 5m euro adaptor /spring pins;焊枪 15AK/5m/弹性针 |
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
A: Special discount Marketing protection.
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
A: Sure, welcome your visit to our factory.
