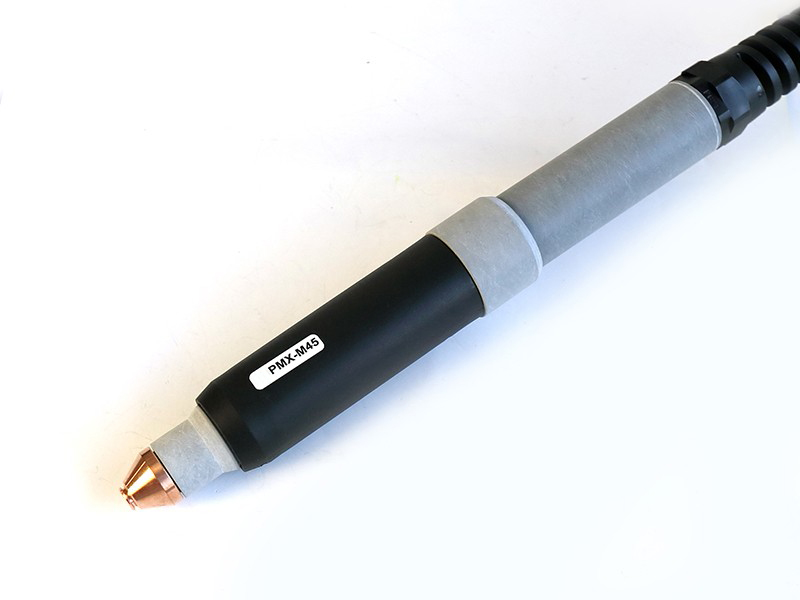

It is the popular PMX-M45 Plasma Cutting Torch. Without HF Ignition, easy to start arc. It is compatible with standard of 45A-65A Plasma Cutting Machine. (i.e. CUT60, CUT40.) The Brand of machines would be Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, Longetivity and so on.
Technical Data:
Current | 45/65 Amp | Gas Flow | 160 LPM |
Duty Cycle | 60% | Ignition | Without HF |
Gas | Air/N2 | Post Flow | 60 seconds recommended |
Gas Pressure | 5.0 Bar | Standard Length | 6M |
Code | Ref | Description |
IJWU03112 | Plasma Cutting Torch/ PMX-M45/ 6m/ 1/4G / integrated / 2 wires | |
IJWU03113 | Plasma Cutting Torch/ PMX-M45/ 6m/ 1/4G / separated / 2 wires | |
IJWU03114 | Plasma cutting torch/ PMX-M45/ 6m/ central adaptor/ 2 wires | |
IJWU031041 | Plasma cutting torch/ PMX-M45/ 6m/ hypertherm adapter/ 2 wires | |
IJWU03112-01 | Plasma cutting torch/ PMX-M45P/ 6m/ 1/4G / integrated / 2 wires | |
IJWU03113-01 | Plasma cutting torch/ PMX-M45P/ 6m/ 1/4G / separated / 2 wires | |
IJWU03114-01 | Plasma cutting torch/ PMX-M45P/ 6m/ central adaptor/ 2 wires | |
IJWU031041-01 | Plasma cutting torch/ PMX-M45P/ 6m/ hypertherm adapter/ 2 wires | |
IJWU03115 | Plasma cutting torch/ PMX-M45/45P/ 6m/ central adaptor/ coaxial cable |
Position | Code | Ref. | Description |
1 | IJTN0685 | Shield cap PMX45/hand/45A; 保护帽PMX45/手动枪/45A | |
2 | IJTN0630 | Shield cap /Hand/PMX45/Pro; 保护帽/手动枪/PMX45/Pro | |
3 | 220674 | Shield cap; 保护帽 | |
4 | 220675 | Shield cap/Gouging; 保护帽/气刨 | |
5 | IJWT0603 | Outside nozzle PMX45; 外喷嘴/PMX45/带短路环 | |
6 | Tip; 喷嘴 | ||
6.1 | IJWV0668-09 | Tip Φ0.9mm/PMX45/45A; 喷嘴 Φ0.9mm/PMX45/45A | |
6.2 | IJWV0668-11 | Tip Φ1.1mm/PMX45P/65A/Pro; 喷嘴 Φ1.1mm/PMX45P/65A/Pro | |
7 | Tip; 喷嘴 | ||
7.1 | IJWV0660-09 | Tip Φ0.9mm/PMX45/45A/PRO; 喷嘴 Φ0.9mm/PMX45/45A/PRO | |
7.2 | IJWV0660-11 | Tip Φ1.1mm/PMX45P/65A/PRO; 喷嘴 Φ1.1mm/PMX45P/65A/PRO | |
8 | 220671 | Tip; 喷嘴 | |
9 | 220672 | TIP/Gouging; 喷嘴/气刨 | |
10 | IJWG3011 | Swirl ring PMX45/45A; 涡流环 PMX45/45A | |
11 | IJWC3056 | Electrode PMX45/45A; 电极/铜件PMX45/45A | |
12 | IJWA0604-01 | Plasma torch head/PMX45/M; 等离子自动枪头/PMX45 | |
12a | IJGU8519 | O RING Φ16*1.8 /NBR/Black; O型圈Φ16*1.8/丁腈橡胶/黑色 | |
13 | IJHW0049-01 | Plasma machine handle kit;等离子自动枪手柄组件/自制 | |
14 | IJIK0733 | Sping support; 弹簧支撑 | |
14.1 | IJIR0081 | Sping support/PG21/Plasma/coaxial cable;弹簧支撑/PG21/Plasma/同轴 | |
14.2 | IJIK0809 | Sping support/PG21/Plasma/EPDM;弹簧支撑/PG21/Plasma/EPDM | |
15 | Cable assembely; 电缆组 | ||
15.1 | IJWO01804072-22 | Cable assembely/PMX45/6M/2 wires/integrated; 电缆组/PMX45/6M/4平方/2芯/气电一体 | |
15.2 | IJWO01804074-22 | Cable assembely/PMX45/6M/2 wires/separated; 电缆组/PMX45/6M/4平方/2芯/气电分体 | |
15.3 | IJWO01804071-22 | Cable assembely/PMX45/6M/2 wires/centre adapter; 电缆组/PMX45/6M/4平方/2芯/中央插头 | |
15.4 | IJWO01804077-22 | Cable assembely/PMX45/6M/4 wires/centre adapter; 电缆组/PMX45/6M/4平方/4芯/中央插头 | |
15.5 | IJWO01806072-22 | Cable assembely/PMX45/6M/2 wires/integrated; 电缆组/PMX45/6M/6平方/2芯/气电一体 | |
15.6 | IJWO01806074-22 | Cable assembely/PMX45/6M/2 wires/separated; 电缆组/PMX45/6M/6平方/2芯/气电分体 | |
15.7 | IJWO01806071-22 | Cable assembely/PMX45/6M/2 wires/centre adapter; 电缆组/PMX45/6M/6平方/2芯/中央插头 | |
IJWO01806077-22 | Cable assembely/PMX45/6M/4 wires/centre adapter; 电缆组/PMX45/6M/6平方/4芯/中央插头 | ||
IJWO0180617C-300 | Cable assembely/PMX45/6M/coaxial cable/centre adapter; 电缆组/PMX45/6M/6平方/同轴电缆/中央插头 | ||
16 | IJAY0089 | Centre adaptor torchside PLASMA 5 PINS; 等离子中央插头/5针 |
