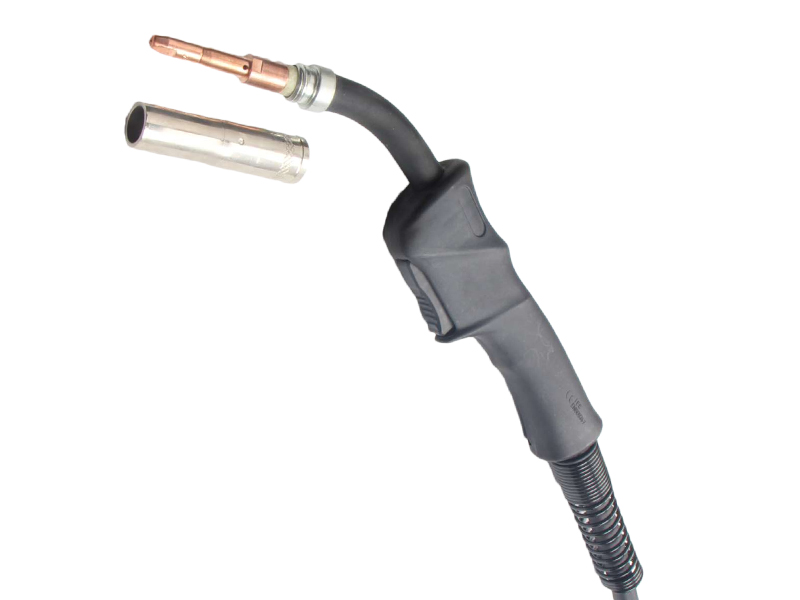

PSF250 Gas Cooled Mig Welding Torch - Changzhou Inwelt

The new PSF series MIG welding torches can replace ESAB-type MIG welding torches.
The PSF 250 gun is rated for a maximum of 250 amps(60% Duty cycle) and has a 15-foot lead. It has self-cooling swan neck welding torches.
The rear end uses a European-style quick-connect connector, which can be removed or installed without any tools.
This welding torch is suitable for Euro / Tweco / Tregaskiss / Lincoln / Miller / Panasonic various MIG welding machines.

Model:
PSF250
Brand:
INWELT
Color customization :
OEM Acceptable
Duty Cycle:
60%, 230Amp CO2, 200Amp MIX
Length:
3m 4m 5m
Cooling:
Gas Cooled
Wire Size:
Φ0.8-1.2 mm

Availability:

Quantity:



Inquire Add to Basket

Product Description

PSF250-mig-torch-2

Position	Description
1	Gas nozzle threaded PSF250/Φ14mm/ESAB
2	Contact tip/Φ1.0mm/M6×27×7
3	Contact tip/holder PSF250/ESAB
4	Torch head PSF160/250/ESAB
5	Switch button/PSF160/250/ESAB
6	Switch base/ESAB
7	Torch handle/black/PSF160/250/ESAB
8	Joint with spring
9	Coaxial cable 3M/ESAB
10	Spring/cable support/black
11	Back box hole
12	Gun plug nut
13	Euro central adapter body/gas/ESAB
14	Insulated steel liner Φ0.9-1.0mm 3.5M black/ESAB
15	Spanner for MIG
Complete Torch
ICT1683	Mig torch ESAB PSF250/ 3m /with spring pin/euro type
ICT1684	Mig torch ESAB PSF250/ 4m /with spring pin/euro type
ICT1685	Mig torch ESAB PSF250/ 5m /with spring pin/euro type

Features & Benefits:

The new PSF series MIG welding torches can replace ESAB-type MIG welding torches.
The PSF 250 gun is rated for a maximum of 250 amps(60% Duty cycle) and has a 15-foot lead. It has self-cooling swan neck welding torches.
The rear end uses a European-style quick-connect connector, which can be removed or installed without any tools.
This welding torch is suitable for Euro / Tweco / Tregaskiss / Lincoln / Miller / Panasonic various MIG welding machines.

A variety of front-end consumables are available to meet application needs; Ergonomically designed oval handle reduces the gripping force required to maneuver MIG gun positions; the Balanced center of handle pivots for easy use in different welding positions, thereby Reducing operator fatigue; the Bottom-located gun rack for easy firearm storage when not in use; Heavy-duty design for industrial applications, high-impact, crush-resistant handle with special plastic composition; Steel spring strain relief is provided from the rear of the handle Protruding cable provides support to minimize wire feeding problems; mechanical connection of conductor tube and cable inside the handle provides an excellent current path to the tip of the contact tip

Application Areas:

» General engineering

» Construction industries

» Power cycle

» Railway industries

» Heavy duty industry

Our Catalog:

INWELT MIG WELDING TORCH.pdf

FAQ:

Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
