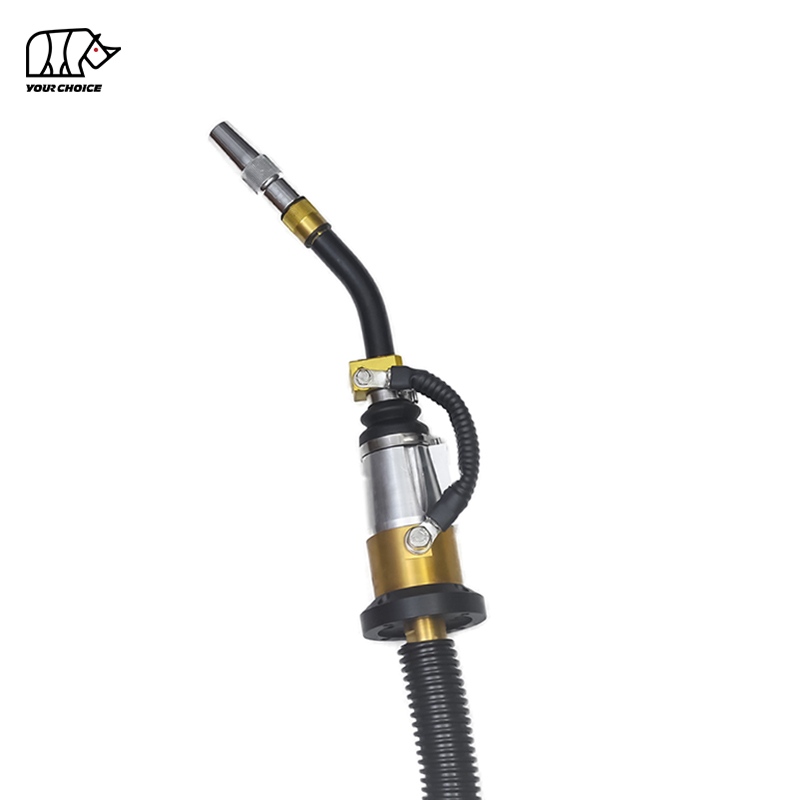

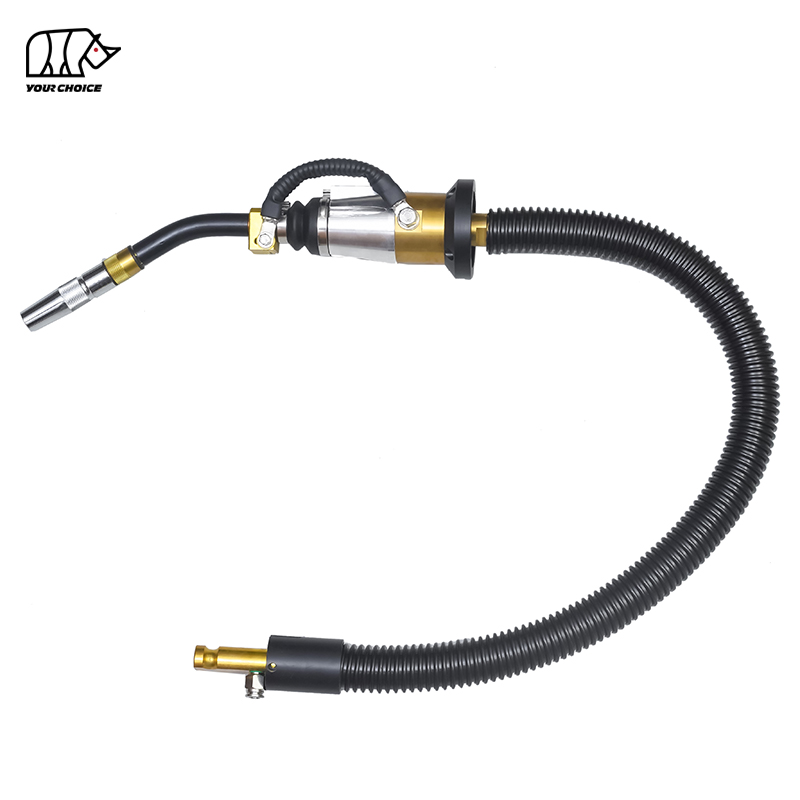

Air Cooled ROBOT 350D MIG Welding Torch

INWELT 350D Robot Welding Torch: 350A Air-Cooled with Replaceable Neck

Overview: Engineered for Automated Welding Efficiency

The INWELT 350D is a high-performance air-cooled welding torch specifically designed for automated and robotic welding applications. It combines robust power delivery with intelligent design features like a replaceable neck and flexible mounting options to maximize uptime and adapt to complex production environments. This torch is engineered to meet the rigorous demands of 24/7 industrial operations.

Key Technical Specifications

Power and Performance

• Model: 350D

• Cooling Method: Air-Cooled

• Current Rating: 350A (CO₂) / 280A (Mixed Gas) at 60% duty cycle

• Wire Diameter Range: 0.8mm – 1.2mm

• Voltage Input: Compatible with 200-480 VAC systems

Physical Configuration

• Torch Head Type: Swan neck design for optimal reach

• Neck Angle Options: Available in 31° and 45° configurations

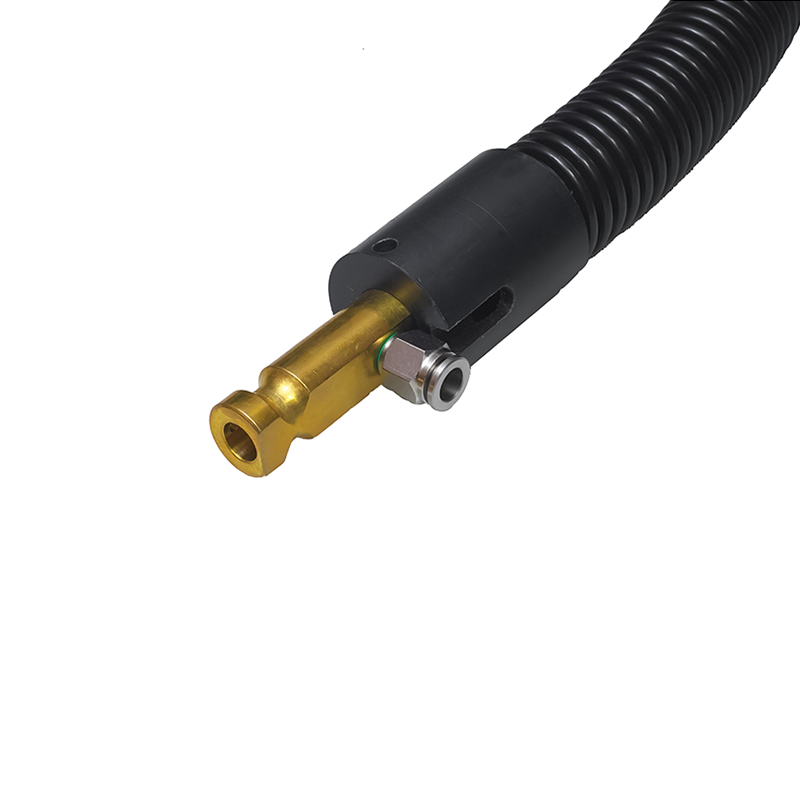

• Cable & Joint Type: PANA / EURO standard interfaces

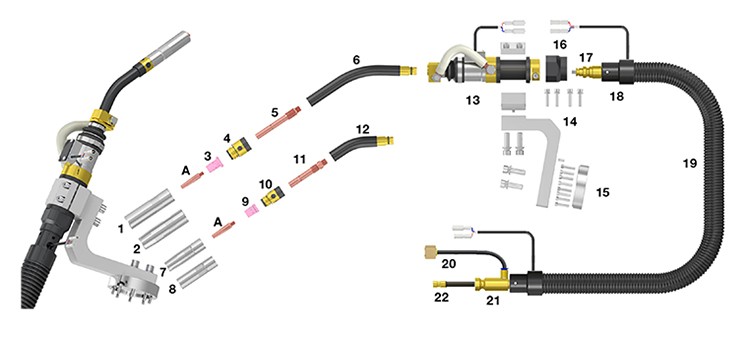

• Feature: Replaceable gun neck for easy maintenance

Optimizing Automation with Replaceable Neck Design

Minimizing Downtime in Production

The defining feature of the 350D is its replaceable neck. In automated systems, the torch neck is subject to constant movement and occasional collisions. A fixed-neck torch often requires complete removal and complex re-calibration when damaged. With the 350D, the neck can be swapped quickly and easily, dramatically reducing downtime and getting your production line back online faster.

Adapting to Different Welding Angles

The availability of 31° and 45° neck angles allows for optimization of the torch's reach and orientation. This flexibility is crucial for accessing tight spots, welding complex geometries, and ensuring the robot can maintain the correct torch angle for consistent weld quality across different workpieces.

Flexible Mounting and Integration

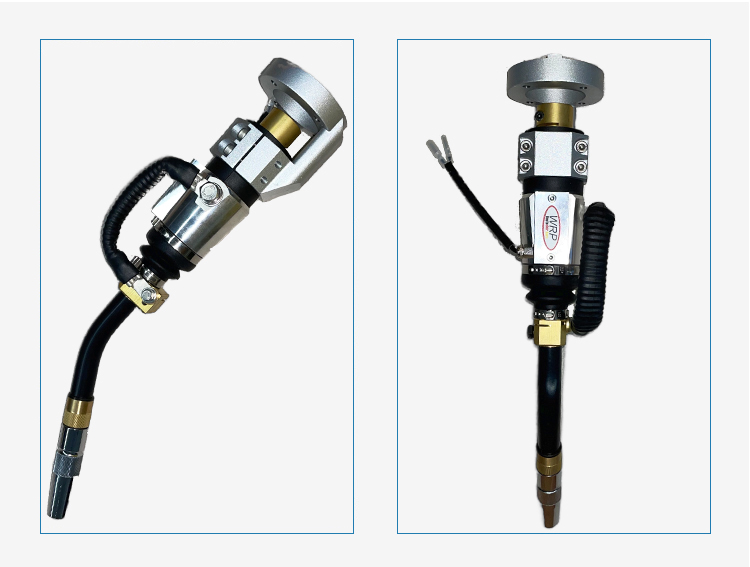

Universal Mounting Support

To ensure seamless integration with various robotic arms, the 350D supports two primary mounting styles:

• Internal U-Shaped Mount: For secure and compact attachment.

• External Z-Shaped Mount: For applications requiring a different offset or reach.

This versatility means the 350D can be adapted to fit most major robot arm models without complex custom fabrication.

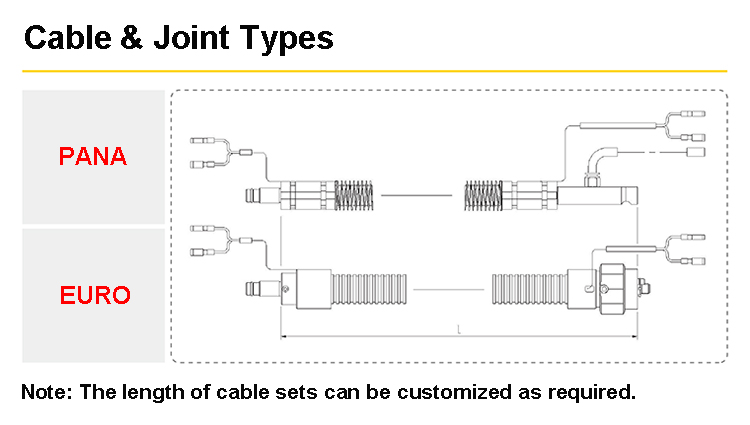

Interface Compatibility

Equipped with both PANA and EURO standard cable and joint types, this torch is designed for broad compatibility with common robotic welding power sources and interface systems. This simplifies integration into existing automated welding cells.

Quality, Certification, and Support

Built to Industrial Standards

Like all INWELT products, the 350D is manufactured with a focus on durability. Key components feature copper construction for excellent conductivity and heat resistance. The torch holds CE certification, confirming its compliance with European safety, health, and environmental requirements.

Why Choose the 350D for Your Robotic Cell?

• Reliability: Engineered for consistent performance in high-volume production.

• Serviceability: The replaceable neck design simplifies maintenance.

• Flexibility: Multiple neck angles and mounting options to suit your specific application.

• Backing: Comes with a 3-year warranty and is supported by INWELT's 15+ years of industry experience and dedicated quality assurance team.

Frequently Asked Questions (FAQs)

What is the main advantage of a replaceable neck on a robotic torch?

The primary benefit is reduced downtime. If a torch neck is damaged in a collision, it can be replaced quickly and easily without removing the entire torch assembly or performing extensive re-calibration, keeping automated production lines running.

How do I choose between the 31° and 45° neck?

The choice depends on your specific welding application and the geometry of your parts. The 31° neck is often used for general purposes, while the 45° provides better access to deep corners or complex joints. Consulting with your system integrator is recommended.

Is this torch compatible with my existing robotic arm?

The 350D offers both U-shaped (Internal) and Z-shaped (External) mounting options and PANA/EURO cable interfaces. It is designed for broad compatibility, but you should verify the mounting and interface requirements of your specific robot model.

Can the cable length be customized?

Yes, the antenna length (cable) is customizable to suit the layout and working radius of your specific robotic work cell. Please contact INWELT with your requirements.
