Postheating After Welding: How To Reduce Hydrogen Cracking Risk

Hydrogen cracking is one of the most serious problems in steel welding. A welded joint may appear sound immediately after welding but develop cracks as it cools or during the following hours. These delayed cracks can compromise structural integrity, increase repair costs, and cause unexpected production delays.

Postheating after welding is a controlled heating process used to promote hydrogen diffusion from the weld metal and heat-affected zone, helping reduce the risk of hydrogen-induced cracking.

The process generally involves maintaining or increasing the temperature of a welded joint after welding, holding it for a specified period, and then cooling it according to an approved welding procedure.

Postheating is particularly relevant when welding certain low-alloy steels, thick sections, and highly restrained joints that are susceptible to hydrogen cracking.

However, postheating is not necessary for every welded joint, and it does not guarantee that cracking will be eliminated.

This guide explains what postheating is, how it works, when it is needed, how to control the process, and how it differs from preheating and post-weld heat treatment.

What Is Postheating in Welding?

Postheating in welding refers to maintaining or applying controlled heat to a welded joint after welding to encourage diffusible hydrogen to escape from the weld metal and surrounding heat-affected zone.

It is sometimes described as a hydrogen diffusion treatment or hydrogen release treatment.

Unlike conventional post-weld heat treatment, which may be performed to modify material properties or reduce residual stresses, hydrogen diffusion postheating primarily focuses on reducing the amount of diffusible hydrogen remaining in the welded joint.

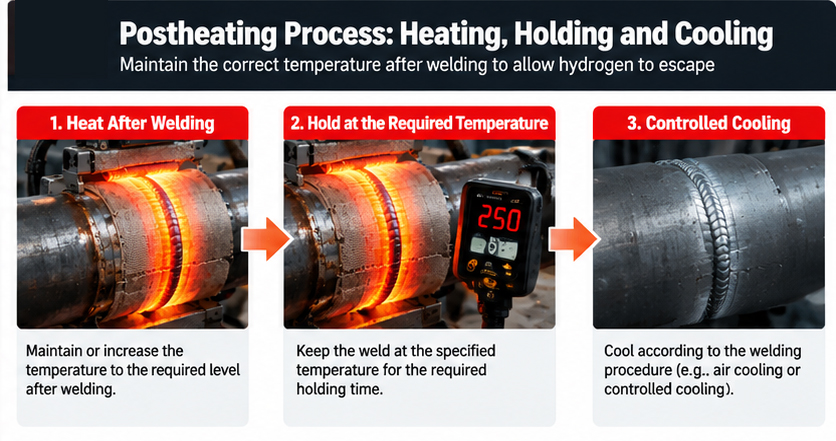

How Does the Postheating Process Work?

The basic process involves three stages:

Stage 1: Apply or Maintain Heat After Welding

After completing the weld, the joint is maintained at or brought to the temperature specified in the welding procedure.

Where required, the transition from welding to postheating should occur without allowing the joint to cool below the specified minimum temperature.

Stage 2: Hold the Weld at the Required Temperature

The welded joint is maintained within the specified temperature range for the required holding period.

During this stage, hydrogen can continue to diffuse through the material and escape from the weld region.

Stage 3: Cool According to the Welding Procedure

After the required holding time, the joint is cooled using the method specified in the approved procedure.

Air cooling may be acceptable for some applications, while other materials or joint configurations require controlled cooling.

The heating temperature, holding time, and cooling method must be selected for the actual material and welding conditions.

Why Does Hydrogen Cracking Occur After Welding?

Hydrogen cracking occurs when diffusible hydrogen contributes to crack formation in a susceptible welded joint under tensile stress.

It is also known as hydrogen-induced cold cracking or delayed hydrogen cracking.

This problem is particularly associated with susceptible ferritic steels, including certain carbon steels and low-alloy steels.

Hydrogen cracking generally requires the interaction of three important factors.

1. Diffusible Hydrogen in the Weld

Hydrogen may enter the weld during welding through moisture, contaminated surfaces, consumables, or other hydrogen-containing sources.

Potential sources include:

• Moisture in welding consumables

• Damp or improperly stored electrodes

• Oil, grease, or surface contamination

• Moisture on the workpiece

• Hydrogen introduced by the welding process

After welding, hydrogen can move through the weld metal and heat-affected zone.

Under unfavorable conditions, hydrogen can accumulate in regions that are susceptible to cracking.

2. A Crack-Susceptible Microstructure

Some steels develop hard microstructures in the heat-affected zone when the weld cools rapidly.

These microstructures may be more susceptible to hydrogen-assisted cracking.

The risk depends on factors such as steel composition, hardenability, cooling rate, and welding heat input.

Steels with higher carbon equivalents often require more careful control of preheating, interpass temperature, and cooling conditions.

3. Tensile Stress and Joint Restraint

Residual welding stresses and external restraint can increase the risk of hydrogen cracking.

Highly restrained joints may experience significant tensile stresses during cooling.

When diffusible hydrogen, a susceptible microstructure, and tensile stress occur together, the likelihood of cracking increases.

Why Is Hydrogen Cracking Called Delayed Cracking?

Hydrogen cracking may not become visible immediately after welding.

Cracks can develop after the joint cools, sometimes hours or longer after welding, depending on the material and operating conditions.

This delayed behavior makes hydrogen cracking particularly dangerous because a weld may initially pass visual inspection but develop defects later.

For susceptible welds, inspection timing must follow the applicable fabrication code and approved inspection procedure.

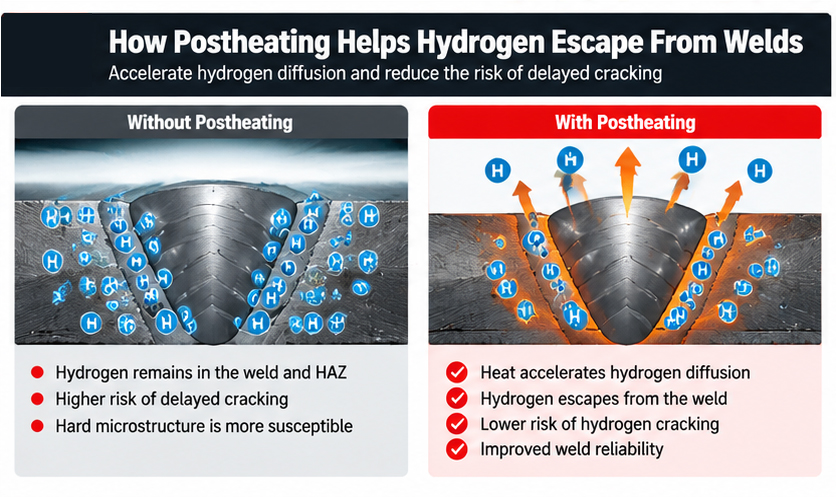

How Does Postheating Help Prevent Hydrogen Cracking?

The primary purpose of postheating is to reduce diffusible hydrogen in the welded joint before conditions become favorable for hydrogen-assisted cracking.

1. Accelerates Hydrogen Diffusion

Hydrogen movement through steel is temperature-dependent.

Maintaining a suitable elevated temperature can increase the rate at which diffusible hydrogen moves through the weld metal and heat-affected zone.

This gives hydrogen more opportunity to escape from the welded joint.

As the amount of diffusible hydrogen decreases, one of the major factors contributing to hydrogen cracking is reduced.

2. Reduces the Risk of Delayed Hydrogen Cracking

Hydrogen cracking can develop as a welded joint cools and hydrogen redistributes within the material.

A properly designed postheating treatment can reduce the hydrogen available to contribute to cracking.

This is particularly valuable for crack-sensitive steels and highly restrained welded joints.

However, postheating cannot compensate for every unfavorable welding condition.

Poor material selection, excessive restraint, inappropriate heat input, or inadequate preheating may still create a significant cracking risk.

3. Supports Welding Quality in Crack-Sensitive Applications

Postheating can be an important part of a broader hydrogen cracking prevention strategy.

It may be specified for applications involving:

• Thick steel plates

• Heavy structural weldments

• Certain low-alloy steels

• Highly restrained welded connections

• Pressure-containing components

• Heavy equipment fabrication

• Repair welding of susceptible steel components

The need for postheating must be established by the material requirements, engineering assessment, and applicable welding procedure.

When Is Postheating After Welding Necessary?

Not every welding application requires postheating.

Many welds can be produced successfully using suitable welding procedures, low-hydrogen consumables, and appropriate control of preheat and interpass temperatures.

Postheating becomes more relevant when the risk of hydrogen cracking is elevated.

Is Postheating Necessary for Mild Steel?

Not necessarily.

Many mild steel welds can be completed without postheating when the welding procedure provides adequate hydrogen control and the joint has low cracking susceptibility.

However, thick sections, high restraint, unsuitable consumables, or unfavorable welding conditions may increase the risk.

The correct decision should be based on the actual material and joint configuration rather than the general term "mild steel."

Is Postheating Important for Low-Alloy Steel?

Postheating may be particularly useful for certain low-alloy steels that are susceptible to hydrogen cracking.

These materials may require a combination of preheating, controlled interpass temperature, low-hydrogen consumables, postheating, and controlled cooling.

The treatment must be compatible with the steel's metallurgical properties.

Excessive or incorrectly applied heating can alter material properties or create other problems.

What Temperature Is Required for Postheating After Welding?

There is no single postheating temperature suitable for every steel or welded joint.

The correct temperature depends on the material, thickness, hydrogen level, joint restraint, and applicable welding procedure.

Simplified welding guides sometimes describe postheating temperatures around 200–350°C (392–662°F), with holding times starting at 30 minutes.

These values should not be treated as universal postheating requirements.

For some crack-sensitive steel welds, an effective hydrogen diffusion treatment may require several hours of holding at a carefully selected temperature.

Other materials may require different temperatures or may not be suitable for the same treatment.

What Determines the Correct Postheating Temperature?

Increasing the postheating temperature is not always beneficial.

For some steels, an excessively high temperature or an unsuitable thermal cycle may interfere with the intended metallurgical behavior or affect mechanical properties.

Always follow the approved welding procedure specification (WPS).

How Long Should You Hold the Temperature During Postheating?

Postheating holding time is the period during which the required region of the welded joint is maintained within the specified temperature range.

The appropriate duration depends on several factors, including material thickness, hydrogen diffusion characteristics, joint geometry, and cracking susceptibility.

Is 30 Minutes of Postheating Enough?

A 30-minute holding period should not be assumed sufficient for every welding application.

Some simplified workshop instructions specify a minimum holding period of 0.5 hours, but more demanding hydrogen cracking prevention procedures may require holding times measured in hours.

The correct holding time must be established by an approved procedure or qualified engineering assessment.

When Does the Holding Time Begin?

The holding time should be measured according to the approved procedure.

Where the procedure requires the joint or a specified region to reach a uniform temperature, the holding period should not begin until the required temperature conditions have been achieved.

For thick components, the surface temperature may not accurately represent the temperature throughout the joint.

Temperature measurement locations and acceptance limits should therefore be defined before heating begins.

How to Perform Postheating After Welding: Step-by-Step Guide

Effective postheating requires more than simply applying heat to a completed weld.

The heating process must be controlled, measured, and documented.

Step 1: Review the Welding Procedure

Before welding begins, confirm whether postheating is required.

Check the approved WPS and relevant fabrication specifications.

Identify:

• Required postheating temperature

• Minimum and maximum temperature limits

• Heating coverage

• Required holding time

• Temperature monitoring method

• Permitted cooling procedure

• Inspection requirements

Do not select a temperature or holding time solely from a general welding chart.

Step 2: Prepare the Heating Equipment

Select heating equipment suitable for the joint size and material.

Depending on the application, controlled heating methods may include:

• Electrical resistance heating

• Induction heating

• Controlled heating blankets

• Suitable industrial heating equipment

Heating methods should provide the required temperature distribution without damaging the component.

Avoid uncontrolled localized heating that may create excessive temperature differences.

Step 3: Maintain the Required Temperature After Welding

When postheating is specified as part of a hydrogen cracking prevention procedure, avoid allowing the joint to cool below the required temperature before treatment.

This may involve maintaining the specified preheat temperature immediately after the final welding pass.

If an interruption occurs, follow the approved procedure for managing the thermal cycle.

Do not assume that reheating a fully cooled joint will reverse any cracking that may already have occurred.

Step 4: Heat the Required Weld Region Uniformly

Apply heat to the region specified in the welding procedure.

The heated area may need to include the weld metal, heat-affected zone, and adjacent base material.

For thick sections, adequate temperature uniformity is especially important.

Avoid overheating one area while leaving other regions below the specified temperature.

Step 5: Monitor the Temperature

Use suitable temperature monitoring equipment.

Thermocouples and controlled temperature recording systems are commonly used for applications requiring documented thermal treatment.

Confirm that the measurement locations represent the regions specified by the procedure.

Monitor the temperature throughout the holding period.

Step 6: Maintain the Required Holding Time

Once the required temperature conditions have been achieved, maintain the joint within the approved range for the specified duration.

Record the holding time and temperature.

If the temperature falls outside the permitted range, follow the procedure's instructions for handling the deviation.

Do not shorten the holding period simply to accelerate production.

Step 7: Cool the Weld According to the Procedure

After the holding period is complete, allow the component to cool using the specified method.

Some applications permit air cooling.

Others require controlled cooling to avoid unfavorable thermal gradients or metallurgical changes.

The cooling method must be suitable for the steel and joint configuration.

Step 8: Inspect and Document the Weld

After postheating and cooling, perform the required inspections.

These may include visual inspection and appropriate nondestructive examination.

For hydrogen-cracking-sensitive joints, observe any inspection delay required by the applicable fabrication code.

Record the postheating temperature, holding time, cooling method, and inspection results as required.

Can Postheating Replace Preheating?

Postheating and preheating are related but perform different functions.

Preheating is applied before welding to control the initial temperature and influence the welding thermal cycle.

Postheating is performed after welding, primarily to promote hydrogen diffusion and reduce delayed cracking risk.

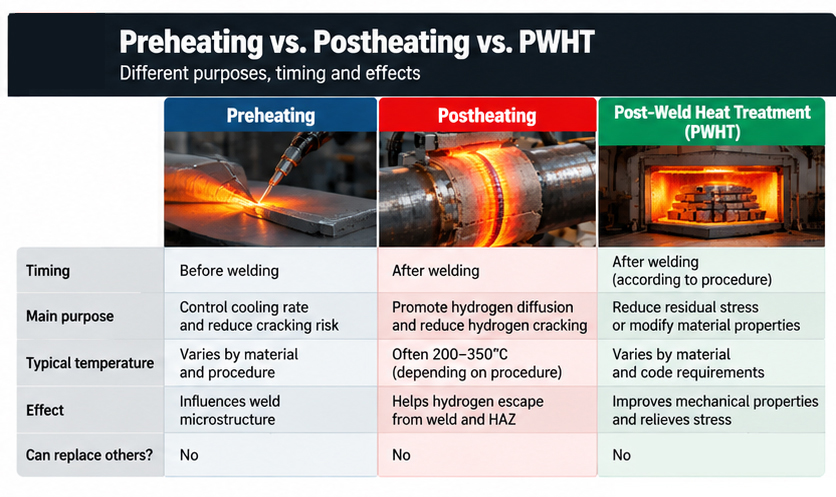

What Is the Difference Between Preheating and Postheating?

Can Postheating Reduce the Required Preheat Temperature?

In some specifically engineered welding procedures, additional postheating may form part of a strategy that allows adjustments to other thermal controls.

However, postheating should not be assumed to provide the same metallurgical benefits as preheating.

Preheating can influence the cooling rate and microstructure formed during welding.

Postheating primarily provides additional time for hydrogen diffusion after welding.

Therefore, reducing or eliminating a required preheat temperature is only appropriate when supported by applicable specifications, engineering assessment, and procedure qualification.

Never omit specified preheating solely because postheating will be performed afterward.

What Is the Difference Between Postheating and Post-Weld Heat Treatment?

Postheating and post-weld heat treatment are often confused because both involve heating a welded component after welding.

However, their objectives and thermal requirements can be very different.

Postheating for Hydrogen Diffusion

Hydrogen diffusion postheating is intended to reduce diffusible hydrogen in the weld region.

It is commonly associated with preventing delayed hydrogen cracking in susceptible steel welds.

Post-Weld Heat Treatment (PWHT)

Post-weld heat treatment is a broader term covering thermal treatments applied after welding.

Depending on the material and procedure, PWHT may be used to:

• Reduce residual stresses

• Temper hardened microstructures

• Improve certain material properties

• Meet fabrication code requirements

PWHT temperatures and holding times are selected for the intended metallurgical and engineering objectives.

A qualified PWHT procedure may also promote hydrogen diffusion, but it should not automatically be treated as equivalent to a specified hydrogen diffusion postheat.

What Are the Most Common Postheating Mistakes?

Incorrect postheating can reduce the effectiveness of the treatment or introduce additional problems.

Mistake 1: Waiting Too Long After Welding

Allowing a crack-sensitive joint to cool before a required postheat may increase the opportunity for delayed cracking to develop.

Solution: Plan the heating process before welding begins and follow the approved temperature transition requirements.

Mistake 2: Using an Unverified Temperature

Applying a temperature from a general guide without checking the material can be ineffective or damaging.

Solution: Use the approved WPS and verify the actual temperature at the required measurement locations.

Mistake 3: Holding the Temperature for Too Short a Time

Insufficient holding time may not provide the intended opportunity for hydrogen diffusion.

Solution: Maintain the specified temperature for the full required duration.

Mistake 4: Applying Uneven Heating

Localized overheating can create significant temperature differences within a welded component.

Solution: Use controlled heating equipment and appropriate temperature monitoring.

Mistake 5: Assuming Postheating Eliminates All Hydrogen Cracking Risk

Postheating reduces one important contributor to hydrogen cracking but does not remove every possible cause.

Solution: Combine postheating with appropriate material selection, welding parameters, hydrogen control, and joint design.

Mistake 6: Confusing Postheating With Stress-Relief Heat Treatment

A hydrogen diffusion treatment should not automatically be used as a substitute for required PWHT.

Solution: Confirm the purpose of each treatment and follow the applicable procedure.

Mistake 7: Using Postheating to Repair Existing Cracks

Postheating is a preventive process, not a reliable method for repairing cracks that have already formed.

Solution: If cracking is suspected or detected, stop and follow the applicable inspection and repair requirements.

How Can You Prevent Hydrogen Cracking Beyond Postheating?

Postheating is most effective when used as part of a comprehensive welding quality control strategy.

Use Suitable Low-Hydrogen Welding Consumables

Select consumables appropriate for the material and application.

Store and handle electrodes, wires, and fluxes according to their specified requirements.

Clean the Joint Before Welding

Remove moisture, oil, grease, paint, and other contaminants from the welding area.

Surface preparation can help reduce potential sources of hydrogen and other weld defects.

Apply the Required Preheat

When specified, preheat the joint to the required temperature before welding.

Maintain the minimum temperature during tack welding and production welding as required.

Control Interpass Temperature

Maintain the specified interpass temperature range.

Avoid allowing the joint to cool below the required minimum or exceeding the permitted maximum.

Use Appropriate Welding Parameters

Follow the approved current, voltage, travel speed, and heat input requirements.

Incorrect heat input can influence cooling behavior and microstructure.

Minimize Excessive Joint Restraint

Use appropriate joint design, welding sequence, and fabrication methods to manage restraint.

Perform Inspection at the Correct Time

Hydrogen cracking can be delayed.

Follow the applicable inspection requirements rather than assuming that a weld is free of cracking immediately after cooling.

How Do You Know if a Weld Is at Risk of Hydrogen Cracking?

The following table provides a practical overview of common risk factors.

This table is intended for preliminary risk awareness and does not replace a welding procedure qualification or engineering assessment.

Frequently Asked Questions About Postheating in Welding

1. What Is Postheating in Welding?

Postheating is the controlled application or maintenance of heat after welding to promote hydrogen diffusion from the weld metal and heat-affected zone. It is used in selected welding applications to help reduce the risk of delayed hydrogen cracking.

2. Why Is Postheating Important After Welding?

Postheating can reduce the amount of diffusible hydrogen remaining in a susceptible welded joint. This helps lower one of the major factors contributing to hydrogen-induced cracking.

3. What Temperature Is Used for Postheating After Welding?

Postheating temperature depends on the steel grade, joint thickness, hydrogen level, and welding procedure. There is no universal temperature suitable for all materials. The approved WPS should define the required range.

4. How Long Should Postheating Be Applied?

The holding time depends on material properties, joint thickness, and cracking susceptibility. Some procedures require several hours of controlled heating. A short holding period should not be assumed adequate without procedure approval.

5. Can Postheating Prevent Hydrogen Cracking Completely?

No. Postheating can reduce hydrogen cracking risk, but it cannot guarantee that cracking will not occur. Successful prevention also requires suitable consumables, thermal control, welding parameters, and management of joint restraint.

6. What Is the Difference Between Preheating and Postheating?

Preheating occurs before welding and helps control the welding thermal cycle. Postheating occurs after welding and is primarily used to promote hydrogen diffusion. The two treatments have different functions and are not automatically interchangeable.

7. Is Postheating the Same as PWHT?

No. Hydrogen diffusion postheating primarily focuses on reducing diffusible hydrogen. Post-weld heat treatment may be used for other objectives, including stress reduction or modification of material properties. Each treatment requires its own approved procedure.

8. Can Postheating Replace Preheating?

Not automatically. Preheating influences the thermal cycle and microstructure formed during welding. Postheating does not necessarily provide the same benefits. Any reduction in required preheat must be supported by engineering assessment and applicable procedure qualification.

9. Does Every Steel Weld Need Postheating?

No. Postheating is generally considered for applications with elevated hydrogen cracking risk. Many welds can be produced without it when appropriate welding procedures and hydrogen control measures are used.

10. Can Postheating Repair Existing Hydrogen Cracks?

No. Postheating should not be relied upon to repair cracks that have already formed. Suspected or confirmed cracks require appropriate inspection, engineering evaluation, and an approved repair procedure.

11. Why Must Postheating Be Performed Promptly After Welding?

For susceptible joints, a specified postheating treatment is often intended to continue the thermal control established during welding. Allowing the joint to cool before treatment may increase the opportunity for delayed hydrogen cracking.

12. How Can Welders Improve Hydrogen Cracking Prevention?

Use suitable low-hydrogen consumables, clean the joint, follow specified preheat and interpass temperatures, control heat input, minimize excessive restraint, and apply postheating when required by the approved welding procedure.

Conclusion: Is Postheating an Effective Way to Reduce Hydrogen Cracking?

Postheating after welding is a valuable hydrogen control technique for selected steel welding applications.

By maintaining a suitable temperature after welding, the process provides additional time for diffusible hydrogen to escape from the weld metal and heat-affected zone.

This can help reduce the risk of delayed hydrogen cracking, particularly in susceptible steels, thick sections, and highly restrained joints.

However, effective postheating depends on selecting the correct temperature, holding time, heating method, and cooling procedure.

It should not be treated as a universal replacement for preheating or post-weld heat treatment.

The key to preventing hydrogen cracking is a properly qualified welding procedure that combines suitable materials, low-hydrogen practices, controlled thermal conditions, and appropriate inspection.

For welding engineers, fabrication workshops, and industrial manufacturers, understanding when and how to apply postheating can support more reliable weld quality, fewer unexpected repairs, and safer welded structures.
