Welding distortion is a common challenge in metal fabrication. Whether you are welding thin carbon steel sheets, stainless steel tubes, large structural frames, or heat exchanger components, unwanted movement during welding can affect dimensional accuracy, joint alignment, and overall product quality.
The most effective way to prevent welding distortion is to control weld shrinkage before, during, and after welding. Six practical methods include using suitable fixtures, presetting components, applying balanced welding techniques, controlling heat input, planning the welding sequence, and following an appropriate cooling procedure.
These methods can help reduce warping, angular distortion, twisting, and dimensional changes. However, no single technique works for every material or joint design.
This guide explains why welding distortion occurs, how to prevent it, and which techniques are most suitable for different fabrication applications.
Welding distortion is an unwanted change in the shape, dimensions, or alignment of a workpiece caused by uneven heating and cooling during welding.
When the welding arc heats a localized area, the metal expands. Surrounding cooler material restricts this expansion, which can produce plastic deformation.
As the weld and surrounding material cool, the heated region contracts. Because the contraction is not uniform throughout the component, the resulting shrinkage forces may bend, twist, or warp the workpiece.
The final amount of distortion depends on the material, joint geometry, weld size, heat input, welding sequence, and degree of restraint.

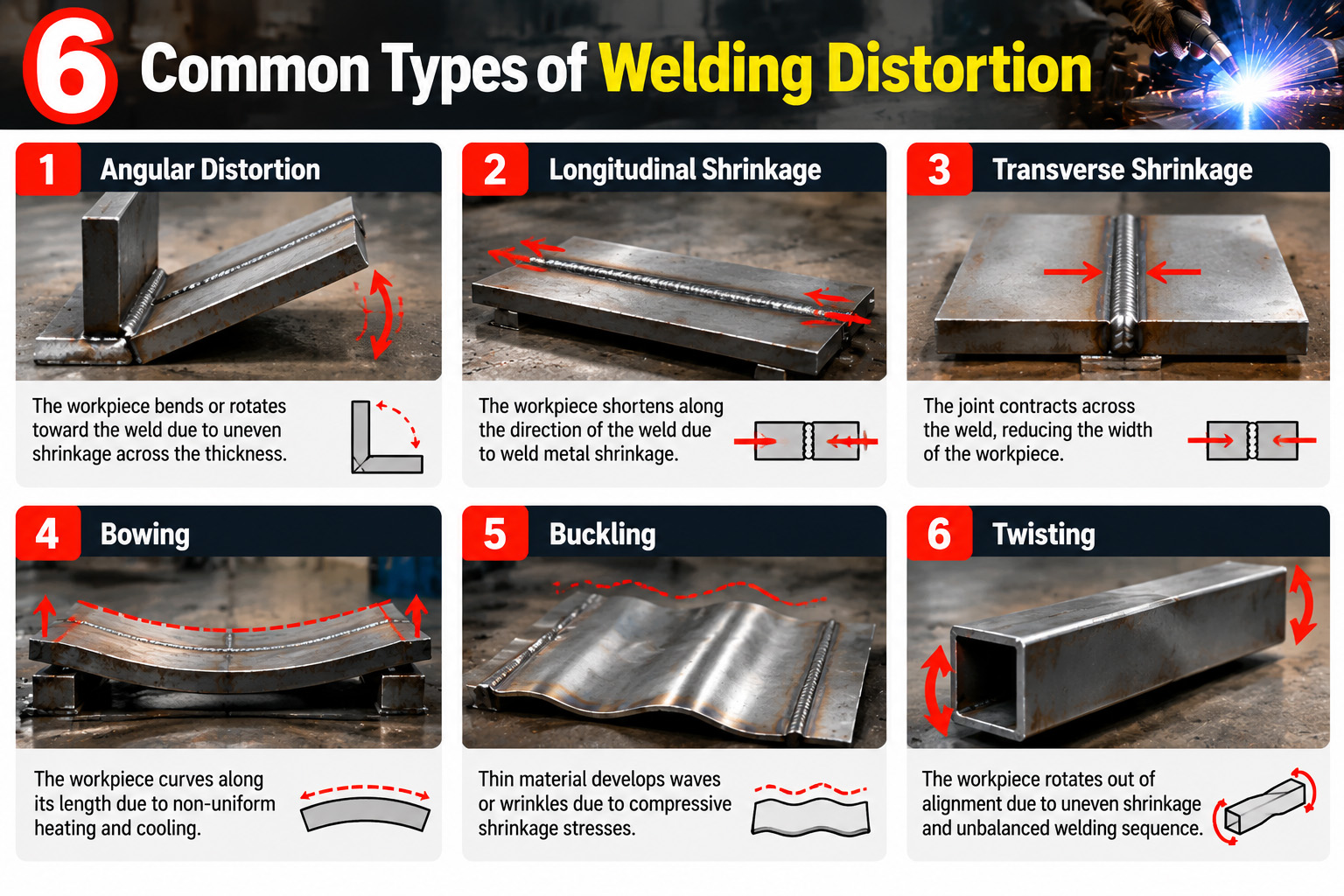

Type of Distortion | Typical Appearance | Common Applications |
|---|---|---|
Angular distortion | Plates or joint edges rotate toward the weld | Butt joints, fillet welds |
Longitudinal shrinkage | Workpiece shortens along the weld direction | Long seams, structural beams |
Transverse shrinkage | Joint contracts across the weld | Butt-welded plates and pipes |
Bowing | Workpiece curves along its length | Thin plates, long frames |
Buckling | Thin material develops waves or wrinkles | Sheet metal fabrication |
Twisting | Assembly rotates out of alignment | Frames and irregular structures |
Identifying the type of distortion is the first step toward selecting the correct prevention method.
Welding distortion occurs because the temperature distribution across a workpiece is not uniform.
Several factors can increase the amount of distortion.
The weld region becomes much hotter than the surrounding base metal.
This temperature difference creates unequal expansion and contraction, which can change the shape of the workpiece.
Depositing more weld metal than required increases the amount of material that contracts during cooling.
Oversized welds and unnecessary additional passes can increase shrinkage and distortion.
Completing long welds or heavily welding one side of an assembly before the other may produce unbalanced shrinkage forces.
The resulting distortion can become difficult to correct as fabrication progresses.
Thin sheets, long tubes, and flexible structures may move during welding if they are not adequately supported.
Poor fit-up and inconsistent joint gaps can also make distortion less predictable.
Different metals respond differently to welding heat.
For example, many austenitic stainless steels have relatively high thermal expansion and low thermal conductivity compared with carbon steel, making distortion control especially important.

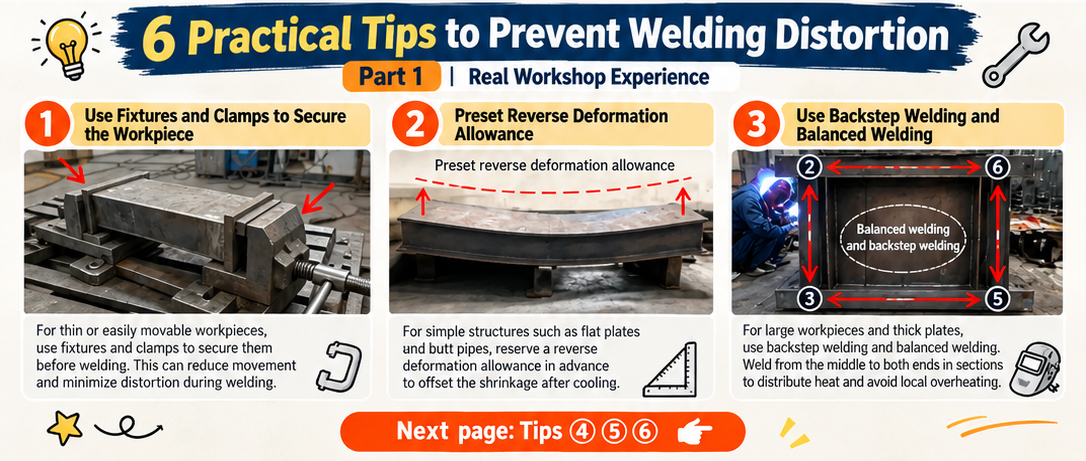

The following six methods can be applied during fabrication planning, joint preparation, welding, and cooling.
One of the most practical ways to reduce welding distortion is to secure the workpiece before welding begins.
Fixtures, clamps, positioning blocks, and temporary supports help maintain alignment and limit unwanted movement.
This method is particularly useful for thin sheet metal, small components, stainless steel tubes, and assemblies with tight dimensional tolerances.
Follow these practical steps:
Position the components according to the required dimensions and joint gap.
Use suitable fixtures or clamps to maintain alignment.
Place clamps where they will not obstruct welding access or interfere with the joint.
Apply tack welds using the required welding procedure.
Check alignment and dimensions before completing the main welds.
Release the fixtures according to the approved fabrication procedure.
For long joints, distribute tack welds in a planned sequence to maintain a consistent root gap.
Temporary strongbacks or stiffeners may also be used where suitable.
Yes.
Although restraint can reduce visible movement, excessive restraint may increase residual stress and cracking risk.
This is particularly important when welding crack-sensitive steels or highly restrained joints.
The objective is not to prevent every possible movement at any cost. It is to maintain dimensional accuracy while avoiding harmful stress concentrations.
Practical tip: Use enough restraint to control alignment, but do not add unnecessary rigid fixtures without considering material properties and cracking susceptibility.
Presetting is a distortion-control technique in which a component is intentionally positioned slightly away from its final required shape before welding.
The expected welding shrinkage then moves the component toward the desired alignment.
This technique is sometimes called reverse deformation or counter-bending.
Consider two steel plates joined by a butt weld.
If the welding process is expected to produce angular distortion, the plates can be positioned at a small opposing angle before welding.
As the weld cools and contracts, the joint moves toward the required final geometry.
Presetting can be effective for:
Flat plate butt joints
Certain pipe joints
Repetitive welded components
Structural assemblies with predictable shrinkage
Production fixtures with established dimensional data
There is no universal preset angle or allowance.
The correct amount depends on:
Material thickness
Joint preparation
Weld size
Welding process
Number of passes
Welding position
Degree of restraint
For repetitive production, trial welds and dimensional measurements can help determine an appropriate preset allowance.
Do not apply an arbitrary preset angle to pressure-containing or safety-critical components without engineering approval.
Practical tip: Record the dimensions before welding, immediately after welding, and after cooling. These measurements can help improve presetting accuracy in future production.
Welding technique has a major influence on how heat and shrinkage are distributed throughout a component.
For long welds and large assemblies, dividing the weld into controlled sections can help reduce the accumulation of distortion.
Three useful approaches are backstep welding, skip welding, and balanced welding.
Backstep welding is a technique in which short weld segments are deposited in the opposite direction to the overall progression of welding.
For example, the overall sequence may progress from left to right, while each individual weld segment is deposited from right to left.
This technique can help distribute shrinkage along a long joint rather than allowing it to accumulate in a single continuous direction.
Backstep welding is commonly considered for long seams, plate assemblies, and selected structural welds.
Skip welding involves depositing short weld segments at predetermined intervals along a joint.
The remaining sections are completed in a planned sequence.
By distributing the weld deposits across different locations, skip welding can help control the development of localized distortion.
However, the segment length, sequence, and temperature requirements must remain consistent with the approved welding procedure.
Balanced welding aims to distribute shrinkage forces around the neutral axis of a component.
For example, where access and joint design permit, welds may be deposited alternately on opposite sides of a joint.
This can reduce the angular distortion that might occur if one side were welded completely before the other.
Balanced welding is especially useful for certain:
Double-sided butt joints
Structural beams
Large welded frames
Symmetrical assemblies
Multi-pass welds
Not always.
A center-outward sequence can be useful for some symmetrical assemblies, but the best direction depends on joint geometry, restraint, fit-up, and welding procedure requirements.
For certain long joints, progression toward a free end may provide better distortion control.
Practical tip: Choose the welding sequence based on the expected shrinkage direction, not simply on a fixed rule such as always starting in the center.

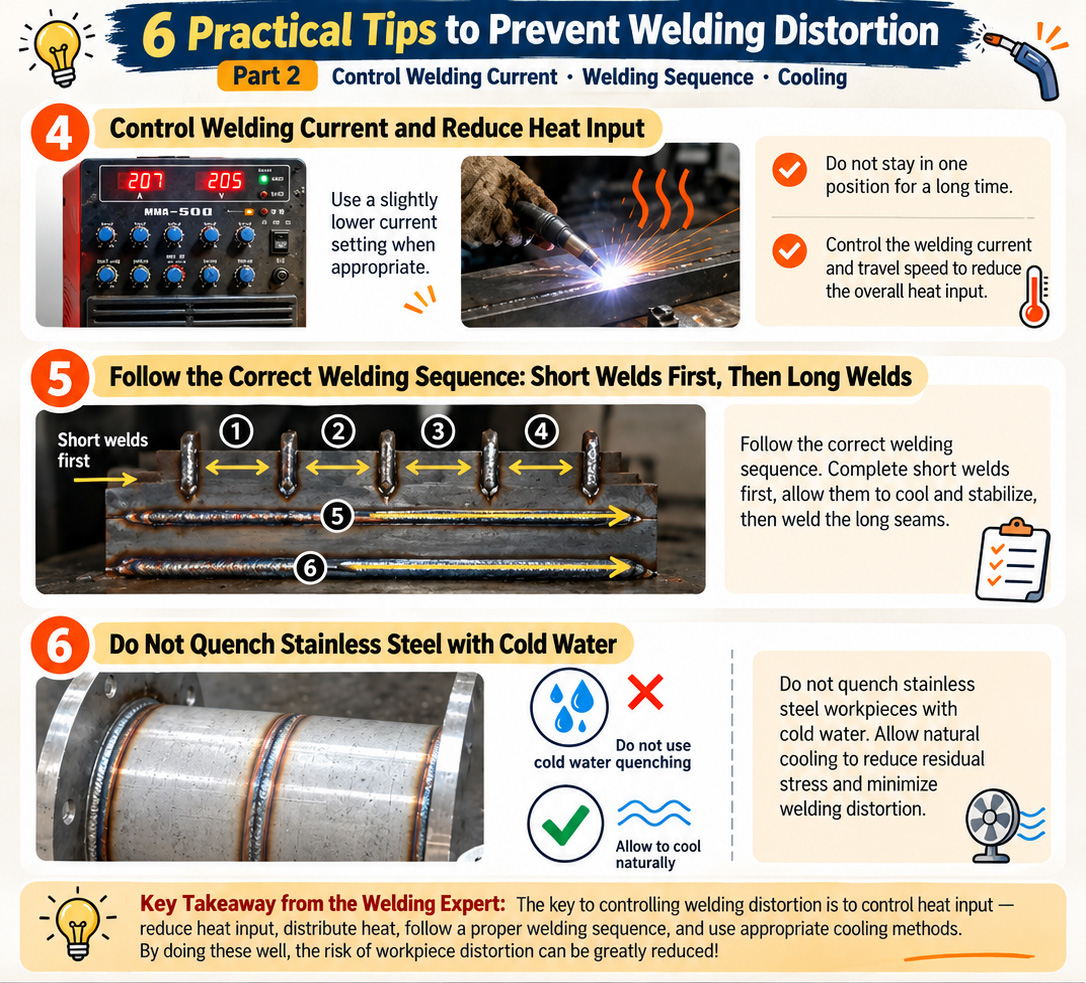

Excessive or poorly distributed heat can increase the area affected by welding and contribute to distortion.
However, reducing welding current as much as possible is not always the correct solution.
The goal is to use an appropriate heat input that produces a sound weld while limiting unnecessary heating.
Welding heat input is influenced by several parameters, including:
Welding current
Arc voltage
Travel speed
Welding process efficiency
Welding technique
For a given current and voltage, slower travel generally increases the energy delivered per unit length.
Long dwell times and unnecessary weaving may also increase the amount of heat introduced into the workpiece.
Use the following practices:
Select current and voltage settings suitable for the material and joint.
Maintain a consistent travel speed.
Avoid unnecessary arc dwell at one location.
Use the specified weld size rather than depositing oversized welds.
Avoid unnecessary additional passes.
Maintain the required interpass temperature range.
For thin materials, carefully selected welding parameters and efficient travel can help reduce warping.
Yes.
Excessively low current may cause poor fusion, unstable welding conditions, or other defects.
In some cases, slower travel used to compensate for low current can increase total heat input per unit length.
Therefore, the best approach is to optimize welding parameters rather than simply minimizing current.
Practical tip: Use the lowest practical heat input that still satisfies weld quality, penetration, and approved procedure requirements.
A well-planned welding sequence can prevent shrinkage forces from becoming concentrated in one part of an assembly.
This is especially important for large frames, long plates, pipe structures, and heat exchanger components.
Every weld produces some amount of shrinkage.
When multiple welds are deposited, the sequence determines how those shrinkage forces interact.
An unsuitable sequence may pull components out of alignment or lock distortion into the structure.
A suitable sequence helps balance these forces while maintaining joint accessibility and welding quality.
Short welds may be completed first in some fabrication sequences to stabilize the assembly or manage local shrinkage.
However, this is not a universal rule.
In other situations, completing particular long welds first or alternating between different joint locations may provide better dimensional control.
The correct sequence should be based on the assembly design and an approved fabrication plan.
Before welding:
Identify the joints most likely to cause significant shrinkage.
Check the required final dimensions and tolerances.
Determine where temporary support or restraint is needed.
Consider whether opposing welds can be balanced.
Select a sequence that limits concentrated shrinkage.
Monitor alignment as welding progresses.
For large frames, it may be helpful to divide the assembly into smaller welding stages.
Where design requirements permit, intermittent welds may reduce the amount of deposited weld metal.
However, intermittent welding must never replace a required continuous weld without engineering approval.
Practical tip: A welding sequence should be documented for repetitive production so that distortion control does not depend entirely on individual operator habits.
Cooling is the final stage of the welding thermal cycle, and it can influence residual stress, microstructure, and final dimensions.
Improper cooling may create additional quality problems.
Water quenching should not be used as a general distortion-prevention method.
Rapid cooling can create steep temperature gradients and may produce undesirable metallurgical changes in certain steels.
For some materials, it can increase hardness and cracking susceptibility.
Although specialized welding procedures may use controlled cooling techniques, these methods require appropriate engineering assessment.
For many routine stainless steel fabrication applications, allowing the welded component to cool under suitable workshop conditions is preferable to applying uncontrolled water quenching.
However, cooling requirements depend on the stainless steel grade, joint design, welding process, and applicable procedure.
Stainless steel tube bundles and thin-walled components require particular attention because uneven heating and cooling can affect alignment.
Not automatically.
Some carbon steel applications permit normal air cooling.
Other applications require controlled cooling, preheat maintenance, or post-weld thermal treatment.
The correct method depends on the steel grade, thickness, hardenability, and welding procedure.
Unnecessary insulation may slow cooling without providing a useful benefit, while inappropriate rapid cooling may increase cracking risk.
Practical tip: Follow the specified cooling procedure and temperature limits. Do not use water, compressed air, or insulation as a universal distortion-control solution.
The best method depends on the type of workpiece and the expected distortion.
Workpiece or Application | Common Distortion Risk | Recommended Control Method |
|---|---|---|
Thin carbon steel sheet | Buckling and warping | Fixtures, controlled heat input, planned short weld segments |
Stainless steel tubing | Angular distortion and misalignment | Accurate fit-up, balanced welding, suitable cooling |
Large structural frame | Twisting and dimensional changes | Planned welding sequence, balanced welds, fixtures |
Long steel plate | Bowing and longitudinal shrinkage | Backstep or skip welding, appropriate restraint |
Pipe butt joint | Angular distortion and joint misalignment | Accurate fit-up, suitable tack welding, balanced passes |
Heat exchanger tube-to-tubesheet joints | Tube alignment changes and localized distortion | Accurate positioning, controlled welding sequence and heat input |
Thick carbon steel assembly | Shrinkage and residual stress | Qualified welding procedure, suitable restraint and thermal control |
These recommendations are general starting points. Final welding procedures should be selected according to the material, design, service requirements, and applicable fabrication standards.
Thin sheet metal is particularly susceptible to distortion because relatively small amounts of welding heat can produce significant local deformation.
Support the workpiece with fixtures that maintain the required shape without obstructing welding.
Where appropriate, backing bars or heat-conductive fixtures may help control local temperature distribution.
Do not deposit more weld metal than the design requires.
For thin sheet metal, oversized welds can introduce unnecessary shrinkage.
Distribute welds to avoid concentrating heat in one small area.
Where the joint design permits, short weld segments or a planned skip sequence may be useful.
However, required penetration, continuity, and sealing performance must be maintained.
Check the workpiece after initial tack welding and during subsequent welding stages.
Early detection allows the welding sequence or fixture arrangement to be adjusted before the distortion becomes severe.
Stainless steel tubing is widely used in industrial piping, process equipment, and heat exchanger fabrication.
Dimensional accuracy is especially important when tubes must fit into closely controlled assemblies.
Many austenitic stainless steels have higher thermal expansion and lower thermal conductivity than carbon steel.
These properties can increase localized temperature differences and shrinkage effects during welding.
Use accurate tube positioning and appropriate tack welding to maintain alignment.
Avoid excessive heat input and unnecessary weld passes.
Where access and joint design permit, balance weld deposits around the joint.
For tube bundles and tube-to-tubesheet assemblies, a planned welding sequence can help avoid concentrating heat in adjacent joints.
Do not apply uncontrolled water quenching to correct movement during welding.
For critical tube-to-tubesheet connections, follow the qualified welding procedure and applicable leak-tightness or inspection requirements.
Large welded frames can develop cumulative distortion because many individual welds contribute shrinkage forces to the overall structure.
A frame may appear correctly aligned during initial assembly but become twisted or bowed as welding progresses.
Establish reference points and critical measurements before welding.
Record important dimensions after tack welding and at selected stages during fabrication.
Avoid completing all welds on one side of a symmetrical structure before addressing the opposite side unless the approved procedure requires that sequence.
Strongbacks, braces, and fixtures may help maintain the intended geometry.
Their use must account for restraint-induced stresses and the method of removal.
Avoid oversized welds and excessive weld metal.
Where engineering design permits, optimize weld placement and joint preparation to reduce total weld volume.
Even experienced welders may encounter distortion when fabrication planning does not adequately account for shrinkage.
Common Mistake | Possible Result | Better Practice |
|---|---|---|
Welding without adequate fit-up control | Joint gap changes and misalignment | Use suitable tack welds and fixtures |
Excessively rigid clamping | High residual stress or cracking risk | Balance restraint with material requirements |
Using too much weld metal | Increased shrinkage | Follow specified weld dimensions |
Welding continuously in an unsuitable direction | Cumulative distortion | Plan backstep, skip, or balanced sequences where appropriate |
Holding the arc in one location too long | Excessive localized heating | Maintain suitable travel speed |
Ignoring interpass temperature requirements | Uncontrolled thermal cycle | Follow the approved temperature range |
Using water for uncontrolled rapid cooling | Thermal and metallurgical problems | Follow the specified cooling procedure |
Removing fixtures without checking the procedure | Unexpected dimensional movement | Release supports at the appropriate stage |
Forcing distorted components into alignment | Potential damage or cracking | Use an approved correction procedure |
Before starting production, use this checklist to identify potential distortion problems.
Confirm material type, thickness, and joint design.
Check the required dimensions and tolerances.
Select appropriate fixtures and supports.
Verify joint fit-up and root gap.
Plan the tack welding and main welding sequence.
Review the approved welding procedure.
Maintain the specified welding parameters.
Avoid unnecessary heat input.
Use balanced welding where practical.
Follow the planned weld sequence.
Monitor joint alignment and movement.
Maintain the required interpass temperature.
Follow the specified cooling procedure.
Avoid uncontrolled rapid cooling.
Remove fixtures according to the fabrication plan.
Measure final dimensions after cooling.
Inspect the weld for defects.
Record distortion and corrective actions for future production.
Some welding distortion can be corrected after fabrication, but prevention is generally preferable.
Correction methods may include mechanical straightening, controlled thermal straightening, or other approved procedures.
However, correction is not risk-free.
Excessive mechanical force can damage the base metal or welded joint.
Uncontrolled heating can affect material properties and introduce additional residual stress.
For pressure-containing, fatigue-sensitive, or safety-critical components, correction methods must be reviewed and approved by qualified personnel.
If a welded component exceeds dimensional tolerances, identify the type and cause of distortion before attempting correction.
Welding distortion is caused by uneven thermal expansion and contraction during welding. Localized heating, weld shrinkage, joint restraint, weld size, and welding sequence all influence the amount and type of distortion.
The best approach is to control shrinkage through suitable joint design, accurate fit-up, appropriate fixtures, balanced welding, optimized heat input, and a planned welding sequence. The most effective combination depends on the workpiece and material.
Use suitable fixtures, avoid oversized welds, control heat input, and distribute welding across the joint where the procedure permits. Maintain the required weld quality and avoid concentrating excessive heat in one area.
Backstep welding can help reduce distortion in suitable applications by depositing short weld segments opposite to the overall direction of progression. Its effectiveness depends on joint geometry, weld sequence, and restraint.
Backstep welding uses short segments deposited opposite to the overall progression direction. Skip welding deposits segments at predetermined intervals along the joint. Both techniques can help manage the distribution of weld shrinkage.
No. Fixtures and clamps can limit movement and maintain alignment, but they cannot eliminate thermal expansion, shrinkage, or residual stress. Excessive restraint may increase cracking risk in susceptible materials.
No. Lower current does not automatically mean lower heat input or better weld quality. Travel speed, voltage, process efficiency, and the number of passes also matter. Welding parameters must provide adequate fusion and meet procedure requirements.
A center-outward sequence may help some symmetrical assemblies, but it is not suitable for every joint. Welding direction should be selected according to geometry, restraint, shrinkage behavior, and the approved procedure.
Uncontrolled water cooling is not a recommended universal method. Rapid cooling can create unfavorable temperature gradients and metallurgical effects in certain materials. Use only cooling methods permitted by the approved welding procedure.
Many austenitic stainless steels have higher thermal expansion and lower thermal conductivity than carbon steel. These characteristics can increase localized temperature differences and distortion during welding.
Preheating can reduce temperature gradients in some applications, but it is not a universal distortion-control method. Its main purposes may include controlling cooling behavior and reducing cracking risk. Preheat requirements should be based on the material and welding procedure.
Some distortion can be corrected through approved mechanical or thermal straightening methods. However, correction may introduce damage or affect material properties if performed improperly. Prevention and early dimensional monitoring are usually preferable.
Welding distortion is a predictable consequence of localized heating and cooling, but its effects can often be controlled through proper fabrication planning.

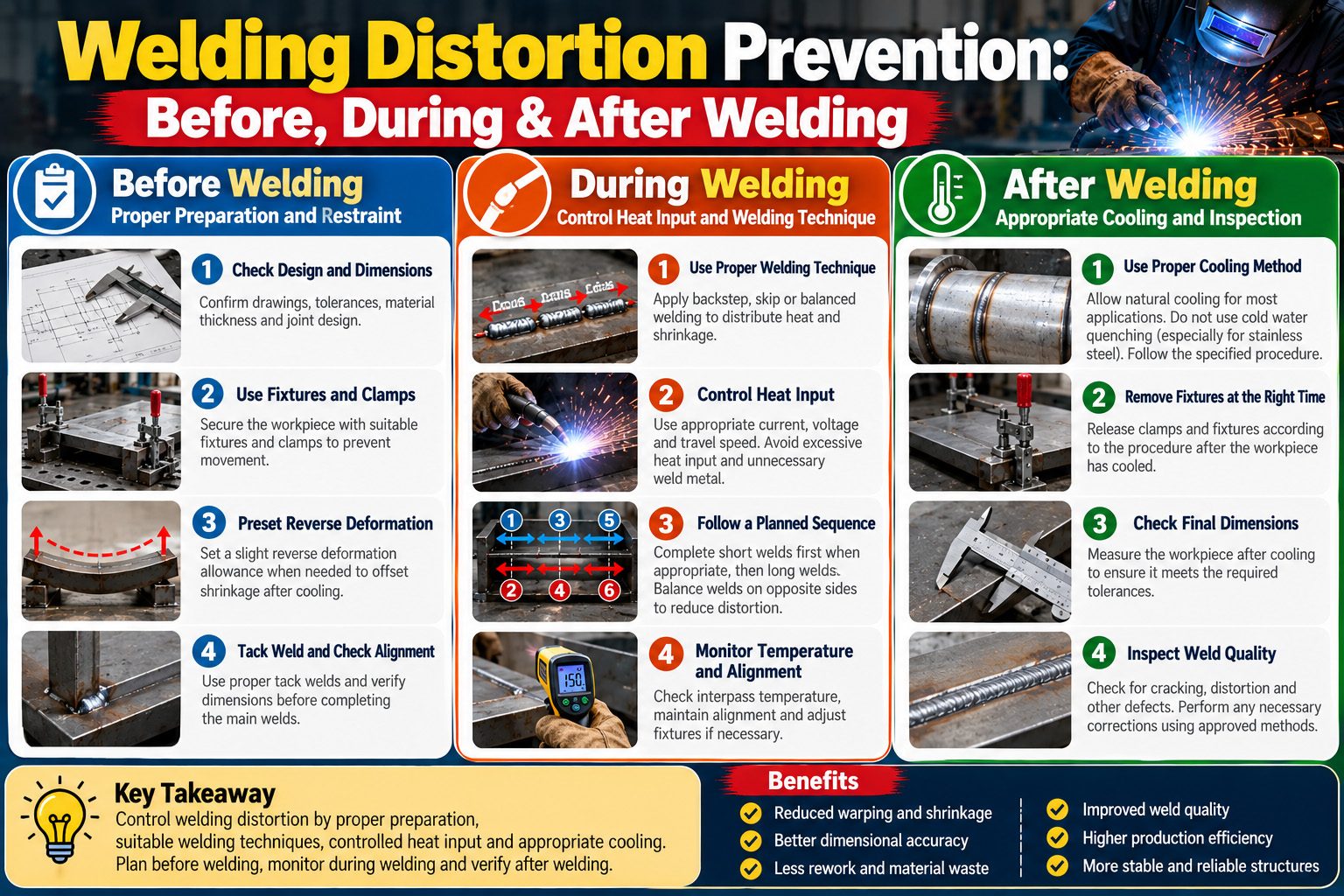

Six practical methods provide a strong foundation for welding distortion prevention:
Secure workpieces with suitable fixtures and tack welds.
Use presetting to compensate for expected shrinkage.
Apply backstep, skip, or balanced welding where appropriate.
Control heat input and avoid unnecessary weld metal.
Plan the welding sequence to manage shrinkage forces.
Follow the correct cooling procedure for the material.
For thin sheet metal, stainless steel tubes, large frames, and industrial welded assemblies, these techniques can improve dimensional consistency and reduce costly rework.
The key is to control welding distortion before it develops rather than relying on corrective straightening after fabrication.
By combining suitable welding equipment, qualified procedures, accurate fit-up, and effective thermal control, manufacturers can achieve more consistent weld quality and reliable production results.
