MIG Welding Fume Extraction: A Practical Workshop Checklist

Welding fume controls work best when they are chosen for the actual process, material and work position. For MIG/MAG welding, start by reducing fume where practicable, capture it near the arc, and check that the extraction system performs under real working conditions. Use exposure monitoring and respiratory protective equipment (RPE) where required by the risk assessment and local rules.

For Australian workshops, this review is especially timely: Safe Work Australia says the transition from the current workplace exposure standards (WES) to the new workplace exposure limits (WEL) is scheduled for 1 December 2026. Until that date, workplaces must continue to comply with the current WES list. Confirm implementation and requirements with the relevant state or territory regulator.

Why a fume-control review matters

Welding fume is a mixture, not a single substance. Its composition can vary with the base metal, welding process, wire or electrode, shielding gas, coatings and surface contamination. A control that works for one job may be less effective for a different material or setup.

Exposure also depends on how long and how often the task is performed, where the welder’s head is relative to the plume, and whether the work is indoors, outdoors or in a restricted space. A review should cover the whole task, including preparation and nearby workers—not just the welding parameters.

A five-step MIG/MAG fume-control checklist

1. Map the work before choosing equipment

List the metals, wire types, shielding gases and coatings used. Note the welding process, workpiece size, typical arc time, welding positions and whether the job moves between stations. Include nearby workers who may be exposed.

This gives the workshop a clearer basis for choosing controls and deciding whether exposure monitoring or specialist advice is needed. Safe Work Australia advises identifying possible contaminants and arranging air monitoring when exposure is uncertain.

2. Reduce fume generation where practical

Consider whether the job can be redesigned, automated or completed with a lower-fume process or setup that still meets the weld requirements. Clean or prepare surfaces appropriately before welding, and use suitable consumables and parameters for the procedure.

These choices do not replace extraction when extraction is required. They are part of reducing the amount of fume the controls must manage.

3. Capture fume close to where it forms

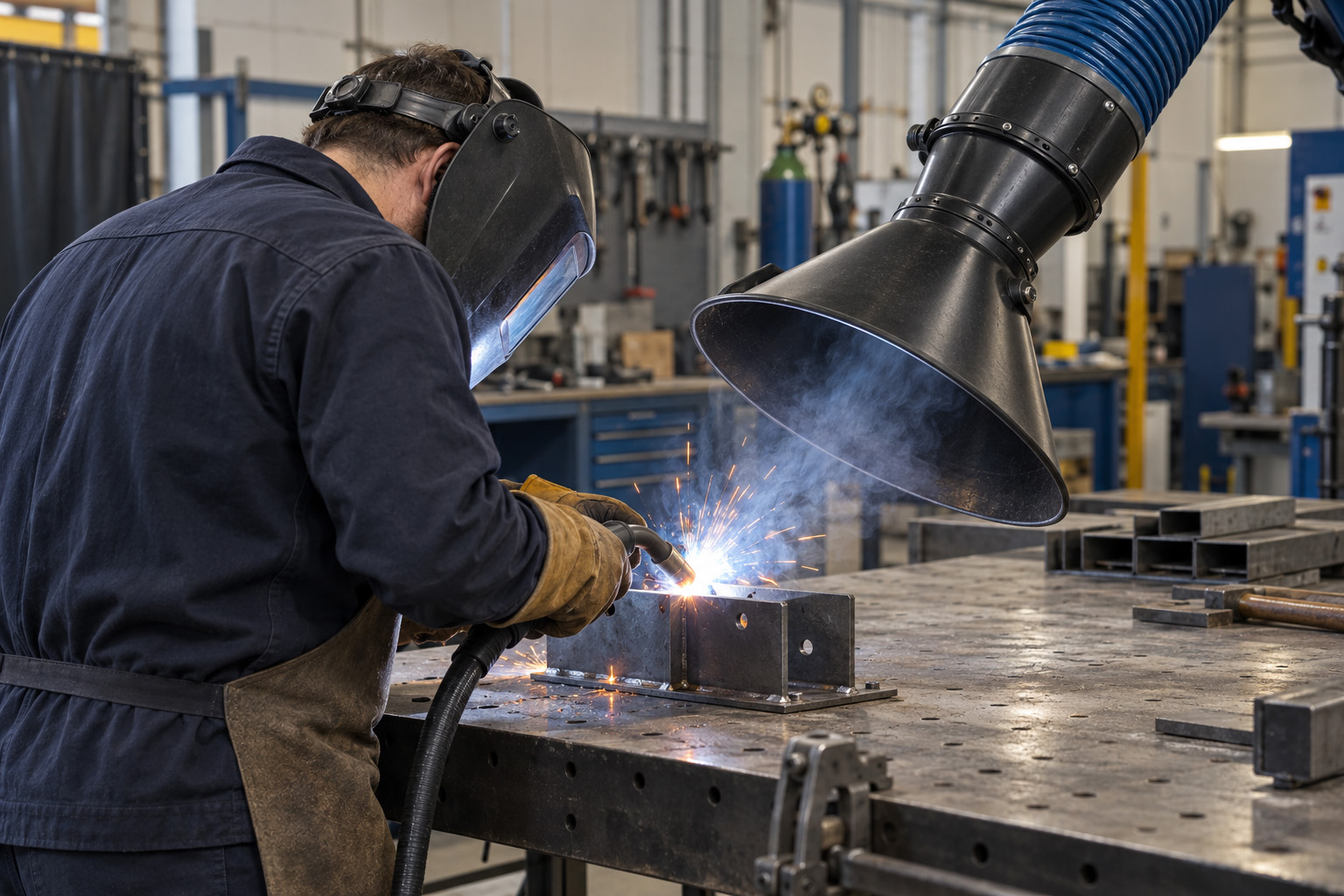

For repetitive work on smaller components, a fixed or movable extraction hood, extracted bench or booth may suit the station. For larger workpieces that move around the shop, a hood can be difficult to keep close to the arc; on-torch extraction may be worth assessing. WorkSafe Victoria notes that capture performance can vary with welding position, including overhead or vertical work.

Position capture so it removes the plume without disrupting shielding-gas coverage. A general-purpose fan can move contaminated air around the workshop and may interfere with shielding gas if poorly positioned, so do not assume that air movement alone is adequate.

4. Check the complete extraction setup

An extraction torch is only one part of a system. Check that the torch, hose and extraction unit are compatible, and follow the equipment maker’s instructions for setup and maintenance. Inspect hoses, capture openings and filters according to the equipment schedule, and assess performance under the jobs and positions actually used.

Do not treat the absence of visible smoke as proof that exposure is controlled. If it is unclear whether controls are adequate, seek competent exposure-monitoring advice. Monitoring may also need to consider specific contaminants, not only total fume.

5. Treat respirators as part of a control plan

RPE may be required when higher-level controls do not adequately control exposure or cannot reasonably be used. Selection, fit, maintenance and training matter. Follow local requirements and the task-specific risk assessment, especially for outdoor or confined-space work.

A fume-extraction torch or respirator does not by itself prove compliance with an exposure limit. The control plan must suit the job and the applicable jurisdiction.

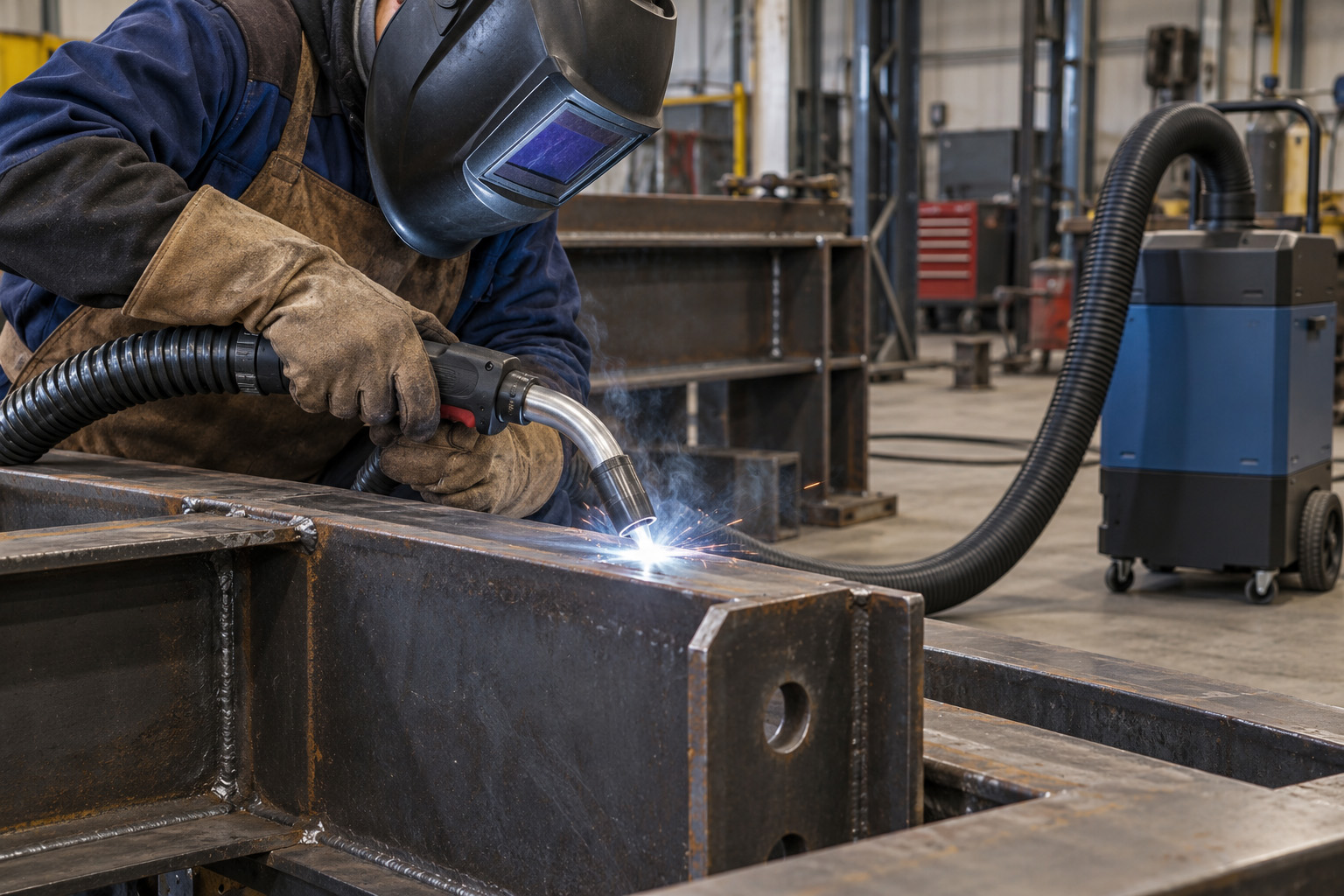

When to consider an extraction MIG torch

An extraction torch may suit work where the welder moves between large components and repeatedly repositioning a hood is impractical. It may be less convenient where the torch is heavy for the task, where access is restricted, or where the welding position makes source capture difficult. Trial the setup under real production conditions and evaluate both fume capture and weld quality.

INWELT lists the FE360 MIG/MAG torch with integrated source capture. Its product page states that a suitable external extraction system is required. Confirm connector, extraction-unit compatibility, operating range and application details with the supplier before specifying it.

Prepare for the 2026 Australian WEL transition

Before 1 December 2026, Australian workshops should confirm which standards and requirements apply in their state or territory, review their fume risk assessment, and identify tasks that may need updated controls or monitoring. Safe Work Australia notes that exposure limits are upper limits, not a substitute for taking reasonably practicable steps to minimise exposure.

A scheduled review also gives supervisors and welders a chance to confirm how the controls should be positioned, maintained and used—and to raise tasks where the current setup is difficult to operate consistently.

Frequently asked questions

Does all welding fume have the same composition?

No. Fume composition depends on factors such as the welding process, base and filler metals, shielding gas or flux, and surface coatings or contaminants. Identify the materials and tasks in use; arrange competent air monitoring if exposure or contaminants are uncertain.

Does a fume-extraction MIG torch work without a separate extractor?

Usually, no. An extraction torch provides a capture path at the torch, but a compatible external extraction unit is needed to move and filter the fume. Confirm the required unit and configuration with the equipment supplier.

Should I choose a fume-extraction torch or a movable hood?

It depends on the work. A hood may suit a fixed station or workpiece that stays within its capture area. On-torch extraction may be worth evaluating for large or mobile work where a hood is difficult to reposition consistently. Compare access, torch handling, capture performance and shielding-gas stability during actual work.

Is general workshop ventilation enough to control welding fume?

Not necessarily. General ventilation can dilute contaminants, but it may not capture fume at the source and can move it through the workplace. Select controls from a task-specific risk assessment and check local requirements.

Do welders still need respirators when extraction is installed?

Possibly. Whether RPE is needed depends on the task, the effectiveness of other controls, exposure assessment and applicable rules. Extraction does not automatically remove the need for RPE, and RPE should be selected and managed as part of the control plan.

When should a workshop arrange air monitoring?

When there is uncertainty about workers’ exposure, whether an exposure limit may be exceeded, or whether existing controls are effective. Safe Work Australia recommends monitoring in relevant uncertain cases; use a competent person and consult the local regulator where needed.

Are welding-fume exposure limits the same in every country?

No. Limits, definitions and implementation dates differ by country and sometimes by state or territory. Check the rules that apply at the worksite rather than relying on a limit quoted for another jurisdiction.

Conclusion

Effective MIG/MAG fume control starts with understanding the task, reducing fume where practical, and capturing it near its source. Extraction torches can be one option for mobile welding, but the full setup needs to be checked under real working conditions. For Australian workshops, the approaching WEL transition is a useful prompt to review controls and confirm requirements with the local regulator.
