CO2 Vs. MIG Vs. MAG Welding: What's The Difference?

CO2, MIG, and MAG welding are often discussed as three different welding processes. However, many welders and fabrication workshops use these terms interchangeably, which can lead to confusion when selecting shielding gas, welding wire, and operating parameters.

Choosing the wrong shielding gas can contribute to excessive spatter, unstable arc behavior, poor bead appearance, oxidation, and welding defects.

The main difference between CO2, MIG, and MAG welding is the type of shielding gas used. MIG uses inert shielding gases, while MAG uses active gases or gas mixtures. Pure CO2 welding is technically a form of MAG welding.

All three terms are commonly associated with gas metal arc welding (GMAW), a process that uses a continuously fed consumable wire electrode and an externally supplied shielding gas.

This guide explains the differences between CO2, MIG, and MAG welding, compares their advantages and limitations, and helps welders choose the right shielding gas for carbon steel, stainless steel, aluminum, and industrial fabrication applications.

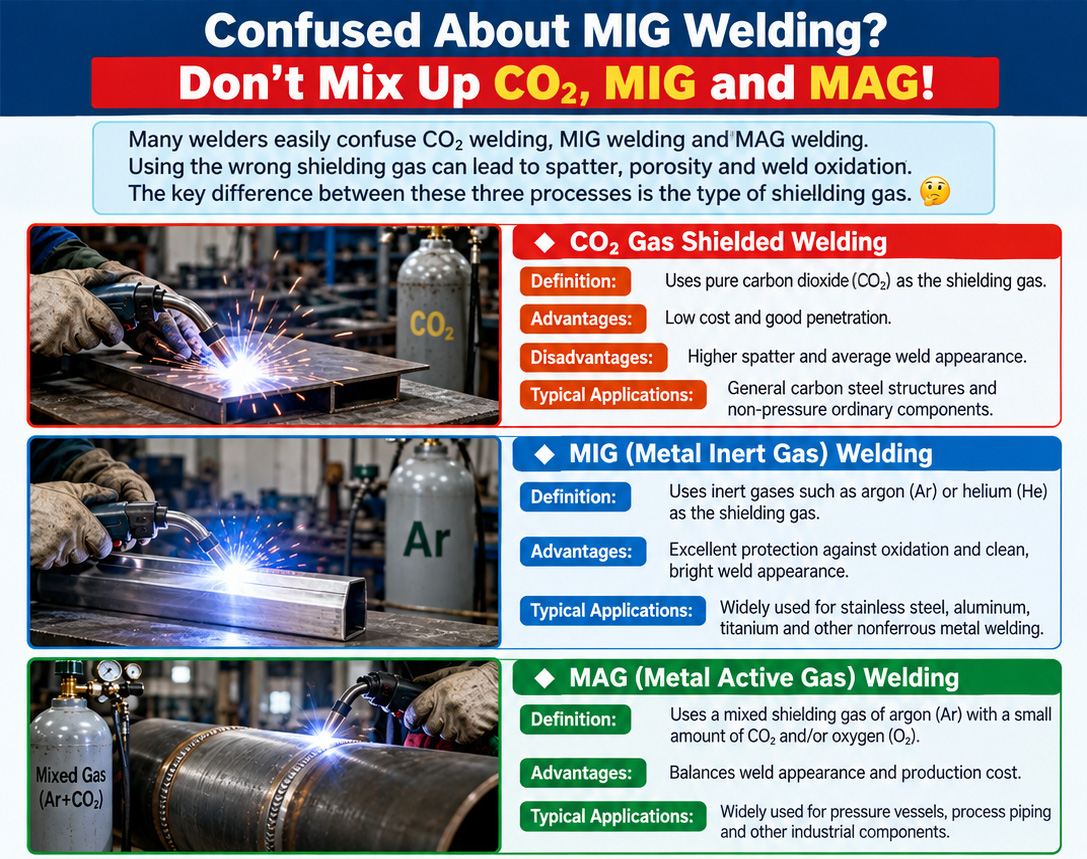

What Is the Difference Between CO2, MIG, and MAG Welding?

CO2 welding, MIG welding, and MAG welding are closely related processes, but they are not three completely separate welding methods.

The distinction comes from shielding gas chemistry.

• CO2 welding: Uses 100% carbon dioxide as the shielding gas. Because CO2 is an active gas, this is a form of MAG welding.

• MIG welding: Uses inert gases such as argon, helium, or mixtures of inert gases.

• MAG welding: Uses active shielding gases, including pure CO2 or argon-based mixtures containing CO2 or oxygen.

In many workshops, the term "MIG welding" is used informally to describe both MIG and MAG welding.

Technically, however, the shielding gas determines whether the process is classified as MIG or MAG.

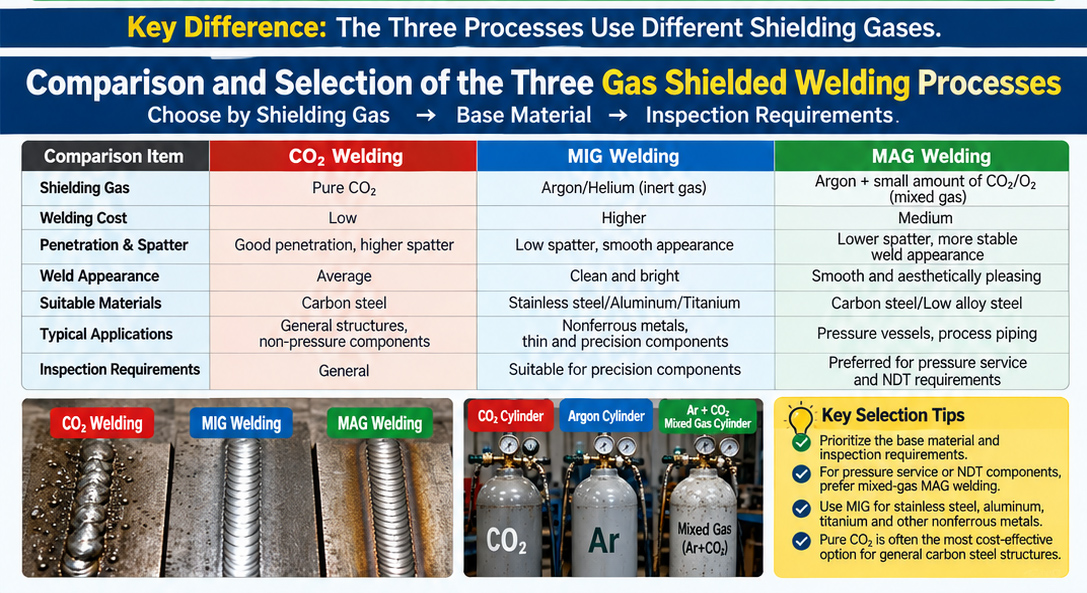

CO2 vs. MIG vs. MAG Welding Comparison Table

Important: Actual penetration, spatter, and weld quality depend on more than shielding gas. Welding current, voltage, wire type, transfer mode, joint design, and operator technique also affect the result.

What Is CO2 Welding?

CO2 welding is a gas metal arc welding process that uses pure carbon dioxide as the shielding gas.

It is widely used for carbon steel fabrication because carbon dioxide is often relatively economical and can support effective penetration with suitable welding parameters.

Since CO2 reacts in the high-temperature arc environment, it is classified as an active shielding gas.

Therefore, pure CO2 welding belongs to the MAG welding category.

What Are the Advantages of CO2 Welding?

1. Relatively Low Shielding Gas Cost

Pure CO2 is often less expensive than many argon-based shielding gas mixtures.

For high-volume carbon steel fabrication, this can make it an attractive option when the procedure and quality requirements permit its use.

2. Effective Penetration in Suitable Steel Applications

Pure CO2 can provide strong penetration characteristics when used with suitable welding wire and parameters.

However, penetration should never be evaluated by shielding gas alone.

3. Suitable for General Carbon Steel Fabrication

CO2 welding is commonly used in applications such as:

• General steel structures

• Machinery components

• Agricultural equipment

• Fabricated steel frames

• Steel brackets and supports

• Selected repair and maintenance work

What Are the Disadvantages of Pure CO2 Welding?

1. Higher Spatter Levels

Compared with many suitable argon-based mixtures, pure CO2 often produces more spatter.

This can increase cleaning time and consumable maintenance.

2. Less Favorable Bead Appearance in Some Applications

The weld bead may appear rougher or less uniform than one produced with an optimized mixed shielding gas.

3. Metal Transfer Limitations

Pure CO2 is generally associated with short-circuiting and globular metal transfer rather than conventional axial spray transfer.

This affects the welding characteristics available for different thicknesses and positions.

4. Potentially Higher Overall Cleanup Costs

Although the shielding gas itself may be less expensive, additional spatter removal and finishing work can affect total production cost.

When Should You Choose Pure CO2 Welding?

Pure CO2 can be a practical choice when welding suitable carbon steel components and when the approved welding procedure permits it.

It is particularly worth considering when shielding gas cost is important and the resulting spatter, productivity, and weld appearance remain acceptable.

However, pure CO2 should not automatically be excluded from critical applications or automatically approved for them. The applicable welding procedure and quality requirements must determine suitability.

What Is MIG Welding?

MIG stands for Metal Inert Gas welding.

It is a gas metal arc welding process that uses inert shielding gases, typically argon, helium, or mixtures of these gases.

Inert gases protect the molten weld pool without introducing the same active gas reactions associated with CO2 or oxygen-containing mixtures.

MIG welding is commonly used for aluminum and other suitable nonferrous metals.

What Shielding Gas Is Used for MIG Welding?

The most common inert shielding gases are:

100% Argon

Argon is widely used for aluminum MIG welding.

It provides shielding and supports stable welding performance when matched with the correct wire, equipment, and parameters.

Argon-Helium Mixtures

Argon-helium mixtures may be selected for certain aluminum, copper, or other nonferrous welding applications.

Helium can change arc characteristics and heat distribution, which may be useful for particular materials or section thicknesses.

The appropriate mixture depends on the application.

What Are the Advantages of MIG Welding?

1. Suitable for Aluminum and Other Nonferrous Metals

MIG welding with appropriate inert shielding gas is commonly used for aluminum fabrication.

2. Good Weld Appearance With Correct Parameters

Suitable shielding gas and welding settings can produce clean, consistent weld beads.

3. High Productivity

The continuously fed wire electrode makes MIG welding suitable for manual, mechanized, and automated production.

4. Flexible Industrial Applications

MIG welding is used in aluminum structures, transportation equipment, fabricated components, and other nonferrous metal applications.

What Are the Limitations of MIG Welding?

Inert shielding gas does not automatically make a welding process suitable for every metal.

For example, pure argon is generally not the preferred shielding gas for conventional GMAW of carbon steel because it can produce unfavorable arc and bead characteristics.

Gas selection must also account for filler wire compatibility, transfer mode, and the required mechanical properties.

Is MIG Welding Suitable for Stainless Steel?

Stainless steel can be welded using different GMAW shielding gas formulations.

However, many commonly used stainless steel gas mixtures contain small amounts of CO2 or oxygen.

Because these mixtures contain active components, the process is technically classified as MAG rather than MIG.

Some specialized inert gas mixtures may be suitable for particular stainless steel applications, but the gas must be selected according to the approved welding procedure.

What Is MAG Welding?

MAG stands for Metal Active Gas welding.

MAG welding uses an active shielding gas or a mixture containing an active component.

Common examples include pure CO2 and argon-based mixtures containing CO2 or oxygen.

MAG welding is widely used for carbon steel, low-alloy steel, and stainless steel fabrication.

What Shielding Gas Is Used for MAG Welding?

Common categories include:

100% CO2

Pure carbon dioxide is an active shielding gas and is therefore classified as MAG.

Argon + CO2

Argon-based mixtures containing CO2 are commonly used for carbon steel welding.

The percentage of CO2 affects arc behavior, metal transfer, penetration profile, spatter, and weld appearance.

Argon + O2

Small amounts of oxygen may be added to argon for selected steel welding applications.

Specialized Multicomponent Mixtures

Some welding applications use mixtures containing argon, helium, CO2, or oxygen in carefully selected proportions.

These formulations are chosen according to the material, filler metal, and welding procedure.

What Are the Advantages of Mixed-Gas MAG Welding?

1. Potentially Lower Spatter

With appropriate parameters, argon-based mixtures can produce less spatter than pure CO2.

2. Improved Arc Characteristics

Suitable gas mixtures can provide stable arc behavior and support different metal transfer modes.

3. Better Weld Bead Control

The correct mixture can improve bead wetting and appearance for specific steel applications.

4. Suitable for Industrial Production

MAG welding is widely used in structural fabrication, equipment manufacturing, piping, and mechanized welding systems.

What Are the Disadvantages of Mixed-Gas MAG Welding?

Argon-based mixed gases often cost more than pure CO2.

In addition, selecting an unsuitable gas composition can create problems with fusion, penetration, arc behavior, or weld properties.

The mixture must match the base metal, filler wire, and required welding parameters.

CO2 vs. Mixed Gas Welding: Which Is Better for Carbon Steel?

For carbon steel fabrication, pure CO2 and argon-based mixed gases are both common options.

Neither is universally better.

The most suitable choice depends on the material thickness, welding position, required penetration, weld appearance, production speed, and overall fabrication cost.

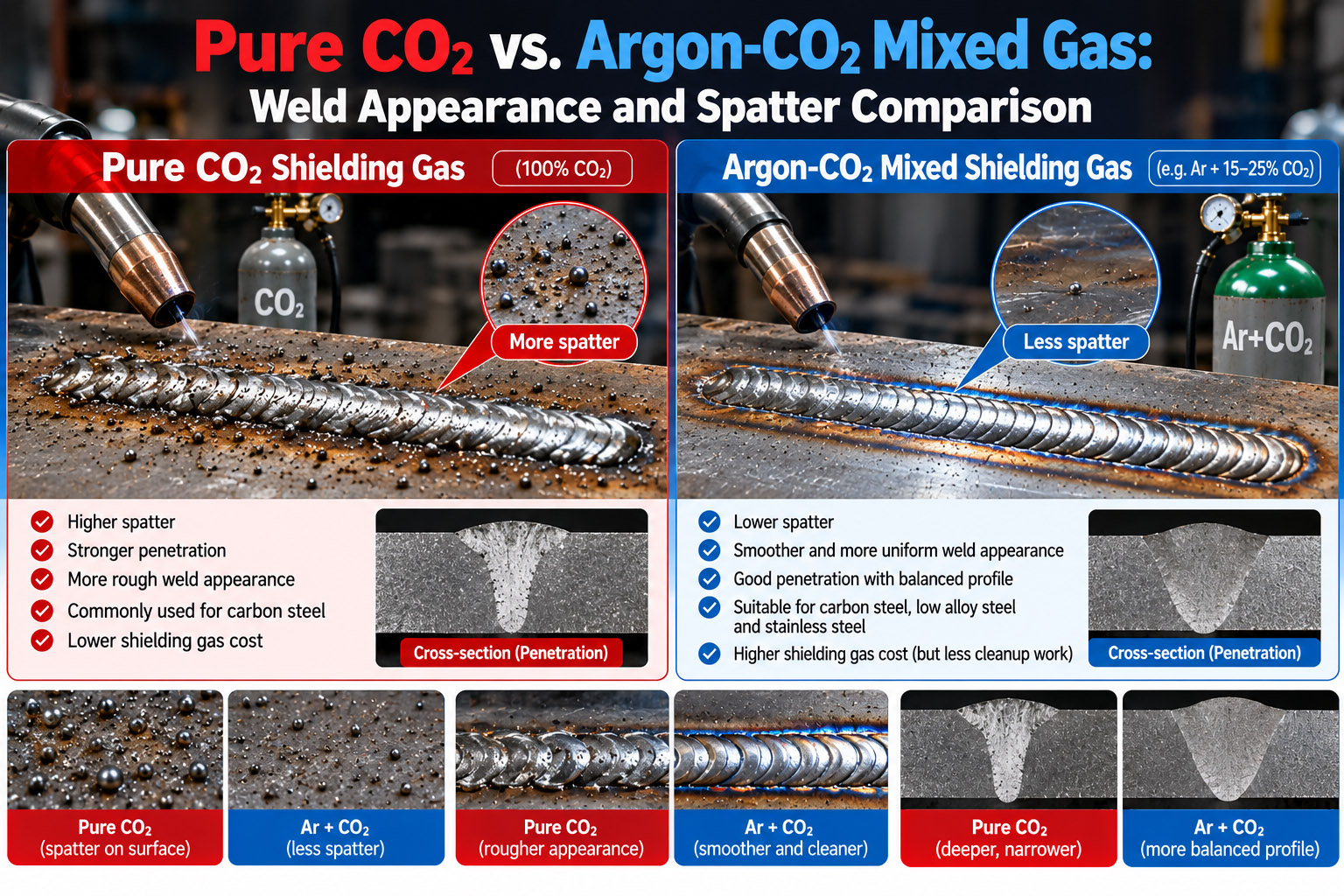

Pure CO2 vs. Argon-CO2 Mixtures

Is 100% CO2 Better for Thick Carbon Steel?

Not necessarily.

Pure CO2 can be effective for suitable steel joints, but thick-section welding requires adequate fusion, penetration, joint preparation, and often multiple welding passes.

An argon-based mixture may provide operational advantages in certain transfer modes or production conditions.

The correct selection should be verified through the welding procedure and actual weld quality requirements.

Is Mixed Gas Worth the Additional Cost?

In some applications, yes.

Mixed gas may reduce spatter removal, improve operating consistency, and support higher productivity.

However, the higher gas price may not always produce a lower total fabrication cost.

A meaningful comparison should include gas consumption, welding time, cleanup labor, consumable life, repair rates, and inspection results.

Which Shielding Gas Should You Use for Different Metals?

The base material is one of the most important factors in selecting shielding gas.

Shielding Gas Selection by Material

These are general application categories, not universal welding gas specifications.

What Is the Best Shielding Gas for Carbon Steel?

For carbon steel GMAW, pure CO2 and suitable argon-CO2 mixtures are common choices.

The best gas depends on the required weld characteristics and production conditions.

For example, an argon-CO2 mixture may be preferred when lower spatter and smoother arc behavior are important.

Pure CO2 may be considered when gas cost is a major factor and the required weld quality can be achieved.

What Is the Best Shielding Gas for Stainless Steel?

Stainless steel GMAW commonly uses carefully controlled argon-based mixtures.

Some applications use small additions of CO2 or oxygen, while others use specialized multicomponent mixtures.

The gas must be compatible with the stainless steel grade and filler metal to avoid unacceptable changes in weld properties.

Do not assume that a gas mixture suitable for carbon steel is also suitable for stainless steel.

What Is the Best Shielding Gas for Aluminum?

Argon and argon-helium mixtures are common shielding gas options for aluminum MIG welding.

CO2-containing shielding gases are not normally suitable for conventional aluminum GMAW because of their active gas chemistry.

How Does Shielding Gas Affect Weld Quality?

Shielding gas does more than protect the molten weld pool from the surrounding atmosphere.

It also influences arc characteristics, metal transfer, penetration profile, spatter, and bead appearance.

1. Arc Stability

Gas composition affects the behavior of the welding arc.

A suitable mixture can help produce consistent arc performance when used with the correct welding parameters.

2. Spatter Formation

Spatter depends on gas composition, transfer mode, wire feed speed, voltage, current, and other operating conditions.

Pure CO2 often produces more spatter than a suitable argon-based mixture.

However, changing the gas alone will not correct every spatter problem.

3. Weld Penetration

Shielding gas affects the penetration profile, but adequate penetration also depends on joint preparation, current, voltage, travel speed, and welding technique.

A visually smooth bead does not guarantee complete fusion.

4. Weld Appearance

Suitable gas composition can improve bead wetting and surface appearance.

However, bead appearance should not be used as the only indicator of weld quality.

5. Weld Metal Properties

Gas composition can influence chemical reactions in the arc and weld pool.

For some materials, excessive active gas content may adversely affect weld metal composition or properties.

This is especially important when welding corrosion-resistant alloys.

Why Does MIG or MAG Welding Produce Excessive Spatter?

Excessive spatter is a common problem in gas metal arc welding.

Although shielding gas is an important factor, several other conditions can cause spatter.

How Can You Reduce Spatter in CO2 Welding?

Start by verifying the recommended voltage, wire feed speed, and contact tip-to-work distance.

Inspect the contact tip, nozzle, liner, and wire feeding system.

Clean the workpiece and confirm that the shielding gas supply is stable.

If the application permits, evaluate whether a suitable argon-based mixture provides a better balance between spatter, weld quality, and operating cost.

Do not change the shielding gas in a qualified production procedure without the required review or requalification.

Why Does MIG or MAG Welding Cause Porosity?

Weld porosity occurs when gas becomes trapped in the solidifying weld metal.

Common causes include inadequate shielding, contamination, and unsuitable welding conditions.

Common Causes of Welding Porosity

Insufficient Shielding Gas Coverage

Low gas flow, blocked nozzles, leaks, or excessive torch distance can reduce protection of the weld pool.

Excessive Gas Flow

Very high flow can create turbulence and draw surrounding air into the shielding gas stream.

Contaminated Workpieces

Oil, grease, moisture, paint, and other contaminants can contribute to porosity.

Drafts and Air Movement

Fans, open doors, and outdoor wind can disturb the shielding gas.

Incorrect Gas Selection

A gas mixture that is unsuitable for the material or welding process may contribute to weld quality problems.

How Do You Fix Porosity in MIG or MAG Welding?

1. Verify that the shielding gas matches the welding procedure.

2. Check the gas cylinder, regulator, hoses, and connections.

3. Set the required flow according to the equipment and welding conditions.

4. Clean the nozzle and remove spatter buildup.

5. Check for drafts near the welding area.

6. Remove moisture and surface contamination.

7. Inspect the wire and feeding system.

8. Verify the welding parameters and torch position.

If porosity continues, inspect the welding setup systematically rather than increasing gas flow without checking the cause.

Can the Same Welding Torch Be Used for MIG and MAG Welding?

In many applications, the same type of GMAW torch can be used for MIG or MAG welding, provided it is compatible with the equipment, shielding gas, filler wire, and operating conditions.

The shielding gas classification alone does not necessarily require a completely different torch design.

However, torch selection should account for:

• Rated welding current

• Duty cycle

• Gas-cooled or water-cooled configuration

• Wire diameter

• Contact tip compatibility

• Nozzle design

• Cable assembly and connector compatibility

• Welding position and application

Does Shielding Gas Affect MIG Torch Consumable Selection?

Shielding gas can influence spatter formation and thermal conditions around the torch nozzle and contact tip.

However, consumable selection also depends on welding current, wire type, wire diameter, and the torch manufacturer's specifications.

For high-duty-cycle industrial welding, maintaining a suitable contact tip, nozzle, liner, and cable assembly is important for stable wire feeding and consistent welding performance.

Gas-Cooled vs. Water-Cooled MIG/MAG Torches

Gas-cooled torches are commonly used for suitable light- and medium-duty applications.

Water-cooled torches are often selected for higher-current or high-duty-cycle applications where additional thermal management is required.

The correct choice depends on the actual welding current, duty cycle, and torch rating rather than the terms MIG or MAG alone.

Is MAG Welding Better for Pressure Vessels and Industrial Piping?

MAG welding is widely used in industrial steel fabrication, including selected pressure-containing components and piping applications.

However, it is incorrect to assume that all pressure vessels must use mixed-gas MAG welding.

The permitted welding process and shielding gas depend on the applicable fabrication code, material specification, joint design, and qualified welding procedure.

What Matters Most for Critical Welds?

For critical applications, the selection process should consider:

1. Base Material and Filler Metal

The shielding gas must be suitable for the material combination and required weld properties.

2. Welding Procedure Qualification

The welding procedure must satisfy the applicable qualification requirements.

3. Joint Design and Penetration

The selected process must provide the required fusion and penetration.

4. Mechanical Property Requirements

Strength, toughness, corrosion resistance, and other required properties must be considered.

5. Inspection and Acceptance Criteria

Visual examination and any required nondestructive testing must meet the applicable acceptance criteria.

6. Production Consistency

The process should deliver repeatable weld quality under actual workshop conditions.

Mixed-gas MAG welding may be advantageous in some critical fabrication applications, but it is not a substitute for procedure qualification or inspection.

How to Choose Between CO2, MIG, and MAG Welding

The most reliable selection method is to start with the base metal and welding requirements rather than choosing a process based only on gas price.

Step 1: Identify the Base Material

Determine whether the workpiece is carbon steel, low-alloy steel, stainless steel, aluminum, or another metal.

This immediately narrows the suitable shielding gas options.

Step 2: Review the Welding Procedure

Check the required welding process, filler wire, shielding gas composition, welding parameters, and applicable acceptance criteria.

For qualified production, follow the approved procedure.

Step 3: Consider Material Thickness and Joint Design

Material thickness and joint geometry influence the required penetration, transfer mode, and welding technique.

Step 4: Evaluate Spatter and Weld Appearance Requirements

For applications with strict appearance requirements or high finishing costs, a suitable mixed gas may offer practical benefits.

Step 5: Compare Total Welding Cost

Consider more than the gas purchase price.

Include welding time, gas consumption, consumable replacement, spatter cleanup, repair work, and inspection costs.

Step 6: Verify Equipment and Torch Compatibility

Confirm that the welding power source, wire feeder, torch, contact tip, nozzle, and cooling system are suitable for the intended process.

Step 7: Validate Weld Quality

Where required, use trial welds, inspection, and procedure qualification to confirm that the selected gas and parameters meet the application requirements.

Common Mistakes When Choosing MIG and MAG Shielding Gas

Several common misunderstandings can lead to incorrect gas selection.

Mistake 1: Treating CO2 Welding as a Completely Separate Process

Pure CO2 welding is a form of MAG welding because CO2 is an active shielding gas.

Mistake 2: Assuming MIG Is Always Better Than MAG

Neither classification is universally better.

MIG is commonly used for suitable nonferrous metals, while MAG is widely used for steels.

Mistake 3: Using Carbon Steel Gas Mixtures for Stainless Steel

Stainless steel often requires carefully controlled gas chemistry.

A mixture suitable for carbon steel may not meet stainless steel weld property requirements.

Mistake 4: Choosing Shielding Gas Only by Price

A lower gas price does not necessarily produce the lowest total welding cost.

Mistake 5: Increasing Gas Flow to Fix Every Defect

Excessive gas flow can create turbulence and worsen shielding conditions.

Mistake 6: Ignoring Torch and Consumable Condition

Worn contact tips, blocked nozzles, damaged liners, and unstable wire feeding can affect weld quality even when the shielding gas is correct.

Mistake 7: Assuming a Smooth Weld Bead Guarantees Quality

Visual appearance alone cannot confirm penetration, fusion, or compliance with inspection requirements.

Frequently Asked Questions About CO2, MIG, and MAG Welding

1. What Is the Main Difference Between CO2, MIG, and MAG Welding?

The main difference is shielding gas chemistry. MIG uses inert gases such as argon or helium. MAG uses active gases or mixtures containing active components. Pure CO2 welding is a form of MAG welding because carbon dioxide is an active shielding gas.

2. Is CO2 Welding the Same as MAG Welding?

Pure CO2 welding is one type of MAG welding. However, MAG also includes welding with argon-based mixtures containing CO2 or oxygen. Therefore, the terms overlap but are not completely interchangeable.

3. Is MIG Welding Better Than MAG Welding?

Neither process is universally better. MIG is commonly used for aluminum and other suitable nonferrous metals, while MAG is widely used for carbon steel, low-alloy steel, and stainless steel. The best choice depends on the material and welding requirements.

4. What Gas Is Used for MIG Welding?

MIG welding uses inert shielding gases, typically argon, helium, or suitable mixtures of these gases. The correct selection depends on the base metal, filler wire, and welding procedure.

5. What Gas Is Used for MAG Welding?

MAG welding uses active shielding gases, including pure CO2 and argon-based mixtures containing CO2 or oxygen. The required gas composition depends on the steel grade and welding application.

6. Can You Use Pure CO2 for MIG Welding?

In strict technical terminology, using pure CO2 makes the process MAG rather than MIG because carbon dioxide is an active gas. In everyday workshop language, some operators still refer to the equipment as a MIG welder.

7. Which Is Better for Carbon Steel: CO2 or Mixed Gas?

Both can be suitable. Pure CO2 often has a lower purchase cost, while a suitable argon-CO2 mixture may reduce spatter and improve operating characteristics. The choice should consider weld quality, productivity, and total fabrication cost.

8. Why Does CO2 Welding Produce More Spatter?

Pure CO2 influences arc behavior and metal transfer differently from many argon-based mixtures. This can result in higher spatter levels, particularly with unsuitable welding parameters. Voltage, wire feed speed, and torch condition also affect spatter.

9. Can You Weld Stainless Steel With MIG or MAG?

Yes. Stainless steel can be welded using suitable GMAW processes. Many common stainless steel shielding gases contain controlled additions of CO2 or oxygen, which technically classifies the process as MAG. Gas selection must match the stainless steel grade and filler metal.

10. What Is the Best Shielding Gas for Aluminum Welding?

Argon and suitable argon-helium mixtures are commonly used for aluminum MIG welding. CO2-containing mixtures are generally unsuitable for conventional aluminum GMAW.

11. Can the Same Welding Torch Be Used for MIG and MAG Welding?

Often, yes. A compatible GMAW torch can be used with different suitable shielding gases. However, its current rating, duty cycle, cooling system, consumables, and equipment connections must match the application.

12. Is Mixed-Gas MAG Welding Required for Pressure Vessels?

Not universally. Pressure-containing components must be welded according to the applicable fabrication code and qualified welding procedure. Pure CO2 or mixed-gas processes may be permitted when the relevant requirements are satisfied.

Conclusion: How Should You Choose Between CO2, MIG, and MAG Welding?

Understanding the differences between CO2, MIG, and MAG welding helps fabricators select suitable shielding gases and avoid unnecessary welding problems.

The most important distinction is straightforward:

• Pure CO2 welding uses an active gas and is a form of MAG welding.

• MIG welding uses inert shielding gases and is commonly applied to aluminum and other suitable nonferrous metals.

• MAG welding uses active gases or mixtures and is widely applied to steel fabrication.

For carbon steel, both pure CO2 and suitable mixed gases can be practical options. Pure CO2 may offer a lower shielding gas purchase cost, while an optimized mixed gas may reduce spatter and improve welding consistency.

For stainless steel and aluminum, shielding gas chemistry must be selected carefully to protect the required weld properties.

The best shielding gas is not simply the cheapest or the one that produces the smoothest-looking bead. It is the gas that meets the material, welding procedure, quality, and production requirements.

By combining correct gas selection with suitable welding parameters, reliable wire feeding, compatible MIG/MAG torch consumables, and appropriate inspection, manufacturers can achieve more consistent weld quality and efficient production.
