TR400
INWELT
60%, 400A CO2, 300A Mixed Gases
3m / 3.5m / 4.5m
Air Cooled
Φ1.0-1.6mm
Availability: | |
---|---|
Quantity: | |

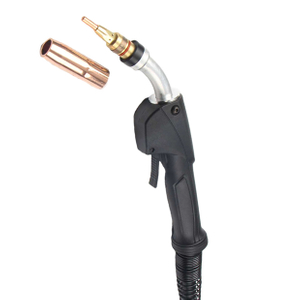

TR400 Tregaskiss-style MIG welding torch is designed to provide exceptional weld quality, thanks to their unique nozzle design and reliable wire feeding system. This ensures consistent welds with minimal spatter and reduced downtime.
TR400 MIG welding torch is highly ergonomic, with comfortable handles that allow the user to maintain optimal grip and control during welding. This reduces the risk of fatigue and increases productivity.
TR400 MIG welding torches is known for their durability and longevity. They are made from high-quality materials and are designed to withstand even the most challenging welding environments. This reduces the need for frequent replacement, saving both time and money.
TR400 is compatible with a wide range of wire-feeding systems and welding machines, making them versatile and easy to integrate into existing workflows.
TR400 MIG welding torch is worth using for its superior weld quality, ergonomic design, durability, and compatibility. They are an ideal choice for welders who demand the best and are looking to improve their welding processes.
Neck insulated and armored with stainless steel
All neck water-line joints are silver brazed and 100% leak tested
Custom neck lengths and bend configurations available
Nozzles thread directly to neck for a cooler-running nozzle
Water-cooled internally to diffuser / retaining head
Custom gun lengths available
Position | Description |
1 | Swan Neck 45°; Swan Neck 60° |
2 | Torch Body Assembly |
3 | Handle |
4 | Switch |
5 | Switch The Trigger |
6 | End Fitting |
7 | Cone Nut |
8 | Cable Ball Joint & Support Spring Big |
9 | Cable Assembly |
10 | Euro Direct Plug Kit |
10-1 | Rear Handle |
10-2 | Adaptor nut |
10-3 | Euro Central Connector |
11 | Rear Handle American Brand |
12 | Control Wire (Tweco/Miller) |
12-1 | Control Wire (Lincoln) |
13 | Tweco Central Connector |
14 | Miller Central Connector |
15 | Lincoln Central Connector |
15-1 | Gas Tube |
A | Nozzle 1/2″ 12.7mm 1/4″ Recess Copper |
Nozzle 3/4” 19mm 1/4” Recess Copper | |
Nozzle 5/8” 15.9mm 1/4″ Recess Copper | |
Nozzle 1/2” 12.7mm 1/8” Recess Copper | |
Nozzle 5/8” 15.9mm 1/8” Recess Copper | |
Nozzle 3/4” 19mm 1/8” Recess Copper | |
Nozzle 5/8” 15.9mm 1/4” Recess Brass | |
Nozzle 3/4″ 19mm 1/8” Recess Brass | |
Nozzle 5/8″ 15.9mm 1/8” Recess Brass | |
Nozzle 5/8” 15.9mm Flush Bottleneck Copper | |
Nozzle 5/8” 15.9mm 1/8” Stick Out Brass | |
Nozzle 5/8” 15.9mm 1/8” Stick Out Copper | |
B | Contact Tip .030” 0.8mm |
Contact Tip .035” 0.9mm | |
Contact Tip .040” 1.0mm | |
Contact Tip .045” 1.2mm | |
Contact Tip .052” 1.4mm | |
Contact Tip 1/16” 1.6mm | |
Contact Tip .078″ 2.0 mm | |
Contact Tip 3/32″ 2.4 mm | |
C | Gas Diffuser (5/16-18Thd) |
D | Nozzle Retainer |
E | Neck Insulator |
F | Liner for .045″-1/16″(1.2-1.6mm) 10FT(3.0m) |
Liner for .045″-1/16″(1.2-1.6mm) 15FT(4.6m) | |
Liner for .045″-1/16″(1.2-1.6mm) 25FT(7.6m) | |
Technical Data | Rating: 400A CO2/300A Mixed Gases |
Duty Cycle: 60% | |
Wire Size: 040”-1/16”(1.0-1.6mm) | |
Type | TR400 MIG GUN Miller Connector |
TR400 MIG GUN Tweco Connector | |
TR400 MIG GUN Lincoln Connector | |
TR400 MIG GUN Euro Connector |
Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
