Length: | |
---|---|
Connector: | |
Availability: | |
Quantity: | |
Current | 70Amp | Gas Flow | 130LPM |
Duty Cycle | 60% | Ignition | HF |
Gas | Air | Post Flow | 70 seconds recommended |
Gas Pressure | 4.5 - 5.0 Bar | Standard Length | 6M |
Hand Torch | |||||
Code | Ref. | Description | |||
IJWU6881 | 1564 | Plasma cutting torch LT70/6m 1/8G;等离子切割枪/LT70/6m 1/8G | |||
IJWU6887 | Plasma cutting torch LT70/6m 1/4G;等离子切割枪/LT70/6m 1/4G | ||||
IJWU6886 | Plasma cutting torch LT70/6m M16×1.5;等离子切割枪/LT70/6m/M16×1.5 | ||||
IJWU6888 | 1573 | Plasma cutting torch LT70/6m central adaptor;等离子切割枪/LT70/6m/中央插头 | |||

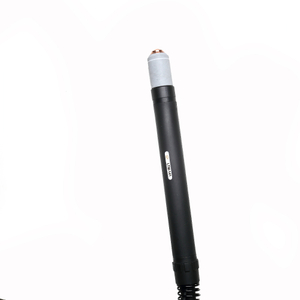

Machine Torch | |||||
Code | Ref. | Description | |||
IJWU6751 | 1563 | Plasma cutting auto torch LTM70/6m 1/8G;等离子自动切割枪/LTM70/6m 1/8G | |||
IJWU6753 | Plasma cutting auto torch LTM70/6m 1/4G;等离子自动切割枪/LTM70/6m 1/4G | ||||
IJWU6755 | Plasma cutting auto torch LTM70/6m M16×1.5;等离子自动切割枪/LTM70/6m/M16×1.5 | ||||
IJWU6757 | 1566 | Plasma cutting auto torch LTM70/6m central adaptor;等 离子自动切割枪/LTM70/6m/中央插头 | |||
Positio | Code | Ref. | Description | ||
1 | IJTN6673 | 1405 | Double pointed spacer/LT70;两点支架LT70 | ||
2 | IJTN0071 | 1394 | Spacer spring/LT70;隔离环LT70 | ||
3 | IJTN0018 | Shield cap for Extended tip/LT70;长接触切割保护帽LT70 | |||
4 | Outside nozzle;外喷嘴 | ||||
4.1 | IJWT0098- 03 | 5.710.171 | Outside nozzle /bakelite/LT70;外喷嘴/黑色胶木/LT70 | ||
4.2 | JWT0098-01 | Outside nozzle/maximum life/gray glass fiber/LT70;外喷嘴/长寿命/灰色玻纤/LT70 | |||
5 | Tip;喷嘴 | ||||
5.1 | IJWV0076-09 | 1309 | Tip Φ0.9mm LT50-70/L=11.2mm;喷嘴ф0.9mm/LT50-70/L=11.2mm | ||
5.2 | IJWV0044-10 | 1396 | Tip Φ1.0mm LT50-70/L=12.3mm;喷嘴ф1.0mm/LT50-70/L=12.3mm | ||
5.3 | IJWV0044-11 | Tip Φ1.1mm LT50-70/L=12.3mm;喷嘴ф1.1mm/LT50-70/L=12.3mm | |||
5.4 | IJWV0044-12 | Tip Φ1.2mm LT50-70/L=12.3mm;喷嘴ф1.2mm/LT50-70/L=12.3mm | |||
6 | Tip;喷嘴 | ||||
6.1 | IJWV0039-10 | Flat tip Φ1.0mm;扁平喷嘴Φ1.0mm/LT50-70 | |||
6.2 | IJWV0039-12 | Flat tip Φ1.2mm;扁平喷嘴Φ1.2mm/LT50-70 | |||
7 | Tip;喷嘴 | ||||
7.1 | IJWV0075-10 | 1305 | Conical tip Φ1.0mm/LT50-70;锥形喷嘴Φ1.0mm/LT50-70 | ||
7.2 | IJWV0075-12 | Conical tip Φ1.2mm/LT50-70;锥形喷嘴Φ1.2mm/LT50-70 | |||
8 | Tip;喷嘴 | ||||
8.1 | IJWV0046-98 | 1395 | Extended tip Φ1.0mm/LT50-70;加长喷嘴Φ1.0mm/LT50-70 | ||
8.2 | IJWV0029-10 | Extended tip Φ1.1mm/LT50-70;加长喷嘴Φ1.1mm/LT50-70 | |||
8.3 | IJWV0029-11 | Extended tip Φ1.2mm/LT50-70;加长喷嘴Φ1.2mm/LT50-70 | |||
9 | IJWG0013 | Diffuser LT50-70;分流器LT50-70 | |||
10 | IJWC0029 | 1402 | Electrode HF Plasma LT70;等离子电极LT70 | ||
11 | IJWC0020 | 1368 | Extended electrode HF Plasma LT70;加长等离子电极LT70 | ||
12 | IJAO0777 | 3.065.204 | Airtube/LT70;导流管LT70 | ||
13 | IJWA0026 | 1071 | Plasma torch head LT70;等离子枪头LT70 | ||
13a | IJGU0718 | "O"ring Φ12.42x1.78mm in silicon red;O型圈Φ12.42x1.78mm/硅胶/红色 | |||
14 | IJHW0040 | Plasma handle manual/CB50-70/Red;等离子手工手柄/CB50-70/红色 | |||
15 | IJIK0733 | Protection part/Plasma/Yellow;开关保护档片/等离子用/黄色 | |||
16 | IJIR0081 | 185.0031 | Trigger;开关 | ||
17 | IJIK0804 | Joint/small/new type;球节套件/小/新式 | |||
18 | Cable assembly;电缆组 | ||||
18.1 | IJWO00006077-00 | Cable assembly/LT50-70/6MMQ/6M ATT.1/8G;电缆组/LT50-70/6MMQ/6MATT.1/8G | |||
18.2 | IJWO00006071-00 | Cable assembly/LT50-70/6MMQ/6M center adaptor;电缆组/LT50-70/6MMQ/6M中央插头 | |||
18.3 | IJWO10006071-00 | Cable assembly/LTM50-70/6MMQ/6M central adaptor;电缆组/LTM50-70/6MMQ/6M中央插头 | |||
18.4 | IJWO10006077-00 | Cable assembly/LTM50-70/6MMQ/6M ATT.1/8G;电缆组/LTM50-70/6MMQ/6MATT.1/8G | |||
19 | IJDH6017 | Spanner for Plasma;等离子枪扳手 | |||
20 | IJWA0084 | 1349 | Plasma torch head LTM70;等离子枪头LTM70 | ||
20a | IJHW0024 | Fiber glass position tube/LTM;自动枪手柄LTM | |||
21 Adaptor;接头 | |||||
21.1 IJAU5698 Connecting adaptor 1/8G-1/4G;转换接头1/8G-1/4G | |||||
21.2 IJAU5699 Connecting adaptor 1/8G-M16×1.5;转换接头1/8G-M16×1.5 | |||||
21.3 IJAU5690 Central adaptor torch side Plasma 5 pins;等离子中央插头/5针 | |||||
22 IJAY0089 Circle cutting attachment/LT70;圆周切割附件/LT70 | |||||
22.1 IJTN0030 Wheel spacer with spanner/LT70;滚轮支架/LT70 |
INWELT PLASMA TORCH CATALOG.pdf
Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
