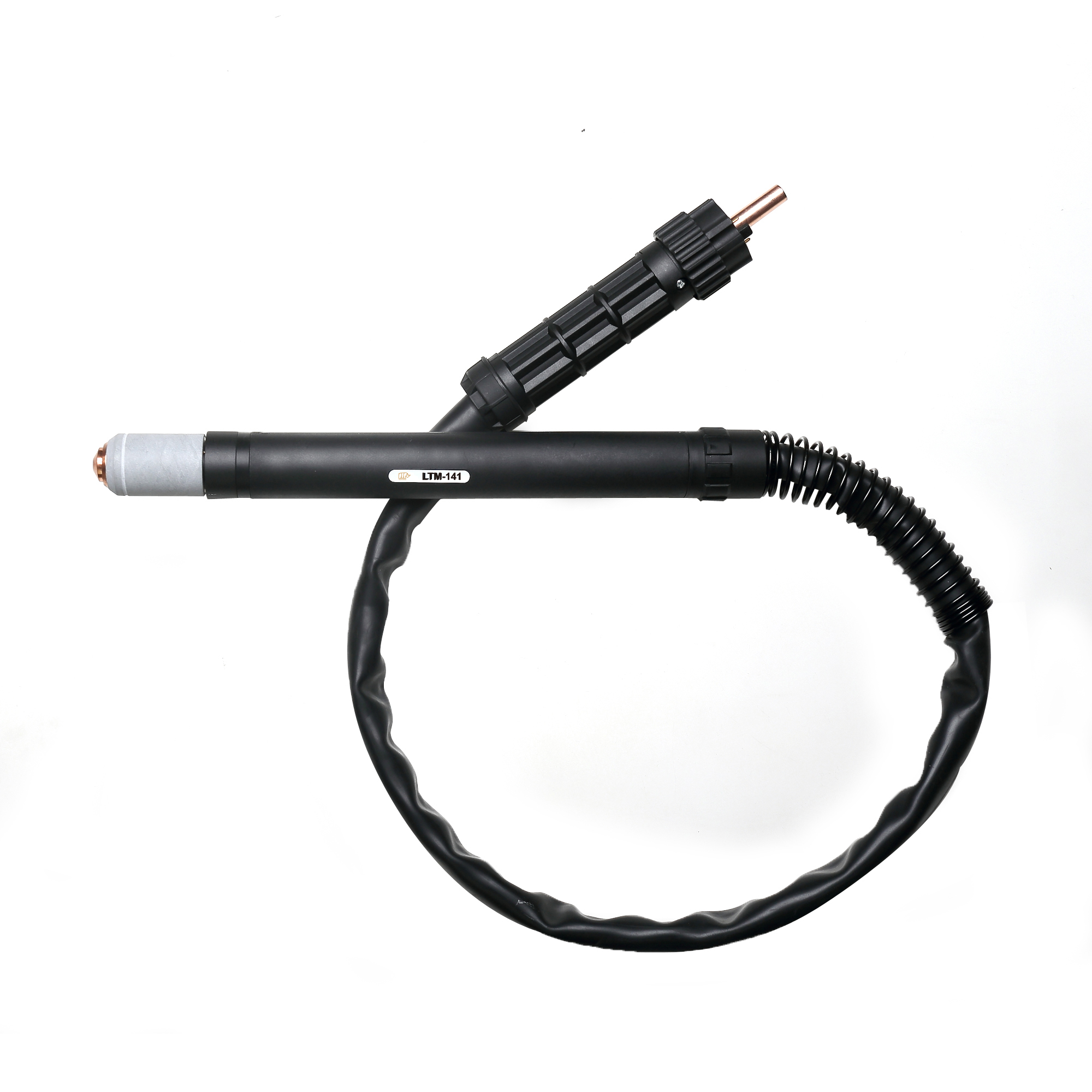

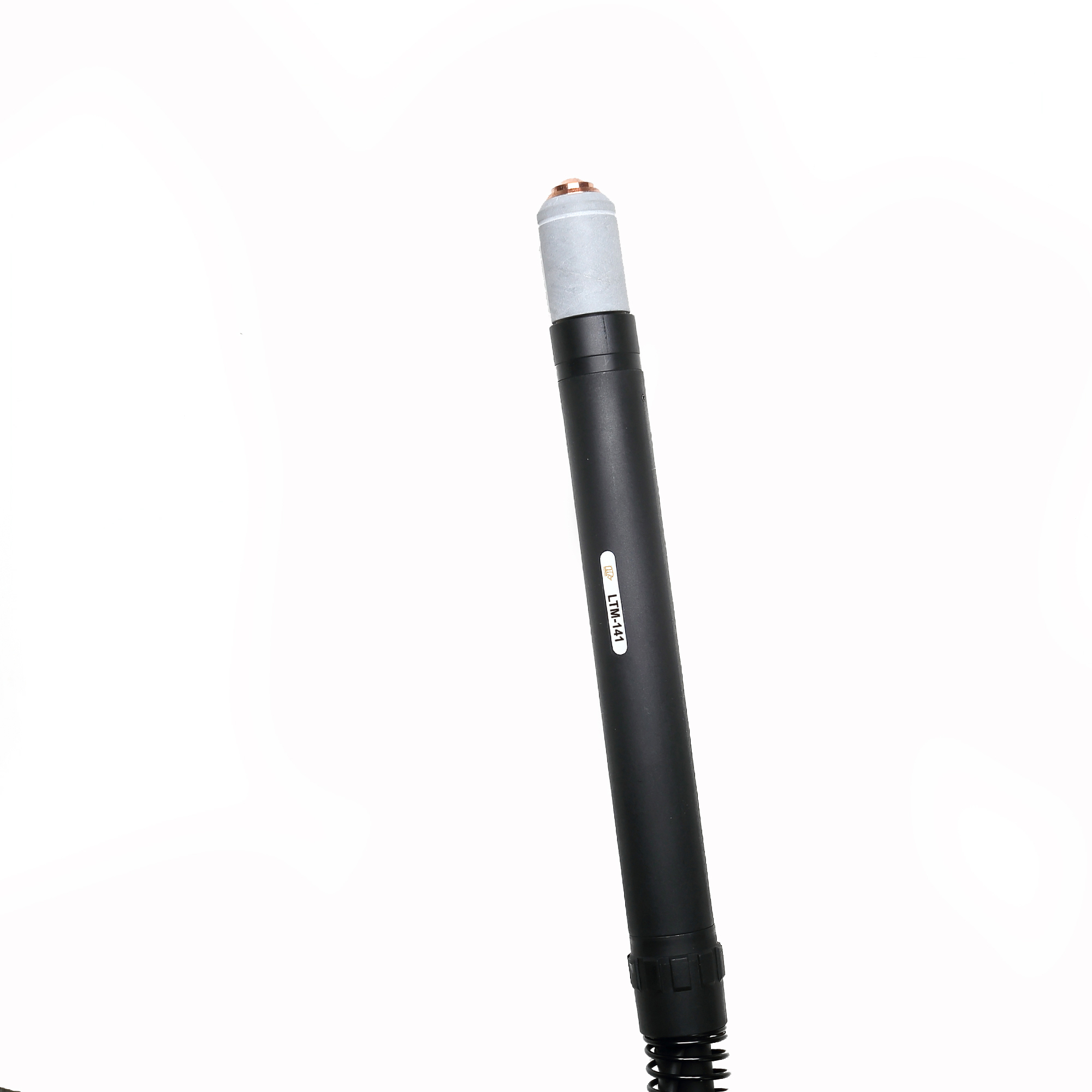

LTM141 Plasma Cutting Torch For 140A Plasma Cutter Machines

INWELT LTM141 Plasma Cutting Torch: Precision, Power, and Durability for 140A Plasma Cutter Machines

The INWELT LTM141 Plasma Cutting Torch represents the pinnacle of cutting torch design for high-amperage applications. Tailored for 140A plasma cutting machines, it offers the perfect balance of power handling, operational comfort, and long-term durability. Whether you're engaged in general engineering, large-scale construction projects, or the rigorous demands of heavy industry, the LTM141 is engineered to deliver precise, clean cuts on materials up to 45mm thick, making it an indispensable tool for serious fabricators and industrial operators.

Key Features and Technological Advantages of the LTM141

The superior performance of the INWELT LTM141 Plasma Cutting Torch stems from its thoughtful integration of advanced features and robust engineering. Every aspect, from its ignition system to its material construction, is optimized for peak efficiency and longevity in demanding cutting environments.

High-Frequency (HF) Ignition for Seamless Arc Starting

One of the most critical features of a high-performance plasma torch is its arc starting mechanism. The LTM141 utilizes High-Frequency (HF) Ignition, which provides an immediate and reliable arc initiation without needing direct contact with the workpiece. This non-contact start minimizes wear on consumables, extends their lifespan, and ensures a clean start to every cut, reducing material waste and improving overall efficiency. For demanding applications where precision and speed are paramount, the consistency of HF ignition is a significant advantage.

Robust Cutting Capacity: Powering Through 45mm Thick Plates

The LTM141 is specifically designed for 140A plasma cutter machines, granting it formidable cutting power. It is capable of effortlessly cutting through materials up to an impressive 45mm (approximately 1.77 inches) in thickness. This makes it an ideal choice for heavy fabrication, structural steel work, and any application requiring significant material penetration. The torch maintains a stable arc even at its maximum capacity, ensuring clean, dross-free cuts, which ultimately reduces post-cutting cleanup and increases productivity.

Operator Comfort and Enhanced Durability

Understanding that prolonged use can lead to operator fatigue, the INWELT LTM141 prioritizes ergonomics. It features a high-density plastic handle that provides a comfortable and secure grip, minimizing strain during extensive cutting sessions. Beyond comfort, the durability of the torch is paramount. An insulated cable cover is incorporated into the design to significantly reduce wear and tear in high-temperature environments. This protective layer shields the internal wiring from heat, sparks, and abrasive elements, extending the overall service life of the torch and reducing the frequency of costly replacements.

Optimized Air Cooling System for Sustained Performance

Heat management is crucial in high-amperage plasma cutting. The LTM141 employs an efficient air cooling system that effectively dissipates heat generated during operation. This consistent cooling maintains optimal operating temperatures for the torch components, preventing overheating and ensuring stable performance even during continuous, heavy-duty tasks. Effective cooling is directly linked to the torch's duty cycle and the lifespan of its consumables.

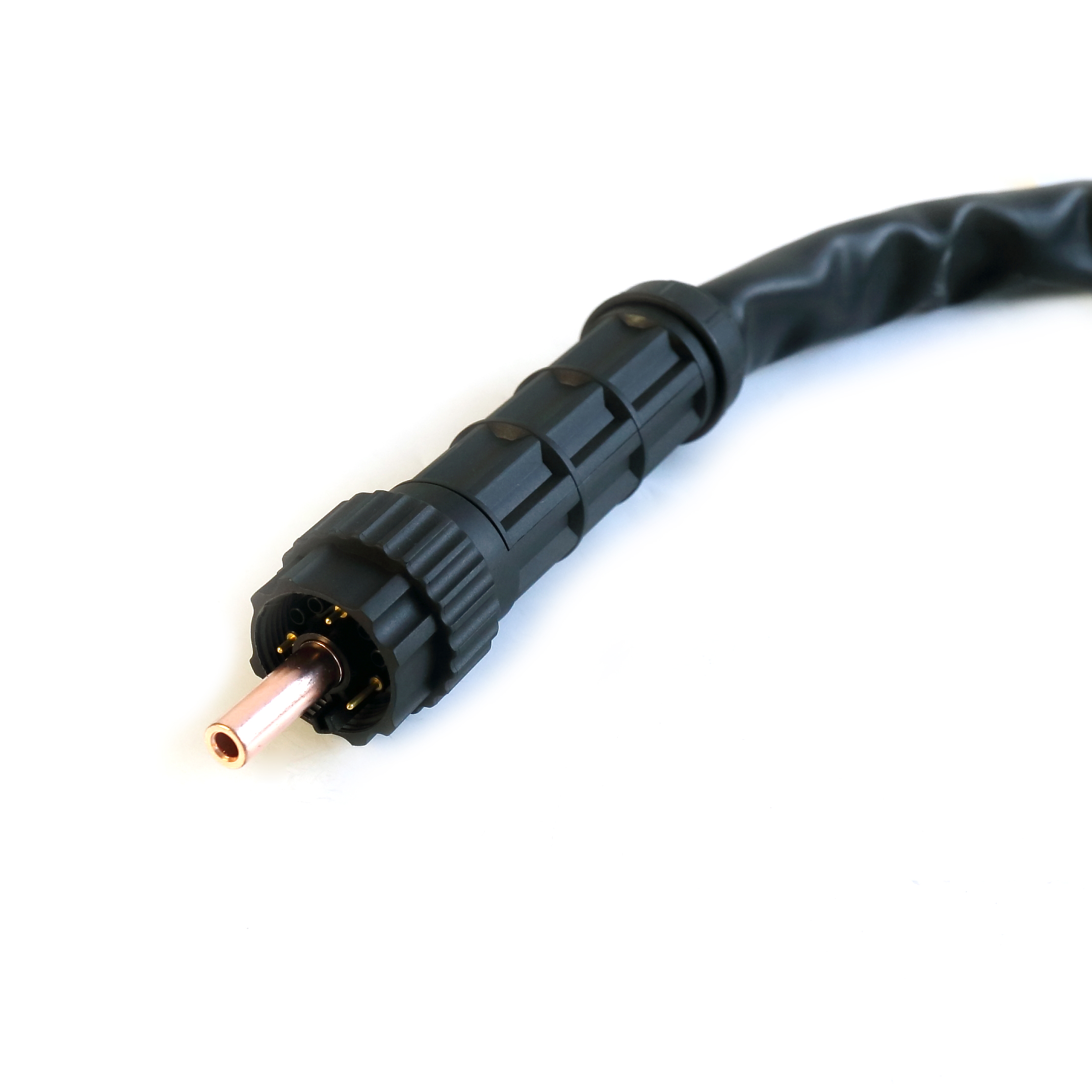

Versatile Connectivity Options for Broad Compatibility

Compatibility is key in a diverse workshop environment. The LTM141 offers a range of connector types to seamlessly integrate with various 140A Plasma Cutting CNC Machines. These include:

• 3/8G Connector

• 1/4G Connector

• M14*1 Connector

• M16*1.5 Connector

• Central Adaptor




Technical Data:

Detailed Technical Specifications: Understanding the LTM141's Core

To truly appreciate the capabilities of the INWELT LTM141, a closer look at its technical specifications is essential. These parameters define the torch's operational limits and performance characteristics.

• Current: 140 Amps - This high amperage rating underpins the torch's capacity for cutting thick materials.

• Gas Flow: 220 LPM (Liters Per Minute) - An optimized gas flow rate is crucial for forming a stable, powerful plasma arc and for effective cooling of the torch and workpiece.

• Duty Cycle: 60% - This means the torch can operate at its maximum 140A output for 6 minutes out of every 10-minute cycle. This high duty cycle indicates robust internal components and efficient heat dissipation, allowing for sustained, heavy-duty operation.

• Ignition: HF (High-Frequency) Ignition - As discussed, this ensures reliable, non-contact arc starting.

• Cooling Method: Air Cooled - Simplifies setup and maintenance compared to liquid-cooled systems, making it highly portable and suitable for various job sites.

• Recommended Post-Flow: 140 seconds - This crucial post-flow period continues the gas flow after the arc is extinguished, cooling the torch nozzle and electrode. This significantly extends the lifespan of consumables by preventing rapid cooling and thermal shock.




• Gas Pressure: 4.5-5.0 Bar - Maintaining the correct gas pressure is vital for optimal plasma arc formation, cut quality, and consumable life.

• Torch Length: 6 meters (approximately 20 feet) - Provides ample reach for larger workpieces and versatile positioning around the cutting area.

Understanding Duty Cycle for Prolonged Performance

The 60% duty cycle at 140 Amps is a testament to the LTM141's industrial-grade design. A higher duty cycle means less downtime waiting for the torch to cool, leading to increased productivity. For workshops handling continuous cutting tasks, this specification is a key indicator of the torch's capability to handle the workload without premature wear or failure.

Optimal Gas Flow and Pressure for Precision Cutting

The specified gas flow of 220 LPM and pressure range of 4.5-5.0 Bar are carefully calibrated for the LTM141. These parameters ensure the plasma stream is tightly constricted and powerful, leading to clean, precise cuts. Deviating significantly from these recommended settings can lead to poor cut quality, excessive dross, increased consumable wear, and an unstable arc. It's essential to use a clean, dry air supply, as moisture and oil can degrade cut quality and significantly shorten consumable life.

Diverse Applications Across Industries

The versatility and robust performance of the INWELT LTM141 Plasma Cutting Torch make it an invaluable tool across a multitude of industries where precise and powerful metal cutting is essential.

Precision in General Fabrication

From custom metal shops to medium-sized manufacturing facilities, the LTM141 excels in general fabrication tasks. Its ability to cut various metals with precision makes it ideal for producing components, frames, brackets, and artistic metalwork. The clean cuts reduce the need for extensive grinding and finishing, streamlining the fabrication process.

Essential for Construction Sites

In construction, speed and efficiency are paramount. The LTM141's capacity to cut thick steel plates quickly and accurately makes it perfect for on-site modifications of structural beams, rebar, and sheet metal. Its robust design is well-suited to the rugged conditions often encountered on construction sites.

Powering Energy Sector Maintenance

The energy industry, including power plants and renewable energy installations, frequently requires maintenance, repair, and overhaul (MRO) of thick metal components. The LTM141's high amperage and cutting thickness capabilities are indispensable for these critical tasks, ensuring efficient and safe material removal or modification.

Critical for Railway Infrastructure

Maintaining and expanding railway infrastructure involves significant metalwork, from cutting rails to fabricating components for rolling stock and track systems. The LTM141 offers the power and precision needed to handle the heavy-gauge metals common in railway applications, contributing to safer and more efficient railway operations.

Driving Heavy Industry Efficiency

Industries such as shipbuilding, heavy machinery manufacturing, and mining operations demand cutting tools that can withstand extreme conditions and process very thick materials. The LTM141's 140A capacity and durable construction are perfectly aligned with the rigorous requirements of these heavy industries, ensuring consistent performance and reducing downtime.

Spare Parts Details:

Machine Torch

Consumables and Maintenance: Maximizing Torch Lifespan

The performance and lifespan of any plasma cutting torch, especially one as powerful as the LTM141, are heavily reliant on the proper use and timely replacement of consumables, as well as adherence to a good maintenance regimen.

Essential Consumables for Peak Performance

The INWELT LTM141 comes with a pre-installed set of essential consumables, ensuring you can start cutting right out of the box. These include:

• Nozzle (Tip): Directs and constricts the plasma arc. Different amperage nozzles are available for optimized cutting.

• Electrode: Generates the plasma arc. Wears down over time and needs regular replacement.

• Swirl Ring (Diffuser): Shapes the gas flow around the electrode to create the swirling vortex necessary for a stable arc.

• Shield Cup: Protects the nozzle and electrode from molten metal splatter and provides a standoff distance from the workpiece.

A detailed list of spare parts for the LTM141 is available, including various tips, electrodes, diffusers, and cable assemblies. Always use genuine INWELT consumables to ensure optimal performance, cut quality, and torch longevity. Inferior consumables can lead to poor cuts, excessive wear on the torch, and even damage to the power supply.

Extending Torch Lifespan Through Proper Maintenance

Regular maintenance is key to getting the most out of your LTM141 torch.

• Inspect Consumables Regularly: Before each use, check the condition of the nozzle, electrode, swirl ring, and shield cup. Replace them if they show signs of wear, pitting, or damage.

• Ensure Clean Air Supply: Moisture and oil in the compressed air are detrimental to plasma cutting. Use a high-quality air filter and dryer to ensure your air supply is clean and dry.

• Maintain Proper Gas Pressure and Flow: Adhere to the recommended gas pressure and flow rates to optimize arc performance and consumable life.

• Clean Torch Body: Keep the torch body, especially the area around the consumables, clean and free of spatter.

• Handle with Care: Despite its robust design, avoid dropping or mishandling the torch. The insulated cable cover provides protection, but continuous abuse can lead to damage.

• Adhere to Duty Cycle: Respect the 60% duty cycle to prevent overheating and premature component failure. Allow the torch to cool down after extended cutting periods.

Why Choose INWELT for Your Plasma Cutting Needs?

Choosing the right supplier for your welding and cutting equipment is as crucial as selecting the right tool. Changzhou Inwelt stands out as a reliable and quality-focused manufacturer, offering more than just products.

Unwavering Commitment to Quality and Reliability

At Changzhou Inwelt, every LTM141 Plasma Cutting Torch is manufactured under stringent quality control processes. Our engineers provide continuous technical support and supervision throughout the production cycle, ensuring that each torch meets the highest industry standards for performance, durability, and safety. Our commitment is to deliver equipment that professionals can rely on day after day.

Global Compatibility and Seamless Integration

Our torches are designed with global compatibility in mind. The LTM141's various connector options and its compatibility with widely used 140A plasma cutting machines from brands like Rilon, Riland, Jasic, Mitech, and others, simplify integration into diverse workshop setups worldwide.

Exceptional Customer Support and Partnership Programs

We believe in building long-term relationships with our clients.

• Sample Availability: We offer samples of our products at a reasonable charge, allowing you to test the LTM141's capabilities firsthand before making a larger investment.




• OEM/ODM Services: For businesses looking for customized solutions or private labeling, Inwelt provides comprehensive OEM/ODM services, tailoring products to your specific requirements.




• Distributor Benefits: We value our distributors as key partners. Joining our network grants access to special discounts, marketing protection, and dedicated support to help you succeed in your market.




• Flexible Shipping: We understand logistical needs. We accept mixing various items in 40 Feet High Cube and 20 Feet containers, offering flexibility for your inventory and shipping arrangements.




• Factory Visits Welcome: We encourage potential clients to visit our factory. See our manufacturing processes, quality control measures, and meet our team to gain full confidence in our capabilities.

Our Catalog:

INWELT PLASMA TORCH CATALOG.pdf

FAQ:

1. What type of plasma cutter machines is the LTM141 torch compatible with?

The LTM141 torch is designed for standard 140A Plasma Cutting CNC Machines. It is compatible with major brands, and offers various connector types to ensure broad compatibility.

2. What is the maximum cutting thickness of the LTM141 torch?

The LTM141 Plasma Cutting Torch can efficiently cut up to 45mm (approximately 1.77 inches) thick plates when used with a 140A plasma cutter machine.

3. Does the LTM141 use HF (High-Frequency) ignition?

Yes, the LTM141 features High-Frequency (HF) Ignition for easy and reliable non-contact arc starting, which helps in preserving consumable life.

4. What is the duty cycle of the LTM141 torch?

The LTM141 has a 60% duty cycle, meaning it can operate at its full 140 Amp output for 6 minutes out of every 10-minute period. This ensures consistent performance for heavy-duty tasks.

5. What consumables are included with the LTM141 torch?

The LTM141 comes with a set of pre-installed consumables, including a nozzle, electrode, swirl ring, and shield cup, allowing you to start cutting immediately.

6. How often should I replace the consumables?

The lifespan of consumables varies depending on factors like material thickness, cutting speed, amperage, gas quality, and proper torch technique. Regularly inspect them for wear (e.g., electrode pitting, nozzle orifice enlargement) and replace them as needed to maintain cut quality and prevent torch damage.

7. What type of gas does the LTM141 torch use, and what are the recommended settings?

The LTM141 uses air as its plasma gas. The recommended gas flow is 220 LPM, and the optimal gas pressure is between 4.5-5.0 Bar. Always ensure a clean and dry air supply.

8. Is the LTM141 suitable for CNC plasma cutting tables?

Yes, given its HF ignition and broad compatibility with standard 140A Plasma Cutting CNC Machines, the LTM141 is well-suited for integration into CNC plasma cutting tables for automated, precise cutting.

9. Can I get a sample of the LTM141 torch before placing a large order?

Yes, Changzhou Inwelt offers samples of the LTM141 torch for evaluation, typically for a reasonable charge.

10. Does Inwelt provide OEM/ODM services for the LTM141 torch?

Yes, Changzhou Inwelt offers OEM/ODM services, allowing for product customization and private labeling to meet specific business requirements.
