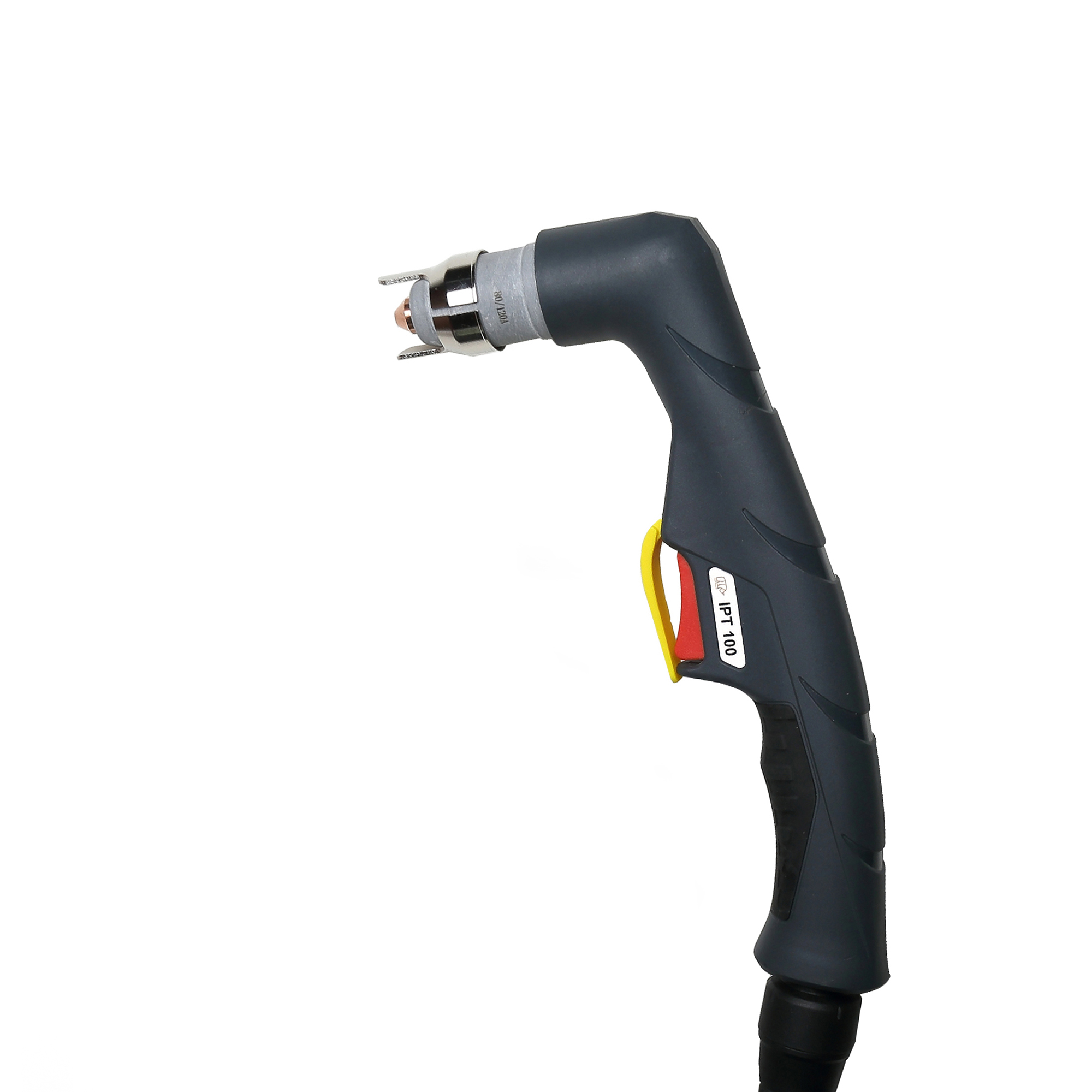

It is the popular IPT100 Plasma Cutting Torch. Without HF Ignition, easy to start arc. It is compatible with standard of 100A Plasma Cutting Machine. (i.e. CUT100) The Brand of machines would be Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, Longetivity and so on.
» The IPT100 Without High Frequency AIR Plasma Cutter Torch cutting 30MM-40MM thick plate under 100A.
» The IPT100 torch include consumables comes with one set of consumables (1 nozzle, 1 electrode, 1 swirl ring, 1 shield cup) installed on torch head, can be use directly.
» The IPT100 plasma torch can work with 100A plasma cutting machine such as CUT100 etc.
» Make people feel comfortable in the hand when the IPT100 plasma torch is fitted with a high density plastic handle; Insulated cable cover canvas cover, avoid cable exposure in high temperature, disorderly environment, can effectively reduce cable wear.
| Current | 100Amp | Gas Flow | 200LPM |
| Duty Cycle | 60% | Ignition | Without HF |
| Gas | Air/N2 | Post flow | 100 seconds recommended |
| Gas Pressure | 4.5-5.0 Bar | Standard Length | 6M/12M |
| HAND TORCH | ||||||
| Code | Ref. | Description | ||||
| A | IJWU03072-00 | Plasma torch IPT100/6M/ 1/4G /integrated/2 wires/back striking;等离子切割枪/IPT100/6M/ 1/4G /气电一体/2芯/后引弧 | ||||
| A | IJWU04072-00 | Plasma torch IPT100/12M/ 1/4G /integrated/2 wires/back striking;等离子切割枪/IPT100/12M/ 1/4G /气电一体/2芯/后引弧 | ||||
| B | IJWU03074-00 | Plasma torch IPT100/6M/central adaptor/2 wires/back striking;等离子切割枪/IPT100/6M/中央插头/2芯/后引弧 | ||||
| B | IJWU04074-00 | Plasma torch IPT100/12M/central adaptor/2 wires/back striking;等离子切割枪/IPT100/12M/中央插头/2芯/后引弧 | ||||
| C | IJWU030641-0 | Plasma torch IPT100/6M/central adaptor/4 wires/back striking;等离子切割枪/IPT100/6M/中央插头/4芯/后引弧 | ||||
| C | IJWU040641-00 | Plasma torch IPT100/12M/central adaptor/4 wires/back striking;等离子切割枪/IPT100/12M/中央插头/4芯/后引弧 | ||||
| Position | Code | Ref. | Description | |||
| （带“●”为标准配置 / With " ●" is the standard configuration） | ||||||
| 1 | IJTN0096 | 60444 | Double pointed spacer/IPT100;两点支架 IPT100 | |||
| 2 | IJTN0711 | 60504 | Shield cap/40-70A/cotact cutting;隔离保护帽/40-70A/接触切割 | |||
| 3 | IJTN0655 | 60505 | Shield cap/80-120A/cotact cutting;隔离保护帽/80-120A/接触切割 | |||
| 4 | IJTN1075 | 60508 | Shield cap/gouging;隔离保护帽/气刨 | |||
| 5 | IJWT1689-05 | 60500 | Outside IPT100/30-70A/Gray glass fiber;外喷嘴/IPT100/30-70A/灰色玻纤 | |||
| 6 ● | IJWT1687-05 | 60501 | Outside nozzle IPT100/80-120A/Gray glass fiber;外喷嘴 IPT100/80-120A/灰色玻纤 | |||
| 7 | IJWT1685-05 | 60502 | Outside nozzle IPT100/Contact cut and gouging;外喷嘴/IPT100/接触切割和气刨 | |||
| 8 | IJWV1683-09 | 51245.09 | Tip Φ0.9mm/cotact cutting/30-70A /back striking;电极喷嘴 Φ0.9mm/30-70A/后引弧 | |||
| 9 | Tip;电极喷嘴 | |||||
| 9.1 | IJWV1689-10 | 51246.10 | Tip Φ1.0mm/40-50A/ IPT100/back striking;电极喷嘴 Φ1.0mm/40-50A/IPT100/后引弧 | |||
| 9.2 | IJWV1689-11 | 51246.11 | Tip Φ1.1mm/50-60A/ IPT100/back striking;电极喷嘴 Φ1.1mm/50-60A/IPT100/后引弧 | |||
| 9.3 | IJWV1689-12 | 51246.12 | Tip Φ1.2mm/60-70A/ IPT100/back striking;电极喷嘴 Φ1.2mm/60-70A/IPT100/后引弧 | |||
| 10 | Tip;喷嘴 | |||||
| 10.1 | IJWV1687-14 | 51248.14 | Tip Φ1.4mm/80-90A/ IPT100/back striking;电极喷嘴 Φ1.4mm/80-90A/IPT100/后引弧 | |||
| 10.2 | IJWV1687-15 | 51248.15 | Tip Φ1.5mm/100-110A/ IPT100/back striking;电极喷嘴 Φ1.5mm/100-110A/IPT100/后引弧 | |||
| 10.3 ● | IJWV1687-16 | 51248.16 | Tip Φ1.6mm/110-120A/ IPT100/back striking;电极喷嘴 Φ1.6mm/110-120A/IPT100/后引弧 | |||
| 11 | Tip;电极喷嘴 | |||||
| 11.1 | IJWV1685-10 | 51276.10 | Contact tip Φ1.0mm/40-50A/IPT100/back striking;接触电极喷嘴 Φ1.0mm/40-50A/IPT100/后引弧 | |||
| 11.2 | IJWV1685-11 | 51276.11 | Contact tip Φ1.1mm/50-60A/IPT100/back striking;接触电极喷嘴 Φ1.1mm/50-60A/IPT100/后引弧 | |||
| 11.3 | IJWV1685-12 | 51276.12 | Contact tip Φ1.2mm/60-70A/IPT100/back striking;接触电极喷嘴 Φ1.2mm/60-70A/IPT100/后引弧 | |||
| 12 | Tip;电极喷嘴 | |||||
| 12.1 | JWV1697-14 | 51278.14 | Contact tip Φ1.4mm/80-90A/IPT100/back striking;接触电极喷嘴 Φ1.4mm/80-90A/IPT100/后引弧 | |||
| 12.2 | IJWV1697-15 | 51278.15 | Contact tip Φ1.5mm/100-110A/IPT100/back striking;接触电极喷嘴 Φ1.5mm/100-110A/IPT100/后引弧 | |||
| 12.3 | IJWV1697-16 | 51278.16 | Contact tip Φ1.6mm/110-120A /IPT100/back striking;接触电极喷嘴 Φ1.6mm/110-120A/IPT100/后引弧 | |||
| 13 | IJWV1698-22 | 51278G.22 | Tip gouging IPT100/120A/gouing/back striking;喷嘴/IPT100/120A/气刨/后引弧 | |||
| 14 | IJWG1673 | 60025 | Diffuser IPT100/30-70A;分流器 IPT100/30-70A | |||
| 15 | IJWG1672 | 60026 | Diffuser IPT100/80-120A and gouging;分流器 IPT100/80-120A以及气刨 | |||
| 16 ● | IJWC1687 | 52556 | Electrode plasma IPT100;等离子电极 IPT100 | |||
| 17 | JWA0056-01 | Plasma torch head IPT100/90°;等离子枪头 IPT100/90° | ||||
| 17a | IJAO0785 | 09700.48 | Air tube IPT100;导流管/IPT100 | |||
| 17b | IJGU0716 | 51190.41 | "O"ring Φ18x21mm IPT100;O型圈 Φ18x21mm/IPT100/ | |||
| 18 | IJHW0042-01 | Plasma handle manual/IPT80-100/Red;等离子手工手柄/IPT80-100/红色 | ||||
| 19 | IJIK0733 | Protection part/plasma/yellow;开关保护档片/等离子用/黄色 | ||||
| 20 | IJIR0081 | Trigger;开关 | ||||
| 21 | IJIK0804 | Joint/small/new type;球节套件/小/新式 | ||||
| 22 | Cable assembly;电缆组 | |||||
| 22.1 | IJWO01210074-300 | Cable assembly/IPT100/6M/2 wires/integrated;电缆组/IPT100/6M/2芯/气电一体 | ||||
| 22.2 | IJWO01210134-300 | Cable assembly/IPT100/12M/2 wires/integrated;电缆组/IPT100/12M/2芯/气电一体 | ||||
| 22.3 | IJWO01210071-300 | Cable assembly/IPT100/6M/2 wires/centre adaptor;电缆组/IPT100/6M/2芯/中央插头 | ||||
| 22.4 | IJWO01210131-300 | Cable assembly/IPT100/12M/2 wires/centre adaptor;电缆组/IPT100/12M/两芯/中央插头 | ||||
| 22.5 | IJWO01210077-300 | Cable assembly/IPT100/6M/4 wires/centre adaptor;电缆组/IPT100/6M/4芯/中央插头 | ||||
| 22.6 | IJWO01210137-300 | Cable assembly/IPT100//12M/4 wires/centre adaptor;电缆组/IPT100/12M/4芯/中央插头 | ||||
| 23 IJDH6017 Spanner for Plasma;等离子枪扳手 | ||||||
| 24 IJAY0089 Central adaptor torch side plasma 5 pins;等离子中央插头/5针 | ||||||
| 25 | IJTN0716 | Circle cutting attachment/IPT100;圆周切割附件/IPT100 | ||||
| 25.1 IJTN0683 Roller stand IPT100/ with spanner;滚轮支架 IPT100/带扳手 | ||||||
INWELT PLASMA TORCH CATALOG.pdf
Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
