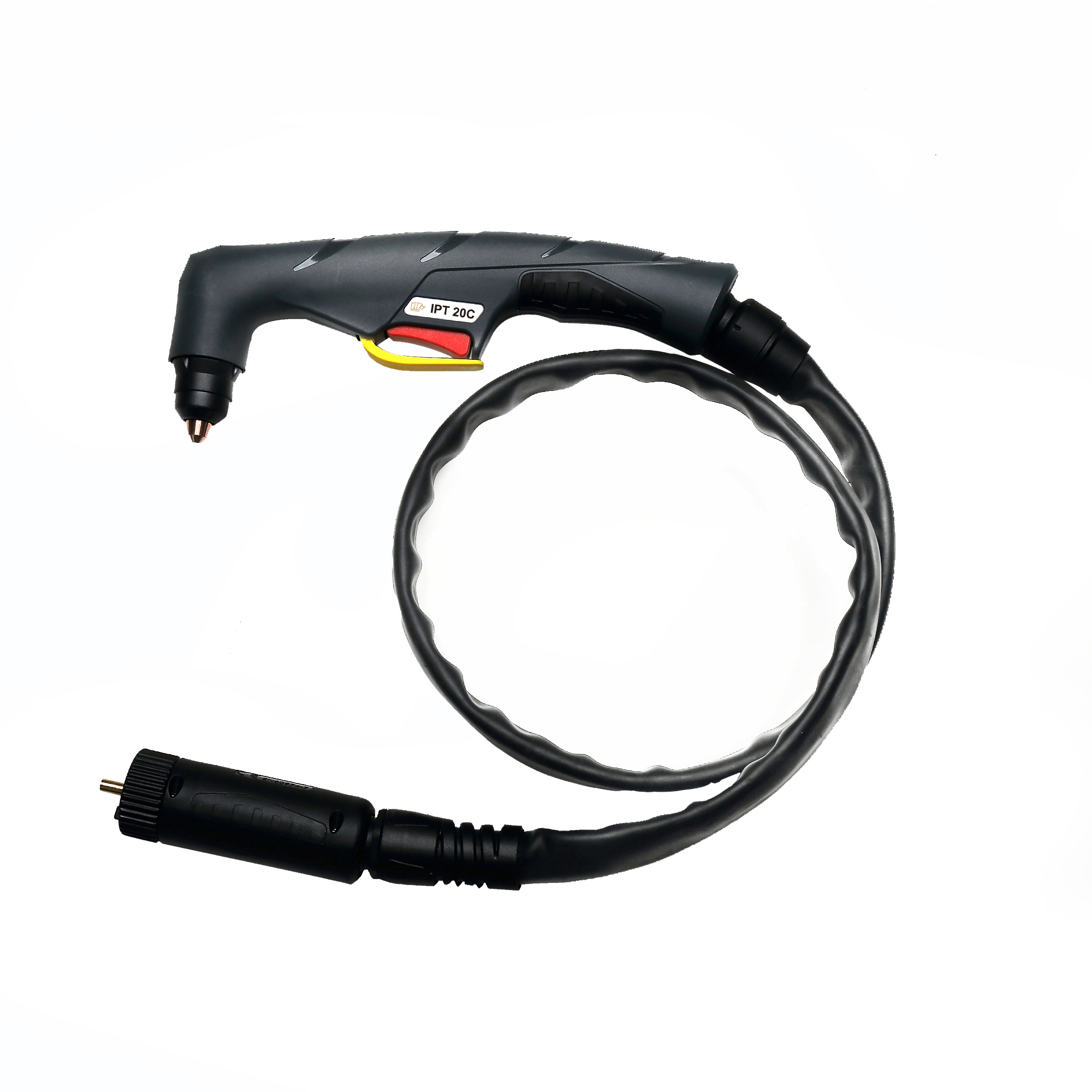

It is the popular IPT20C Plasma Cutting Torch. Without HF Ignition, easy to start arc. It is compatible with standard of 60A Plasma Cutting Machine. (i.e. CUT25/30) The Brand of machines would be Rilon, Riland, Jasic, Mitech, Chiry, UNT, Krypton, Longetivity and so on.
Current | 20Amp | Gas Flow | 30LPM |
Duty Cycle | 35% | Ignition | Without HF |
Gas | Air/N2 | Post Flow | 15 seconds recommended |
Gas Pressure | 2Bar | Standard Length | 4M |
Code | Ref. | Description | |
A | IJWU02011 | Plasma torch IPT20C /4M/ Direct/ 2 wires;等离子切割枪/IPT20C 4M/直接连接/两芯 | |
A | IJWU02011-00 | Plasma torch IPT20C /4M/ Direct/ 2 wires/ Back Striking;等离子切割枪/IPT20C 4M/直接连接/两芯控制线/后引弧 | |
B | IJWU020011 | Plasma torch IPT20C /4M/ Direct/4 wires /等离子切割枪/IPT20C 4M/直接连接/四芯控制线 | |
B | IJWU020011-00 | Plasma torch IPT20C /4M/ Direct/4 wires / Back Striking;等离子切割枪/IPT20C 4M/直接连接/四芯控制线/后引弧 |
Position Code | Ref. | Description | |||||||||||
1 | Outside nozzle;外喷嘴 | ||||||||||||
1.1 | IJWT0673-03 | 60389K | Outside nozzle IPT20C 2 holes /bakelite; 外喷嘴 IPT20C 2孔 /胶木 | ||||||||||
1.2 | IJWT1673-05 | Outside nozzle IPT20C 2 holes /gray glass fiber; 外喷嘴 IPT20C 2孔/灰色玻纤 | |||||||||||
2 | Tip;喷嘴 | ||||||||||||
2.1 | IJWV0672-06 | PD0116-06 | Tip Φ0.6mm/20A IPT20C;电极喷嘴 Φ0.6mm/20A IPT20C | ||||||||||
2.2 | IJWV0672-08 | PD0116-08 | Tip Φ0.8mm/30A IPT20C;电极喷嘴 Φ0.8mm/30A IPT20C | ||||||||||
3 | Tip;喷嘴 | ||||||||||||
3.1 | IJWV1671-06 | 51318.06 | Tip Φ0.6mm/20A IPT20C/Back Striking;加长电极喷嘴 Φ0.6mm/20A IPT20C/后引弧 | ||||||||||
3.2 | IJWV1671-08 | 51318.08 | Tip Φ0.8mm/30A IPT20C/Back Striking;加长电极喷嘴 Φ0.8mm/30A IPT20C/后引弧 | ||||||||||
4 | Extended tip;加长喷嘴 | ||||||||||||
4.1 | IJWV1610-06 | 51318L.06 | Extended tip Φ0.6mm/10-20A IPT20C/Back Striking;加长电极喷嘴/Φ0.6mm/10-20A IPT20C/后引弧 | ||||||||||
4.2 | IJWV1610-08 | 51318L.08 | Extended tip Φ0.8mm/20-30A IPT20C/Back Striking;加长电极喷嘴/Φ0.8mm/20-30A IPT20C/后引弧 | ||||||||||
5 ● | IJWG1612 | 60028 | Diffuser IPT20C-60;分流器IPT20C-60 | ||||||||||
6 ● | IJWC0671 | PR0110 | Electrode/IPT20C-60;等离子电极IPT20C-60 | ||||||||||
7 | IJWC1059 | 52582 | Electrode/IPT20C-60/Back Striking;等离子电极 IPT20C-60/后引弧 | ||||||||||
8 | IJWC1050 | 52583 | Extended electrode/IPT20C-60/Back Striking;等离子电极/IPT20C-60/后引弧 | ||||||||||
9 | IJWA0087 | IPX-45/60 HAND TORCH HEAD;IPX-45/60手动等离子枪头 | |||||||||||
9a | IJGU0710 | 51620.60 | "O"ring Φ18x15mm;O型圈 Φ18x15mm | ||||||||||
10 | IJHW0049-01 | PLASMA handle manual/IPT20-60/IPX torch head;等离子手工手柄/IPT20-60/适用于IPX枪头 | |||||||||||
11 | IJIK0733 | Protection part/Plasma/Yellow;开关保护档片/等离子用/黄色 | |||||||||||
12 | IJIR0081 | 07301.20 | Trigger;开关 | ||||||||||
13 | IJIK0809 | Joint/small/new type;球节套件/小/新式 | |||||||||||
14 | Cable assembly;电缆组 | ||||||||||||
14.1 | IJWO00902053-22 | Cable assembly/IPT20C-25/4M/2 wires/IPX torch head/Direct;电缆组/4M/两芯控制线/IPX枪头/直接连接 | |||||||||||
14.2 | IJWO00902055-22 | Cable assembly/IPT20C-25/4M/2 wires/IPX torch head/Direct;电缆组/4M/四芯控制线/IPX枪头/直接连接 | |||||||||||
15 | IJDH6017 | Spanner for Plasma;等离子枪扳手 | |||||||||||
16 | IJTN0718 | Circle cutting attachment;圆周切割附件 | |||||||||||
16.1 | IJTN0684 | Roller stand IPT20C-60 / with spanner;滚轮支架 IPT20C-60/带扳手 |
INWELT PLASMA TORCH CATALOG.pdf
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
A: Special discount Marketing protection.
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
A: Sure, welcome your visit to our factory.
