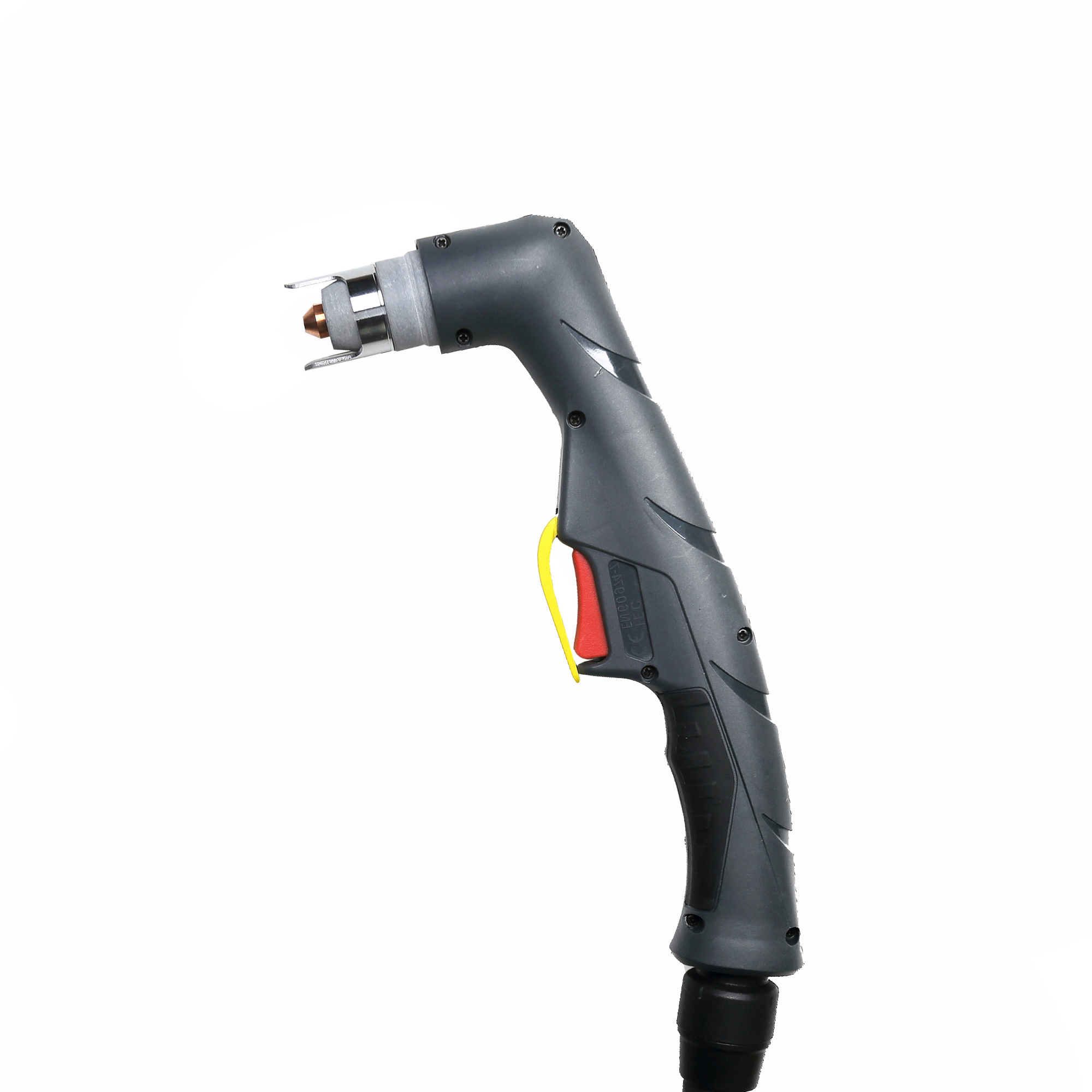

INWELT PT80 80A Non-HF Manual Plasma Cutting Torch

80A Non-HF Manual Plasma Cutting Torch for Professional Metal Cutting

The INWELT PT80 is an air-cooled handheld plasma cutting torch designed for professional fabrication, repair, maintenance and general industrial metal cutting.

The current INWELT configuration is rated at 80A with a 60% duty cycle and uses a non-high-frequency back-striking arc-starting system.

Its main operating specifications include:

• 80A rated current

• 60% duty cycle

• Air/N₂ process gas

• Non-HF / back-striking ignition

• Approx. 4.5–5.0 bar gas pressure

• Approx. 120–130 L/min gas flow

• Approx. 80-second recommended post-flow

• 6 m and 12 m torch-lead options

Multiple torch configurations are available, including 1/4G integrated, central-adapter, 2-wire and 4-wire arrangements.

The PT80 consumable platform also supports several cutting-current ranges together with contact-cutting and gouging configurations.

INWELT PT80 Technical Specifications

Before ordering, confirm the plasma power source, rated current, non-HF starting architecture, rear connection and control wiring.

How the PT80 Non-HF Back-Striking System Works

The PT80 works as part of a complete plasma cutting system consisting of the torch, plasma power source, process-gas supply and work connection.

Non-HF Arc Starting

The PT80 does not use a conventional high-frequency ignition circuit.

Instead, the torch uses a back-striking consumable architecture to initiate the pilot arc.

This distinction is important because HF and non-HF plasma torches are not automatically interchangeable.

The plasma power source must be designed for a compatible non-HF/back-striking torch system.

Plasma Arc Formation

Air or nitrogen flows through the torch head, electrode, diffuser and cutting tip.

Electrical energy ionizes the process gas and forms a high-temperature plasma arc.

The cutting nozzle constricts the arc into a concentrated jet that melts electrically conductive metal while the gas removes molten material from the kerf.

Post-Flow Cooling

The current PT80 configuration recommends approximately 80 seconds of post-flow.

Continued gas flow after cutting helps remove residual heat from the torch head and consumables.

Allow the plasma cutter's normal post-flow cycle to finish whenever possible.

Why Choose the PT80 for Manual Plasma Cutting?

The PT80 is positioned for professional manual cutting applications requiring more current than lower-output PT20, PT40 or PT60 platforms.

80A Rated Current

The PT80 is rated at 80A.

This allows the torch to support higher-output manual cutting when paired with a compatible plasma power source.

60% Duty Cycle

The PT80 is specified at a 60% duty cycle.

Actual torch temperature can also be influenced by:

• Operating current

• Ambient temperature

• Process-gas flow

• Arc-on time

• Number of starts

• Consumable condition

Do not operate the torch above its verified rating simply because the plasma cutter can provide more current.

Air-Cooled Construction

The PT80 does not require a separate liquid-cooling circuit.

Air/N₂ functions as the process gas while also contributing to heat removal from the torch.

6 m and 12 m Lead Options

Two standard working lengths are available:

• 6 m

• 12 m

The shorter lead can reduce cable weight and handling resistance, while the longer lead can provide additional working reach.

PT80 Back-Striking Cutting Tips by Current Range

One of the strongest features of the PT80 consumable family is the availability of different nozzle diameters for different current ranges.

30–40A Cutting Tip

Tip Diameter: Ø0.9 mm

Suitable for lower-current cutting applications within the PT80 consumable family.

40–50A Cutting Tip

Tip Diameter: Ø1.0 mm

Designed for the 40–50A operating range.

50–60A Cutting Tip

Tip Diameter: Ø1.1 mm

Provides an intermediate cutting-current configuration.

60–70A Cutting Tip

Tip Diameter: Ø1.2 mm

Suitable for higher-current operation below the full PT80 rating.

70–80A Cutting Tip

Tip Diameter: Ø1.3 mm

This is the primary high-output nozzle size associated with the PT80 70–80A operating range.

Always match the nozzle diameter to the intended current.

Using a lower-current nozzle at excessive amperage can shorten consumable life and reduce cut quality.

PT80 Consumable Selection Table

Final part-number mapping should be checked against the current INWELT ERP and technical drawing before publication.

PT80 Standard Cutting vs. Contact Cutting

The PT80 consumable family includes both standard and contact-cutting configurations.

Standard Cutting

Standard cutting uses the correct shield and nozzle configuration while maintaining the intended relationship between the torch and the workpiece.

This is appropriate for normal manual plate cutting.

Contact Cutting

The PT80 product family also includes contact-cutting tips and outside-nozzle configurations.

These allow the front-end geometry to be adapted for appropriate contact or drag-cutting applications.

Do not mix standard and contact-cutting consumables without confirming the complete consumable stack.

PT80 Gouging Consumables

The PT80 consumable family also contains a dedicated 80A back-striking gouging configuration.

Plasma gouging removes metal without cutting completely through the workpiece.

Typical applications include:

• Weld removal

• Defect removal

• Back-gouging

• Joint preparation

• Repair and rework

Use the correct gouging tip and shield rather than standard cutting consumables.

The plasma power source must also support gouging operation.

PT80 Electrode

The PT80 uses a dedicated back-striking electrode.

The electrode transfers electrical energy inside the torch and forms part of the starting mechanism.

As it wears, arc-start reliability and cut quality can deteriorate.

Replace the electrode before excessive wear causes:

• Failed arc starts

• Unstable plasma arc

• Increased nozzle wear

• Inconsistent cutting

Do not modify or grind the electrode to extend its service life.

PT80 Gas Diffuser

The gas diffuser controls airflow around the electrode and cutting nozzle.

Correct gas distribution is essential for:

• Arc stability

• Consumable cooling

• Plasma-jet formation

• Cut consistency

Replace the diffuser if it becomes:

• Cracked

• Burned

• Distorted

• Heavily contaminated

Keep all gas passages clean.

PT80 Outside Nozzle and Shield Options

The PT80 family includes different outside-nozzle and shield configurations.

Available functions include:

• Standard outside nozzle

• Extended-life outside nozzle

• Contact-cutting configuration

• Hand cutting shield

• Gouging shield

For SEO and GEO, each final live part should be identified by:

• INWELT code

• Reference code

• Process

• Current range

• Compatible torch

This is stronger than using generic terms such as “high-quality plasma consumables.”

PT80 Complete Torch Configurations

The current INWELT PT80 range includes several 6 m and 12 m hand-torch versions.

These variants should be presented prominently because connector and control-wire configuration are major replacement-torch selection factors.

PT80 Cable Assembly Options

The current product family also includes 6 m and 12 m cable assemblies for PT80–PT120-related configurations.

Available layouts include:

• 6 m / central adapter / two control wires

• 6 m / single-connector configuration

• 12 m / central adapter / two control wires

• 12 m / single-connector configuration

The final live table should clearly identify which cable assemblies are approved specifically for PT80.

This is more useful for professional buyers than grouping all PT80–PT120 cables together without compatibility guidance.

PT80 Central Adapter

A 5-pin torch-side plasma central adapter is available within the current product family.

A central adapter can simplify installation on compatible plasma power sources.

However, the connector must match electrically as well as mechanically.

Confirm:

• Pin functions

• Start/control wiring

• Gas/current interface

• Pilot-arc architecture

before installation.

How to Check PT80 Plasma Cutter Compatibility

A PT80 should not be selected only because the machine is labeled CUT80.

Confirm the Starting Method

The power source must support a compatible non-HF/back-striking torch.

Confirm the Operating Current

The PT80 is rated at 80A.

The plasma cutter should be operated within the verified torch and consumable ratings.

Confirm the Rear Connection

Identify whether the machine requires:

• 1/4G integrated

• Central adapter

• Another approved OEM interface

Confirm Control Wiring

The PT80 is available with:

• 2-wire

• 4-wire

control arrangements.

Provide Machine Information Before Ordering

For replacement projects, provide:

• Plasma cutter brand

• Machine model

• Rated output current

• Existing torch model

• Main connector photo

• Control-plug photo

This is more reliable than saying the PT80 is compatible with every CUT80 plasma cutter.

Spare Parts Details:

Our Catalog:

INWELT PLASMA TORCH CATALOG.pdf

PT80 vs. PTM80: Hand Torch vs. Machine Torch

PT80 and PTM80 should be treated as separate complete torch products.

Some consumables and cable components may be shared across the wider product family.

However, complete PT80 and PTM80 assemblies should not automatically be treated as interchangeable.

The PTM80 machine head and fiberglass positioning tube currently shown in the wider spare-parts family should therefore be moved to the PTM80 machine-torch page or placed under a clearly labeled related-products section.

PT80 Trigger and Safety Components

The PT80 is a manual torch and therefore includes hand-control components.

The handle system includes:

• Manual plasma handle

• Trigger

• Trigger protection component

• Joint

• Air tube

The trigger protection component helps reduce accidental activation during handling.

Inspect the trigger and safety mechanism if:

• The trigger sticks

• The torch starts intermittently

• The protection cover becomes damaged

Replace damaged components before returning the torch to service.

PT80 Circle Cutting Attachment

The current PT80 accessory family includes a circle-cutting attachment.

A circle guide can help maintain:

• Consistent radius

• Stable torch movement

• More repeatable circular cuts

This can be useful for manual fabrication and repair applications.

Confirm compatibility with the selected torch front-end and spacer configuration.

What Metals Can the PT80 Plasma Torch Cut?

When used with a compatible plasma cutting system, the PT80 can cut electrically conductive metals including:

• Mild steel

• Carbon steel

• Stainless steel

• Aluminum

• Copper

• Brass

• Galvanized steel

The torch alone does not determine the maximum thickness for each material.

How Thick Can an 80A PT80 Plasma Torch Cut?

The current page states that the torch can cut approximately 20–40 mm at 80–100A.

This should not remain as a universal torch specification.

There are two problems with that statement:

1. PT80 is positioned as an 80A torch, not a 100A torch.

2. Cutting thickness is determined by the complete plasma system.

Actual performance depends on:

• Plasma power source

• Material

• Input power

• Cutting current

• Tip size

• Gas pressure and flow

• Travel speed

• Torch-to-work distance

• Consumable condition

• Required cut quality

Professional plasma specifications should distinguish between:

Recommended Cut
Productive cutting with acceptable speed and edge quality.

Maximum Cut
Thicker material cut at reduced speed.

Severance
Maximum thickness that can be separated, usually with reduced edge quality.

Publish specific PT80 cutting thickness only when supported by an INWELT system-level test.

Create an INWELT PT80 Cut Chart

A verified first-party cutting chart would significantly strengthen this page.

Recommended fields include:

This is much stronger GEO content than generic statements about “excellent cut quality.”

Recommended Gas Supply for the PT80

The current INWELT technical configuration lists:

• Process gas: Air / N₂

• Gas pressure: approximately 4.5–5.0 bar

• Gas flow: approximately 120–130 L/min

• Recommended post-flow: approximately 80 seconds

Use Clean, Dry Process Gas

Moisture, oil and particulate contamination can reduce:

• Arc stability

• Electrode life

• Cutting-tip life

• Cut quality

Use appropriate filtration and moisture separation.

Check Pressure During Flow

Static pressure may differ from actual operating pressure.

Filters, regulators and long hoses can create pressure loss.

Set the gas according to the complete plasma cutter's operating procedure.

Typical Applications for the PT80

The PT80 is suited to professional manual plasma cutting applications including:

• General metal fabrication

• Structural repair

• Machinery maintenance

• Automotive and truck repair

• Agricultural equipment

• Construction equipment

• Railway maintenance

• Industrial repair

• Plate cutting

• Scrap processing

• Weld removal

• Plasma gouging

Final torch selection should be based on the actual plasma system rather than the industry name alone.

PT80 Maintenance and Consumable Inspection

Inspect the Electrode

Check for excessive electrode wear.

Replace the electrode before severe erosion causes unstable starting or nozzle damage.

Inspect the Cutting Tip

Check the nozzle orifice for:

• Enlargement

• Oval shape

• Burn damage

• Contamination

Inspect the Diffuser

Keep all gas passages clean.

Replace cracked or distorted components.

Inspect the Shield

Check for heat damage and blocked gas passages.

Inspect the O-Ring

Replace hardened or damaged seals if gas leakage occurs.

Inspect the Air Tube

Make sure the internal air-distribution tube is correctly installed and undamaged.

Inspect the Torch Lead

Look for:

• Abrasion

• Cuts

• Heat damage

• Sharp bends

• Loose connectors

Common PT80 Cutting Problems and Solutions

Difficult Arc Starting

Check:

• Electrode condition

• Cutting tip

• Back-striking mechanism

• Gas pressure

• Work connection

• Machine compatibility

Excessive Dross

Check:

• Travel speed

• Cutting current

• Torch distance

• Gas flow

• Consumable condition

Angled Cut

Possible causes include:

• Worn nozzle

• Incorrect torch angle

• Damaged diffuser

• Disturbed gas flow

Short Consumable Life

Check:

• Air quality

• Correct nozzle/current combination

• Torch distance

• Excessive arc starts

• Electrode condition

Torch Overheating

Possible causes include:

• Current above 80A

• Duty cycle exceeded

• Restricted gas flow

• Insufficient post-flow

• Damaged cable

• Poor electrical connection

Stop cutting and identify the cause before continuing.

PT80 Consumables for Distributor and Aftermarket Supply

For distributors, the complete torch creates ongoing demand for replacement consumables and service parts.

A PT80 aftermarket program can include:

• 30–40A cutting tips

• 40–50A cutting tips

• 50–60A cutting tips

• 60–70A cutting tips

• 70–80A cutting tips

• Contact-cutting tips

• Gouging tips

• Electrodes

• Diffusers

• Outside nozzles

• Shields

• Torch heads

• O-rings

• Air tubes

• Handles

• Triggers

• Cable assemblies

• Central adapters

• Circle-cutting accessories

This provides a more complete product program than selling only the assembled torch.

OEM PT80 Plasma Cutting Torch Manufacturing by INWELT

INWELT supplies plasma cutting torches and replacement components to professional B2B customers including:

• Plasma cutter manufacturers

• Welding and cutting equipment brands

• Importers

• Distributors

• Wholesalers

• Industrial suppliers

• Repair companies

• Aftermarket consumable brands

OEM and ODM configurations can be developed according to machine interface and target-market requirements.

OEM and Private-Label Options

Customization may include:

• Customer branding

• Handle marking

• Product labels

• 6 m or 12 m torch leads

• 1/4G connection

• Central adapter

• 2-wire or 4-wire control

• Consumable kits

• Private-label packaging

• Instruction materials

• Barcodes

• Bulk cartons

For OEM projects, provide the plasma cutter specification, starting system, connector requirement and expected order quantity.

Why Source PT80 Torches and Consumables from INWELT?

The PT80 platform includes both complete hand torches and corresponding aftermarket components.

The current product system supports:

• 6 m and 12 m complete torch assemblies

• Multiple control configurations

• 30–80A cutting tips

• Contact-cutting consumables

• Gouging consumables

• Back-striking electrodes

• Diffusers

• Outside nozzles

• Torch-head components

• Cable assemblies

• Central adapters

• Circle-cutting accessories

For professional buyers, sourcing the torch and spare parts from one supplier can simplify purchasing, inventory and compatibility management.

Frequently Asked Questions About the PT80 Plasma Cutting Torch

What amperage is the INWELT PT80?

The PT80 is rated at 80A according to the current INWELT technical data.

What is the PT80 duty cycle?

The current specification lists 60%.

Is PT80 a hand torch?

Yes.

PT80 is the manual / handheld configuration.

The related PTM80 is designed for mechanized/CNC applications.

Does PT80 use HF ignition?

No.

The PT80 uses a non-HF back-striking arc-starting system.

What gas does the PT80 use?

The current specification lists Air/N₂.

What gas pressure does PT80 require?

Approximately 4.5–5.0 bar.

What gas flow does PT80 require?

Approximately 120–130 L/min according to the current INWELT specification.

What torch-lead lengths are available?

The current product range includes:

• 6 m

• 12 m

What connector options are available?

Current configurations include:

• 1/4G integrated

• Central adapter

with 2-wire and 4-wire control versions.

What cutting-tip sizes are available?

The main back-striking tip family includes:

• Ø0.9 mm / 30–40A

• Ø1.0 mm / 40–50A

• Ø1.1 mm / 50–60A

• Ø1.2 mm / 60–70A

• Ø1.3 mm / 70–80A

Can PT80 be used for contact cutting?

Yes, the related consumable family includes contact-cutting configurations.

Use the correct matching shield and cutting tip.

Can PT80 be used for plasma gouging?

Yes, when the power source and dedicated 80A gouging consumables support the process.

Can PT80 be used on any CUT80 plasma cutter?

No.

The starting system, connector, pilot-arc arrangement and control wiring must also match.

Can PT80 cut stainless steel?

Yes, when used with a compatible plasma cutting system and appropriate operating parameters.

Can PT80 cut aluminum?

Yes.

Aluminum is electrically conductive and can be plasma cut using an appropriate plasma system.

How thick can PT80 cut?

There is no universal thickness determined by the torch alone.

Use verified recommended, maximum and severance data from the complete plasma cutting system.

What is the difference between PT80 and PTM80?

PT80 is the handheld torch.

PTM80 is intended for CNC/mechanized operation.

Does INWELT provide PT80 spare parts?

Yes.

The product family includes tips, electrodes, diffusers, shields, torch heads, cable assemblies, trigger parts and related accessories.

Does INWELT offer OEM PT80 plasma torches?

Yes.

OEM/ODM, private-label, cable, connector and consumable-kit configurations are available for qualified B2B customers.

Request a Quote for the INWELT PT80 Plasma Cutting Torch

For faster compatibility confirmation, provide:

• Plasma cutter manufacturer and model

• Rated output current

• Existing torch model

• Starting method

• Main connector photo

• Control-plug photo

• Required lead length

• Required consumables

• Cutting or gouging application

• Estimated order quantity

• INWELT or private-label branding

INWELT can then confirm the appropriate PT80 complete torch and replacement-parts configuration.
