Copper 54A Gas Diffuser for Tweco Type

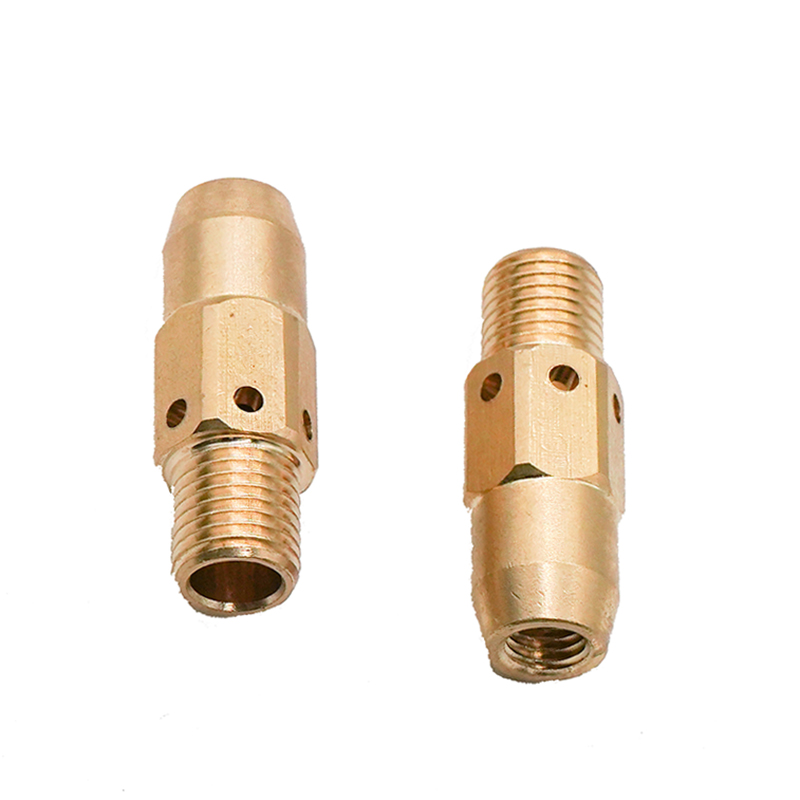

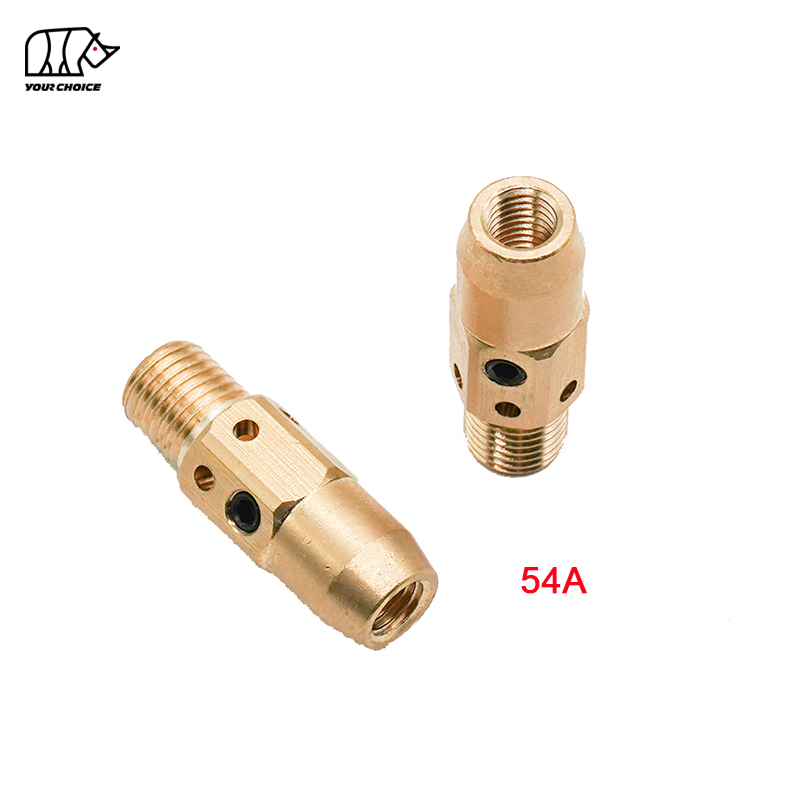

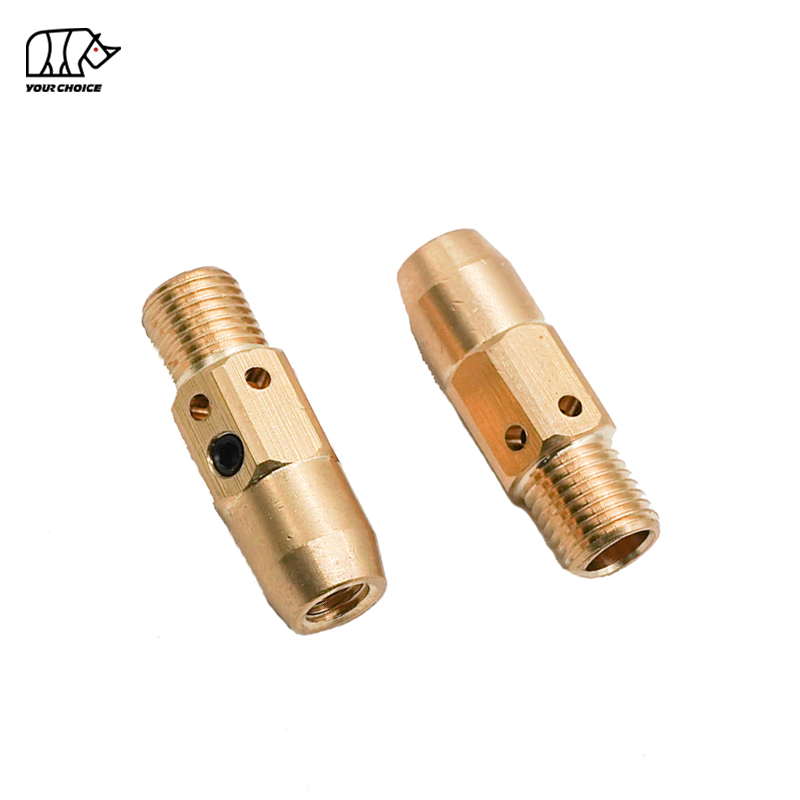

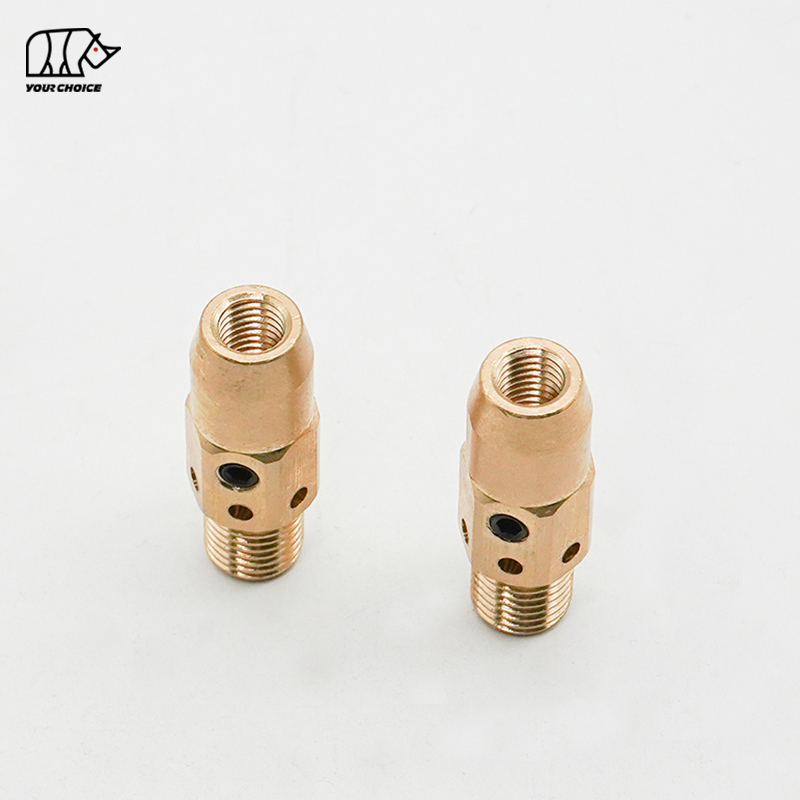

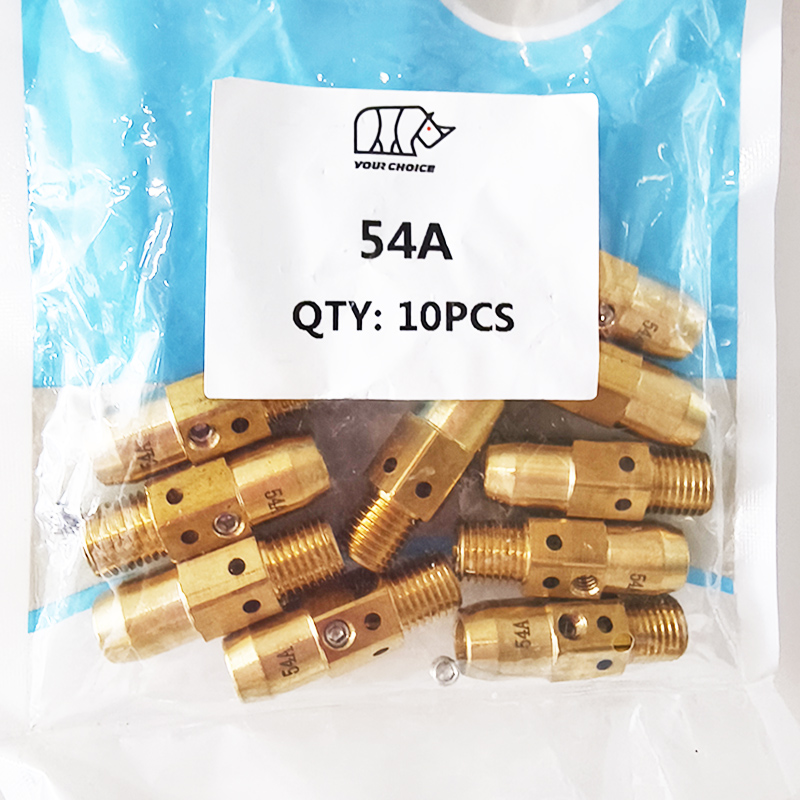

INWELT Tweco Style Copper 54A Gas Diffuser — Precision-Machined MIG Gun Consumable

The MIG gas diffuser is one of the most functionally important yet frequently overlooked components in the entire torch front-end assembly. Sitting between the conductor tube and the contact tip, the gas diffuser performs two simultaneous jobs that directly determine weld quality: it converts turbulent shielding gas into a smooth, laminar flow pattern, and it serves as the structural mounting foundation that positions the contact tip precisely along the torch centerline. INWELT manufactures the 54A gas diffuser from high-grade copper alloy to exacting Tweco-style dimensions, delivering the gas coverage, dimensional stability, and thread precision that professional welders and fabrication shops depend on for medium to heavy-duty MIG welding applications.

Understanding the Gas Diffuser Function in MIG Welding

The Laminar Flow Engine — Transforming Turbulence into Coverage
Shielding gas enters the diffuser from the conductor tube as a fast-moving, turbulent stream. Without intervention, this turbulent gas would exit the nozzle as a swirling, uneven column, pulling atmospheric air into the weld zone and causing porosity. The gas diffuser has precision-drilled gas ports designed to break up turbulent flow and convert it into a laminar flow pattern before the gas enters the nozzle. This laminar gas flow shields the arc and weld pool, protecting the molten metal from the atmosphere during fusion. By creating a steady, turbulence-free gas stream around the weld zone, the diffuser optimizes shielding and increases weld quality.

Contact Tip Positioning and Structural Support

In addition to managing gas flow, the gas diffuser serves as the critical mounting base for the contact tip. It positions the contact tip precisely along the center axis of the torch, ensuring the weld wire feeds straight through the nozzle bore without deviation. The gas diffuser threads into the conductor tube on one end, while the contact tip threads into the diffuser on the other, making this component the essential structural bridge between the gun body and the electrical contact point. Any misalignment caused by a worn or poorly machined diffuser will alter contact-tip-to-work distance and produce arc instability.

Spatter Protection for Internal Torch Components

The diffuser body also acts as a physical barrier that shields upstream torch components from welding spatter. Hot spatter droplets that would otherwise travel up into the conductor tube and damage internal gas passages are blocked by the diffuser. This protective function extends the service life of more expensive gun components, making the gas diffuser a cost-effective sacrificial wear part that deserves regular inspection and timely replacement.

The 54A Designation — Compatibility Across Tweco Classic Gun Platforms

The 54A gas diffuser is one of the most widely deployed diffuser models in the Tweco consumable ecosystem, offering broad compatibility across multiple gun series.

Gun Series Compatibility

The 54A gas diffuser is designed to fit Tweco Classic No. 3 (300A), No. 4 (400A), and No. 5 (500A) air-cooled MIG guns, as well as many other Tweco-style guns that utilize the 54 series consumables. This three-gun compatibility makes the 54A a versatile consumable choice for shops that operate multiple Tweco gun platforms, reducing the number of distinct part numbers needed in the welding supply inventory. It is suited for use with Tweco-style MIG guns spanning 250A to 600A capacities, covering light fabrication through heavy structural work.

Nozzle and Accessory Compatibility

The 54A diffuser is designed for use with adjustable nozzles to suit No. 3 and No. 4 torches. It is compatible with 24A series nozzles only and is used with the 34A nozzle insulator. For gas diffusers using slip-on nozzle assemblies, a metal ring design accommodates the nozzle in place during welding. This integrated compatibility system ensures that all front-end consumables work together as an engineered set rather than as isolated components.

Copper Alloy Construction — Thermal and Electrical Advantages

Why Copper Outperforms Standard Brass in Heavy-Duty Applications

Many gas diffusers are manufactured from brass alloy, which provides adequate performance for light to medium-duty work. However, as welding amperage increases above 350 amps — conditions common in structural steel fabrication, heavy equipment manufacturing, and shipbuilding — the thermal conductivity of the diffuser material becomes critical. Copper alloy provides superior heat dissipation compared to brass, maintaining dimensional stability under sustained high-temperature exposure. A diffuser that holds its shape under thermal cycling retains consistent gas port geometry and thread integrity for longer, delivering predictable gas coverage throughout its service life.

Electrical Conductivity and Arc Stability

The gas diffuser sits in the electrical path of the MIG gun, transferring welding current to the contact tip. Gas diffusers have excellent electrical properties, making them ideal for use in medium to heavy-duty standard welding applications. The copper alloy construction of INWELT's 54A diffuser minimizes electrical resistance at this critical junction, ensuring consistent current delivery to the contact tip and stable arc characteristics throughout the welding cycle. Poor conductivity at the diffuser introduces resistance heating that can degrade both the diffuser and the contact tip prematurely.

Precision-Machined Threads and Gas Ports

Each INWELT 54A diffuser features precision-machined threads that engage smoothly with the conductor tube and contact tip. The gas diffuser has machined threads on the external surface to let the nozzle assemblies thread over and accommodate the nozzle in place during the welding process. The diffuser features a conduit set screw that accommodates the conduit liner in place and a proper threaded conductor tube for MIG gun compatibility. Four precisely sized gas holes are arranged to distribute shielding gas evenly around the contact tip, eliminating dead zones and turbulence that would compromise weld pool protection. Part numbers are roll-stamped on the external surface for easy identification during inventory management.

Technical Specifications

Inspection, Maintenance, and Replacement

Signs a 54A Gas Diffuser Needs Replacement

Recognizing diffuser failure before it impacts weld quality is a hallmark of a well-managed welding operation. Common indicators that a diffuser requires replacement include: gas ports that are partially or fully clogged and cannot be cleared by routine cleaning; visible cracks, deformation, or discoloration of the copper body indicating thermal fatigue; contact tip threads that feel loose, stripped, or fail to hold the tip securely; and conductor tube threads that no longer tighten firmly, allowing the diffuser to loosen during welding. A worn or damaged diffuser will produce uneven gas coverage, leading directly to porosity, excessive spatter, and arc instability.

Routine Inspection Schedule

In production environments with medium to heavy-duty welding up to 500 amps, gas diffusers should be inspected at every contact tip change and wire spool replacement. Remove the nozzle and contact tip to access the diffuser, then visually check all four gas ports for spatter accumulation. Use a pair of MIG welding pliers or a soft brass brush to carefully clear any loose spatter. During inspection, verify that the diffuser part number (54A) is still legible on the external surface for easy identification, confirming the correct component remains in service.

Preventive Replacement Strategy

For critical welds on structural or code-quality work, scheduled preventive diffuser replacement is a low-cost protective measure. Experienced welding supervisors keep spare 54A diffusers in stock — replacement takes less than sixty seconds and costs a fraction of the labor required to grind out and re-weld a failed joint. In shops running high-duty-cycle production, proactive replacement based on arc hours rather than waiting for visible failure helps maintain consistent weld quality and prevents unscheduled torch downtime.

Real-World Applications

INWELT 54A copper gas diffusers are deployed across industries where MIG weld quality directly impacts structural integrity and production efficiency.

• Structural Steel Fabrication: Used with No. 4 and No. 5 MIG guns at 400 to 500 amps for continuous welding of columns, beams, and heavy structural assemblies where laminar gas coverage is critical for radiographic-quality welds that meet structural codes.

• Heavy Equipment Manufacturing: Supports high-deposition MIG welding of excavator booms, crane structures, and heavy machinery frames where consistent arc performance over extended arc-on time directly impacts daily production output.

• Shipbuilding and Marine Repair: Deployed in Tweco-style guns for hull plate welding and stiffener installation where shielding gas integrity against atmospheric contamination is non-negotiable in humid and windy dock environments.

• Manufacturing and Automated Welding Cells: The precision-machined threads and consistent gas port geometry make these diffusers suitable for automated and robotic MIG applications where component consistency directly affects cell uptime by reducing torch cleaning station interventions.

Why Source Tweco Style 54A Gas Diffusers from INWELT Welding Technology Co., Ltd.

Proven Manufacturing Expertise
INWELT is a direct manufacturer of welding consumables, controlling every stage of the production process from raw copper alloy selection to final thread verification and gas port inspection. This vertical integration ensures batch-to-batch consistency that trading intermediaries cannot provide. As a leading manufacturer, INWELT offers high-quality MIG, TIG, plasma, and gas cutting solutions to meet the demands of industrial welding projects.

Certified Quality Standards
All 54A gas diffusers are manufactured under an ISO 9001-certified quality management system with CE and RoHS compliance as standard. Every production batch undergoes dimensional verification, thread-fit testing, and surface quality inspection before release. With 15-plus years of expertise, INWELT provides premium welding torches and consumables designed to meet the needs of professionals across industries.

Factory-Direct Commercial Terms
By purchasing directly from the manufacturer, fabrication shops, and welding distributors receive competitive factory-direct pricing. OEM and ODM customization options are available, including private-label packaging, custom branding, and non-standard specifications for specialized gun platforms. Wholesale orders are supported with efficient fulfillment.

Free Sample Evaluation
Evaluating a gas diffuser requires hands-on testing of thread engagement, gas port geometry, and thermal durability under real welding conditions. Product samples are available before volume orders, so the INWELT 54A diffuser can be tested in your own workshop.

Global Supply Experience
With over 15 years of industry experience, INWELT has built a customer base spanning more than 30 countries. Consistent product quality, responsive technical consultation, and reliable delivery timelines have made INWELT a trusted partner for professional welders, independent fabrication shops, and large-scale industrial procurement operations alike.

Frequently Asked Questions

Q: What is the primary function of a MIG welding gas diffuser?
A: The gas diffuser sits between the conductor tube and the contact tip in a MIG gun. Its two primary functions are to convert turbulent shielding gas into a smooth, laminar flow pattern that evenly protects the weld pool, and to provide the threaded mounting base that positions and secures the contact tip in precise alignment with the torch centerline. A properly functioning diffuser is essential for porosity-free welds and stable arc performance.

Q: What is the difference between a copper gas diffuser and a brass gas diffuser?
A: Both materials are used in MIG gas diffuser manufacturing, and each has its place. Copper alloy offers superior thermal and electrical conductivity, making it the preferred choice for heavy-duty applications above 350 amps where sustained high temperatures can deform brass diffusers. Brass diffusers are widely used in light to medium-duty applications up to 300 amps and offer good dimensional stability at moderate temperatures. The 54A diffuser in copper alloy is engineered for shops that run medium to heavy-duty welding and want the additional thermal headroom that copper provides.

Q: Which MIG guns does the Tweco 54A gas diffuser fit?
A: The 54A gas diffuser is designed to fit Tweco Classic No. 3 (300A), No. 4 (400A), and No. 5 (500A) air-cooled MIG guns, as well as many Tweco-style compatible guns from major manufacturers that follow the 54 series consumable standard. It uses 24A series slip-on nozzles and 34A nozzle insulators. Always verify your specific gun model to confirm compatibility.

Q: How often should the 54A gas diffuser be replaced?
A: The gas diffuser should be inspected during every contact tip change and wire spool replacement. Replace the diffuser immediately if the gas ports are clogged and cannot be fully cleared, the copper body shows cracks or deformation, the contact tip threads are stripped or loose, or the conductor tube threads no longer tighten securely. In high-duty-cycle production environments, preventive replacement based on arc hours rather than waiting for visible failure helps maintain consistent weld quality.

Q: Can a clogged or damaged gas diffuser cause weld porosity?
A: Yes. A partially or fully clogged diffuser disrupts shielding gas flow, creating turbulence and uneven coverage around the weld pool. This allows atmospheric oxygen, nitrogen, and moisture to contaminate the molten metal, producing porosity, surface pitting, and oxidation. When troubleshooting intermittent or sudden-onset porosity in MIG welding, inspecting the gas diffuser for blockage or damage should be one of the first diagnostic steps after confirming adequate gas supply at the flowmeter.

Q: Are INWELT 54A gas diffusers compatible with original Tweco guns and aftermarket equivalents?
A: Yes. INWELT 54A gas diffusers are manufactured to standard Tweco industry dimensions and are fully compatible with original Tweco Classic No. 3, No. 4, and No. 5 MIG guns, as well as aftermarket equivalents from major manufacturers that follow the same dimensional standard. OEM quality Tweco-style consumables are interchangeable with Tweco and Tweco Weldskill platforms.

Product Specifications at a Glance
