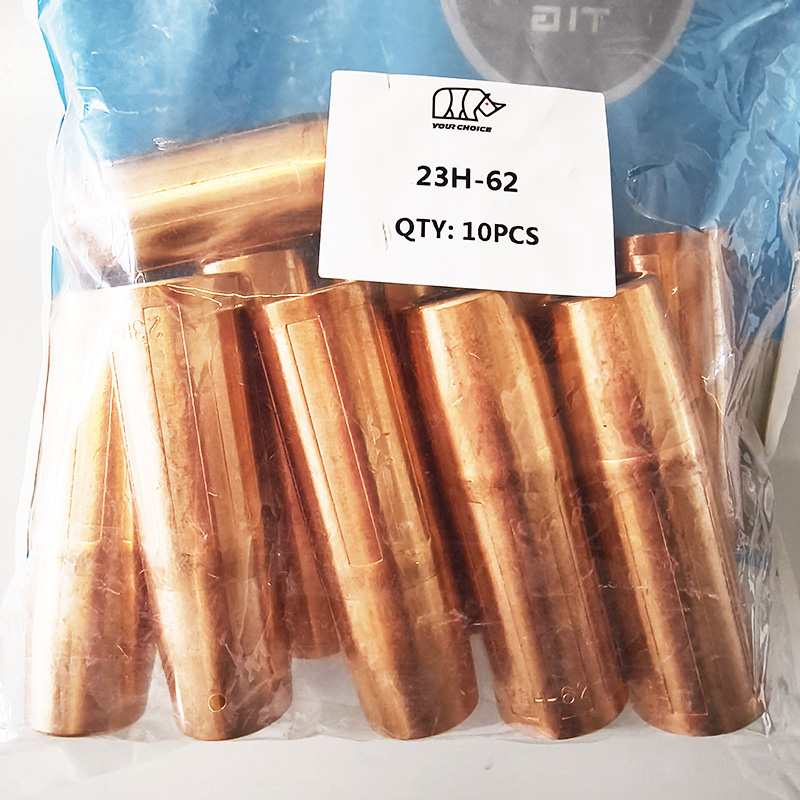

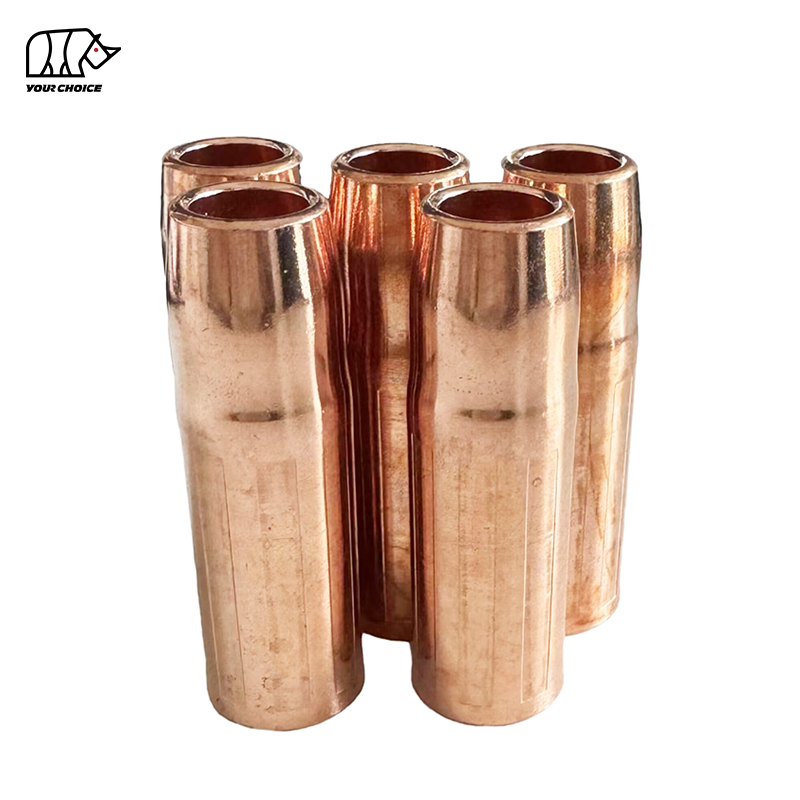

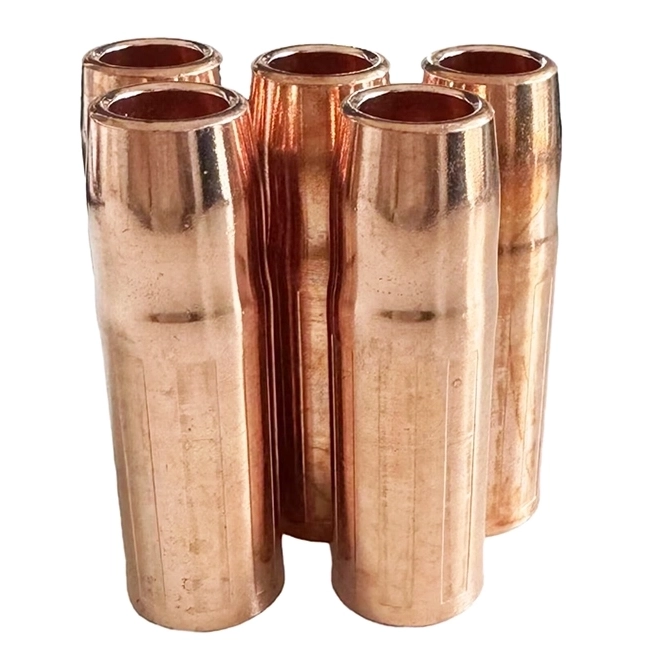

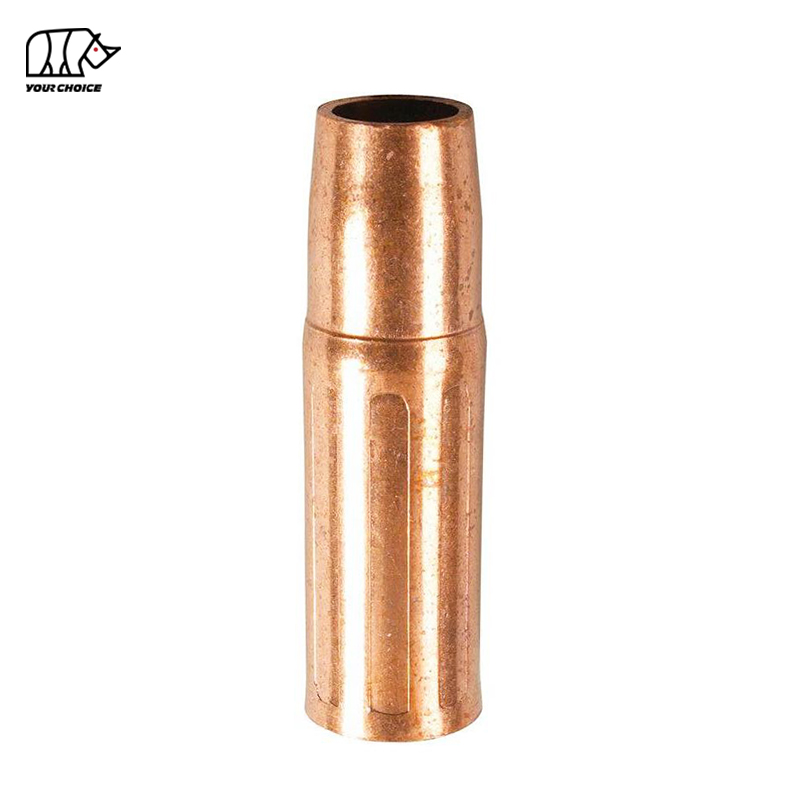

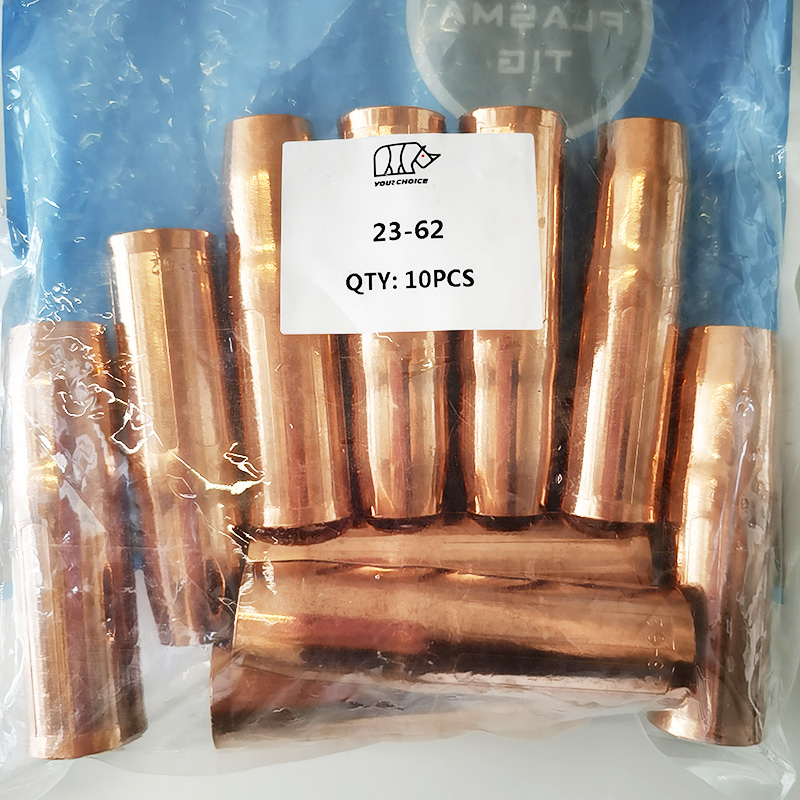

Heavy Duty 23H62 Welding Gas Nozzle for Tweco

 INWELT Tweco 23H62 MIG Welding Nozzle — Copper Alloy, 5/8-Inch Bore, 450 Amp Heavy-Duty Gas Shroud

The MIG welding nozzle is the last component shielding gas touches before it envelops the weld pool. It is the final barrier between molten metal and atmospheric contamination, and every porosity defect, every surface pit, and every rejected radiographic test traceable to gas coverage failure can be traced back to a nozzle that was either worn, clogged, or poorly manufactured. The INWELT 23H62 MIG welding nozzle is engineered for heavy-duty applications where arc-on time is measured in hours per shift and where shielding gas integrity cannot be compromised. Built to standard Tweco 23H series dimensions from 122 DHP copper alloy, this nozzle delivers the laminar gas flow, thermal endurance, and spatter resistance that professional welders, fabrication shops, and industrial procurement managers depend on.

The 23H62 Nozzle — Form, Fit, and Function in Heavy-Duty MIG Welding

The Nozzle’s Role as Final Gas Pathway

All shielding gas that reaches the weld pool must pass through the nozzle bore. Once the gas exits the gas diffuser ports, it enters the nozzle body where it must develop into a smooth, even column with no turbulence zones or recirculation eddies. Any irregularity in the bore — spatter buildup, deformation, or poor machining — disrupts this laminar flow. The result is atmospheric contamination: oxygen, nitrogen, and moisture reach the weld pool and produce porosity, oxidation, and structurally weakened joints. The 23H62 nozzle is designed to ensure unobstructed gas flow, protecting the weld pool during gas-shielded MIG welding tasks and keeping airborne contaminants out of the weld to help avoid pores, cracks, or excessive spatter.

Three-Piece Self-Insulated Design

The INWELT 23H62 utilizes a self-insulated, three-piece nozzle design that requires no additional insulator. The three components work as an integrated system: the nozzle housing is cut and formed from 122 DHP copper alloy tubing, selected for heat absorption and dissipation at sustained high amperages; the nozzle insert is machined from solid brass alloy to match the conductor tube OD threads; and the nozzle insulator is made from G7 silicone material, providing the electrical insulation needed from the gas diffuser. This design allows the nozzle to string directly into the conductor tube assembly, eliminating the need for separate insulator components and simplifying torch front-end maintenance.

Standard 54P Gas Diffuser Compatibility

The 23H62 nozzle is designed for use with standard 54P gas diffusers across Tweco Classic No. 2, No. 3, and No. 4 MIG guns, as well as WeldSkill WM 250 and WM 400 platforms. This standardization means the 23H62 integrates directly with the gas diffuser system most widely deployed in fabrication and manufacturing environments. For operators running multiple gun platforms across a shop floor, the 23H62 provides cross-platform compatibility that reduces the number of distinct nozzle part numbers needed in inventory.

122 DHP Copper Alloy — Why Material Selection Defines Nozzle Performance

Heat Dissipation at 450 Amps

The 23H62 is rated for heavy-duty welding applications up to 450 amps. At these amperages, the radiant heat from the arc combined with resistance heating from the contact tip raises the nozzle temperature dramatically. Copper alloy is better for applications that require more than 300 amps, with better overall spatter resistance and heat management at higher temperatures than brass. Copper alloy construction is preferred for structural steel, shipbuilding, and heavy equipment manufacturing where arc-on times are extended and thermal loading is constant. The 122 DHP copper alloy housing absorbs and dissipates this heat efficiently, preventing the softening and bore distortion that would compromise gas flow geometry.

Copper vs. Brass — Selecting for the Application

Brass welding nozzles have better spatter resistance properties in lower amperage applications than copper nozzles, but lose that advantage in higher amperage applications and can actually shatter when they fail. Brass is ideal for lower amperage applications between 100 and 300 amps, while copper is preferred above 300 amps or for applications with longer arc-on times. The 23H62, with its copper alloy housing and 450-amp rating, is engineered specifically for heavy-duty and high-amperage work where thermal endurance determines service life.

Roll-Stamped Part Number Identification

Each INWELT 23H62 nozzle features the part number roll-stamped on the external surface for easy identification during inventory management, routine replacement, and procurement cycle tracking. In busy fabrication shops where multiple nozzle types are in circulation, instant visual identification eliminates confusion and ensures the correct replacement part is pulled from inventory every time.

Technical Specifications of the INWELT 23H62 Nozzle

Recessed Contact Tip Relationship — Engineered for Heavy-Duty Applications

Understanding Tip Recess in the 23H62

The 23H62 nozzle features a 1/8-inch to 5/32-inch recessed contact tip relationship. Recessed tips are generally used for higher heat applications where longer electrical stick-out is required, and the recess provides physical protection for the contact tip in situations where the nozzle may touch the workpiece during tack, spot, and stitch welding. At 450 amps, the longer electrical stick-out provided by a recessed tip helps manage heat input and arc characteristics during heavy deposition welding.

Recessed vs. Flush vs. Protruding — Choosing the Right Configuration

The recessed configuration of the 23H62 serves a specific purpose in heavy-duty welding. Flush tips are generally used where a shorter electrical stick-out is used, sometimes resulting in shorter and tighter arc lengths that bring the tip closer to the workpiece. Protruding tips are generally used when welding open root pipe or any joint that requires the welder to access a tight weld joint, though the downside is the chance of arcing the tip to the workpiece, which could damage front-end parts. For the structural steel, heavy equipment, and high-amperage spray transfer applications where the 23H62 is deployed, the recessed configuration provides the optimal balance of arc control, tip protection, and gas coverage integrity.

Spatter Management — Cleaning and Maintenance Protocols

Why Spatter Must Be Managed Actively

Spatter buildup inside the nozzle bore is the single most common cause of shielding gas disruption in MIG welding. The 23H62 nozzle must be cleaned frequently to prevent spatter accumulation that can lead to poor gas shielding or cause short-circuiting between the contact tip and nozzle. In robotic and automated cells, nozzles should be cleaned at least every other welding cycle. Even in manual production environments, inspection at each contact tip change is the minimum standard for preventing spatter-related weld defects. Nozzles must be cleaned or replaced regularly to maintain proper gas flow and ensure that the shielding gas provides complete atmospheric protection for the weld pool.

Correct Cleaning Tools and Techniques

Always use a properly designed nozzle reamer or cutting blade to remove spatter, and avoid hardened steel tools that can scratch the bore surface or otherwise permanently damage the nozzle. Mechanical removal with a purpose-built spatter cleaning tool designed for the nozzle bore diameter is the correct approach — scraping out built-up spatter without gouging or warping the nozzle body. Using anti-spatter gel or spray on the inner bore dramatically reduces spatter adhesion and extends the interval between deep cleaning cycles. A nozzle reamer, a soft brass brush, and a quality ceramic-based anti-spatter compound are the standard toolkit for keeping the 23H62 operating at peak gas coverage performance. In production settings, some welders ream nozzles every 2–3 hours of arc time, or sooner when running high-amperage passes that generate heavy spatter.

Recognizing Replacement Triggers

The 23H62 must be replaced when any of the following conditions are observed: embedded spatter cannot be removed mechanically and obstructs the gas annulus between the contact tip and nozzle bore; the nozzle housing shows visible deformation, cracking, or erosion; the threads are stripped and the nozzle no longer tightens securely onto the conductor tube or gas diffuser; the nozzle body has been burn-backed — welded to the contact tip by excessive heat; or the G7 silicone insulator shows cracking, hardening, or loss of electrical isolation integrity. A worn or wrong nozzle restricts gas flow and causes porosity, so maintaining a supply of spare 23H62 nozzles in standard stock is a sign of a well-managed welding operation.

Application Profile — Where the INWELT 23H62 Excels

The 23H62 nozzle is deployed across industries where MIG weld quality, torch uptime, and consumable reliability directly affect both productivity and structural integrity.

• Structural Steel Fabrication: Continuous high-amperage welding of bridge beams, columns, and heavy structural assemblies. The 5/8-inch bore provides broad gas coverage for high-deposition spray transfer, while the copper alloy housing withstands hour-after-hour arc-on time.

• Heavy Equipment Manufacturing: Welding of excavator booms, crane components, mining equipment frames, and agricultural machinery where the 450-amp rating matches the demands of thick-section steel fabrication. The recessed tip relationship protects the contact tip during tack welding and stitch work on heavy assemblies.

• Shipbuilding and Marine Repair: Deployed in Tweco-style guns for hull plate welding and stiffener installation in shipyard environments where shielding gas integrity must hold against humid, windy dock conditions. Copper alloy construction provides the thermal headroom required for sustained vertical and overhead welding of heavy plate.

• Railcar, Transport, and Trailer Fabrication: Consistent laminar gas flow from the 5/8-inch bore supports the deep-penetration, porosity-free weld profiles required in railcar frame assembly, heavy transport trailer manufacturing, and structural transport equipment fabrication.

Why Source 23H62 Nozzles from INWELT Welding Technology Co., Ltd.

Proven Manufacturing Expertise
INWELT is a direct manufacturer of welding consumables, controlling every stage of the production process from raw copper alloy tubing selection to final dimensional inspection and packaging.

INWELT offers high-quality MIG, TIG, plasma, and gas cutting solutions to meet the demands of industrial welding projects. As a leading manufacturer with over 15 years of expertise, INWELT provides premium welding consumables designed to meet the needs of professionals across industries. The company operates a 52,000-square-meter facility with 10 senior engineers and 15 quality control personnel, ensuring rigorous oversight at every production stage.

Certified Quality Systems
All INWELT 23H62 nozzles are manufactured under an ISO 9001-certified quality management system with CE and RoHS compliance as standard. Every production batch undergoes bore diameter verification, thread-fit testing, and surface quality inspection before release. Batch-to-batch consistency is maintained through documented process controls and traceable material sourcing.

Factory-Direct Commercial Terms
By purchasing directly from the manufacturer, fabrication shops and welding distributors receive competitive factory-direct pricing on both sample and volume orders. Full OEM and ODM customization options are available, including private-label packaging, custom laser engraving, and tailored configurations for specialized torch platforms.

Free Sample Evaluation
Evaluating nozzle quality requires hands-on testing of thread engagement, bore accuracy, spatter resistance, and thermal durability under real welding conditions. Product samples are available for evaluation before committing to volume orders, so the INWELT 23H62 can be tested in your own workshop alongside your existing consumables inventory.

Global Supply Capability
INWELT welding consumables are used by professionals across more than 30 countries. Consistent product quality, responsive technical consultation, and reliable delivery timelines have made INWELT a trusted partner for professional welders, independent fabrication shops, and large-scale industrial procurement operations alike.

Frequently Asked Questions

Q: What is the bore size and amperage rating of the Tweco 23H62 nozzle?
A: The INWELT 23H62 nozzle features a 5/8-inch (15.9 mm) inside diameter bore and is rated for heavy-duty welding applications up to 450 amps. It is designed for use with standard 54P gas diffusers on Tweco Classic No. 2, No. 3, and No. 4 MIG guns.

Q: What material is the 23H62 nozzle made from?
A: The INWELT 23H62 uses a three-piece self-insulated design. The nozzle housing is cut and formed from 122 DHP copper alloy tubing for superior heat dissipation at high amperages. The nozzle insert is machined from solid brass alloy to match the conductor tube OD threads. The nozzle insulator is made from G7 silicone material, providing the electrical insulation needed from the gas diffuser.

Q: What does self-insulated mean in the 23H62 nozzle design?

A: Self-insulated means the nozzle incorporates its own electrical insulation within the three-piece design and does not require a separate additional insulator component. The G7 silicone insulator integrated between the copper alloy housing and brass insert provides the necessary electrical isolation from the gas diffuser and conductor tube. This simplifies torch assembly and reduces the number of separate consumable parts to manage.

Q: What contact tip relationship does the 23H62 use?
A: The 23H62 features a 1/8-inch to 5/32-inch recessed contact tip relationship. Recessed tips are generally used for higher heat applications where longer electrical stick-out is required, making this configuration ideal for the heavy-duty 450-amp applications the 23H62 nozzle is designed for.

Q: How do I clean and maintain the 23H62 nozzle?
A: Remove the nozzle from the conductor tube. Use a purpose-built nozzle reamer with cutting blades designed for the 5/8-inch bore diameter to remove accumulated spatter. Avoid hardened steel tools that can scratch or gouge the copper alloy bore. Apply a quality ceramic-based anti-spatter gel or spray to the inner bore to reduce future spatter adhesion. Inspect the nozzle housing for deformation, the threads for stripping, and the G7 silicone insulator for cracking or hardening. Replace immediately if any of these conditions are present. For production environments, nozzles should be cleaned at each contact tip change and replaced at the first sign of permanent spatter embedding or structural degradation.

Q: Which MIG guns does the 23H62 nozzle fit?

A: The INWELT 23H62 is manufactured to standard Tweco industry dimensions and fits Tweco Classic No. 2 (up to 250A), No. 3 (up to 300A), and No. 4 (up to 400A) air-cooled MIG guns, as well as WeldSkill WM 250 and WM 400 platforms. It threads directly onto the standard 54P gas diffuser via 9/16"-18 UNC-2B threads and is compatible with Tweco-style guns from other manufacturers that follow the same dimensional standard. Verification against the specific gun model designation on the torch handle or neck is recommended.

Q: How does copper alloy compare to brass for heavy-duty nozzle applications?
A: Brass nozzles generally resist spatter better in lower amperage applications up to 300 amps, offering good spatter resistance at moderate temperatures. However, above 300 amps, copper alloy is preferred because it dissipates heat more effectively and maintains dimensional stability under sustained high-temperature exposure. At the 450-amp rating of the 23H62, the copper alloy housing prevents the softening and bore distortion that can compromise shielding gas flow, while maintaining the structural integrity brass cannot reliably provide at high heat.

Product Specifications at a Glance
