How Welding Fume Extraction Systems And Fume Extraction Guns Improve Workplace Safety And Welding Efficiency

What Is a Welding Fume Extractor? A Simple Definition for Industrial Welding Applications

A welding fume extractor is a specialized air filtration device designed to capture, filter, and remove hazardous welding fumes generated during welding operations. Unlike general workshop ventilation systems that only move contaminated air around the workspace, a welding fume extraction system works by collecting fumes as close as possible to the welding point, preventing harmful particles from entering the welder’s breathing zone.

In simple terms, a welding fume extractor acts like a vacuum cleaner for welding smoke. When a welding arc melts metal, it creates extremely small airborne particles known as welding fumes. These particles may contain metal oxides, gases, and toxic substances depending on the materials being welded, such as steel, stainless steel, aluminum, or galvanized metals. A professional welding fume extractor uses high-efficiency filters, powerful airflow systems, and specially designed extraction arms or welding fume extractor guns to remove these contaminants before workers inhale them.

Modern welding workshops increasingly rely on source capture welding fume extraction technology because it improves air quality while maintaining production efficiency. According to workplace safety organizations including OSHA and the American Conference of Governmental Industrial Hygienists (ACGIH), controlling contaminants at their source is one of the most effective methods for reducing occupational exposure.

For manufacturers, welding distributors, and industrial fabrication companies, investing in a reliable welding fume extractor is no longer only about compliance. It is also about improving worker health, reducing downtime caused by poor air quality, and creating a cleaner production environment.

How Does a Welding Fume Extraction System Work?

A welding fume extraction system follows a simple but highly effective process: capture, transport, filtration, and clean air return.

During welding, fumes are generated directly above the weld pool. A welding fume extractor gun or extraction nozzle captures these fumes immediately. The contaminated air is then transported through hoses or duct systems into the filtration unit.

Inside the extractor, multiple filtration stages remove harmful particles. High-quality systems often combine:

After filtration, clean air is released back into the workshop or exhausted outside depending on the system design.

The key advantage of modern welding fume extraction equipment is that it focuses on preventing exposure rather than reacting after contamination occurs. Instead of allowing fumes to spread throughout a factory and relying on workers to avoid them, source extraction removes pollutants immediately.

Welding Fume Extractor vs Traditional Ventilation: What Is the Difference?

Many workshops still depend on general ventilation fans or open-door airflow to control welding smoke. However, traditional ventilation and professional welding fume extraction solve different problems.

A ventilation fan may improve overall air movement, but it cannot guarantee that harmful particles are removed before reaching the welder’s breathing zone. This is why many professional welding operations combine general ventilation with localized extraction systems.

Why Are Welding Fumes Dangerous? Understanding Welding Smoke Hazards

Welding fumes are not simply visible smoke. They are a complex mixture of microscopic particles and gases created by the welding process.

Many welding particles are smaller than 1 micron, allowing them to penetrate deep into the respiratory system. Because these particles are so small, workers may not notice exposure immediately. The danger often develops over long periods of repeated welding work.

According to the International Agency for Research on Cancer (IARC), welding fumes are classified as carcinogenic to humans (Group 1). This classification highlights the importance of effective welding fume control measures in industrial environments.

What Chemicals and Particles Are Found in Welding Fumes?

The composition of welding fumes depends on the welding method, filler material, base metal, and protective coatings.

Common components include:

Because different welding applications produce different contaminants, choosing the correct welding fume extractor requires understanding the materials and welding processes involved.

Industry Data: How Serious Is the Welding Fume Exposure Problem?

Global manufacturing industries continue to face challenges related to welding exposure.

The U.S. Occupational Safety and Health Administration (OSHA) has established strict workplace exposure limits for welding-related contaminants, including respirable manganese and other metal fumes.

Research from occupational health organizations shows that welders may experience significantly higher exposure levels compared with workers in non-welding environments, especially when working in enclosed areas or during high-production welding operations.

The increasing adoption of automated welding, robotic welding cells, and environmentally responsible manufacturing has accelerated demand for advanced welding fume extraction solutions.

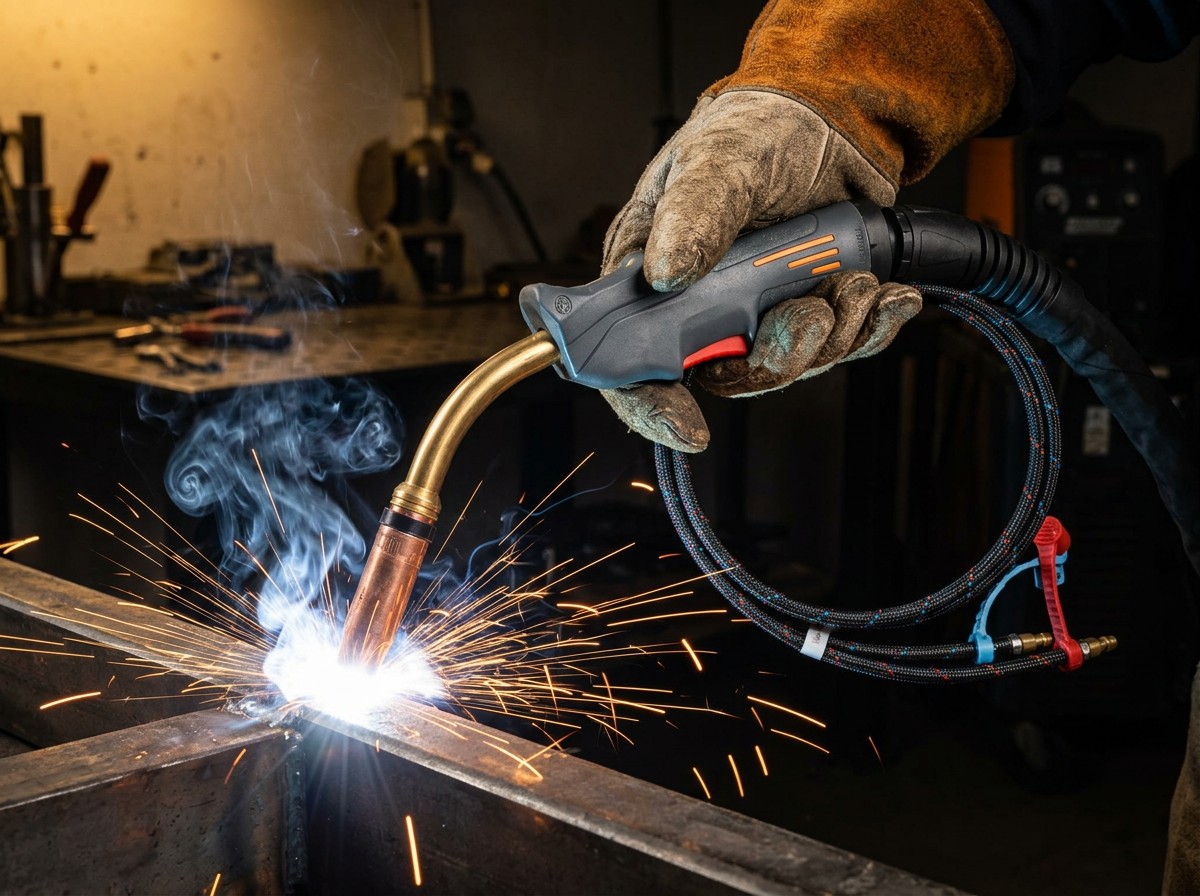

How Does a Welding Fume Extractor Gun Capture Welding Fumes at the Source?

A welding fume extractor gun combines welding functionality with integrated smoke extraction capability. Instead of placing a separate extraction arm near the welding area, the extraction system is built directly into the welding torch design.

This creates a highly efficient source capture method because fumes are removed at the exact point where they are generated.

For MIG welding applications, a MIG welding fume extraction gun usually includes:

• Integrated extraction channels

• Optimized airflow design

• Lightweight ergonomic handle

• Compatibility with standard consumables

• Connection to external filtration units

This design allows welders to maintain normal welding movements while reducing smoke exposure.

Source Capture Technology Explained

Source capture is considered one of the most effective methods for controlling welding fumes.

The concept is simple:

Capture fumes before they enter the worker’s breathing zone.

A traditional extraction hood may need to remove large volumes of contaminated air. A welding fume extractor gun only removes the small area around the welding arc.

This provides several advantages:

What Are the Different Types of Welding Fume Extraction Systems?

Welding fume extractors are available in several configurations depending on workshop size, welding volume, and production requirements.

Portable Welding Fume Extractors

Portable welding fume extractors are designed for flexible welding applications where operators frequently move between workstations.

They are commonly used in:

• Welding repair shops

• Small fabrication workshops

• Maintenance departments

• Training facilities

Advantages include easy installation, mobility, and lower investment costs.

Centralized Industrial Welding Fume Extraction Systems

Large manufacturing facilities often require centralized systems connected through duct networks.

These systems are suitable for:

• Automotive production

• Heavy machinery manufacturing

• Shipbuilding

• Large metal fabrication plants

They provide continuous extraction across multiple welding stations.

How to Choose the Right Welding Fume Extractor for Your Workshop?

Selecting the correct welding fume extractor requires evaluating several technical factors.

A common mistake is choosing equipment only based on price. A properly selected extraction system should match your welding process, production volume, and environmental requirements.

Airflow Capacity and Filtration Efficiency

The extraction airflow determines how effectively fumes are captured.

Important specifications include:

For industrial welding applications, systems with high-efficiency filtration and stable airflow performance provide better long-term value.

Welding Process Compatibility

Different welding methods create different fume characteristics.

Matching the extractor to the welding process improves both performance and efficiency.

What Makes a High-Performance Welding Fume Extraction Gun?

A professional welding fume extractor gun should balance extraction performance with welding comfort.

Important design features include:

• Lightweight torch structure

• Strong extraction airflow

• Heat-resistant materials

• Easy consumable replacement

• Ergonomic operation

• Compatibility with industrial welding systems

The best extraction gun designs feel almost identical to conventional welding torches while providing additional protection.

How Welding Fume Extractors Support Workplace Safety Requirements

Workplace safety regulations worldwide increasingly focus on reducing employee exposure to welding fumes.

Organizations such as OSHA recommend engineering controls as the preferred method for reducing airborne contaminants before relying on personal protective equipment.

A welding fume extractor helps companies:

• Improve workplace air quality

• Reduce employee exposure

• Support safety compliance

• Create cleaner production environments

• Improve employee satisfaction

For modern manufacturers, clean air management has become part of sustainable production strategy.

Frequently Asked Questions About Welding Fume Extractors

1. What is the main purpose of a welding fume extractor?

A welding fume extractor removes harmful smoke and airborne particles generated during welding before they enter the worker’s breathing area. It improves workplace air quality and helps reduce exposure risks.

2. Is a welding fume extractor gun better than a normal extraction arm?

A welding fume extractor gun can provide better source capture because it collects fumes directly at the welding point. It is especially useful for high-volume MIG welding operations.

3. How often should welding fume extractor filters be replaced?

Filter replacement depends on welding frequency, material type, and contamination levels. Regular inspection and airflow monitoring help determine the correct replacement schedule.

4. Can welding fume extractors be used for robotic welding?

Yes. Industrial welding fume extraction systems can be integrated with robotic welding cells to control fumes during automated production.

5. Are welding fume extractors necessary for small workshops?

Yes. Even small welding operations can generate hazardous fumes. Portable welding fume extractors provide an effective solution for smaller workplaces.

Conclusion: Why Welding Fume Extraction Is Becoming Essential for Modern Welding

The future of welding is moving toward cleaner, safer, and more efficient production environments. A welding fume extractor is no longer just an optional accessory but an important investment for companies that value worker protection, productivity, and sustainable manufacturing.

With advanced filtration technology and source capture solutions such as welding fume extractor guns, manufacturers can significantly reduce airborne contaminants while maintaining welding performance.

Whether you operate a small welding workshop or a large industrial production line, choosing the right welding fume extraction system helps create a healthier workplace and supports long-term business growth.
