Plasma cutting torch compatibility depends on much more than whether the connector physically fits the plasma cutter. A replacement torch must match the power connection, cutting-gas path, pilot-arc circuit, trigger wiring, ignition method, current rating, and—on mechanized systems—control and CNC signals.
For welding and plasma-equipment distributors, connector mismatch is one of the easiest replacement-torch problems to underestimate.
Two plasma torches may look almost identical.
They may use the same torch head family.
They may have the same amperage range.
The rear connector may even fit into the power source.
Yet the torch may still:
fail to start;
produce only a pilot arc;
fail to transfer the cutting arc;
leak air;
trigger a fault;
have no trigger response;
damage connectors;
or be electrically incompatible with the machine.
The problem is simple:
A physical connection is not the same as complete plasma torch compatibility.
For distributors, importers, wholesalers, and OEM welding-equipment suppliers, understanding plasma torch connections before placing an order can prevent returns, technical disputes, delayed deliveries, and unnecessary replacement costs.

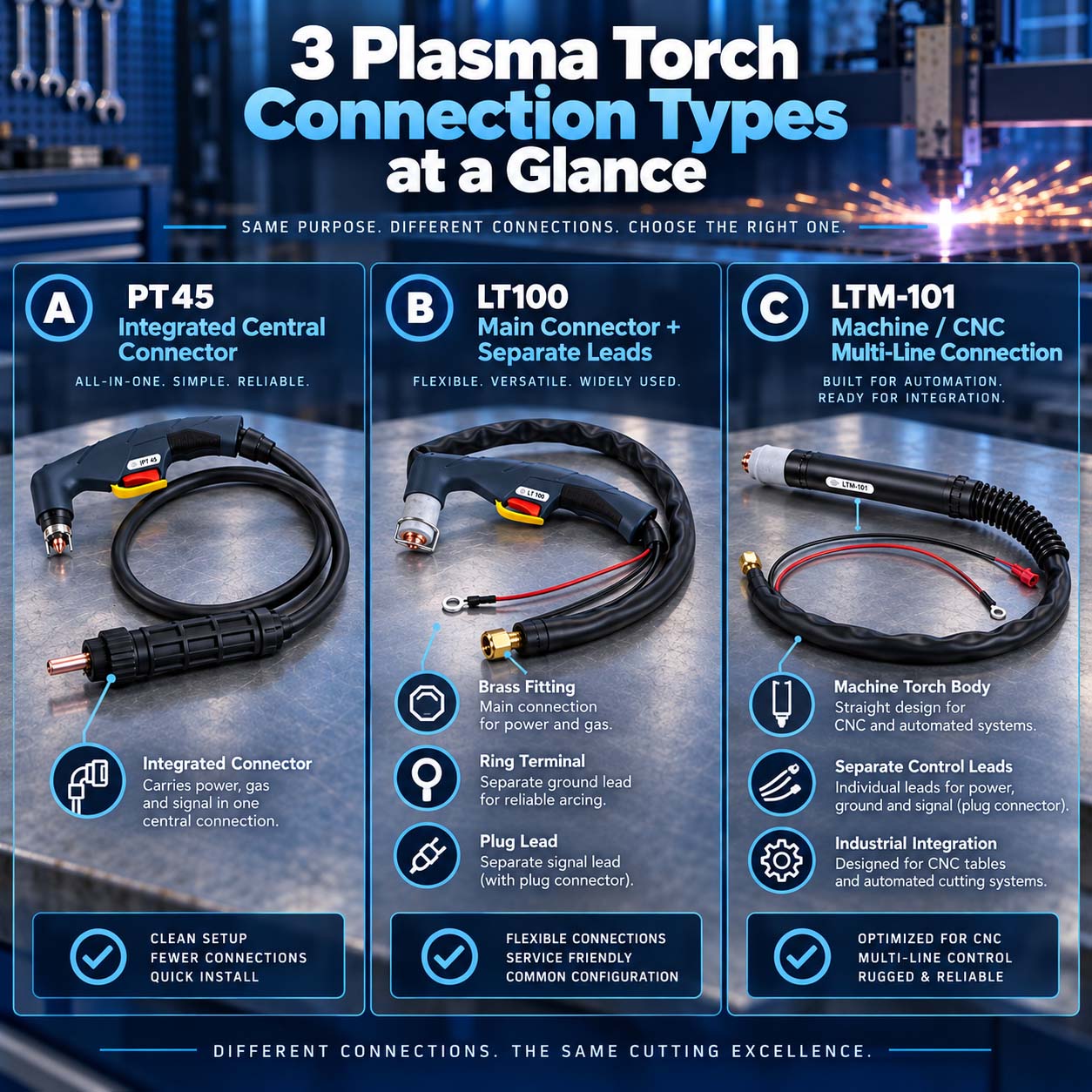

This guide explains the three plasma cutting torch connection systems most commonly confused in replacement-torch purchasing and provides a practical compatibility checklist for distributors.
For replacement and aftermarket plasma cutting torches, distributors most often encounter three practical connection categories:
Connection Type | Typical Design | Main Mismatch Risk |
|---|---|---|
1. Integrated Central Connector | Power, gas and control functions grouped into one connector | Same-looking connector but different pins or internal wiring |
2. Threaded Power/Gas Connection With Separate Control Leads | Main current/gas connection plus separate trigger and pilot-arc leads | Wrong thread, terminal, trigger plug or pilot connection |
3. Mechanized/CNC Multi-Line Connection | Separate power, pilot arc, gas, control, sensing and sometimes coolant lines | Hand/machine mismatch, control-signal mismatch or incorrect lead configuration |
These categories describe common purchasing configurations rather than three universal industry standards.
Connector details still vary by plasma power source and torch design.
The safest purchasing rule is therefore:
Never confirm a plasma cutting torch only by torch model name or front-end appearance. Confirm the complete rear connection and electrical interface.
No. Plasma cutting torch connections are not universally interchangeable. A torch may require a specific combination of power connection, gas interface, trigger circuit, pilot-arc connection, ignition method, current capacity and control wiring.
This is one of the most important facts distributors should understand.
A plasma torch is not simply a cutting head connected to an air hose.
Depending on the design, the torch lead can carry several functions:
cutting current;
compressed air or other cutting gas;
pilot-arc current;
trigger/start signal;
safety/interlock signal;
coolant supply and return;
CNC start/stop signal;
arc-transfer or arc-OK signal;
height-control or voltage-related signals.
International torch standards address safety and construction requirements for torches and torch cable-hose assemblies, but that does not mean every plasma power source uses one universal replacement connector. IEC 60974-7 covers torches used for arc welding and allied processes, including mechanically guided and liquid-cooled configurations.
For distributors, this means compatibility must be checked at the system level, not only at the torch-head level.
An integrated central connector combines several torch functions into one main plug or coupling, simplifying installation between the plasma torch and power source.
Depending on the system, the central connection may combine:
main current;
cutting gas;
trigger circuit;
pilot-arc circuit;
safety signals;
auxiliary control connections.
The advantage is convenience.
Instead of connecting several separate wires and hoses, the operator installs one main connector and secures it with a locking ring, threaded collar, or similar mechanism.
For distributors, however, this convenience creates a major compatibility trap.
Because two connectors can look nearly identical from the outside.
The shell diameter may match.
The locking nut may screw on correctly.
The gas port may appear aligned.
But the internal configuration can still differ.
Potential differences include:
number of control pins;
pin positions;
electrical pin assignments;
pilot-arc terminal arrangement;
trigger wiring;
safety/interlock circuit;
gas-port dimensions;
current-carrying contact design.
Therefore:
Never confirm compatibility from the outside connector shape alone.

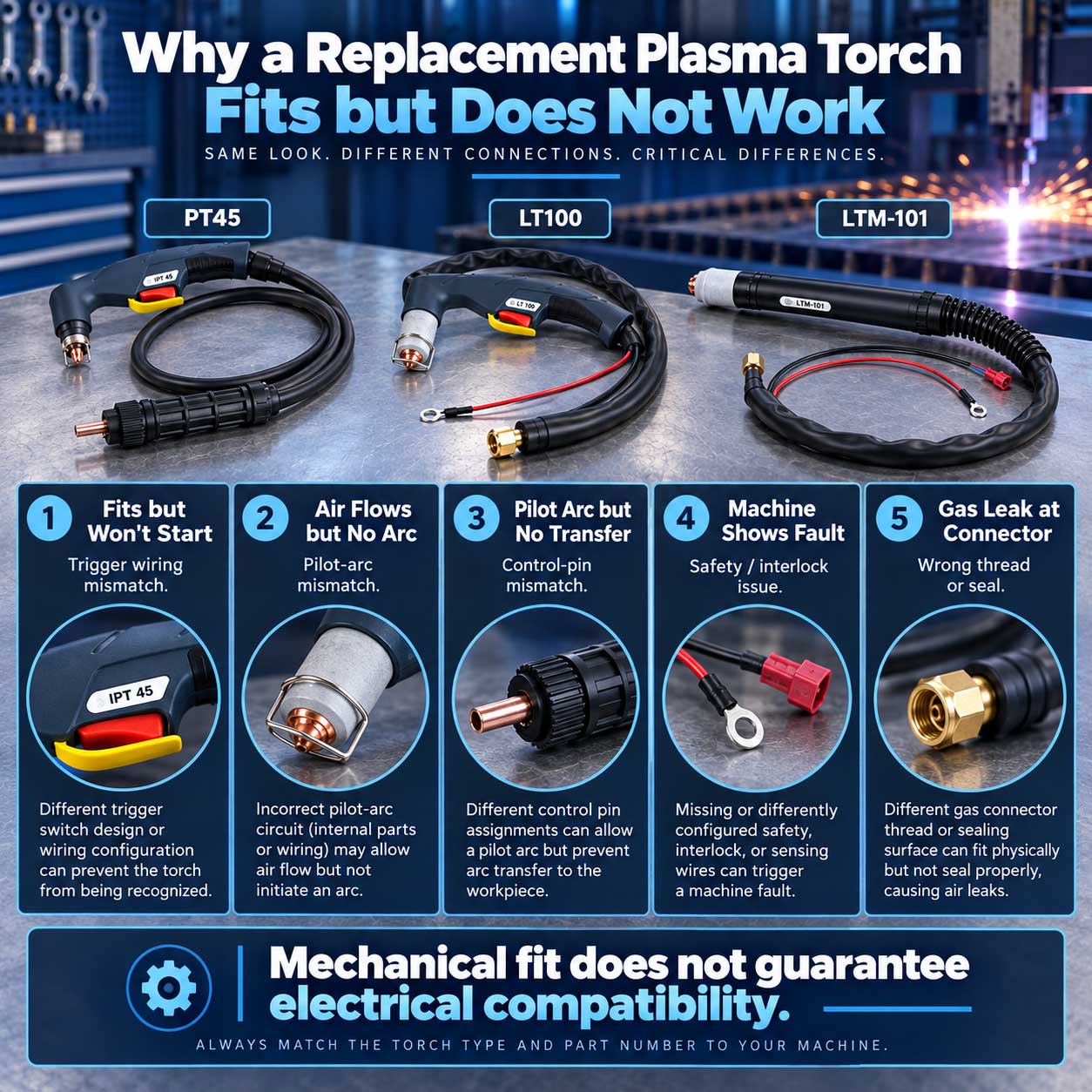

Yes.
This is one of the most expensive errors in replacement plasma torch sales.
A distributor receives a photo from the customer.
The connector appears correct.
The replacement torch is shipped.
The customer installs it.
The locking collar fits perfectly—but the torch does not fire.
The reason may be an internal wiring difference rather than a mechanical difference.
Possible symptoms include:
Symptom | Possible Interface Problem |
|---|---|
Torch does not respond | Trigger pin mismatch |
Air flows but no arc starts | Pilot/start circuit mismatch |
Pilot arc starts but does not transfer | Electrical/start-system incompatibility |
Machine shows fault | Safety or control circuit mismatch |
Torch activates incorrectly | Pin assignment mismatch |
Connector becomes hot | Poor electrical contact |
This is why high-quality distributors should request more than one photograph.
Before ordering, request:
Full torch photo.
Rear connector photo.
Front view of all pins.
Side view of locking collar.
Connector outside diameter.
Number of signal pins.
Position of each pin.
Power source model.
Plasma output amperage.
Manual or machine-side connector diagram if available.
If there is any doubt, obtain a dimensional drawing or sample confirmation.
This plasma torch connection design uses a main threaded fitting for the high-current and/or gas path while separate small leads handle functions such as the torch trigger and pilot arc.
This type of interface is common in many general-purpose air plasma systems.
Instead of one integrated plug, the rear of the torch may include:
main power/gas fitting + trigger connector + pilot-arc lead
The configuration looks relatively simple.
That simplicity often causes distributors to underestimate compatibility risk.
A threaded connector must match several characteristics:
outside diameter;
thread diameter;
thread pitch;
male or female orientation;
sealing surface;
gas passage;
current-carrying contact.
Two threaded fittings can look similar in a photograph but still differ enough that they cannot be safely installed.
This is especially difficult when customers provide only a front-facing phone photo.
A distributor should never identify thread compatibility solely from visual scale.
In some plasma torch designs, the same main assembly performs more than one function.
It may carry:
high welding/cutting current;
compressed cutting air;
or both through the same torch-lead assembly.
That means a wrong fitting is not simply a mechanical inconvenience.
It can create:
poor electrical contact;
gas leakage;
excessive resistance;
unstable arc starting;
overheating;
damaged threads.
The connector must therefore match both mechanically and electrically.
The pilot-arc connection provides part of the electrical circuit needed to establish the initial plasma arc before the main cutting arc transfers to the workpiece.
Depending on torch and power-source design, this may appear as:
a separate terminal;
a ring connection;
a small plug;
a dedicated pin inside a multi-pin connector.
One of the most common distributor errors is assuming:
same main fitting = compatible torch.
That is not enough.
If the pilot-arc circuit is different, the torch may connect mechanically but fail to start correctly.
The trigger circuit tells the plasma power source that the operator wants to begin cutting.
On a replacement hand torch, the trigger connection may use:
two conductors;
a small multi-pin plug;
separate terminals;
or control pins integrated into another connector.
The shape and number of pins must be verified.
The electrical function should also be confirmed.
A distributor should never assume two similar small plugs automatically have the same internal wiring.
Torch connection compatibility also depends on how the plasma arc is initiated.
Different plasma systems can use different arc-starting architectures.
Common categories include:
high-frequency arc starting;
contact or pneumatic pilot-arc starting;
other non-high-frequency pilot-arc systems.
The torch, power source and starting circuit are designed to operate together.
Therefore, a connector that physically fits does not prove that the torch ignition system is compatible.
This is particularly important when converting between older plasma systems, modern inverter machines and CNC installations.
A mechanized plasma torch can require multiple separate power, gas and control connections because the cutting system must communicate with a machine controller in addition to producing the plasma arc.
Compared with a basic hand torch, CNC plasma systems can be significantly more complex.
Connections may include:
main torch power;
pilot arc;
cutting gas;
shielding gas;
torch start;
arc-transfer confirmation;
ohmic sensing;
arc-voltage signal;
torch-height-control signals;
coolant supply;
coolant return.
Not every CNC plasma system uses all of these.
But the key purchasing lesson is clear:
A mechanized torch should never be selected using only amperage and torch-head appearance.
Handheld and mechanized torches can share similar consumables or torch-family architecture.
However, their operating requirements can differ substantially.
A hand torch normally requires an operator trigger.
A machine torch may instead require an external start command from a CNC controller.
A mechanized system may also require:
arc-OK feedback;
voltage output;
ohmic sensing;
automated torch-height control.
Therefore, converting between hand and mechanized torches can involve much more than changing the torch handle.
A standard replacement hand-torch order might need:
machine model + connector photo + amperage
A mechanized torch order may require considerably more information.
For example:
Item | Why It Matters |
|---|---|
Power source output | Determines torch capacity |
Manual or mechanized use | Determines control interface |
Start method | Must match ignition circuit |
Main power connection | Carries cutting current |
Pilot-arc connection | Supports arc initiation |
Gas configuration | Must match cutting process |
Cooling type | Air/gas or liquid cooled |
Lead length | Affects installation |
CNC start signal | Controls torch firing |
Arc confirmation | Used by automation |
Height-control interface | Supports cutting height |
Ohmic sensing | May support plate detection |
The more automated the system, the more important complete interface confirmation becomes.
Lead length is often treated as a convenience specification.
It can also be an engineering specification.
Longer torch leads affect:
electrical resistance;
gas-flow response;
coolant circulation on liquid-cooled systems;
cable routing;
CNC machine movement.
A replacement lead should therefore match the intended installation rather than simply being “long enough.”
Do not modify a precision plasma torch-lead assembly casually.
On complex systems, hose and lead lengths can be part of the designed operating configuration.
This is an important purchasing issue.
A torch family name often identifies the front-end torch system, not necessarily every rear connection supplied globally.
The same basic torch platform can potentially be supplied with different:
rear connectors;
trigger plugs;
pilot-arc terminals;
cable lengths;
machine adapters.
This is why distributor purchase orders should never contain only:
“Need 20 pcs plasma torch, 6 m.”
A much safer specification is:
torch family + current rating + cable length + rear connection + trigger connection + pilot-arc connection + application
This reduces ambiguity for both buyer and manufacturer.

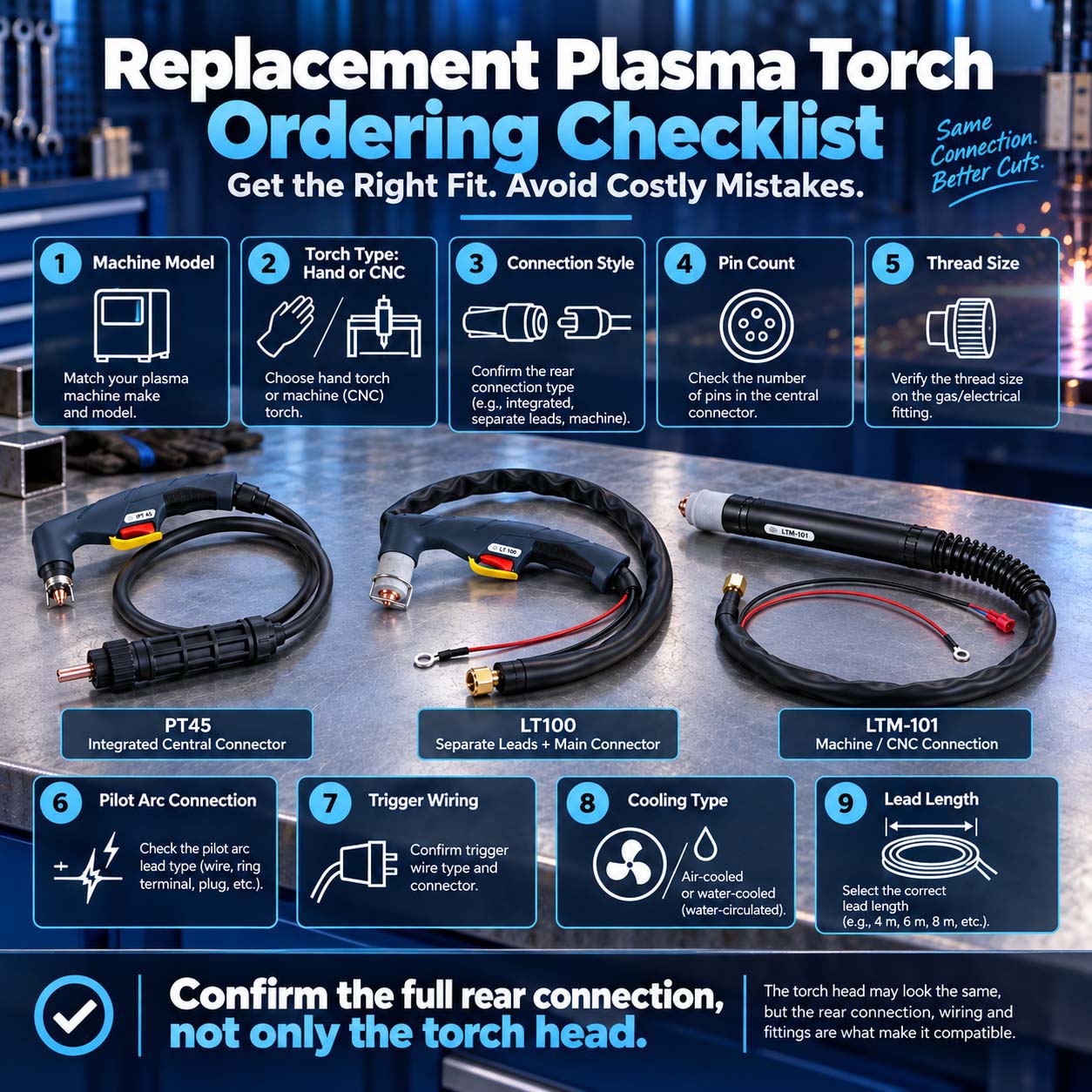

For most replacement-torch inquiries, collect the following information before quoting.
Ask for the exact machine model shown on the nameplate.
Do not rely only on information typed from memory.
A nameplate photograph is better.
Ask for clear photographs showing:
complete torch;
torch head;
handle;
cable;
rear connector.
Confirm the normal and maximum cutting amperage.
The replacement torch must have sufficient current capacity.
Determine whether the torch uses:
integrated central connector;
threaded/separate-lead connector;
mechanized multi-line connection.
Confirm:
thread dimensions;
connector gender;
coupling shape;
gas path.
Request a close-up photograph showing:
plug shape;
pin count;
pin position.
Confirm whether the pilot connection is:
integrated;
separate;
terminal style;
plug style.
Determine the arc-start system used by the plasma power source.
This is essential for electrical compatibility.
Confirm whether the torch will be:
handheld, machine-mounted or CNC-operated.
Confirm the actual length required.
Do not automatically substitute a longer cable.
Use this table before confirming any replacement plasma torch order.
Check | Information Required | Risk if Incorrect |
|---|---|---|
Torch type | Hand / machine | Control incompatibility |
Amperage | Actual cutting current | Overheating or limited capacity |
Cooling | Air/gas / liquid | Thermal incompatibility |
Main connector | Type and dimensions | Cannot install |
Thread | Diameter and pitch | Mechanical mismatch |
Trigger plug | Pins and layout | Torch will not start |
Pilot arc | Connector and circuit | Arc-start failure |
Start system | Power-source start method | Electrical incompatibility |
Gas connection | Port and fitting | Leakage or no gas flow |
CNC interface | Required signals | Automation failure |
Cable length | Required installation length | Routing/performance problem |
Consumables | Correct torch family | Incorrect operation |
This table is particularly useful for distributors who stock replacement plasma torches for multiple markets.
A connector mismatch does not always mean the torch simply refuses to connect.
Sometimes the symptoms appear only after installation.
Common signs include:
Most likely causes:
wrong thread;
wrong connector diameter;
incorrect male/female configuration;
wrong locking collar.
Check:
trigger wiring;
pin configuration;
safety circuit;
start method.
Check:
pilot-arc connection;
torch electrical connection;
ignition-system compatibility.
Check:
work circuit;
pilot/main arc configuration;
torch compatibility;
workpiece connection.
Check:
fitting type;
O-ring/seal;
thread;
connector seating.
Possible causes include:
incompatible safety circuit;
wrong control-pin assignment;
incorrect torch detection/interface.
Potentially, yes.
A connector mismatch should not be treated as a trial-and-error issue.
Incorrect connections can create:
poor high-current electrical contact;
overheated terminals;
gas leakage;
damaged connector pins;
damaged threads;
start-circuit faults;
equipment shutdown.
For safety-critical equipment, always verify torch compatibility using the power-source documentation or confirmed technical data before operation.
Never force a connector to fit.
Never rewire unknown control pins without verified electrical information.
In many cases, the factory sees a complete specification.
The distributor receives only a customer request such as:
“I need this plasma torch.”
The distributor then has to convert an incomplete request into an exact technical configuration.
This creates several information gaps.
“Same torch.”
same torch head?
same connector?
same cable?
same trigger circuit?
same pilot arc?
same start method?
same amperage?
same hand/machine configuration?
The return usually occurs because “same” was never technically defined.
The most effective strategy is to build a connection-confirmation process into every replacement-torch quotation.
Request:
Complete torch.
Rear connector.
Connector front face.
Machine nameplate.
This eliminates many basic identification errors.
Create an internal database containing:
torch model;
connector code;
pin count;
thread;
pilot connection;
trigger connection;
cable length.
Do not store only product names.
If one torch family has several rear configurations, create separate internal SKUs.
For example:
Torch Family – Connector A – 5 m
and
Torch Family – Connector B – 5 m
should be treated as different products.
A small dimensional drawing can prevent far more errors than a long email.
Useful dimensions include:
thread diameter;
thread pitch;
connector diameter;
pin layout;
pin spacing;
terminal type.
For new distributor projects, sample validation is especially valuable.
Approve:
torch + cable + connector + machine compatibility
before placing a large inventory order.
A strong distributor RFQ should include:
Product: Plasma cutting torch
Application: Handheld or mechanized
Cutting current: ___ A
Torch lead length: ___ m
Cooling: Air/gas or water cooled
Main connector: Photo/drawing attached
Thread size: ___
Trigger connector: ___ pins
Pilot arc connection: ___
Start method: ___
Power source model: ___
Required quantity: ___
Packaging/OEM requirements: ___
This format substantially reduces back-and-forth communication.
There is no universally “best” connector.
Each configuration has advantages.
Connector System | Main Advantage | Best Use |
|---|---|---|
Integrated central connector | Fast installation | General replacement and production equipment |
Separate power/gas + control leads | Simple structure and serviceability | General-purpose plasma systems |
Mechanized multi-line interface | Greater control capability | CNC and automated cutting |
Compatibility is more important than connector style.
The best plasma torch connection is the one designed to work correctly with the customer's power source, start circuit, cutting process and control system.
Use the following sequence:
Machine → Current → Start Method → Torch Type → Main Connector → Pilot Arc → Trigger → Cooling → Cable Length → Consumables
Do not reverse the process.
Starting with a torch picture and trying to make everything else match afterward creates unnecessary risk.
A professional distributor should first identify the plasma power source requirements and then select the torch configuration that satisfies them.
Avoid these assumptions:
“The plug fits, so it is compatible.”
Not necessarily.
“The torch head looks identical.”
The rear electrical connection may differ.
“The amperage is the same.”
The ignition and control circuits may still be incompatible.
“It has the same number of pins.”
The pin assignments may differ.
“A longer cable is always better.”
The system may be designed for a particular lead configuration.
“A machine torch is just a hand torch without a handle.”
Automated systems can require additional control and sensing functions.
These assumptions are responsible for many avoidable replacement-torch disputes.
No. Plasma cutting torches are not universally interchangeable. The torch must match the power source's amperage, connection style, gas path, pilot-arc circuit, trigger wiring, start method and, where applicable, CNC or cooling interface.
Photograph the complete rear connector and identify whether it uses one integrated central coupling, a threaded main connection with separate control wires, or a multi-line mechanized interface. Also record the machine model, pin count, thread dimensions and pilot-arc connection.
Yes. Two connectors may share the same outside shape while using different internal pins, wiring assignments, pilot-arc connections or control circuits. Physical fit alone does not prove electrical compatibility.
Common causes include incorrect trigger wiring, pilot-arc incompatibility, a different start system, incorrect pin assignment or a safety/interlock circuit mismatch.
Send the power-source model, existing torch model, cutting amperage, torch length, complete connector photos, trigger plug, pilot-arc connection, thread dimensions and whether the application is handheld or mechanized.
Not automatically. Mechanized systems may require external start signals, arc confirmation, voltage signals, sensing circuits or other interfaces not used by a standard hand torch.
Yes. Cable length affects installation, electrical resistance, gas delivery and, in more complex systems, cooling and machine movement. Use the lead length intended for the application whenever possible.
An incorrect connection can cause poor electrical contact, overheating, gas leakage, connector damage or control-system faults. Never force or experimentally rewire an unknown plasma torch connector without verified technical information.
Plasma cutting torch compatibility should never be confirmed by appearance alone.
The three connection categories distributors most often need to distinguish are:
1. Integrated central connectors
2. Threaded power/gas connections with separate trigger and pilot-arc leads
3. Mechanized/CNC multi-line torch connections
The most important rule is:
A connector that fits physically is not necessarily electrically or functionally compatible.
Before ordering a replacement plasma torch, verify:
power source + amperage + torch type + start method + main connection + gas path + pilot arc + trigger wiring + cooling + cable length.
For distributors, this small amount of technical confirmation can prevent costly returns, reduce customer complaints, improve quotation accuracy and make replacement-torch inventory easier to manage.
For OEM projects and bulk purchasing, provide the power-source information, current torch photos, rear connector details and required cable length before production. A manufacturer can then match the torch configuration to the actual application instead of relying on product appearance alone.
Plasma Cutter Torch Compatibility: 3 Connection Types Distributors Most Often Get Wrong
How Can You Effectively Prevent the Health Hazards of Welding Fumes?
How Can New Energy Manufacturers Build Cleaner, Smarter Welding Production Lines?
What Is a MIG Welding Torch? Complete Guide to MIG Welding Guns, Types, Parts, and Selection
