Why Does A MIG Torch Overheat? 7 Causes And Solutions

MIG torch overheating occurs when the electrical and thermal load generated during welding exceeds the torch’s ability to dissipate heat. The seven most common causes are excessive welding current, exceeding the duty cycle, loose or worn contact tips, damaged cables or poor electrical connections, spatter-contaminated consumables, cooling-system problems, and incorrect contact-tip-to-work distance.

A MIG torch becoming warm during welding is normal. A torch that becomes unusually hot, repeatedly damages contact tips, heats the cable, or forces the operator to stop welding is not.

The important point is that overheating is rarely solved by simply reducing welding current.

A professional diagnosis should examine the entire system:

current → duty cycle → consumables → electrical connections → cable → cooling → welding technique.

Understanding which part is creating excessive heat can reduce downtime, extend consumable life, improve arc stability, and prevent premature damage to the welding torch.

Why Is My MIG Torch Getting So Hot?

A MIG torch usually gets excessively hot because it is operating above its thermal capacity, even if the welding machine itself is still working normally.

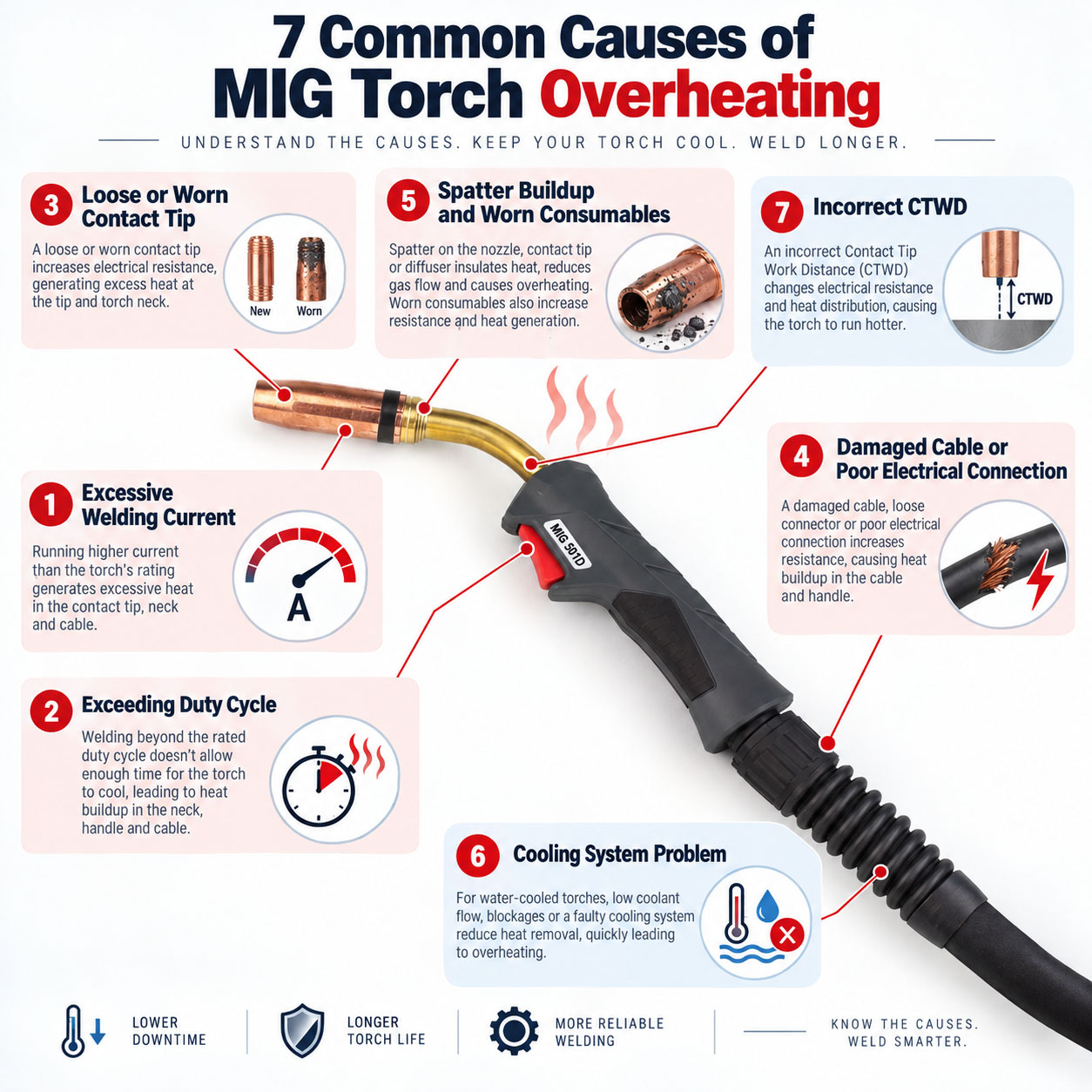

Common causes include:

The fastest way to diagnose the problem is to determine where the heat first appears.

If the front end overheats first, inspect consumables and CTWD.

If the cable becomes hot, inspect electrical connections and the conductor.

If a water-cooled torch suddenly becomes hot, inspect coolant circulation immediately.

What Does MIG Torch Overheating Actually Mean?

MIG torch overheating means the torch is accumulating thermal energy faster than its design can remove it at the actual welding current and duty cycle.

A MIG/MAG torch carries several functions simultaneously:

• welding current;

• electrode wire;

• shielding gas;

• control signals;

• cooling, depending on torch design.

All of these functions converge close to the contact tip and torch neck.

This makes the front end of the torch one of the most thermally demanding areas of the entire welding system.

Heat comes from several sources:

arc radiation + electrical resistance + current transfer + hot shielding environment + continuous arc-on time.

If one component is poorly matched or damaged, temperature can increase rapidly.

Cause 1: Is the MIG Torch Underrated for the Welding Amperage?

One of the most common causes of MIG torch overheating is operating the torch at a welding current higher than its rated capacity.

Every MIG torch is designed for a specific current range and duty cycle.

A torch may appear to weld successfully at a higher amperage for a short period, but that does not mean it can operate safely or reliably at that current during continuous production.

Why Does Higher Amperage Increase Torch Temperature?

Higher welding current creates greater thermal loading in:

• the contact tip;

• tip holder;

• diffuser;

• torch neck;

• conductor cable;

• electrical connections.

As amperage increases, small amounts of electrical resistance become increasingly important.

This is why a torch that performs well at moderate current may overheat rapidly when moved into a heavy-production application.

What Are the Warning Signs?

Typical symptoms include:

• very hot torch handle;

• contact tips wearing unusually quickly;

• nozzle or diffuser discoloration;

• cable becoming hot;

• frequent consumable replacement;

• unstable arc after extended welding.

What Is the Solution?

Compare the actual operating current, not simply the machine’s maximum output, with the torch specification.

For production welding, also consider how long that amperage is maintained.

A 350 A application with short welds is very different from a 350 A application running continuously.

Cause 2: Are You Exceeding the MIG Torch Duty Cycle?

Duty cycle is one of the most important—and most frequently overlooked—causes of MIG torch overheating.

A torch can operate below its maximum amperage and still overheat if the arc remains on longer than the torch is designed to tolerate.

What Does MIG Torch Duty Cycle Mean?

Duty cycle describes how long a welding torch can operate at a specified load before it requires sufficient cooling.

For example, a torch designed for intermittent welding may perform normally during short welds but become excessively hot on long seams or repetitive production.

This creates a common misunderstanding:

Rated amperage does not equal continuous amperage.

Amperage and duty cycle must always be evaluated together.

Why Does Overheating Often Appear Later in Production?

During the first few minutes, the torch starts relatively cool.

As production continues:

heat generated > heat removed = progressive thermal buildup.

The operator may therefore report:

“The MIG gun works fine at first, but after welding for a while it gets extremely hot.”

That pattern strongly suggests a duty-cycle or cooling-capacity issue.

How Do You Fix It?

Measure real production conditions:

• actual welding amperage;

• arc-on time;

• weld length;

• number of welds per hour;

• cooling time between welds.

If the production cycle consistently exceeds the torch capacity, use a higher-duty-cycle torch rather than relying on repeated cooling breaks.

Cause 3: Can a Loose or Worn Contact Tip Make a MIG Torch Overheat?

Yes. A loose, worn, damaged, or incorrectly selected contact tip can create unstable electrical current transfer and localized resistance, which may significantly increase temperature at the front end of the torch.

The contact tip is not merely a guide for the welding wire.

Its primary electrical function is to transfer welding current from the torch to the continuously moving electrode wire.

That transfer needs to remain consistent.

Why Does a Loose Contact Tip Generate Heat?

Electrical connections perform best when contact surfaces are secure.

A loose contact tip or poorly seated tip holder can increase resistance.

Electrical resistance converts part of the welding energy into unwanted heat.

The result may be:

poor connection → resistance → localized heating → accelerated wear → even poorer connection.

This cycle can become progressively worse.

What Happens When the Contact Tip Is Worn?

As the contact-tip bore wears:

• electrical contact becomes less consistent;

• wire movement increases;

• arc stability can deteriorate;

• micro-arcing may occur;

• tip temperature may rise;

• spatter can increase.

What Should You Check?

Inspect the contact tip for:

• enlarged bore;

• burnback;

• discoloration;

• damaged threads;

• poor seating;

• excessive spatter;

• incorrect wire-size compatibility.

Do not wait until a contact tip completely fails before replacing it in high-duty-cycle production.

Cause 4: Can a Damaged Cable or Poor Electrical Connection Overheat a MIG Torch?

Yes. Damaged conductors, loose power connections, worn cable assemblies, and excessive resistance can produce substantial heat throughout a MIG torch system.

Current must travel from the welding power source through the torch cable before reaching the contact tip.

Any abnormal resistance along this path can become a heat source.

Which Connections Should Be Inspected?

Pay particular attention to:

• rear power connection;

• cable-to-torch connection;

• conductor condition;

• contact tip;

• tip holder;

• internal front-end connections.

Loose connections are especially important because the torch may still weld even when resistance has already increased.

What Are the Signs of Cable Resistance?

Possible symptoms include:

• one section of cable becoming unusually hot;

• heat concentrated near a connector;

• voltage instability;

• inconsistent arc behavior;

• visible cable damage;

• cracked outer jacket;

• torch temperature increasing despite moderate amperage.

If one small section is significantly hotter than the surrounding cable, investigate that area carefully.

Cause 5: Can Spatter Buildup and Worn Consumables Cause Torch Overheating?

Yes. Heavy spatter accumulation and damaged front-end consumables can interfere with shielding gas distribution, retain heat around the nozzle, create unwanted electrical contact, and accelerate thermal stress.

The front end of a MIG torch operates extremely close to the arc.

The nozzle, contact tip, diffuser, and tip holder are continuously exposed to:

• radiant arc heat;

• molten spatter;

• hot shielding gas;

• electrical current.

What Happens When Spatter Builds Up Inside the Nozzle?

Excessive buildup can:

• restrict shielding gas flow;

• disrupt gas distribution;

• create electrical bridging;

• increase heat retention;

• accelerate consumable deterioration.

The problem can become self-reinforcing.

More spatter causes poorer front-end conditions, and poorer front-end conditions can contribute to an unstable arc and still more spatter.

What Is the Solution?

Inspect and maintain:

nozzle → contact tip → diffuser → tip holder.

Clean the nozzle regularly and replace damaged consumables before they begin affecting welding stability.

Consumable maintenance is cheaper than replacing a damaged torch neck or complete cable assembly.

Cause 6: Is the MIG Torch Cooling System Working Correctly?

Cooling capacity becomes critical as welding amperage and duty cycle increase.

MIG torches generally use either gas/air-cooled designs or liquid-cooled designs.

Neither system works correctly if the application exceeds its thermal capability.

Why Can an Air-Cooled MIG Torch Become Too Hot?

Gas/air-cooled torches rely primarily on the torch's conductor mass, cable design, surrounding air, and gas path to manage heat.

They offer advantages such as:

• simpler equipment;

• lower weight in some applications;

• fewer hoses;

• easier maintenance;

• greater portability.

However, thermal capacity is more limited in demanding continuous welding.

A torch that works well in fabrication and repair may therefore become unsuitable for long, high-current production cycles.

Why Can a Water-Cooled MIG Torch Still Overheat?

Water cooling is highly effective, but only when coolant circulates correctly.

Possible cooling faults include:

• low coolant level;

• kinked hose;

• blocked coolant passage;

• damaged hose;

• failing pump;

• contaminated coolant;

• restricted heat exchanger;

• incorrect hose connection.

A sudden change is especially important.

If a water-cooled torch normally stays cool but suddenly becomes hot under the same welding parameters, coolant circulation should be one of the first things inspected.

Cause 7: Can Incorrect CTWD Make a MIG Torch Overheat?

Yes. Incorrect contact-tip-to-work distance can change welding current, electrical stickout, arc behavior, and thermal loading on the torch.

CTWD stands for Contact Tip to Work Distance.

It is the distance between the end of the contact tip and the workpiece.

This parameter is sometimes treated only as a welding-quality issue, but it can also influence thermal loading.

What Happens If CTWD Is Too Short?

Depending on the welding process and power-source characteristics, a shorter electrical stickout can increase welding current.

That can increase:

• contact-tip temperature;

• torch-neck temperature;

• thermal load;

• consumable wear.

It also places the torch closer to radiant arc heat.

What Happens If CTWD Is Too Long?

Excessive CTWD can create other problems:

• unstable arc;

• reduced penetration;

• inconsistent metal transfer;

• increased spatter;

• less precise weld placement.

The correct solution is therefore not simply to move the torch farther away to keep it cooler.

Maintain a stable CTWD appropriate for the welding procedure.

Which MIG Torch Overheating Symptoms Point to Which Cause?

Use the following troubleshooting table before replacing the complete torch.

Why Does My MIG Gun Get Hot Even at Normal Amperage?

This is one of the most common practical questions welders ask.

If the welding current is within the nominal rating but the MIG gun still becomes excessively hot, investigate duty cycle and electrical resistance before assuming the amperage is the problem.

The actual cause may be:

• continuous arc-on time;

• loose contact tip;

• poor cable connection;

• worn conductor;

• insufficient cooling;

• restricted coolant flow;

• damaged consumables.

A nominal current rating cannot describe the complete thermal condition of a torch.

This is why professional torch selection requires more than checking the amperage printed in a catalog.

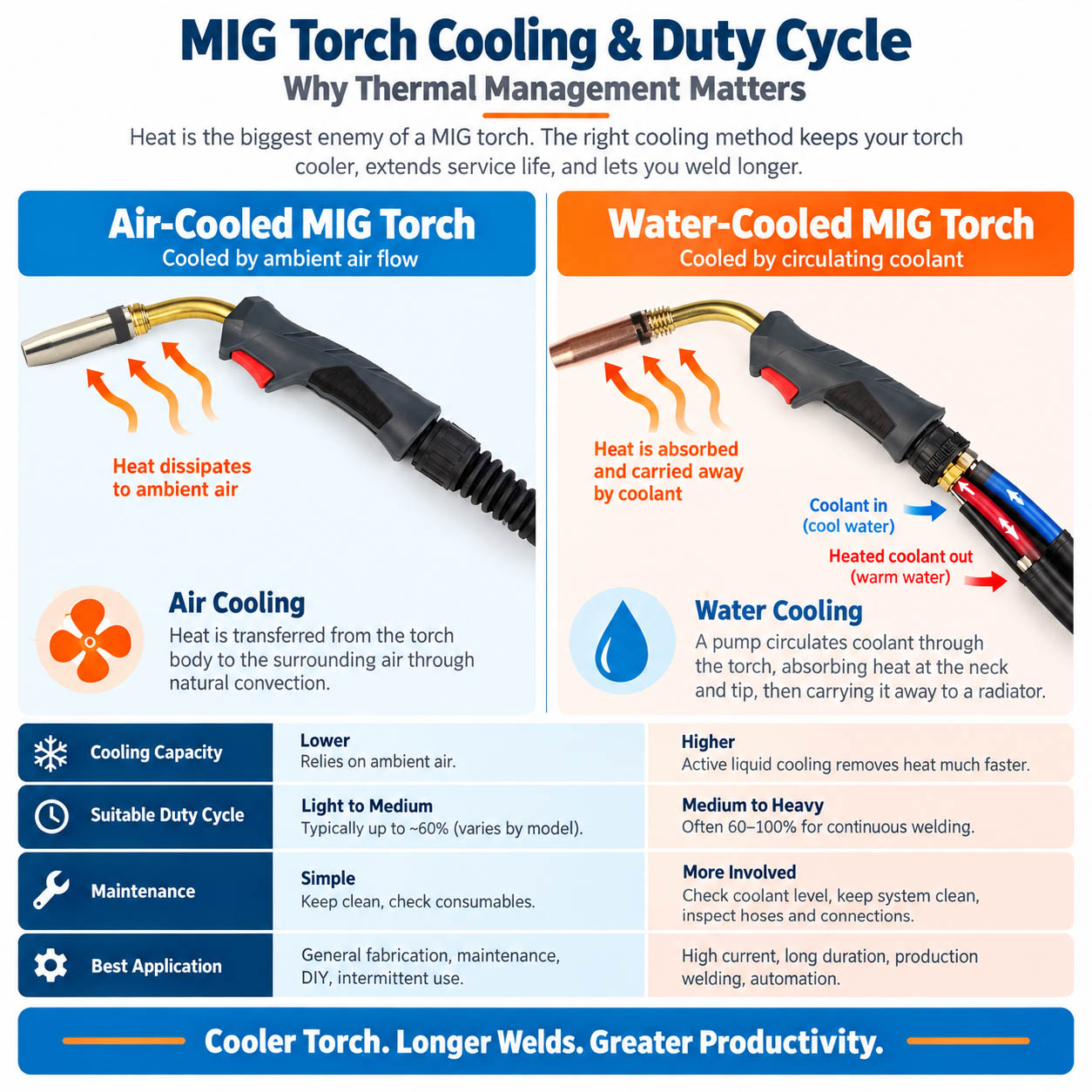

Air-Cooled vs. Water-Cooled MIG Torch: Which Is Better for Overheating?

Neither cooling method is automatically better for every application.

The correct choice depends on amperage, duty cycle, production duration, operator requirements, and torch size.

For occasional welding, repair work, and moderate duty cycles, a correctly rated gas/air-cooled torch may be entirely appropriate.

For continuous high-current fabrication, a water-cooled torch can provide better long-term thermal stability.

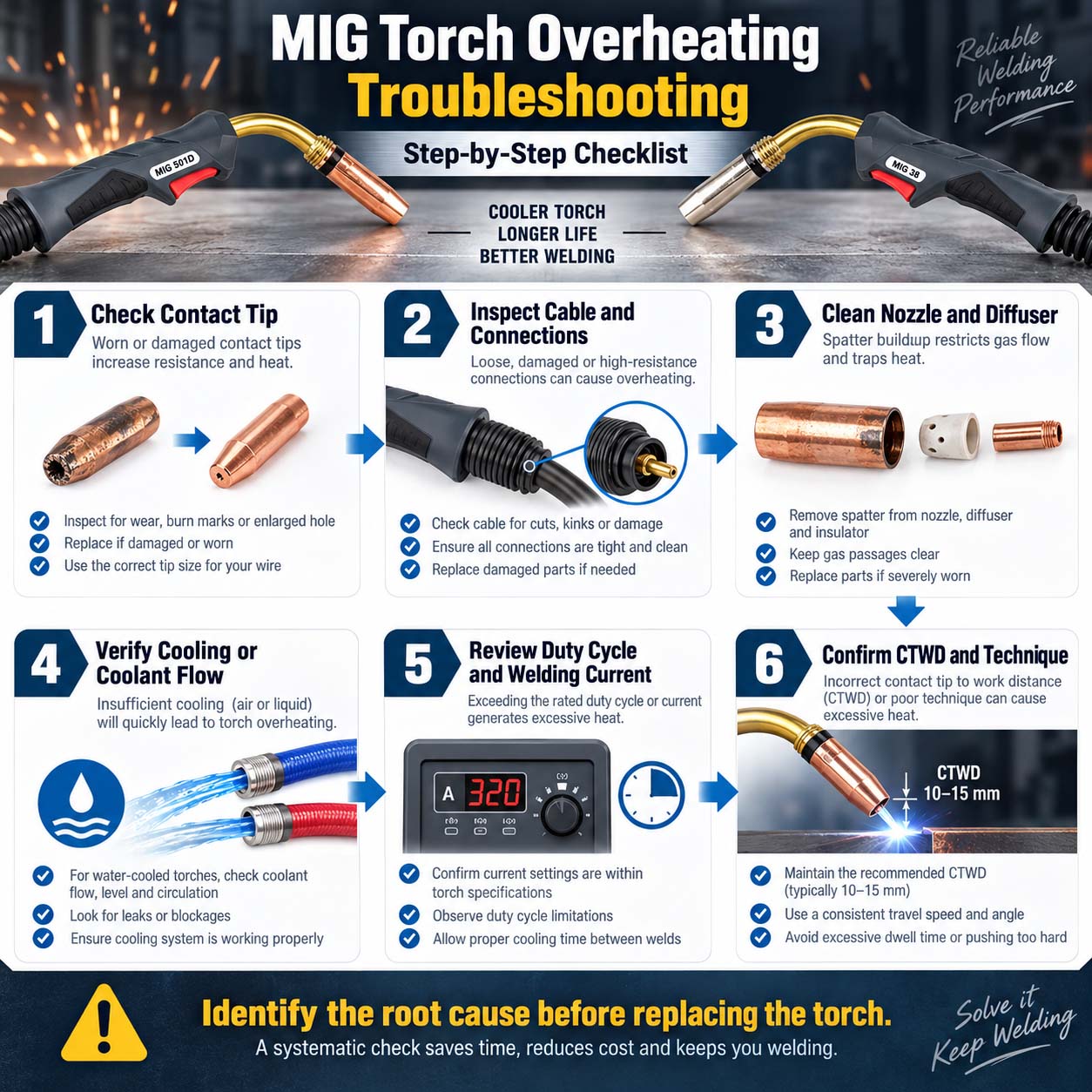

How Do You Troubleshoot an Overheating MIG Torch Step by Step?

Step 1: Check Actual Welding Amperage

Compare actual production current with the torch specification.

Do not compare only with the welding machine's maximum output.

Step 2: Check the Duty Cycle

Determine how long the arc remains on during a normal production period.

If overheating increases gradually, duty cycle deserves particular attention.

Step 3: Inspect the Contact Tip

Check for wear, looseness, burnback, damaged threads, and incorrect wire size.

Step 4: Inspect the Tip Holder and Diffuser

Make sure consumables are properly installed and electrical connections are secure.

Step 5: Inspect the Cable Assembly

Look for hot spots, damaged insulation, severe bends, loose connections, and physical damage.

Step 6: Inspect Front-End Spatter

Remove excessive spatter and replace damaged nozzles or diffusers.

Step 7: Check the Cooling System

For liquid-cooled equipment, confirm coolant level, flow, hoses, pump condition, and radiator performance.

Step 8: Verify CTWD and Welding Technique

Maintain the distance, angle, and operating procedure recommended for the application.

Step 9: Re-Evaluate Torch Selection

If everything is functioning correctly but the torch still overheats during normal production, its thermal capacity may simply be too low for the application.

How Do You Choose the Correct MIG Torch to Prevent Overheating?

The correct MIG torch should be selected according to actual welding current, duty cycle, cooling method, wire size, cable length, joint access, and production volume—not maximum amperage alone.

Use this selection framework:

For industrial buyers, the most important question is not:

“What is the maximum amperage of this MIG torch?”

A better question is:

“Can this torch maintain stable temperature and current transfer at my real amperage and production duty cycle?”

Can an Oversized MIG Torch Also Be the Wrong Choice?

Yes.

Choosing the largest possible torch is not always the best solution.

An unnecessarily large torch may:

• increase operator fatigue;

• reduce accessibility;

• make precision positioning harder;

• increase cable weight;

• reduce maneuverability.

The objective is not maximum capacity.

The objective is adequate thermal capacity with the best practical ergonomics and welding control.

This is particularly important for long production shifts.

How Does MIG Torch Overheating Increase Welding Costs?

The cost of overheating extends far beyond the torch itself.

A useful way to understand the problem is:

Overheating Cost = Consumables + Downtime + Rework + Maintenance + Lost Productivity

Shorter Consumable Life

Excessive temperature can accelerate wear of:

• contact tips;

• nozzles;

• diffusers;

• insulating components.

More Production Interruptions

Every time an operator stops to:

• cool the torch;

• replace a contact tip;

• clean the nozzle;

• inspect a cable,

productive arc-on time decreases.

Higher Risk of Arc Instability

Thermally stressed consumables and poor electrical connections can contribute to:

• irregular wire transfer;

• spatter;

• changing arc behavior;

• inconsistent weld appearance.

For production welding, the least expensive torch to purchase is therefore not necessarily the least expensive torch to operate.

MIG Torch Overheating Prevention Checklist

Before starting high-duty-cycle welding, verify the following:

A five-minute inspection can prevent far more expensive production interruptions later.

FAQ About MIG Torch Overheating

Why Does My MIG Torch Get So Hot?

A MIG torch can become excessively hot because of high welding current, excessive duty cycle, electrical resistance, worn consumables, damaged cables, inadequate cooling, or incorrect CTWD. Identify where the heat develops first to narrow down the root cause.

Is It Normal for a MIG Torch to Get Hot?

Some heat is normal because the torch operates close to the welding arc and carries high electrical current. However, rapid overheating, unusually hot cables, repeated consumable failure, discoloration, or frequent cooling interruptions indicate that the torch or application should be inspected.

Can a Loose Contact Tip Cause a MIG Torch to Overheat?

Yes. A loose contact tip can increase electrical resistance at the connection and create localized heat. It can also reduce current-transfer stability and accelerate wear of the tip and surrounding consumables.

Can a Bad MIG Torch Cable Cause Overheating?

Yes. Damaged conductors, loose connections, worn cables, or excessive resistance can generate heat inside the cable assembly. A localized hot section of cable is an important warning sign.

Why Does My MIG Gun Get Hot After Welding for Several Minutes?

If the MIG gun initially operates normally but becomes progressively hotter, the most likely causes include excessive duty cycle, insufficient cooling capacity, high continuous current, or increasing resistance in the torch system.

Why Is My Water-Cooled MIG Torch Overheating?

Check coolant level, pump operation, coolant circulation, hose restrictions, leaks, blocked passages, and heat-exchanger performance. If the torch suddenly runs hotter under unchanged welding conditions, cooling-system performance should be inspected immediately.

Does CTWD Affect MIG Torch Temperature?

Yes. CTWD changes electrical stickout, current behavior, torch position relative to the arc, and thermal loading. Maintaining a stable CTWD helps support consistent welding conditions and prevents unnecessary heat exposure.

Should I Use a Water-Cooled MIG Torch?

A water-cooled MIG torch is particularly useful for high-current, long-duration, and high-duty-cycle welding. For intermittent or moderate-current applications, a properly rated gas/air-cooled torch may provide a simpler and more economical solution.

Conclusion: How Do You Stop a MIG Torch from Overheating?

A MIG torch that repeatedly overheats should not simply be allowed to cool and then returned to the same operating conditions.

The root cause should be identified.

The seven most common causes are:

excessive amperage + excessive duty cycle + loose or worn contact tips + cable resistance + contaminated consumables + cooling failure + incorrect CTWD.

For long-term reliability, match the MIG torch amperage rating, duty cycle, cooling method, consumables, cable assembly, and torch geometry to the actual production process.

The most important selection principle is simple:

Choose a MIG torch for the real production cycle—not only for the maximum welding current.

A properly selected and maintained MIG torch can provide more stable temperature, longer consumable life, fewer interruptions, better arc consistency, and a lower total welding cost.
