The Two Fundamental Types of Plasma Torches: A Deep Dive into Conventional vs. High-Definition Plasma Cutting Systems

Introduction

Plasma cutting technology revolutionized metal fabrication by offering a faster, more precise alternative to traditional flame cutting. At the heart of this innovation lies the plasma torch—a sophisticated tool that harnesses ionized gas to slice through conductive materials. While plasma torches come in various configurations, they fundamentally fall into two primary categories: Conventional Plasma Torches and High-Definition Plasma Torches (also known as Precision Plasma Torches).

The Science of Plasma Cutting

1.1 How Plasma Cutting Works

Plasma cutting relies on ionized gas (plasma) heated to 30,000°F (16,600°C) to melt and eject metal. The process involves:

• Gas Ionization: Compressed gas (air, oxygen, nitrogen) passes through a nozzle, where an electric arc ionizes it into plasma.

• Arc Formation: A pilot arc initiates between the electrode and nozzle, transferring to the workpiece to create a cutting arc.

• Material Removal: The high-velocity plasma jet melts the metal, while gas flow blows away molten material.

1.2 Key Components of a Plasma Torch

• Electrode: Made of hafnium or tungsten, it generates the arc.

• Nozzle: Constricts the plasma arc for focused energy.

• Swirl Ring: Creates vortex gas flow for arc stability.

• Shield Cap: Protects consumables from spatter.

Conventional Plasma Torches

2.1 Design and Operation

Conventional plasma torches, developed in the 1960s, are the industry workhorses. They operate at lower energy densities and use single-gas systems (typically compressed air).

Key Features:

• Current Range: 15–200 Amps

• Cutting Thickness: Up to 38 mm (1.5 inches) on steel

• Cutting Speed: 100–500 inches per minute (IPM)

• Kerf Width: 2–4 mm

2.2 Strengths

• Cost-Effective: Lower upfront costs for equipment and consumables.

• Simplicity: Minimal gas requirements (often just compressed air).

• Durability: Robust design for harsh industrial environments.

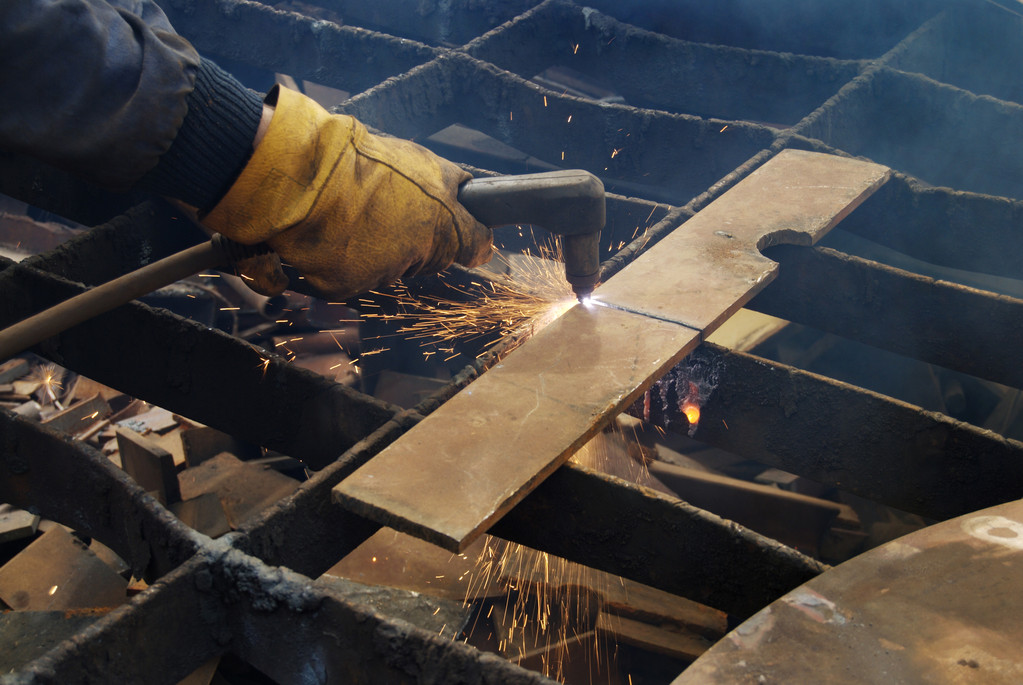

• Portability: Ideal for handheld operations and field repairs.

2.3 Limitations

• Lower Precision: Wider kerf and angular cut edges.

• Dross Formation: Requires post-cut grinding for clean edges.

• Limited Material Compatibility: Struggles with reflective metals (e.g., aluminum).

2.4 Applications

• General Fabrication: Cutting structural steel, pipes, and plates.

• Automotive Repair: Exhaust systems, body panels.

• Agriculture: Repairing heavy machinery.

High-Definition Plasma Torches

3.1 Design and Operation

High-definition (HD) plasma torches emerged in the 1990s, leveraging advanced gas dynamics and dual-gas technology (e.g., oxygen for cutting, nitrogen for shielding). They achieve higher energy density for laser-like precision.

Key Features:

• Current Range: 40–400+ Amps

• Cutting Thickness: Up to 160 mm (6.3 inches) on steel

• Cutting Speed: 200–1,200 IPM

• Kerf Width: 0.8–1.5 mm

• Angular Accuracy: ±1° or better

3.2 Technological Innovations

• Dual Gas Systems: Oxygen enhances cut quality on steel; nitrogen shields for stainless/aluminum.

• Fine Nozzle Orifices: Enables tighter arc constriction.

• Advanced Cooling: Liquid-cooled torches for sustained high-amperage operation.

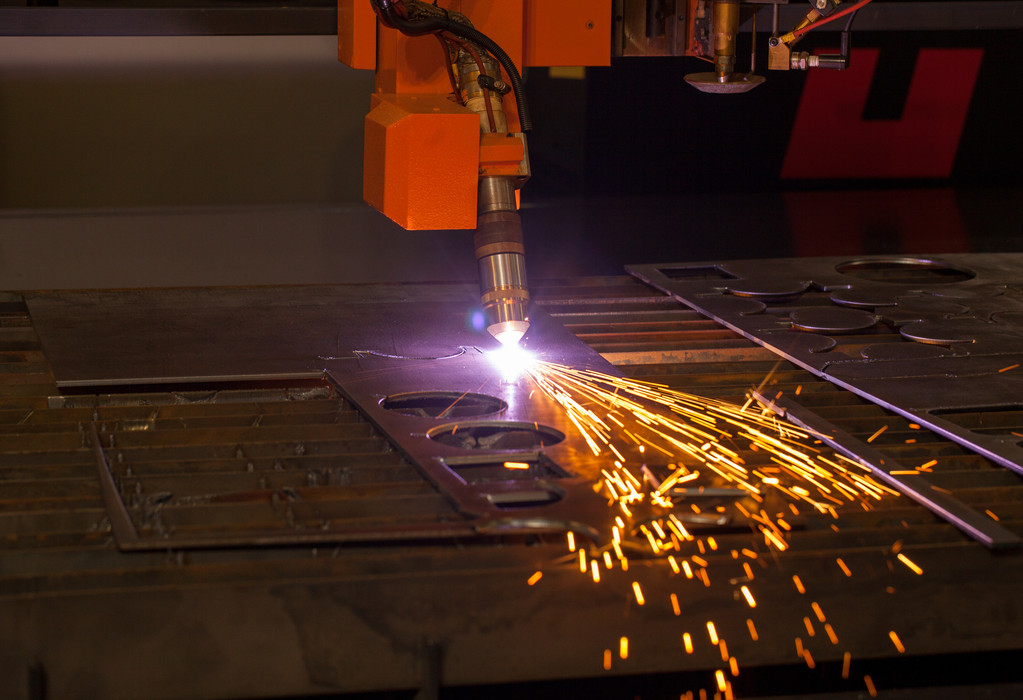

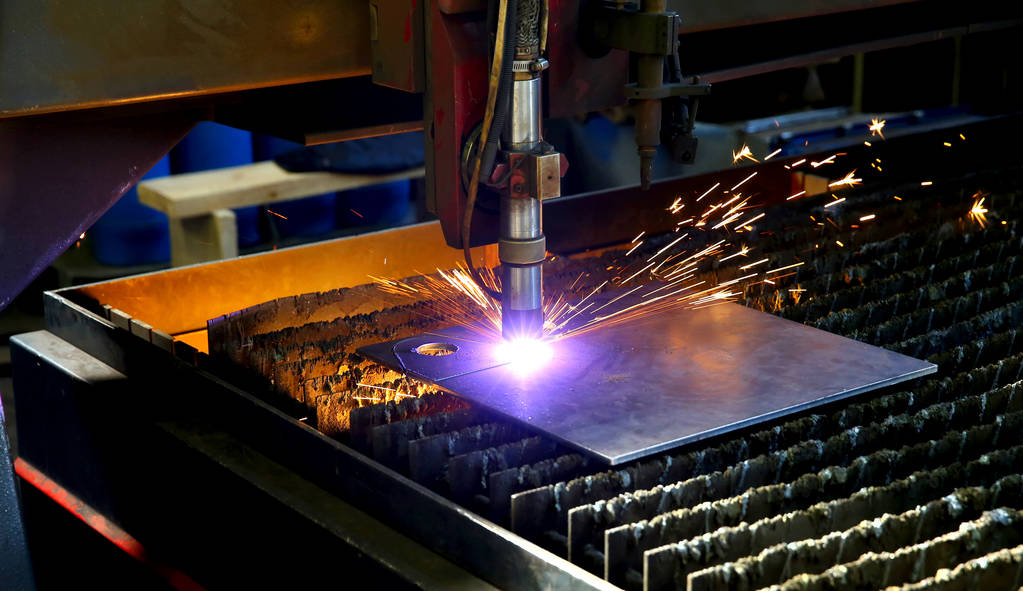

• CNC Integration: Automated height control and bevel cutting.

3.3 Strengths

• Laser-Like Precision: Minimal dross and near-vertical cuts.

• Speed: 2–3x faster than conventional plasma on thin materials.

• Versatility: Handles stainless steel, aluminum, and coated metals.

• Automation-Ready: Seamless integration with CNC tables and robotics.

3.4 Limitations

• Higher Costs: Expensive consumables and gas requirements.

• Complex Maintenance: Demands skilled technicians.

• Power Requirements: Needs industrial-grade power supplies.

3.5 Applications

• Aerospace: Cutting titanium engine components.

• Shipbuilding: Precision cutting of thick steel plates.

• Artistic Metalwork: Intricate designs on thin sheets.

Side-by-Side Comparison

4.1 Technical Specifications

4.2 Economic Considerations

• ROI for Conventional: Ideal for small shops with mixed cutting needs.

• ROI for HD: Justified in high-volume production with tight tolerances.

Choosing the Right Plasma Torch

5.1 Material Requirements

• Steel <1/2 inch: Conventional plasma.

• Stainless/Aluminum: HD plasma with nitrogen shielding.

• Artistic Thin Sheets: HD plasma for clean edges.

5.2 Production Volume

• Low Volume: Conventional systems (lower upfront costs).

• High Volume: HD systems (faster speeds reduce labor costs).

5.3 Integration Needs

• Manual Operations: Conventional torches (handheld flexibility).

• CNC Automation: HD torches (software compatibility).

Maintenance & Optimization

6.1 Consumable Management

• Conventional: Replace nozzles every 500–1,000 pierces.

• HD: Monitor electrode wear with IoT sensors.

6.2 Gas System Best Practices

• Use moisture traps for compressed air.

• Maintain gas purity (99.95% for HD systems).

6.3 Software Tools

• Nesting software to minimize material waste.

• Predictive maintenance algorithms.

Industry Trends Shaping Plasma Torch Design

• Hybrid Systems: Combining plasma with laser or waterjet cutting.

• Green Plasma: Hydrogen-based gas mixtures to reduce carbon footprint.

• AI-Driven Torches: Machine learning for adaptive cutting parameters.

Conclusion

The choice between conventional and high-definition plasma torches hinges on your operational priorities: cost efficiency versus precision and speed. While conventional systems remain indispensable for rugged, general-purpose tasks, HD plasma torches are redefining modern manufacturing with their ability to deliver near-laser quality at plasma prices.

As Industry 4.0 accelerates, expect smarter, greener plasma systems to dominate workshops—blending raw cutting power with digital precision. For fabricators, staying ahead means understanding not just the two types of torches, but how they evolve to meet tomorrow’s challenges.
