TIG Welding Back Cap for Wp17 WP18 WP26

INWELT TIG Welding Back Cap for WP-17/18/26 — Long, Medium & Short Torch End Caps

Critical Functions of the TIG Back Cap in WP-17/18/26 Torches

Among all consumable components in a TIG torch assembly, the back cap is one of the most frequently overlooked yet functionally essential parts. For welders using WP-17, WP-18, and WP-26 series torches — the most widely deployed torch platforms in fabrication shops, pipe welding, and maintenance operations worldwide — the back cap performs three critical jobs that directly influence weld quality, torch reliability, and operator safety.

1. Secures the Tungsten Electrode via Collet Pressure

When the back cap is threaded into the rear of the torch head and tightened, it applies forward axial pressure through the collet assembly. This pressure compresses the collet around the tungsten electrode, locking it firmly in position. Proper thread engagement and correct tightening eliminate electrode wobble during welding, ensuring consistent arc starts and a stable arc cone throughout every pass. A back cap with worn or damaged threads cannot maintain adequate clamping force, leading to electrode slippage and arc instability.

2. Seals the Shielding Gas Circuit

The back cap serves as the rear seal of the torch’s internal shielding gas pathway. Argon gas flows from the torch cable through the torch body, collet body, and out the ceramic nozzle to protect the weld pool. Any leak at the rear of the torch allows atmospheric air to enter the gas stream, causing weld porosity, oxidation, and tungsten discoloration. INWELT back caps incorporate a precision-molded integrated O-ring that compresses against the torch body to create a positive, leak-free closure.

3. Provides Electrical Insulation for Operator Safety

In confined welding positions — pipe saddles, inside corners, roll cage nodes, and structural joints — the exposed rear portion of the tungsten electrode can inadvertently contact a grounded workpiece, creating an electrical short that damages both the weld and the torch. The back cap provides essential dielectric insulation over the rear electrode section, preventing dangerous short circuits and protecting the welder during out-of-position and tight-access work.

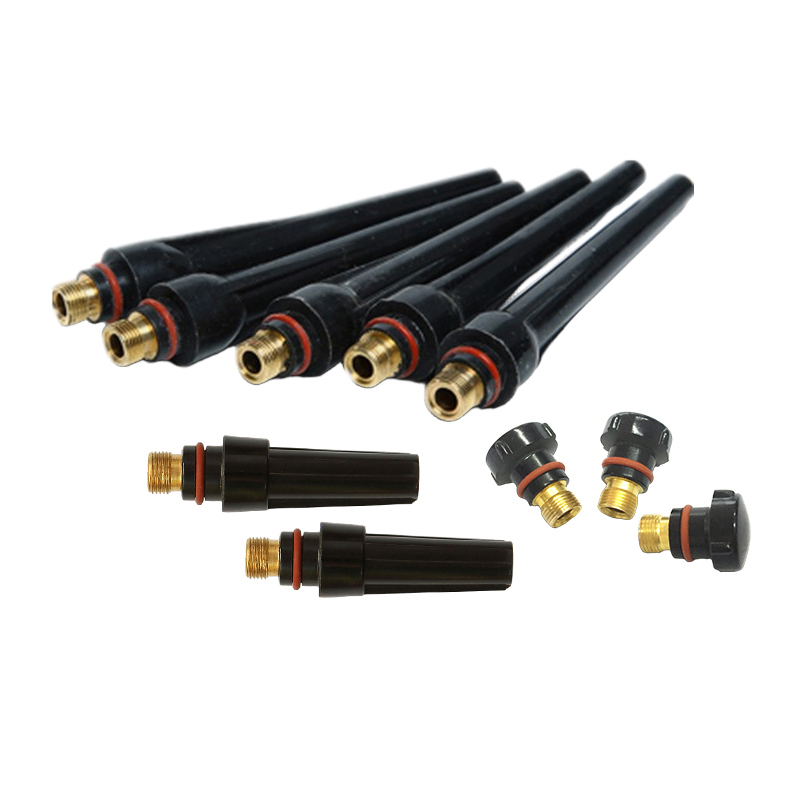

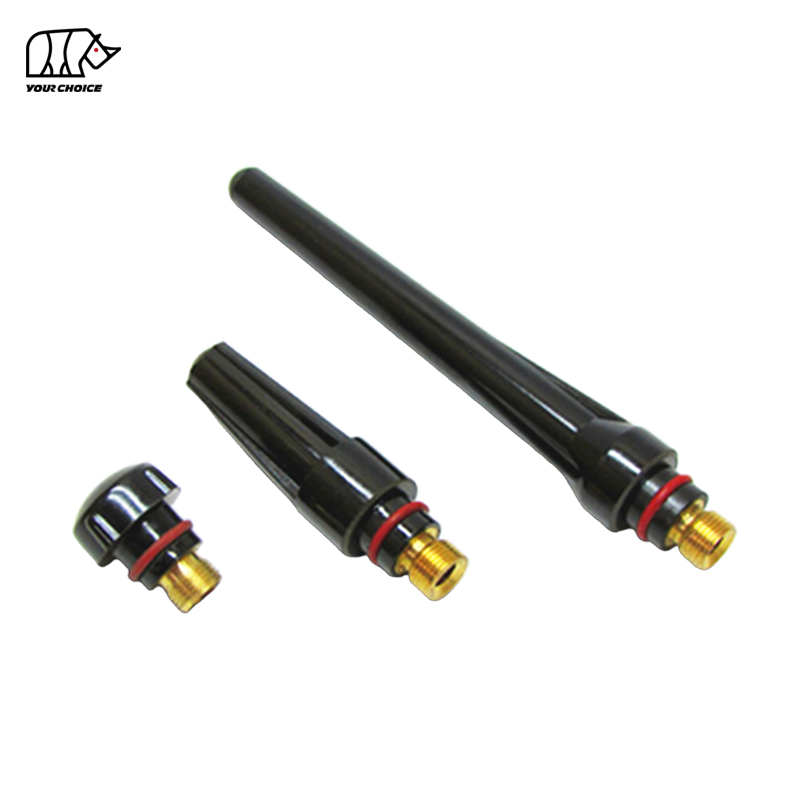

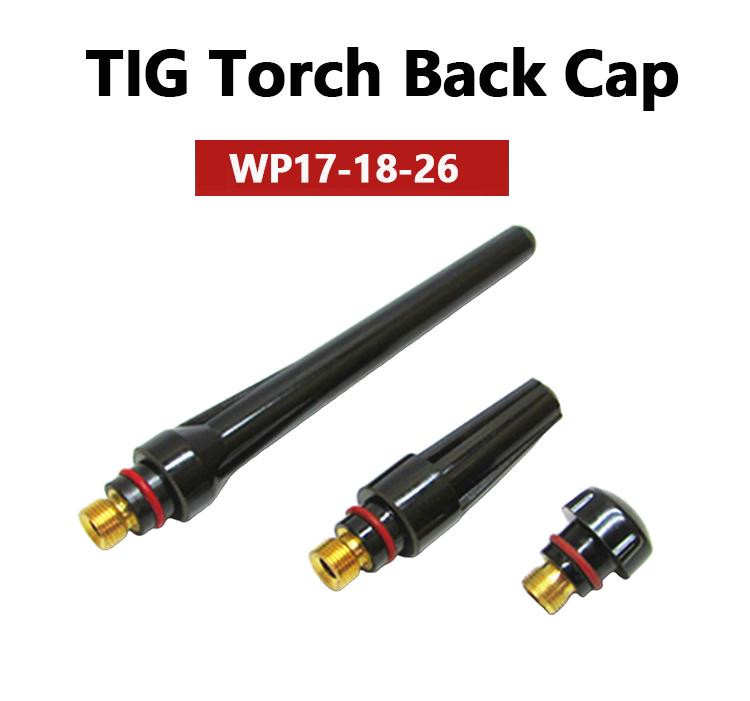

Back Cap Length Options for WP-17/18/26 Torches

INWELT manufactures back caps for WP-17/18/26 torches in three distinct lengths, each engineered for specific working conditions and electrode lengths. Selecting the correct length is not a matter of preference — it directly determines torch maneuverability, electrode compatibility, and access to the weld joint.

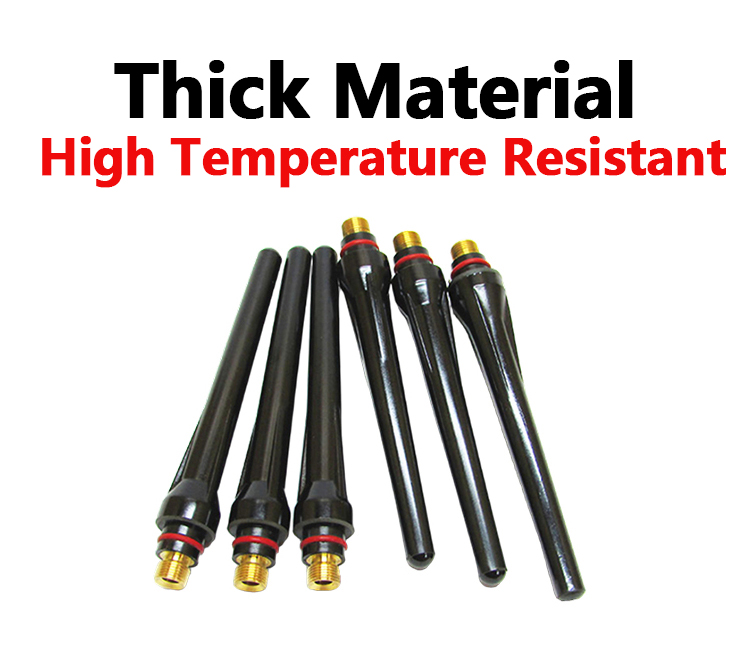

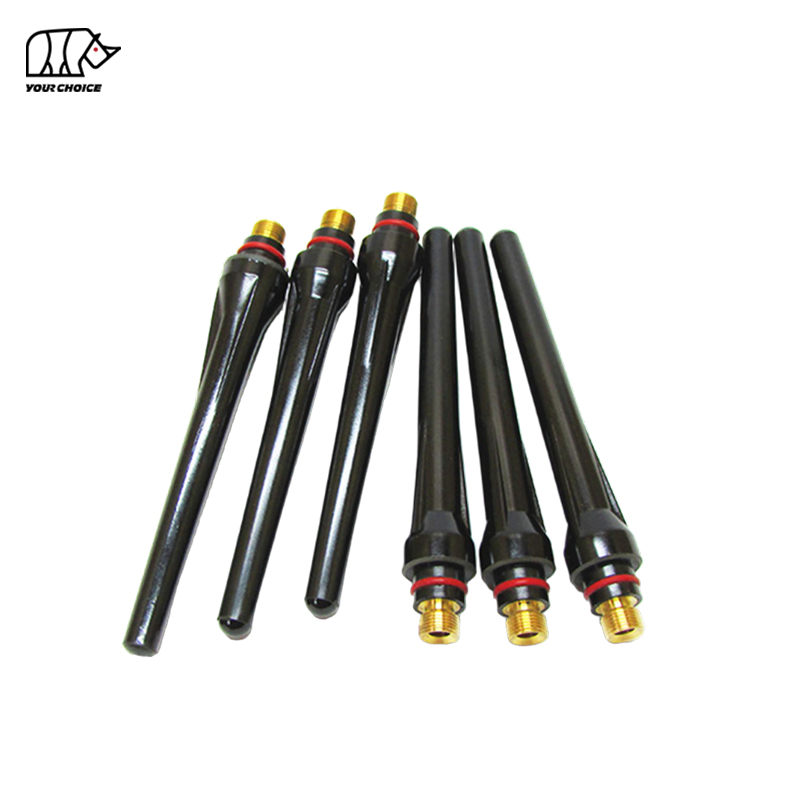

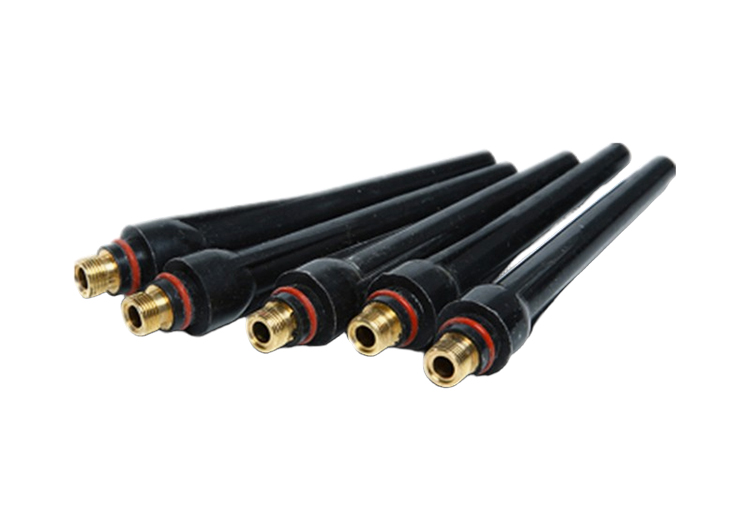

Long Back Cap (57Y02) — Maximum Electrode Capacity

The long back cap is designed to accommodate full-length 175mm (7-inch) tungsten electrodes, making it the primary choice for extended bench welding where maximizing electrode usage between changes is a priority. A long cap allows the welder to keep a fresh, full-length tungsten in the torch longer before needing to replace or regrind, reducing changeover interruptions during high-volume production. This is the most commonly used back cap configuration for general fabrication work where rear clearance is not restricted.

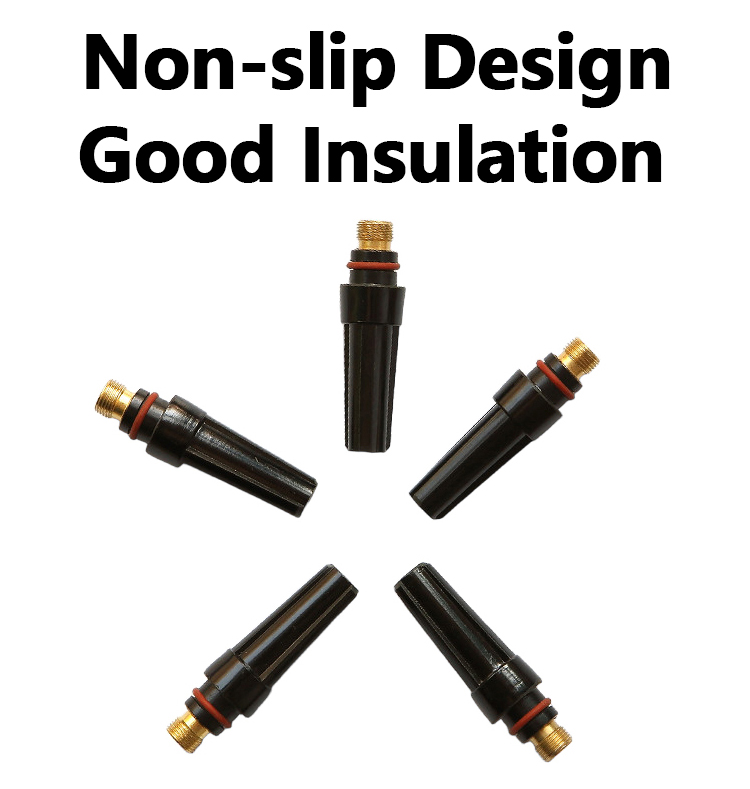

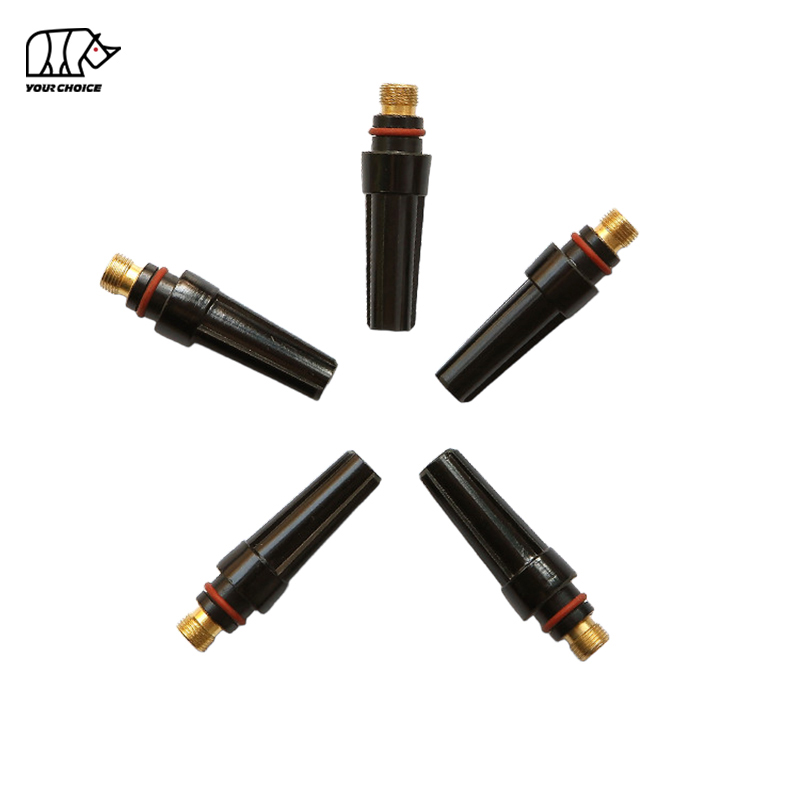

Medium Back Cap (57Y01) — Everyday Versatility

The medium back cap represents the middle ground between electrode capacity and torch maneuverability. As a tungsten electrode becomes progressively shorter through repeated grinding and contamination removal, the medium cap provides a secure fit while maintaining reasonable torch clearance. Many production welders keep medium caps installed as their default configuration, switching to long caps only when starting with a brand-new electrode.

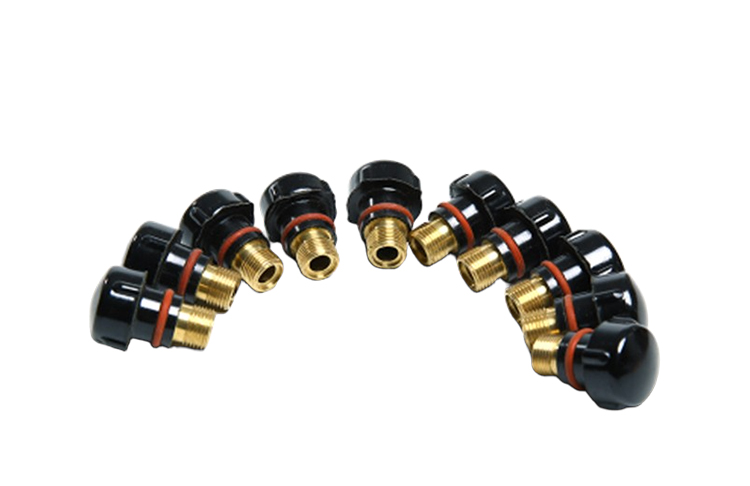

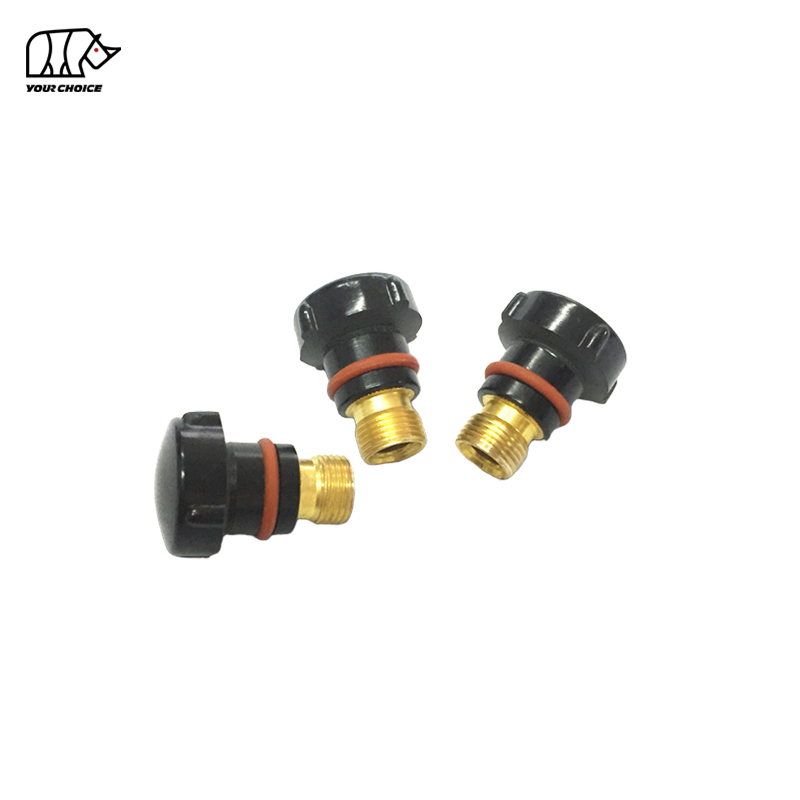

Short Back Cap (57Y04) — Tight-Access Specialist

Also referred to as a button back cap, the short cap provides maximum rear clearance for welding in severely confined spaces where every millimeter of torch profile matters. The reduced rear projection allows the torch body to fit into positions where a long or medium cap would physically collide with surrounding material — pipe root passes, internal corner joints, chassis gussets, and structural nodes. Essential for pipe welders and fabrication professionals who regularly work in restricted-access positions, short caps accept shorter or partially consumed tungsten stubs optimized for these conditions.

Material, Construction, and Sealing Technology

The quality of materials and precision of manufacturing separate a reliable back cap from one that introduces chronic welding problems.

High-Grade Heat-Resistant Phenolic Polymer

INWELT back caps are injection-molded from high-grade, heat-resistant phenolic polymer compounds specifically selected for TIG welding environments. These materials withstand repeated thermal cycling — radiant heat generated during prolonged welding transfers through the collet body to the back cap threads — without softening, deforming, or cracking. The polymer provides excellent dielectric properties, ensuring electrical insulation integrity during high-frequency AC welding on aluminum and magnesium.

Integrated O-Ring Gas Seal

Each INWELT back cap features a precision-molded integrated O-ring that compresses against the torch body face when the cap is fully hand-tightened. This O-ring creates a gas-tight closure at the rear of the shielding gas pathway. Any crack, deformation, hardening, or missing O-ring allows ambient air to be aspirated into the torch, contaminating the shielding gas and causing intermittent weld porosity, surface oxidation, and tungsten discoloration.

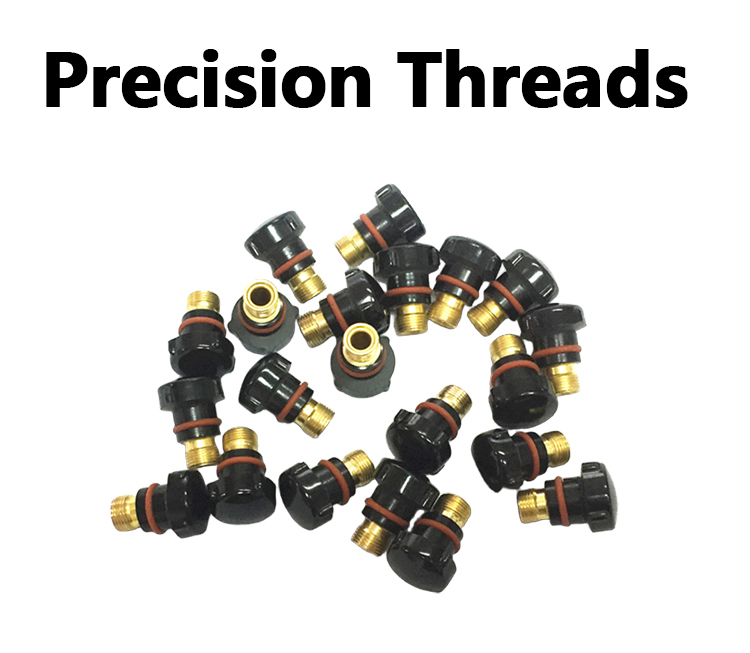

Precision-Machined 3/8" UNF Threads

Threads are formed to exacting tolerances for smooth, consistent engagement with the torch body. This ensures uniform clamping pressure transfer to the collet assembly without binding, cross-threading, or stripping over hundreds of tightening cycles. Proper thread fit eliminates the common frustration of back caps that feel rough, seize during installation, or loosen during welding due to vibration and thermal expansion.

Compatible Torch Models and Cross-Brand Fitment

INWELT back caps are manufactured to standard industry dimensions and are fully compatible with the complete WP-17/18/26 torch family from all major brands.

These back caps are confirmed physically and dimensionally interchangeable with torches from all major manufacturers that follow the WP-17/18/26 standard. The 57Y02 (long), 57Y01 (medium), and 57Y04 (short) part numbers are the recognized industry-standard reference designations used globally for 3-series torch consumables.

Recognizing Back Cap Failure — When to Replace

A worn or damaged back cap is not simply an inconvenience — it is a direct root cause of multiple welding defects that lead to costly rework. Recognizing the warning signs early prevents weld quality issues before they appear.

Warning Signs of a Failing Back Cap

Common indicators include: the tungsten electrode slips during welding despite the back cap being fully hand-tightened; pinhole porosity or surface oxidation appears sporadically in the weld bead, caused by atmospheric air entering through cracks or a failed O-ring seal; the O-ring shows visible flattening, cracking, hardening, or has taken a permanent compression set; the back cap threads feel rough, loose, or fail to maintain tension under finger torque; and the tungsten electrode develops gray or blue discoloration extending beyond the normal heat-affected zone, indicating gas contamination at the rear of the torch. If any of these symptoms appear, replacing the back cap immediately isolates and eliminates gas contamination as the root cause.

Recommended Inspection and Replacement Schedule

In daily production welding environments, back caps should be inspected weekly during routine torch cleaning and maintenance. For structural, pressure-retaining, or code-quality work where weld integrity is safety-critical, preventive replacement every 3 to 6 months is a low-cost measure that guarantees gas seal integrity and electrode clamping consistency. Keeping at least one spare long cap and one spare short cap for every torch in the shop prevents workflow interruptions — replacement takes less than ten seconds and costs a fraction of the expense of reworking a single failed weld.

Real-World Applications Across Industries

INWELT back caps for WP-17/18/26 torches deliver reliable, consistent performance across a broad range of industrial welding applications.

• Pipe Welding and Pipeline Construction: Short (57Y04) back caps are essential for 5G and 6G position welds on pipe, where the rear of the torch operates inside beveled root openings with minimal clearance. The reduced rear profile allows the torch to access the root pass without interference.

• Structural Steel Fabrication: Long (57Y02) back caps support uninterrupted bench and position welding on structural steel, heavy equipment frames, and industrial fabrications where maximizing electrode usage between changes improves productivity.

• Pressure Vessel and Tank Welding: Medium (57Y01) back caps provide the optimal balance of electrode capacity and torch clearance for shell course welding, nozzle installations, and internal vessel work where space is moderately restricted.

• Automotive and Motorsport Fabrication: Short back caps allow TIG torches to access roll cage nodes, exhaust header junctions, and chassis gussets that are physically unreachable with a full-length cap installed.

• General Maintenance and Repair: Across maintenance workshops and field repair operations, having all three cap lengths available ensures the torch can be configured for any job that arises.




Why Source WP-17/18/26 Back Caps from INWELT Welding Technology Co., Ltd.

When selecting TIG torch consumables, the distinction between a dedicated manufacturer and a general trading company has direct consequences for product consistency, material quality, and long-term supply reliability.

• ISO 9001 Certified Manufacturing: Every production batch of INWELT back caps is manufactured under a documented quality management system with traceable material sourcing, in-process dimensional inspection, and final O-ring seal verification.

• CE and RoHS Compliance: All materials meet international safety and environmental standards, confirming fitness for professional and industrial use in markets worldwide.

• Direct-from-Factory Supply: As the original manufacturer, INWELT provides competitive factory-direct pricing with OEM and ODM customization available for volume orders, private-label requirements, and custom packaging specifications.

• Free Sample Evaluation Before Commitment: Product samples are available for hands-on testing of fit, thread quality, O-ring seal integrity, and material durability before placing any volume order. This ensures the back caps integrate seamlessly with an existing torch inventory.

• 15+ Years of Industry Experience: Since 2006, INWELT has supplied welding consumables to professionals in over 30 countries, building a reputation for consistent quality, responsive service, and reliable delivery timelines.

• Complete Torch Consumable Range: INWELT manufactures the full range of matching WP-17/18/26 consumables — collet bodies, collets, ceramic cups, gas lenses, insulators, and torch bodies — ensuring uniform quality and guaranteed compatibility across the entire front-end assembly.

Frequently Asked Questions

Q: What is the function of a TIG welding back cap on WP-17/18/26 torches?

A: The back cap threads into the rear of the TIG torch head and performs three essential functions. It applies forward pressure through the collet assembly to clamp the tungsten electrode securely in position. It seals the rear of the shielding gas circuit via an integrated O-ring, preventing argon leakage and atmospheric contamination. It provides electrical insulation over the exposed rear portion of the tungsten electrode, preventing short circuits when the torch is used in confined spaces.

Q: Which back cap length should I use — long (57Y02), medium (57Y01), or short (57Y04)?

A: The choice depends on tungsten electrode length and working clearance. Use a long back cap (57Y02) with new, full-length 175mm (7-inch) tungsten electrodes for bench welding where rear clearance is unrestricted. Use a medium back cap (57Y01) with partially consumed tungsten that has been shortened through repeated grinding. Use a short back cap (57Y04) for tight-access welding in confined spaces such as pipe root passes, internal corners, and structural joints where the torch body must fit into restricted areas.

Q: Are INWELT back caps compatible with Lincoln, Miller, and CK Worldwide WP-17/18/26 torches?

A: Yes. INWELT back caps are manufactured to standard industry dimensions and are fully compatible with WP-17, WP-18, and WP-26 torch series from all major brands, including Lincoln Electric, Miller, CK Worldwide, Binzel, Weldcraft, and ESAB. The standard industry part numbers 57Y02 (long), 57Y01 (medium), and 57Y04 (short) are used globally and INWELT back caps are dimensionally interchangeable with OEM equivalents from all major manufacturers.

Q: Can a faulty back cap cause weld porosity or arc instability?

A: Yes. A worn, cracked, or poorly sealed back cap is a frequently overlooked root cause of chronic weld defects. A damaged O-ring or cracked cap body allows atmospheric air to enter the shielding gas stream, causing intermittent weld porosity, surface oxidation, and tungsten discoloration. Stripped or loose threads fail to maintain electrode clamping pressure, resulting in electrode slippage, arc wandering, and inconsistent weld bead profiles. Replacing a suspect back cap is one of the quickest and lowest-cost diagnostic steps when troubleshooting TIG weld quality issues.

Q: How do I correctly install and maintain a TIG back cap?

A: Insert the tungsten electrode into the collet with the desired stick-out length. Thread the back cap into the torch head by hand and tighten firmly until the O-ring compresses and the cap seats against the torch body — the cap applies clamping pressure through the collet assembly to secure the electrode. Do not use tools such as pliers to overtighten, as excessive torque can strip threads, crack the cap body, or permanently deform the O-ring. Inspect the O-ring weekly during torch cleaning. Replace the back cap immediately if the O-ring shows cracking, flattening, or compression set, or if the threads feel rough or loose.

Q: What material are INWELT back caps made from?

A: INWELT back caps for WP-17/18/26 torches are injection-molded from high-grade, heat-resistant phenolic polymer compounds. This material is selected for its ability to withstand repeated thermal cycling without softening or deformation, its excellent dielectric strength for operator safety during high-frequency AC welding, and its long-term dimensional stability under daily production conditions. The integrated O-ring is molded from durable elastomer material designed to maintain sealing integrity across the torch’s full operating temperature range.

Q: What is the difference between 2-series and 3-series torch back caps?

A: WP-9 and WP-20 torches belong to the 2-series family and use smaller-diameter back caps with standard part numbers 41V24 (long) and 41V33 (short). WP-17, WP-18, and WP-26 torches belong to the 3-series family and use larger back caps with part numbers 57Y02 (long), 57Y01 (medium), and 57Y04 (short). The back caps covered on this page are for 3-series (WP-17/18/26) torches specifically and are not interchangeable with 2-series torches. Always verify your torch series before ordering.
