Welding Fume Extraction Torch: How to Reduce Welding Fumes and Improve Workplace Safety

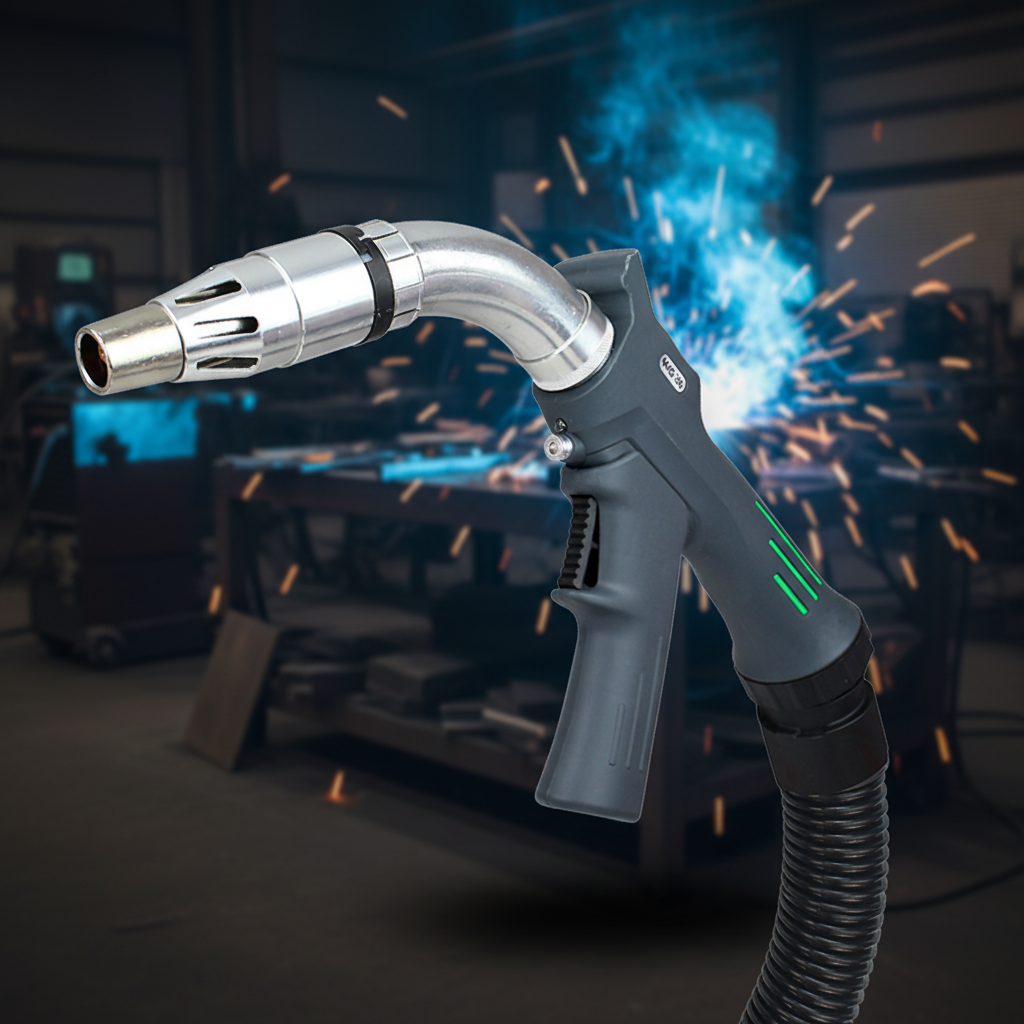

What Is a Welding Fume Extraction Torch and How Does It Work?

In modern welding factories, improving worker safety is no longer only about wearing personal protective equipment. Companies are now looking for smarter solutions that can remove hazardous substances before they reach workers’ breathing zones. A welding fume extraction torch, also known as a fume extraction MIG gun or welding smoke extraction torch, is one of the most effective technologies designed for this purpose. Unlike traditional welding torches that only create the welding arc, an extraction torch combines welding performance with an integrated fume removal system, capturing harmful smoke directly during the welding process.

During MIG/MAG welding, extremely high temperatures melt metal and welding wire, creating a mixture of visible smoke particles and invisible gases. These welding fumes may contain metal oxides, fine particles, and other airborne contaminants depending on the base material and welding parameters. A welding fume extraction torch uses a specially designed suction nozzle positioned close to the welding arc area. When the welding process starts, the extraction system generates airflow that pulls fumes away immediately before they spread throughout the workshop.

Think about it like removing steam directly from a kitchen pan instead of allowing the entire room to become full of moisture. The closer the extraction point is to the pollution source, the more effective the removal process becomes. This source-capture method is why extraction welding torches are increasingly preferred by professional welding companies that want cleaner working conditions while maintaining high production efficiency.

For industrial users, the biggest advantage is that the extraction function is integrated into the welding tool itself. Workers do not need to adjust large extraction arms repeatedly or move external ventilation equipment around the workshop. The torch follows the welder naturally, keeping the extraction point close to the welding area during different positions and applications.

The Basic Working Principle of Fume Extraction Welding Guns

A welding fume extraction gun works through a combination of welding operation and controlled airflow management. The torch performs the same basic welding functions as a conventional MIG/MAG torch, including wire feeding, shielding gas delivery, and electrical current transmission. The difference is that an additional extraction channel is built into the torch structure to collect fumes generated around the arc.

When the welder begins welding, the extraction unit connected to the torch creates negative pressure through a suction hose. The contaminated air containing welding fumes is pulled through the extraction nozzle and transported into a filtration system. After filtration, cleaner air is returned to the workshop or exhausted according to the ventilation design.

The efficiency of this process depends on several important factors, including:

A high-quality extraction torch must balance welding performance and suction capability. If the extraction airflow is too weak, fumes may escape into the worker’s breathing zone. If airflow is too strong, it may disturb shielding gas protection and negatively affect weld quality. Therefore, professional extraction torch designs focus on creating the right balance between smoke removal and arc stability.

Modern welding manufacturers continue improving extraction torch designs by optimizing nozzle geometry, reducing torch weight, and improving cable flexibility. These improvements help welders maintain natural working movements while gaining additional protection from welding emissions.

Main Components Inside a Welding Fume Extraction Torch

Although a welding fume extraction torch looks similar to a traditional MIG torch, its internal structure includes additional components designed specifically for smoke removal. Understanding these components helps buyers select the right product for their applications.

The main components usually include the welding contact tip, gas nozzle, extraction nozzle, torch neck, extraction channel, handle system, and connection hose. Each part plays an important role in maintaining welding performance and extraction efficiency.

The extraction nozzle is one of the most critical components because it determines how effectively fumes are captured. A well-designed nozzle creates strong suction near the arc without interfering with shielding gas coverage. Poor nozzle design may reduce extraction performance or affect weld appearance.

The torch handle and cable assembly are also important because welders often use extraction torches for long working periods. Excessive weight or poor balance can increase operator fatigue and reduce productivity. Ergonomic designs focus on reducing hand pressure and allowing comfortable welding positions.

Another important component is the extraction hose connection system. A reliable connection prevents air leakage and ensures stable suction performance. Industrial users should pay attention to hose flexibility, durability, and compatibility with existing extraction equipment.

For factories purchasing welding equipment in large quantities, these details directly influence long-term operating costs. A well-designed welding fume extraction torch can reduce workplace contamination, improve employee comfort, and support compliance with increasingly strict occupational safety requirements.

Why Welding Fume Extraction Has Become Critical for Modern Industries

Health Risks Caused by Welding Fumes

Welding is one of the most important manufacturing processes in industries such as automotive production, construction equipment, shipbuilding, metal fabrication, and heavy machinery. However, behind every strong weld is a hidden challenge that many companies cannot ignore: welding fumes. These fumes are not simply visible smoke. They are a complex mixture of extremely small airborne particles and gases created when metals, coatings, shielding gases, and consumables are exposed to high welding temperatures.

During MIG, MAG, TIG, and other arc welding processes, temperatures can reach thousands of degrees Celsius. This intense heat causes metals and surface coatings to vaporize and rapidly cool into microscopic particles known as welding fumes. Because these particles are extremely small, many of them can remain suspended in the air for long periods and easily enter a worker’s respiratory system.

Long-term exposure to welding fumes has become a major occupational safety concern worldwide. Depending on the material being welded, fumes may contain substances such as iron oxide, manganese compounds, chromium compounds, nickel compounds, and other metal particles. Continuous exposure without proper ventilation can negatively affect respiratory health and overall workplace safety.

This is why modern welding companies are moving beyond traditional ventilation methods and adopting source capture solutions such as welding fume extraction torches. Instead of allowing fumes to spread throughout the workshop before removing them, extraction torches capture contaminants immediately at the welding point.

A simple way to understand this difference is to compare it with cleaning dust. Using a general workshop ventilation system is similar to sweeping dust after it has covered the entire floor. A welding fume extraction torch works more like a vacuum cleaner that removes dust immediately where it is created. The closer the extraction point is to the welding arc, the more effective the protection becomes.

For professional welding environments, controlling fumes at the source provides several advantages:

• Reduced worker exposure to airborne welding contaminants

• Cleaner workshop air quality

• Less dust accumulation on machines and equipment

• Improved employee comfort during long welding operations

• Better compliance with workplace safety requirements

As industries continue focusing on sustainable manufacturing and employee protection, welding fume extraction equipment is becoming an essential part of modern welding systems rather than an optional accessory.

The Growing Demand for Cleaner Welding Environments

The global manufacturing industry is changing rapidly. Companies are no longer evaluating welding equipment only based on welding speed, current capacity, or price. They are also considering factors such as environmental impact, operator health, energy efficiency, and workplace sustainability.

This shift has increased demand for welding fume extraction systems, especially integrated solutions such as extraction MIG guns. Industrial buyers are searching for equipment that allows them to maintain high production output while creating safer working environments.

Traditional workshop ventilation systems often require large investment, complicated installation, and continuous energy consumption. They can also struggle to capture fumes generated in different welding positions because the pollution source constantly moves with the welder.

A welding fume extraction torch solves this challenge by bringing the extraction point directly to the welding operation. Whether the welder is working on a large structure, repairing machinery, or performing precision fabrication, the extraction nozzle remains close to the source of smoke generation.

This makes extraction torches especially valuable for:

• Small and medium welding workshops

• Heavy fabrication factories

• Automotive repair facilities

• Agricultural machinery manufacturers

• Custom metalworking companies

• Robotic welding preparation areas

Another important factor driving adoption is the increasing awareness of environmental responsibility. Many manufacturers are now creating cleaner factories as part of their long-term business strategy. A workplace with visible welding smoke is no longer considered a normal industrial environment. Customers, employees, and business partners increasingly expect companies to demonstrate better safety standards.

For welding distributors and equipment suppliers, offering fume extraction MIG torches also creates new opportunities. Many customers are actively looking for solutions that improve both welding quality and workplace protection. Products that combine productivity and safety have stronger market potential because they solve multiple problems at the same time.

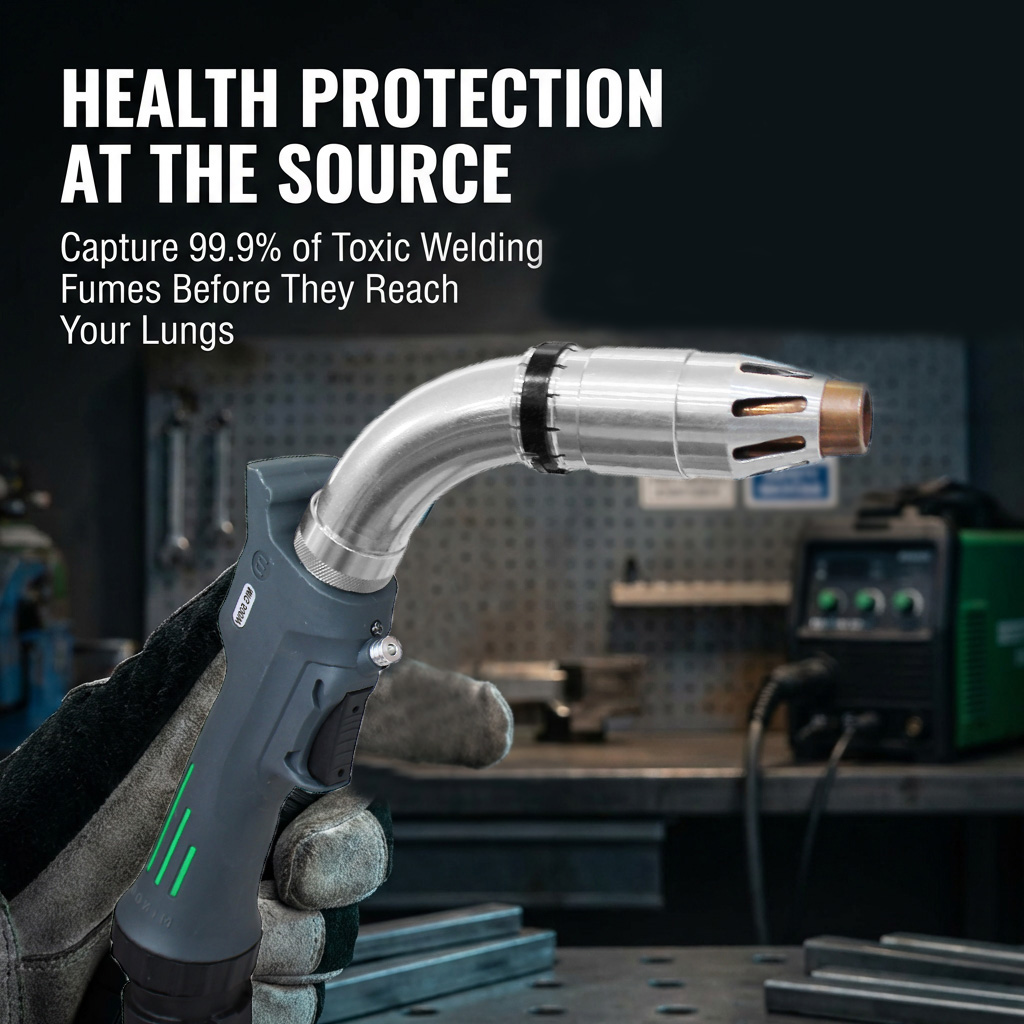

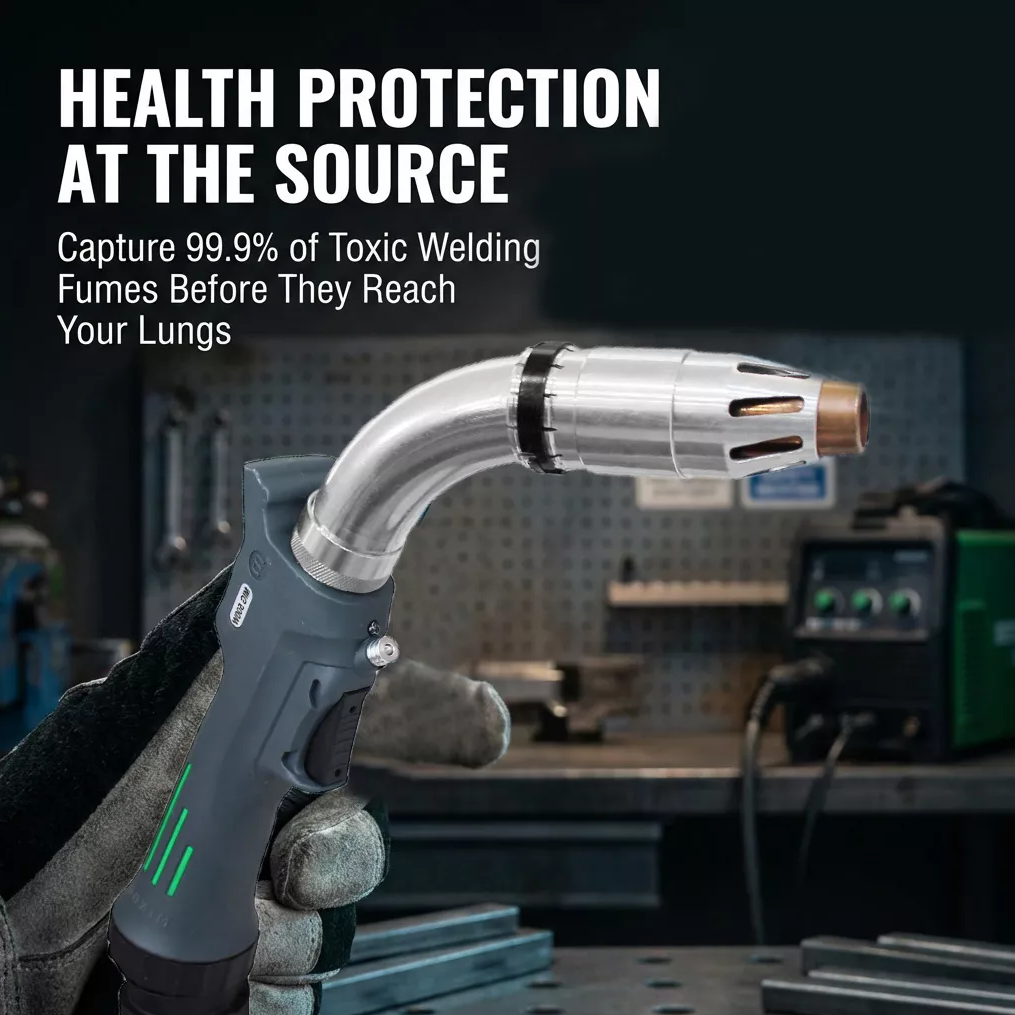

How Does a Fume Extraction MIG Gun Improve Welding Safety?

Capturing Welding Smoke Directly at the Source

The biggest advantage of a fume extraction MIG gun is its source-capture capability. Traditional extraction systems often depend on fixed extraction arms, ceiling ventilation, or workshop air circulation. While these methods can help improve general air quality, they may not effectively remove fumes before workers breathe them.

A fume extraction MIG torch changes this process by collecting welding smoke immediately near the arc area. The extraction nozzle is positioned close enough to capture contaminants before they rise into the operator’s breathing zone.

This direct approach improves protection because welding fumes usually travel upward with hot air movement. Once fumes spread around the workshop, removing them becomes much more difficult and requires stronger ventilation systems.

A well-designed extraction torch creates a controlled airflow pattern around the welding area. The suction captures smoke particles while maintaining proper shielding gas coverage. This balance is extremely important because welding quality depends on protecting the molten weld pool from atmospheric contamination.

If extraction airflow is poorly designed, excessive suction may disturb shielding gas and cause weld defects such as:

• Porosity

• Poor bead appearance

• Reduced weld strength

• Increased rework requirements

Professional extraction torch designs therefore focus on optimizing:

• Nozzle distance from the arc

• Suction airflow rate

• Shielding gas protection

• Torch ergonomics

• Operator movement flexibility

The goal is simple: remove harmful fumes without changing the welder’s normal working habits.

Reducing Worker Exposure Without Affecting Welding Quality

Many welding professionals initially worry that adding an extraction system may make welding more difficult. They may ask questions like:

“Will the torch become too heavy?”

“Will suction affect my weld?”

“Will I lose flexibility during operation?”

These concerns are understandable because welders depend heavily on the feel and balance of their equipment. A welding torch is not just a tool; it is an extension of the operator’s hand.

Modern welding fume extraction torch designs focus heavily on ergonomics. Manufacturers are improving handle designs, reducing unnecessary weight, and developing flexible cable systems that allow natural movement.

A high-quality extraction torch should provide:

When properly designed and installed, extraction MIG guns allow welders to maintain the same welding performance while gaining additional protection.

This is especially important for professional welders who spend several hours every day performing continuous welding operations. Even small improvements in working conditions can have a significant impact on employee comfort, productivity, and long-term workplace satisfaction.

Key Advantages of Using Welding Fume Extraction Torches

Better Air Quality and Workplace Protection

One of the strongest reasons companies invest in welding fume extraction torches is the improvement in workplace air quality. Cleaner air creates a more comfortable environment where welders can focus on their work without constantly dealing with visible smoke and unpleasant odors.

Unlike general ventilation systems that remove contaminated air after it spreads, extraction torches prevent pollutants from entering the workshop environment in the first place.

This creates several operational benefits:

1. Improved worker comfort

A cleaner breathing environment helps welders feel more comfortable during long shifts. Reduced smoke exposure also improves visibility around the welding area, allowing operators to focus more easily on weld positioning and quality control.

2. Cleaner production facilities

Welding fumes can settle on equipment, tools, and factory surfaces. Over time, this creates additional cleaning requirements and may affect sensitive machinery. Direct extraction reduces the amount of airborne contamination throughout the facility.

3. Better workplace image

A clean and organized workshop creates a stronger impression for customers, employees, and business partners. Companies investing in modern safety equipment demonstrate that they value professional manufacturing standards.

4. Support for safety management goals

Many manufacturing companies are strengthening their occupational health programs. Welding fume extraction equipment supports these goals by providing an engineering control solution instead of relying only on personal protective equipment.

Higher Productivity and Lower Cleaning Costs

When companies evaluate welding equipment, they often focus on obvious factors such as welding speed, power output, and consumable costs. However, many manufacturers overlook the hidden costs caused by poor workplace air quality. Welding fumes can create additional expenses through increased cleaning requirements, equipment maintenance, production interruptions, and employee discomfort.

A welding fume extraction torch helps reduce these hidden costs by controlling contamination directly during the welding process. Because fumes are captured before spreading throughout the workshop, less airborne pollution settles on machinery, workbenches, and factory surfaces.

For industrial welding operations, this creates a cleaner production environment where workers spend less time cleaning and more time focusing on manufacturing tasks. In high-volume welding applications, even small improvements in efficiency can generate significant long-term savings.

Another important productivity advantage is improved welding visibility. Excessive smoke around the welding area can make it harder for operators to clearly observe the weld pool and maintain consistent welding techniques. By removing smoke near the arc, extraction torches help create a clearer working environment.

Better visibility can contribute to:

• More consistent weld quality

• Reduced welding defects

• Lower rework rates

• Improved production efficiency

• Faster operator training for new welders

A professional welding operation is not only measured by how quickly a company can produce welds but also by how consistently it can maintain quality. A cleaner environment supports better concentration and allows welders to perform at their best.

For companies managing large welding teams, employee retention is another important consideration. Welding is physically demanding work, and uncomfortable conditions can affect job satisfaction. Providing safer equipment demonstrates that the company values worker protection, which can contribute to a more stable and productive workforce.

How to Choose the Right Welding Fume Extraction Torch

Selecting the correct welding fume extraction torch requires more than simply choosing a model with strong suction. Different welding applications require different torch designs, current ratings, cooling methods, and extraction capabilities.

A suitable extraction torch should match the welding process, production requirements, and operator working conditions. Choosing the wrong torch may reduce efficiency, increase maintenance costs, or affect welding quality.

Before purchasing an extraction MIG gun, industrial buyers should consider several important factors.

Consider Welding Current, Duty Cycle, and Application

The first step is determining the required welding performance. Welding torches are designed for different current capacities, and selecting the correct rating ensures reliable operation.

For example, light fabrication jobs may require a lower-current extraction torch, while heavy industrial welding applications may require higher-capacity models with improved cooling performance.

Important specifications include:

A factory performing continuous welding for several hours per day should prioritize durability and thermal management. A torch that performs well for short welding tasks may not be suitable for demanding production environments.

The welding material is also important. Different metals produce different amounts and types of fumes. Welding stainless steel, aluminum, carbon steel, or coated materials may require different extraction strategies.

For example:

• Carbon steel welding may generate large amounts of iron oxide particles.

• Stainless steel welding may require stronger attention to metal oxide control.

• Aluminum welding requires careful balance between extraction airflow and shielding gas protection.

Understanding the application helps companies choose an extraction torch that provides effective fume removal without compromising weld performance.

Compare Extraction Performance and Torch Ergonomics

A common mistake when selecting a welding fume extraction torch is focusing only on suction power. Strong extraction does not automatically mean better performance. The best system is one that provides efficient fume capture while remaining comfortable for the welder.

Several design factors influence real-world performance:

1. Extraction Efficiency

The extraction nozzle should be positioned correctly to capture fumes close to the welding arc. A poorly designed nozzle may allow smoke to escape even if the extraction system has high airflow.

2. Torch Weight and Balance

Welders often operate torches for many hours. An unnecessarily heavy design can increase wrist and arm fatigue.

A balanced torch should feel natural in the operator’s hand and allow smooth movement during different welding positions.

3. Cable Flexibility

Cable stiffness can affect productivity, especially when welding large structures or complex components. Flexible cable assemblies improve operator mobility and reduce physical effort.

4. Maintenance Requirements

Industrial buyers should also consider replacement parts, consumable availability, and cleaning procedures. A torch that is easy to maintain can reduce downtime and operating costs.

The ideal extraction torch combines:

Strong fume capture + stable welding performance + comfortable operation + long service life

This combination is what makes modern extraction MIG guns valuable for professional welding environments.

Welding Fume Extraction Torch Applications Across Industries

Automotive Manufacturing and Metal Fabrication

The automotive industry is one of the largest users of MIG welding technology. Vehicle frames, exhaust systems, brackets, and structural components often require thousands of welding operations during production.

Because automotive manufacturing involves repetitive welding processes, controlling worker exposure to fumes is especially important. Production workers may spend many hours near welding stations every day, making effective fume management essential.

A welding fume extraction MIG gun can support automotive manufacturers by providing:

• Cleaner assembly lines

• Reduced airborne contamination

• Improved operator comfort

• Better production environments

• More efficient workstation management

Metal fabrication companies also benefit significantly from extraction torches. These businesses often handle customized projects where welders move between different positions and locations. Fixed extraction equipment may not always provide enough flexibility.

An extraction torch follows the welder’s movement, making it suitable for:

• Structural steel fabrication

• Machinery manufacturing

• Custom metal projects

• Repair welding

• Industrial maintenance

For small and medium-sized workshops, extraction torches can be especially attractive because they provide targeted fume control without requiring major facility modifications.

Shipbuilding, Heavy Equipment, and Industrial Welding

Heavy industries create unique challenges for welding fume management. Shipyards, construction equipment manufacturers, and large machinery factories often involve welding large components in open or semi-open environments.

In these situations, traditional ventilation systems may struggle because welding locations constantly change. Workers may weld inside structures, underneath equipment, or in difficult-access areas.

A portable fume extraction welding torch provides flexibility because the extraction point moves with the operator.

Common applications include:

• Ship component welding

• Heavy machinery manufacturing

• Steel structure assembly

• Industrial equipment repair

• Large-scale fabrication projects

In these industries, productivity and safety must work together. Companies cannot simply reduce production speed to control fumes. Instead, they need solutions that integrate protection into normal welding operations.

This is why source extraction technology is becoming increasingly popular among professional welding operations worldwide.

Welding Fume Extraction Torch vs Traditional MIG Torch

Many companies ask whether they should replace traditional MIG torches with extraction models. The answer depends on workplace requirements, but understanding the differences helps buyers make better decisions.

Traditional MIG torches remain suitable for many basic applications. However, for companies prioritizing workplace safety and cleaner production, extraction torches provide significant advantages.

The key difference is that traditional equipment treats fumes after they enter the environment, while extraction torches prevent wider distribution by capturing them immediately.

This source-control approach aligns with modern industrial trends toward safer, cleaner, and more sustainable manufacturing.

Common Questions About Welding Fume Extraction Systems

FAQ 1: What is a welding fume extraction torch?

A welding fume extraction torch is a specialized welding torch designed to remove harmful welding smoke during the welding process. It combines normal MIG/MAG welding functions with an integrated suction channel that captures fumes near the arc before they spread into the workplace.

FAQ 2: Does a fume extraction MIG gun affect weld quality?

A properly designed extraction MIG gun should not negatively affect welding quality. Professional designs balance extraction airflow with shielding gas protection to maintain stable arc performance and consistent weld results.

FAQ 3: Are welding fume extraction torches suitable for all industries?

Yes. Welding fume extraction torches can be used in many industries, including automotive manufacturing, metal fabrication, machinery production, shipbuilding, and industrial repair. The correct torch should be selected according to welding current, working conditions, and application requirements.

FAQ 4: How often should a welding fume extraction torch be maintained?

Maintenance frequency depends on usage intensity and working conditions. Regular inspection of extraction hoses, nozzles, consumables, and connections helps maintain stable performance and extend torch service life.

FAQ 5: Why are more companies choosing welding fume extraction solutions?

Companies are adopting extraction solutions because they improve workplace safety, reduce airborne contamination, support cleaner production goals, and provide a more comfortable environment for professional welders.

Conclusion: Why Welding Fume Extraction Torches Are the Future of Safer Welding

The welding industry is moving toward a future where productivity and worker protection must exist together. A welding fume extraction torch provides a practical solution by capturing harmful fumes directly at the source while allowing welders to maintain normal working processes.

Compared with traditional ventilation methods, extraction MIG guns offer greater flexibility, improved source control, and better protection for modern welding environments. They help companies create cleaner workshops, reduce contamination, improve employee comfort, and support long-term manufacturing efficiency.

For businesses involved in welding production, investing in advanced fume extraction equipment is not only about meeting safety expectations. It is also about building a more efficient, sustainable, and professional manufacturing environment.
